Panasonic NV-VP33EB Manuel utilisateur

Before connecting the device, operating it or adjusting settings please read these operating instructions

completely; especially the safety precautions on pages 2 and 3.

Safety Precautions 2-3

Included Assessories / Sales and Support Information 4

Front Panel / Sockets 6-7

Remote control functions 8-10

Connecting with 21-pin Scart cable 11

Connecting with Audio-Videocable 12

Connecting with RF cable 14-15

Connecting to Satellite Receiver, Set Top Box 16-17

DVD-Connectors 18-19

Checking the Settings after Auto Setup 20

VCR menu control 22

VCR Playback / Tracking control 23-24

General convenient functions / Tape Care 25-26

Recording 27-32

Timer recording 28-29

Recording with INTELLIGENT TIMER 30

Recording with VIDEO Plus+ 31-32

Recording with external recording controls 33

Manual Functions 34-39

Manual Tuning / Changing the name of TV stations 34

Changing the order of TV stations or deleting a station 35

Creating a new station table 35

Shipping condition / factory defaults 35

Others menu / Owner ID /QUICK ERASE 36-37

Clock setting / NICAM sound system 38-39

DVD-QUICK SETUP 40

DVD Playback functions 41-44

VCR-DVD functions 45

Navigation Menu 46-47

HighMAT / CD Text 48

Functions menu 49-53

SETUP menus 54-55

Information 56-57

Country codes 58

Before requesting service 59-61

Specifications 63

Index last page

Remote Remote Control - Codes / Inserting batteries

VCR Auto Setup 13

VCR Auto Setup with RF cable

Removing Interference / Changing RF-output channel 21

21-pin Scart Socket 62

DVD/CD Player / Video Cassette Recorder

Operating Instructions

NV-VP33EB/EBL

(Model suffix: 'EB' for UK model, 'EBL' for Ireland model)

Contents Page

DUBBING

Important Safety Warnings

!The moulded three pin mains plug is supplied for your safety and convenience and must

NOT be cut off.

!A 5 amp fuse is fitted in the mains

plug. If the fuse has to be replaced,

it must be of the same rating and

approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the

BSI mark on the body of the fuse.

!To prevent electric shock, do not remove cover. No user serviceable parts inside.

Refer servicing to qualified service engineer only.

!Do not insert metal object into the slots or openings of the unit.

!This unit is not disconnected from a.c. mains while it remains connected

to a live mains outlet, even if it has been turned off.

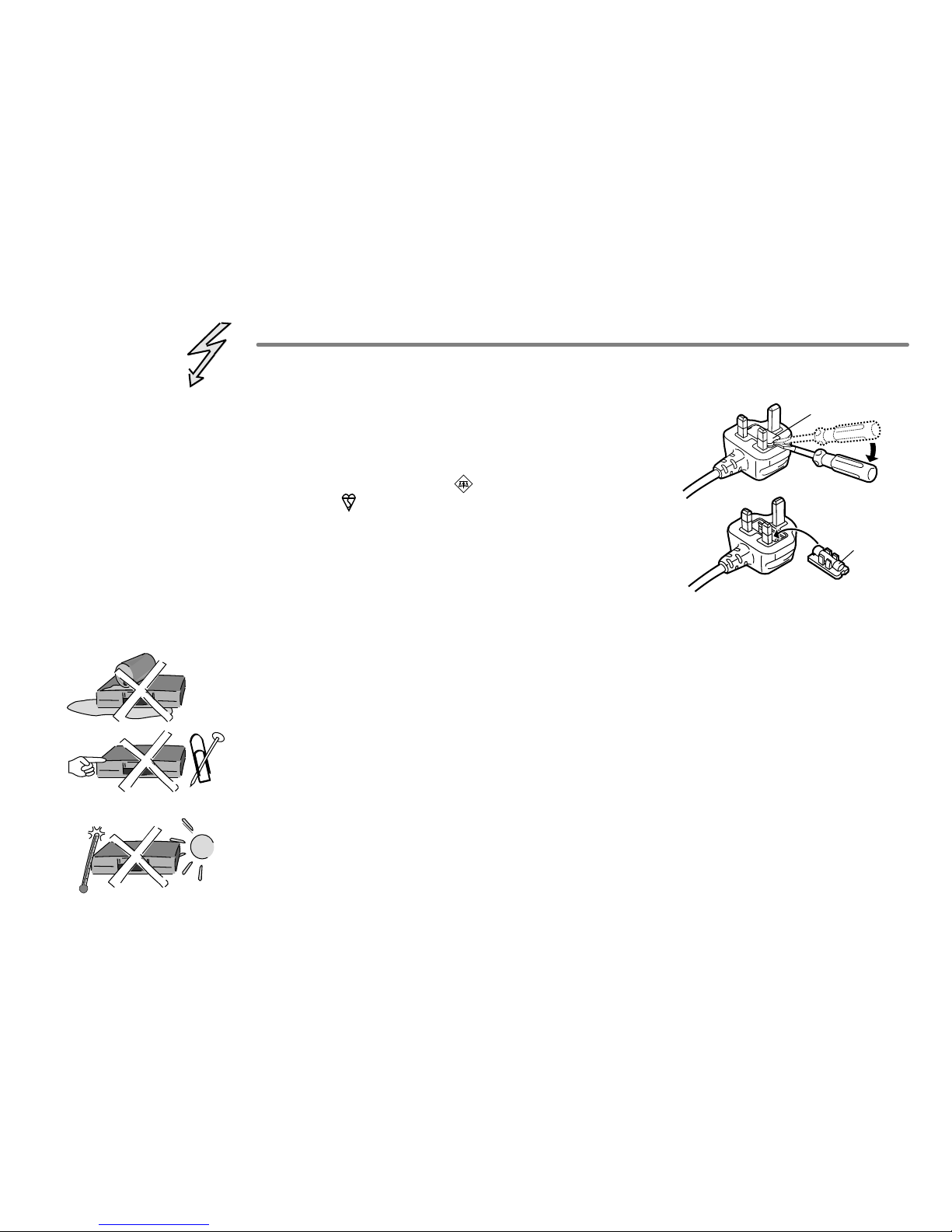

1.Open the fuse

cover with a

screwdriver.

Fuse cover

Fuse

(5 ampere)

2.Replace the

fuse and close

or attach the

fuse cover.

To replace the fuse, open the fuse

compartment with a screwdriver as

shown and replace the fuse and the

cover securely.

!WARNING: To reduce the risk of fire, electric shock or product damage, do not expose

this apparatus to rain, moisture, dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

!The socket outlet shall be installed near the equipment and easily accessible or the mains

plug or an appliance coupler shall remain readily operable.

!This unit is intended for use in moderate climates.

Caution

!Avoid exposing the unit to direct sunlight or other heat sources.

!Avoid sudden change in temperature or humidity, dew or condensation may

form, causing malfunction.

!Dispose of batteries in accordance with the instructions given in this book.

!Place the unit on a flat, stable surface. Do not place heavy object on top of the unit.

!Your attention is drawn to the fact that recording of pre-recorded tapes or discs

or other published or broadcast materials may infringe copyright laws.

!This unit is designed for indoor use only.

!Do not use in area with strong magnetic fields, e.g. near transmitting antenna.

!This product may receive radio interference caused by mobile telephones during

use. If such interference is apparent, please increase separation between the

product and the mobile telephone.

!Do not install or place this unit in a bookcase, built-in cabinet or in another

confined space. Ensure the unit is well ventilated. To prevent risk of electric

shock or fire hazard due to overheating, ensure that curtains and any other

materials do not obstruct the ventilation vents.

!Do not obstruct the unit’s ventilation openings with newspapers, tablecloths,

curtains, and similar items.

!Do not place sources of naked flames, such as lighted candles, on the unit.

!Dispose of batteries in an environmentally friendly manner.

!This product utilizes a laser. Use of controls or

adjustments or performance of procedures

other than those specified herein may result in

hazardous radiation exposure. Do not open

covers and do not repair yourself.

Refer servicing to qualified personnel.

Care and Maintenance

!The cabinet can be wiped clean with a damp cloth, disconnect from mains before

cleaning. Do not use detergent or solution containing benzol or petroleum.

!Video heads clogging can occur with use, when this happens picture and sound

will become distorted during playback. Purchase a head cleaning tape or consult

your dealer. Note that video head cleaning is not covered by the warranty.

Inside of product

Back of product, see page 7.

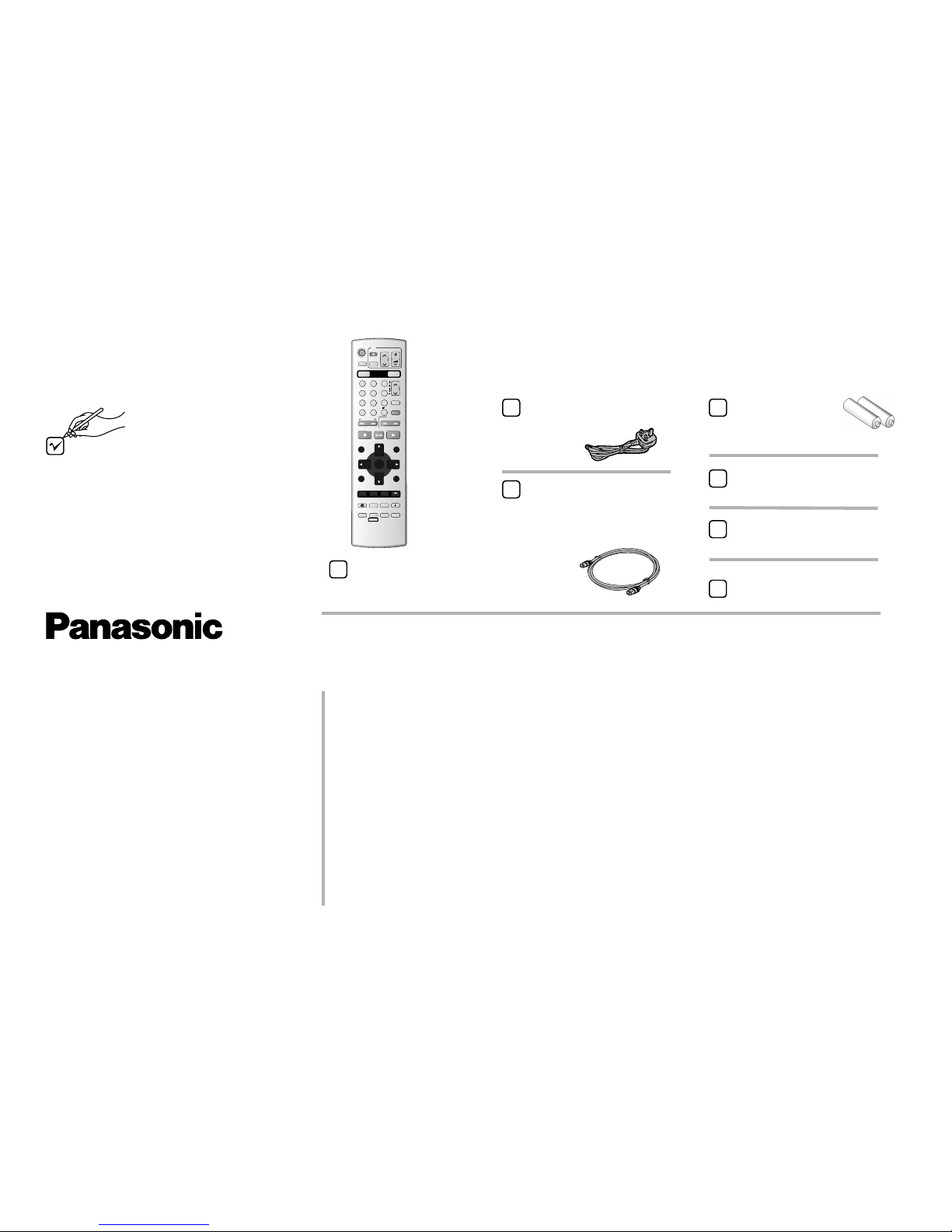

Included Accessories

Check that you have

the accessories and

items shown

Quick Start Guide

RQCAD0018

AC Mains Lead

RJA0044-3C

RF cable

Batteries for the

Remote Control

R6 size

Operating Instructions

RQTD0144-B

Guarantee Card

ccessories

Included

Remote control

EUR7720X60

K2KF2BA00001, VJA0728-A

or K1TWACC00001

Direct Sales at Panasonic UK

!Order accessory and consumable items for your product with ease and

confidence by phoning our Customer Care Centre

Monday - Thursday 9:00am - 5:30pm; Friday 9:30am - 5:30pm (Excluding

public holidays).

!Or go on line through our Internet Accessory ordering application at

www.panasonic.co.uk

!Most major credit and debit cards accepted.

!All enquiries, transactions and distribution facilities are provided directly by

Panasonic UK Ltd.

!It couldn´t be simpler!

!Also available through our internet is direct shopping for a wide range of

finished products, take a browse on our website for further details.

Sales and Support Information

Customer Care Centre

!For customers within the UK:

08705 357357

!For customers within the

Republic of Ireland:

01 289 8333

!Visit our website for product

information: www.panasonic.co.uk

!E-mail:

customer.care@panasonic.co.uk

ENTER

123

456

789

0-/--

VHS/DVD TV

AUDIO

VOLUME

OPERATION

SELECT

DVD

VHS

TRACKING/V-LOCK

VIDEO Plus+

INPUT

REPEAT

CANCEL/RESET

INDEX/SKIP SLOW/

REW FF

PLAY

STOP

PAUSE

DIRECT NAVIGATOR

PLAYLIST

TOP MENU

FUNCTIONS EXIT

RETURN

PROG/CHECK

I-TIMER

PLAY MODE

SETUP

TIMER DVD-RAM

DUBBING

REC MODE

REC

EXT LINK

OFF TIMER

CINEMA MODE

VHS STATUS

DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP

Panasonic

VHS/DVD/TV

EUR7720X60

PROG

PLAY JETREW

A B

SLOW

Remote

Brand Code Brand Code Brand Code Brand Code

Panasonic 01-04,45 GOODMANS 05,06,31 NOKIA 25-27 SANYO 21

AIWA 35 GRUNDIG 09 NORDMENDE 10 SBR 06

AKAI 27,30 HITACHI 22,23,31,40-42 ORION 37 SCHNEIDER 05,06,29-31

BLAUPUNKT 09 INNO HIT 34 PHILIPS 05,06 SELECO 06,25

BRANDT 10,15 IRRADIO 30 PHONOLA 31,33 SHARP 18

BUSH 05,06 ITT 25 PIONEER 38 SIEMENS 09

CURTIS 31 JVC 17,39 PYE 05,06 SINUDYNE 05,06,33

DESMET 05,31,33 LOEWE 07 RADIOLA 05,06 SONY 08

DUAL 05,06 METZ 28,31 SABA 10 TELEFUNKEN 10-14

ELEMIS 31 MITSUBISHI 06,19,20 SALORA 26 THOMSON 44

FERGUSON 10 MIVAR 24 SAMSUNG 31,32,43 TOSHIBA 16

GOLDSTAR/LG 31 NEC 36 SANSUI 05,31,33 WHITE WESTINGHOUSE 05,06

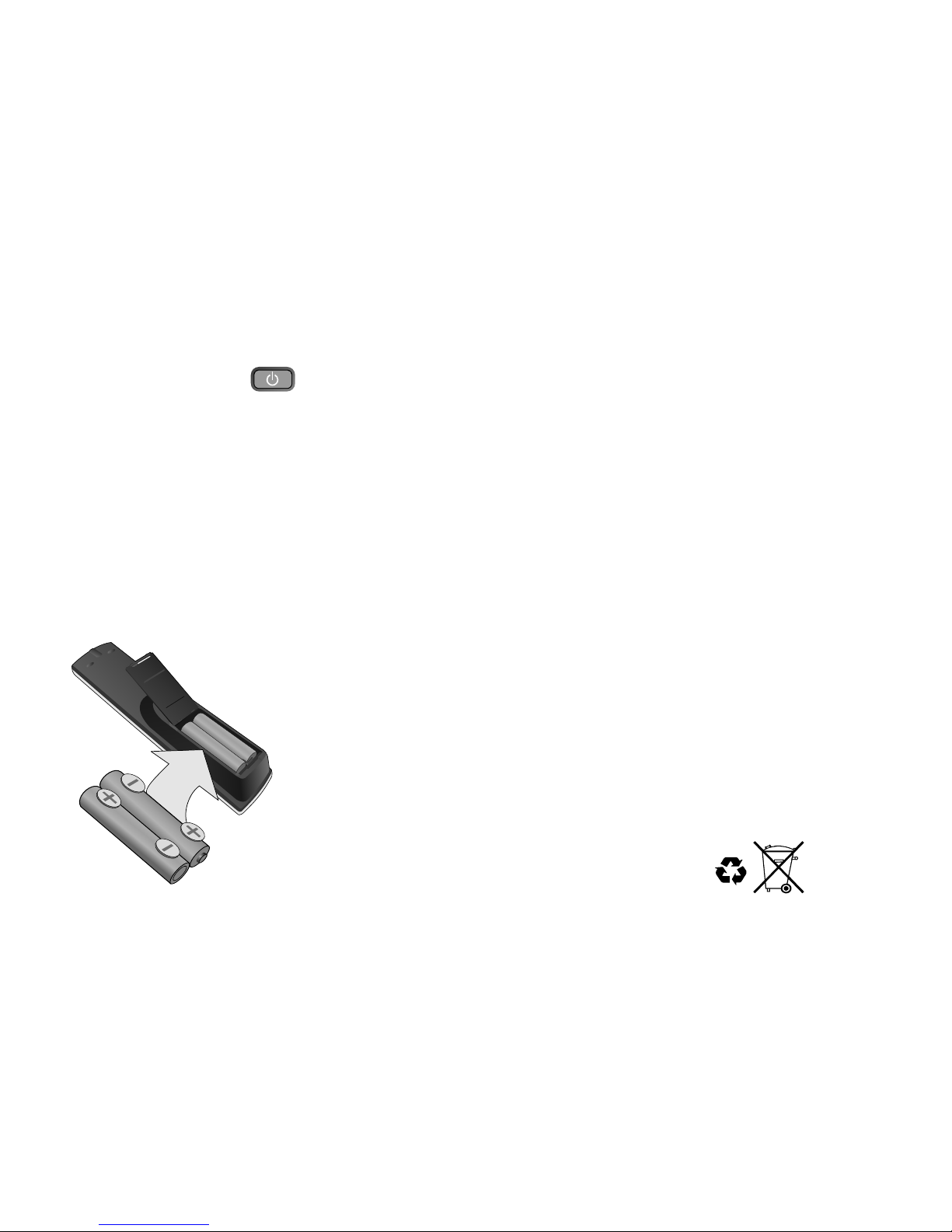

Inserting batteries into the remote control unit:

The batteries last for about a year, depending on how often you use the RC unit.

!Do not mix old with new batteries or batteries of different types.

!Only use batteries without any harmful substances (such as lead, cadmium, mercury).

!Do not use rechargeable type batteries.

!Remove the batteries if the remote control unit will remain unused for longer

periods of time.

!Do not heat or short-circuit the batteries.

!Immediately remove used-up batteries and replace with batteries

of type AA, UM3 or R6.

!Be sure to put in the batteries the right way round (+and -).

Dispose of batteries, packaging material and the unit

according to statutory regulations. They must not

be thrown into the household refuse.

!Some television set models of the

listed manufacturers can not be

operated using this remote

control.

Remote Control - Codes

You may operate television sets with this remote control, by changing its code.

!Press and hold TV Stand-by/on switch.

!Enter your television set’s two-digit code. If the television set does not operate

correctly, try entering an alternative code.

This set up must be repeated after changing batteries.

DUBBING

VCR Display DVD Display

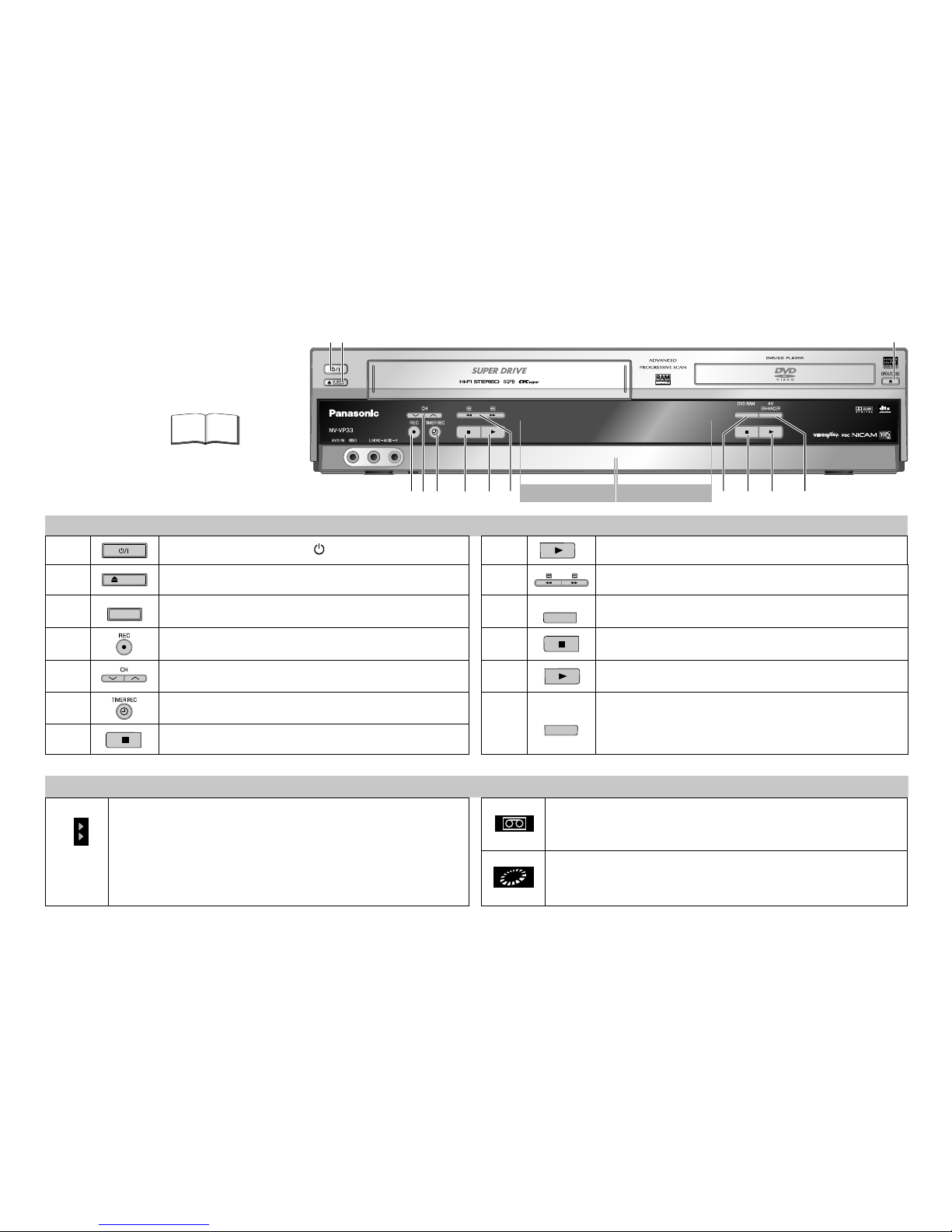

Front Panel

1 2 3

4567910 11 13

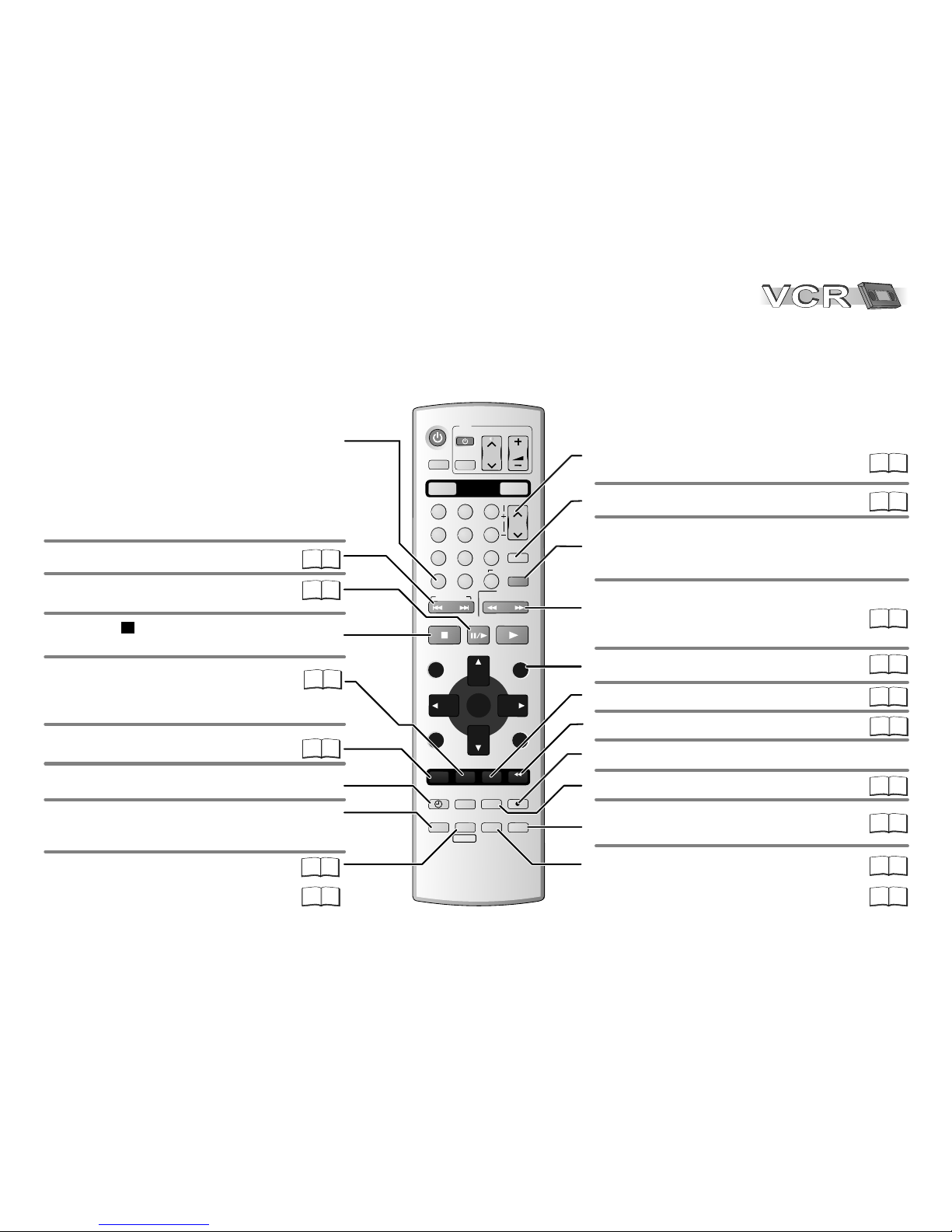

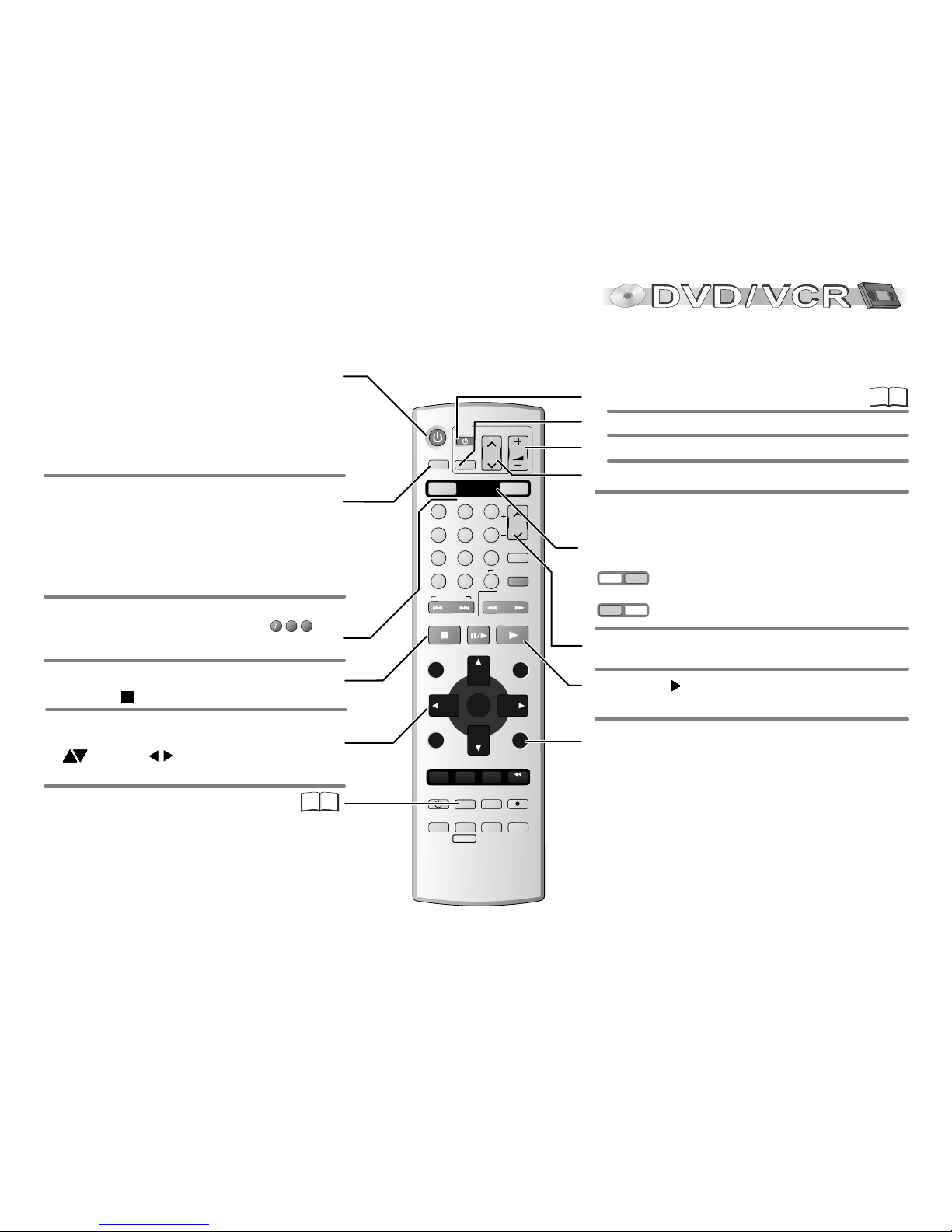

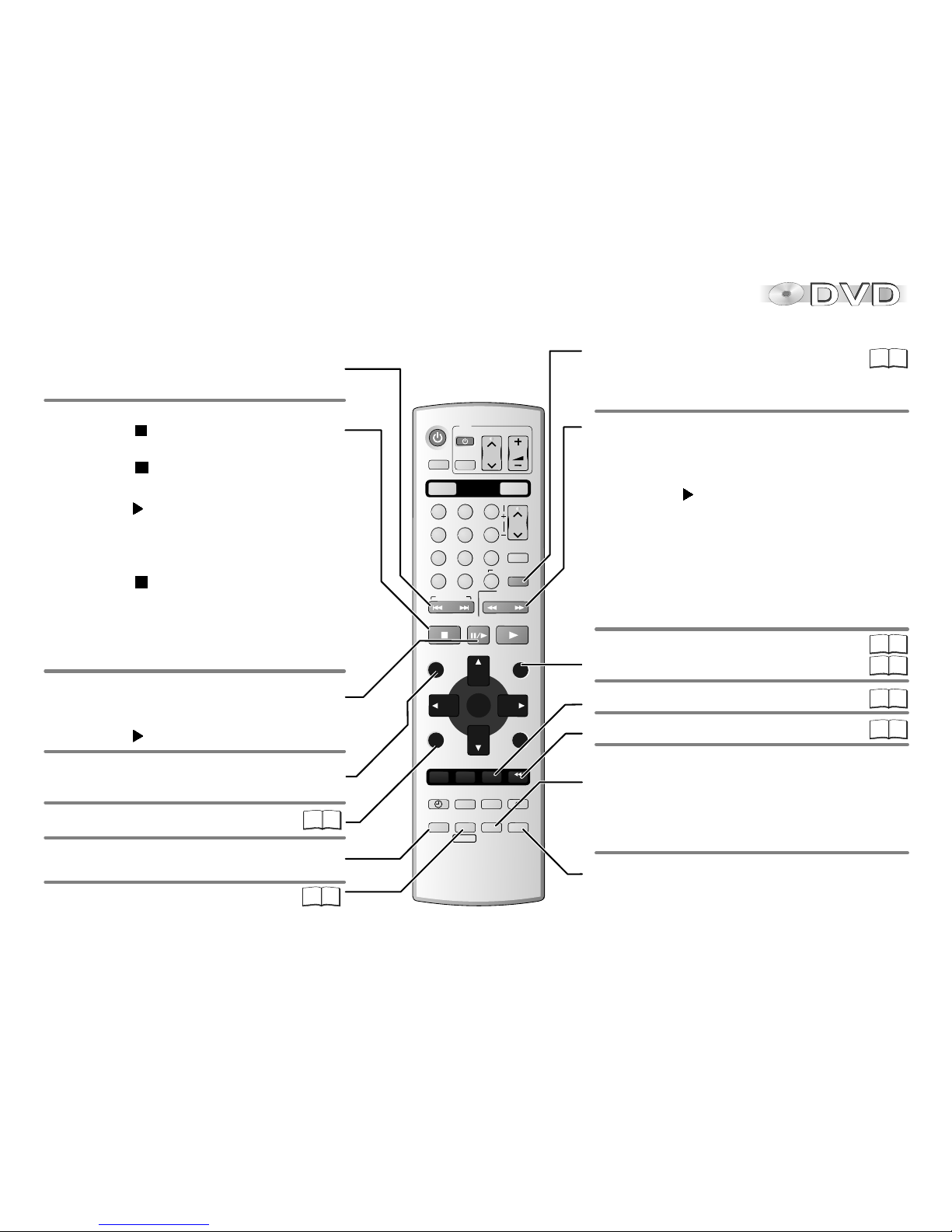

Device control

Standby/on switch /I

Selects a channel.

To eject a video cassette.

Fast winding / JET SEARCH

VCR Stop button

VCR Playback button

Record button

Activates the recording timer.

DVD Stop button

DVD Playback button

Opens and closes the disc tray.

812

OPEN / CLOSE

EJECT

Automatically optimises and adapts the audio and video

settings to the disc used. The Picture and Audio menus

are not available when this function is enabled.

VCR= Video Cassette Recorder

Page

Detailed information

is available on the

specified pages.

Display

DVD-RAM

DUBBING

ENHANCER

To copy a DVD RAM to VHS cassette.

Active picture signal.

This symbol appears next to the symbol for video cassette

or disc in the VCR or DVD display.

The picture signal is toggled using the VHS / DVD toggle

switches.

A disc is in. The logo is animated when a function such as

playback or picture search is being performed.

A video cassette is in. The logo is animated when a function

such as playback or forward/rewind is being performed.

DVD OUT

COMPONENT VIDEO OUT

(PROGRESSIVE/

INTERLACE)

DVD/VHS

COMMON OUT

COAXIAL

DIGITAL AUDIO OUT

AUDIO

VIDEO

YPB

AV1

(TV)

AV2

(EXT)

AUDIO

RF IN

RF OUT

VIDEO

OUT AUDIO OUT

External equipment

(e.g. Video movie camera)

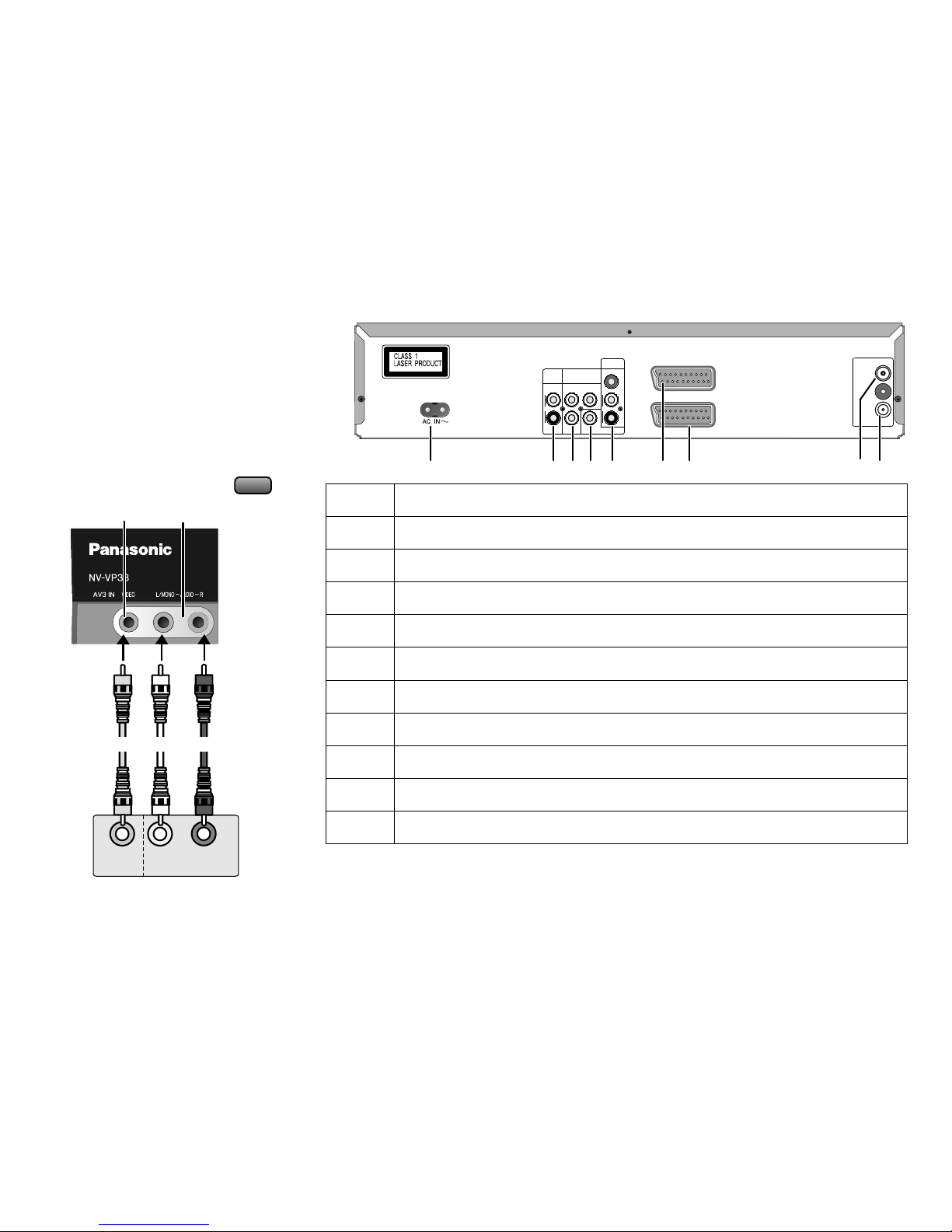

Sockets

AC Input socket (Power supply)

L = AUDIO output left channel

R = AUDIO output right channel

DVD/VHS COMMON OUT socket

AV2 21-pin Scart socket

AV1 21-pin Scart socket

RF IN socket (Aerial input)

RF OUT socket (Aerial output)

DVD AUDIO OUT socket

COAXIAL DIGITAL AUDIO OUT socket

AV3 VIDEO IN socket

AV3 AUDIO IN socket L = AUDIO input left channel (Mono)

R = AUDIO input right channel

123456789

1110

AudioVideo

Connect your external unit (e.g. a video

camcorder) with the front panel input.

Just seize the L/Mono port for mono

recording of the audio signal.

Use INPUT to select A3.

Connection to AV3 (front panel)

INPUT

REPEAT

L = AUDIO output left channel

R = AUDIO output right channel

COMPONENT VIDEO OUT socket (Progressive / Interlace)

ENTER

123

456

789

0-/--

VHS/DVD TV

AUDIO

VOLUME

OPERATION

SELECT

DVD

VHS

TRACKING/V-LOCK

VIDEO Plus+

INPUT

REPEAT

CANCEL/RESET

INDEX/SKIP SLOW/

REW FF

PLAY

STOP

PAUSE

DIRECT NAVIGATOR

PLAYLIST

TOP MENU

FUNCTIONS EXIT

RETURN

PROG/CHECK

I-TIMER

PLAY MODE

SETUP

TIMER DVD-RAM

DUBBING

REC MODE

REC

EXT LINK

OFF TIMER

CINEMA MODE

VHS STATUS

DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP

Panasonic

VHS/DVD/TV

EUR7720X60

PROG

PLAY JET REW

A B

SLOW

Stand-by/on switch

Press to switch the unit from on to stand-by mode

or vice versa. In stand-by mode, the unit is still

consuming a small amount of power.

Remote control

VHS

DVD

VHS

DVD

Switching this appliance into stand-by mode does

not disconnect it from the mains.

Direct input via numeric key pad (18= )

DVD functions (blue labels) are enabled.

TV set AV input selection.

TV set Stand-by/on switch.

To select the respective TV program memory location.

TV set volume control.

Quits a menu.

CANCEL/RESET: Undoes entries or selections

To eject cassette or disc

Press STOP for more than 3 seconds.

Channel selector

Numeric keypad

Press PLAY to start playback.

General functions

To copy a DVD RAM to VHS cassette.

VCR functions are enabled.

Press the button a couple of times to select

Sound mode.

VCR: stereo (L R), left channel (L -),

right channel (- R), mono (- -) playback

DVD: Select the appropriate audio channel (L R) or

track, which depends on the disc you use

TV functions

OSD menu selection buttons.

DVD: to select JPEG, WMA or MP3 groups

( ) or titles

!ENTER: Selects or saves a setting.

().

Remote control's VHS/DVD toggle switches to toggle

between VCR and DVD functions and to switch

between VCR and DVD picture.

ENTER

123

456

789

0-/--

VHS/DVD TV

AUDIO

VOLUME

OPERATION

SELECT

DVD

VHS

TRACKING/V-LOCK

VIDEO Plus+

INPUT

REPEAT

CANCEL/RESET

INDEX/SKIP SLOW/

REW FF

PLAY

STOP

PAUSE

DIRECT NAVIGATOR

PLAYLIST

TOP MENU

FUNCTIONS EXIT

RETURN

PROG/CHECK

I-TIMER

PLAY MODE

SETUP

TIMER DVD-RAM

DUBBING

REC MODE

REC

EXT LINK

OFF TIMER

CINEMA MODE

VHS STATUS

DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP

Panasonic

VHS/DVD/TV

EUR7720X60

PROG

PLAY JET REW

A B

SLOW

Remote control

Video Plus+ menu

Video recording

Displays the VCR menu.

Sets the tape speed.

Switches the unit into stand-by mode after the

set time.

B: Move tagged station.

To record using the external recording

level control.

Goes from Stop into Fast Forward or Fast

Rewind mode. Forward and backward search

during playback.

Tracking control of disturbed

images during playback

AV input select button

Pressing the INPUT button a couple of times will

select A1, A2, A3 (front) or dc (DVD internal).

For fast rewinding to the beginning of the tape.

Cinema Mode

A: To delete tagged station.

VCR functions

Press STOP to stop recording,

playing back or winding.

Finding the start of a recording.

Plays back programmed recordings.

Defines programmes transmitted to

the same program memory location

at the same time.

To display the Timer recording menu.

Activates the recording timer.

Pause a recording session.

Still or slow motion playback.

Tape counter

The tape counter will be automatically reset to

[0:00:00] when you insert a video cassette.

!Or you can press the CANCEL/RESET button on

the remote control unit to manually reset the tape

counter to [0:00:00].

Press the button repeatedly to display

the time, tape counter or remaining tape.

ENTER

123

456

789

0-/--

VHS/DVD TV

AUDIO

VOLUME

OPERATION

SELECT

DVD

VHS

TRACKING/V-LOCK

VIDEO Plus+

INPUT

REPEAT

CANCEL/RESET

INDEX/SKIP SLOW/

REW FF

PLAY

STOP

PAUSE

DIRECT NAVIGATOR

PLAYLIST

TOP MENU

FUNCTIONS EXIT

RETURN

PROG/CHECK

I-TIMER

PLAY MODE

SETUP

TIMER DVD-RAM

DUBBING

REC MODE

REC

EXT LINK

OFF TIMER

CINEMA MODE

VHS STATUS

DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP

Panasonic

VHS/DVD/TV

EUR7720X60

PROG

PLAY JET REW

A B

SLOW

Random Playback/Program Playback

Remote control

Scene replay (not with +R/+RW media)

!Press QUICK REPLAY during playback.

Every push of the button replays a couple of

seconds of the current track or programme.

However, you cannot go back to before the

beginning of a title.

DQUICK REPLAY is not supported by all discs.

Displays the SETUP menu.

Displays the menu.

Displays a Playlist

Pause playback (still image)

!Press PAUSE during playback.

Playback stops at the current picture frame.

!Press PLAY to resume playback.

Slow motion (backwards/forwards)

!Press SLOW in Pause mode.

Keeping the button pressed increases the speed of

search at 5 steps.

!Press PLAY to resume normal playback.

!Press SEARCH during playback.

Keeping the button pressed increases the speed

of search at 5 steps.

DVCDs do not support reverse slow motion playback.

Repeat

!Press REPEAT during playback.

There is no mode for repeatedly playing back

entire discs.

For some disc formats

not all of the described

DVD functions are

available.

Displays the main menu.

Displays the DVD-RAM menu.

Stop playback

!Press STOP twice.

Resume

!Press STOP during playback

to store the current position on the disc.

DOpening the disc tray or the unit going into

stand-by mode also clears the stored position

on the disc.

Skip chapters, titles or frames

!Press SKIP during playback or in pause mode.

DVD functions

To display the Functions menu

Manual Skip

Playback jumps forward 30 seconds each time this

button is pressed.

(not with +R/+RW media)

Displays time or chapter/title or content/group

when pressed again.

Hides the playback status display.

Cancel the Resume function

!Press STOP until the disc logo in the

display is no longer blinking.

!Press PLAY while the disc logo in the display

is blinking. Playback will be resumed at the

point where you stopped it.

Autres manuels pour NV-VP33EB

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Combo DVD/magnétoscope

Panasonic

Panasonic PVD4753S - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PVD4752 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic NV-VP30EB Manuel utilisateur

Panasonic

Panasonic NV-VP33EB Manuel utilisateur

Panasonic

Panasonic DoubleFeature PV-D4754S Manuel utilisateur

Panasonic

Panasonic PVD4753S - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PVD4762 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic NV-VP33 Series Manuel utilisateur

Panasonic

Panasonic PV-D4763SK Manuel utilisateur

Panasonic

Panasonic NV-VP31EB Manuel utilisateur

Panasonic

Panasonic DVD-RV20 Manuel utilisateur

Panasonic

Panasonic PVD4752 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PV-D4735 Manuel utilisateur

Panasonic

Panasonic DoubleFeature PV-D4734S Manuel utilisateur

Panasonic

Panasonic PV-D4734S-K Manuel utilisateur

Panasonic

Panasonic AGVP320 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PV-D4753SK Manuel utilisateur

Panasonic

Panasonic NV-VP33 Series Manuel utilisateur

Panasonic

Panasonic AGVP320 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic AGVP310 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PV-D4733S-K Manuel utilisateur

Panasonic

Panasonic PVD4743 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic PVD4762 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic OmniVision PV-D4745 Manuel utilisateur

Manuels Combo DVD/magnétoscope populaires d'autres marques

Samsung

Samsung DVD-V2000 Manuel utilisateur

Toshiba

Toshiba D-VR3SG Manuel utilisateur

Sharp

Sharp DV-NC230SB Manuel utilisateur

Samsung

Samsung DVD-V5500 Manuel utilisateur

Seg

Seg DVRC 600 Manuel utilisateur

Memorex

Memorex MVD4540C Manuel utilisateur

JVC

JVC HR-XVC29SUM Manuel utilisateur

JVC

JVC DR-MV1BEK Guide de l'administrateur

Samsung

Samsung DVD-V9090 Manuel utilisateur

Samsung

Samsung DVD-V5450 Manuel utilisateur

Samsung

Samsung DVD-V55K Manuel utilisateur

Pioneer

Pioneer DV-PT100-S Manuel utilisateur

Toshiba

Toshiba DVR610 - DVDr/ VCR Combo Manuel utilisateur

Toshiba

Toshiba SD-K531SU Manuel utilisateur

JVC

JVC HR-XVS20AA Manuel utilisateur

Toshiba

Toshiba RDXV60KB Manuel utilisateur

Toshiba

Toshiba D-VR600 - DVDr/ VCR Combo Manuel utilisateur

Magnavox

Magnavox ZV457MG9 A Manuel utilisateur
