ORDER NO. ODSD010308A1

B12

DVD Player

DVD-RV26

Colour

(K).......................Black Type

Area

U.........................U.S.A..

Please file and use this manual together with the service manual for

Model No. DVD-RV31U-K, Order No. ODSD010203C1.

SPECIFICATIONS

Specifications

Power supply: AC120 V, 60 Hz

Power consumption: 14 W

Dimensions: 430 (W)×247 (D)×82 (H) mm

(excluding protrusions)

Mass: 2.6 kg (5.7 lb.)

Signal system: NTSC

Operating temperature range: +5 to +35°C (+41 to +95°F)

Operating humidity range: 5-90 % RH (no condensation)

Discs played:

(1) DVD-Video disc

(2) Compact disc (CD-DA, Video CD)

(3) CD-R/CD-W

Video output:

Output level: 1 Vp-p (75 )

Output terminal: Pin jack (1 system)

S video output:

Y output level: 1 Vp-p (75 )

C output level: 0.286 Vp-p (75 )

Output terminal: S terminal (1 system)

Component video output:

Y output level: 1 Vp-p (75 )

PBoutput level: 0.7 Vp-p (75 )

PRoutput level: 0.7 Vp-p (75 )

Output terminal: Pin jack

(Y: green, PB: blue, PR: red)

Audio output:

Output level: 2 Vrms (1 kHz, 0 dB, 10K

load impedance)

Output terminal:

5.1ch discrete output

(5.1ch):

Pin jack (1 system)

Subwoofer output: Pin jack (1 system)

Audio signal output characteristics:

(1) Frequency response:

DVD (linear audio): 4 Hz-22 kHz (48 kHz

sampling)

4 Hz-44 kHz (96 kHz

sampling)

CD audio: 4 Hz-20 kHz

(2) S/N ratio:

CD audio: 115 dB

(3) Dynamic range:

DVD (linear audio): 102 dB

CD audio: 98 dB

(4) Total harmonic distortion:

CD audio: 0.0025 %

Digital audio output:

Optical digital output: Optical terminal

Pickup

Wave length: 658 nm/790 nm

Laser power: CLASS 2a/CLASS 1

Power consumption in standby mode:

approx. 2 W

Notes:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

1. Replacement Parts List

Notes:

*Important safety notice:

Components identified by mark have special characteristics important for safety.

Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound

(capacitors), low-noise (resistors), etc. are used.

*When replacing any of components, be sure to use only manufactureris specified parts shown in the

parts list.

*The parenthesized indications in the Remarks columns specify the areas. (Refer to the cover page for

area.)

Parts which these indications can be used for all area.

*Warning: This product uses a laser diode. Refer to caution statements.

*ACHTUNG: Die lasereinheit nicht zerlegen. Die lasereinheit darf nur gegen enic vom hersteller

spezifizierte einheit ausgetauscht werden.

*Capacity values are in microfarads ( F) unless specified otherwise, P=Pico-farads (pF), F=Farads

(F)

*Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM), 1M=1,000k (OHM)

*The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation

of this assembly in production, the item will continue to be available for a specific period of time. The

retention period of availability is dependant on the type of assembly, and in accordance with the laws

governing part and product retention. After the end of this period, the assembly will no longer be

available.

*[SPC] in Remarks columns parts that are supplied by S.P.C..

1.1. Change in Replacement Parts List

Mentioned in the parts list is only those different from Model No. DVD-RV31U-K

Ref. No. Change of Part No. Part Name & Description Pcs Remarks

DVD-RV31U-K DVD-RV26U-K

16 RYP0988-K RYP0988A-K FRONT PANEL UNIT 1 1 [SPC]

PC1 RPG5233 RPG5376 PACKING CASE 1 [SPC]

H010300000TK/TH

ORDER NO.ODSD010307C2

DVD Player

DVD-RV31 / DVD-RV41

Colour

(S).......................Silver Type

(K).......................Black Type (RV31 Only)

Area

E.........................Europe

EB.......................Great Britain

EG.......................Germany and Poland, etc.

SPECIFICATIONS

Specifications

Power supply: AC220-240 V, 50 Hz

Power consumption: 14 W

Dimensions: 430 (W)×247 (D)×82 (H) mm

(excluding protrusions)

Mass: 2.6 kg

Operating temperature range: +5 to +35°C

Operating humidity range: 5-90 % RH (no condensation)

Discs played: DVD-Video

Compact disc (CD-DA, Video

CD)

CD-R/CD-W (CD-DA, VIdeo

CD format discs)

Signal system: PAL 625/50, PAL 525/60,

NTSC

Video output:

Output level: 1 Vp-p (75 )

Output connector: Pin jack (1 system)/

AV1/AV2 (DVD-RV41)

AV1 (DVD-RV31)

S video output:

Y output level: 1 Vp-p (75 )

C output level: NTSC; 0.286 Vp-p (75 )

PAL; 0.300 Vp-p (75 )

Output connector: S terminal (1 system)/

AV1 (DVD-RV41)

AV (DVD-RV31)

RGB video output:

R output level: 0.7 Vp-p (75 )

G output level: 0.7 Vp-p (75 )

B output level: 0.7 Vp-p (75 )

Output connector: AV1

Number of connectors: 1 system

Audio output:

Output level: 2 Vrms (1 kHz, 0 dB)

Output connector: Pin jack/

AV1/AV2 (DVD-RV41)

AV1 (DVD-RV31)

Number of connectors:

2ch: 1 system

5ch discrete output (5.1ch): 1 system (DVD-RV41)

Subwoofer output (0.1ch): 1 system (DVD-RV31)

Audio signal output characteristics:

(1) Frequency response:

DVD (linear audio): 4 Hz-22 kHz (48 kHz

sampling)

4 Hz-44 kHz (96 kHz

sampling)

CD audio: 4 Hz-20 kHz

(2) S/N ratio:

CD audio: 115 dB

(3) Dynamic range:

DVD (linear audio): 102 dB

CD audio: 98 dB

(4) Total harmonic distortion:

CD audio: 0.0025 %

Digital audio output:

Optical digital output: Optical terminal

Pickup

Wave length: 658 nm/790 nm

Laser power: CLASS 2a/CLASS 1

NORSK

Pickup

Blgelende:

658 nm/790 nm

Laser-styrke:

lngen farlig str lning

sendes ut KLASSE 2a/

KLASS E 1

Power consumption in standby mode:

approx. 4 W

Notes:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

Unauthorized copying and distribution is a violation of law.

1. SAFETY PRECAUTIONS

1.1. GENERAL GUIDELINES

1. When servicing, observe the original lead dress. If a short circuit is

found, replace all parts which have been overheated or damaged by

the short circuit.

2. After servicing, see to it that all the protective devices such as

insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following leakage current checks to prevent

the customer from being exposed to shock hazards.

1.1.1. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two prongs on

the plug.

2. Measure the resistance value, with an ohmmeter, between the

jumpered AC plug and each exposed metallic cabinet part on the

equipment such as screwheads, connectors, control shafts, etc. When

the exposed metallic part has a return path to thechassis, the reading

should be between 1M and 5.2M . / When the exposed metal does

not have a return path to the chassis, the reading must be .

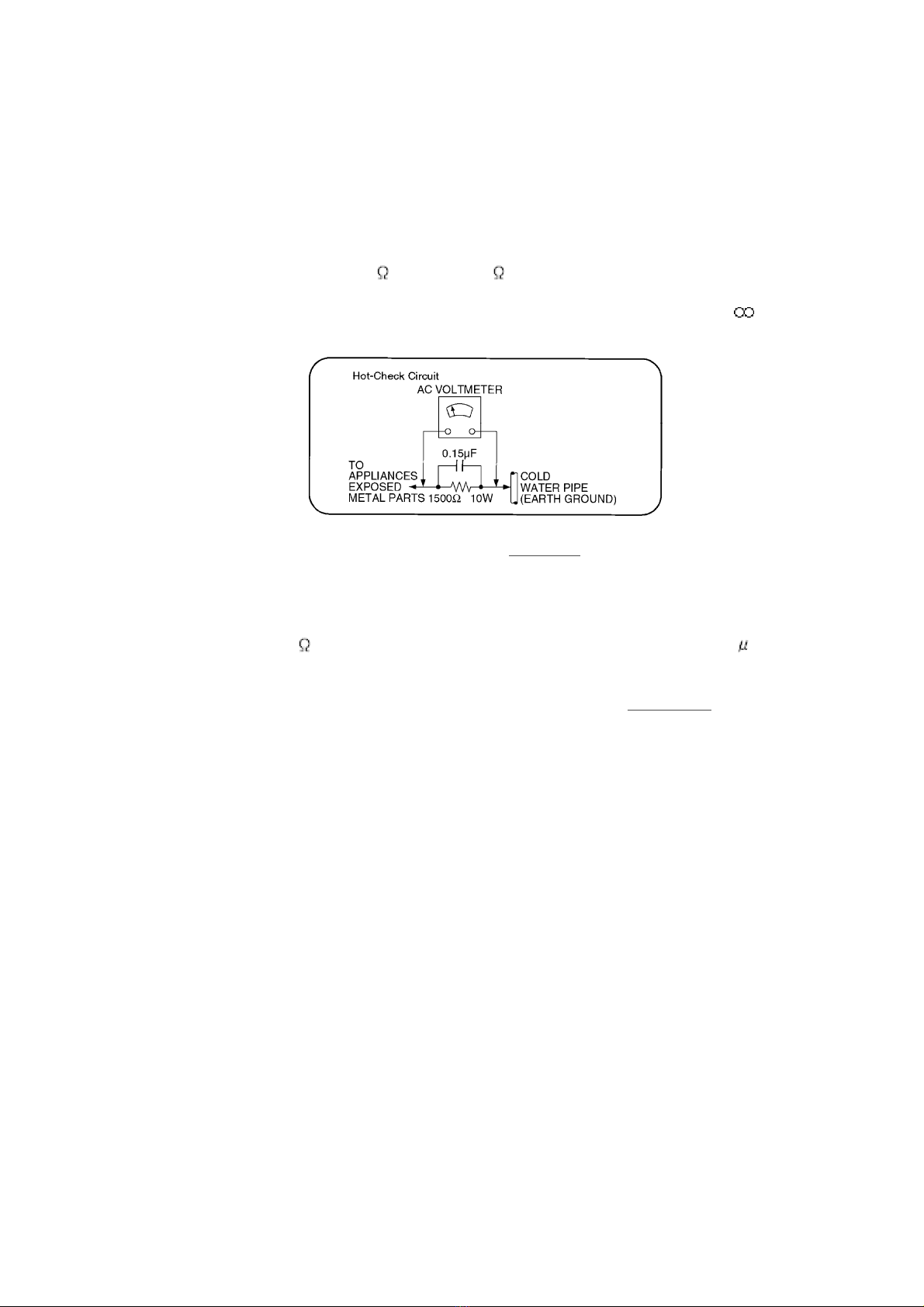

Figure 1

1.1.2. LEAKAGE CURRENT HOT CHECK (SeeFigure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation

transformer for this check.

2. Connect a 1.5k , 10 watts resistor, in parallel with a 0.15 F

capacitors, between each exposed metallic part on the set and a good

earth ground such as a water pipe, as shown inFigure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each

point.

5. Reverse the AC plug in the AC outlet and repeat each of the above

measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A

leakage current tester (Simpson Model 229 or equivalent) may be used

to make the hot checks, leakage current mu3st not exceed 1/2

milliamp. In case a measurement is outsideof the limits specified,

there is a possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the customer.

2. PREVENTION OF ELECTRO STATIC DISCHARGE

(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)

DEVICES

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such

components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some field-effect transistorsand semiconductor "chip"

components. The following techniques should be used to help reduce the incidence of component

damage caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or

semiconductor-equipped assembly, drain off any ESD on your body by

touching a known earth ground. Alternatively, obtain and wear a

commercially available dischargingESD wrist strap, which should be

removed for potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place

the assembly on a conductive surface such as alminum foil, to prevent

electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES

devices.

4. Use only an anti-static solder removal device. Some solder removal

devices not classified as "anti-static (ESD protected)" can generate

electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical

charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package

until immediately before you are ready to install it. (Most replacement

ES devices are packaged with leads electrically shorted together by

conductive foam, alminum foil or comparableconductive material).

7. Immediately before removing the protective material from the leads of

a replacement ES device, touch the protective material to the chassis

or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all

other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES

devices. (Otherwise hamless motion such as the brushing together of

your clothes fabric or the lifting of your foot from a carpeted floor can

generate static electricity (ESD) sufficient todamage an ES device).

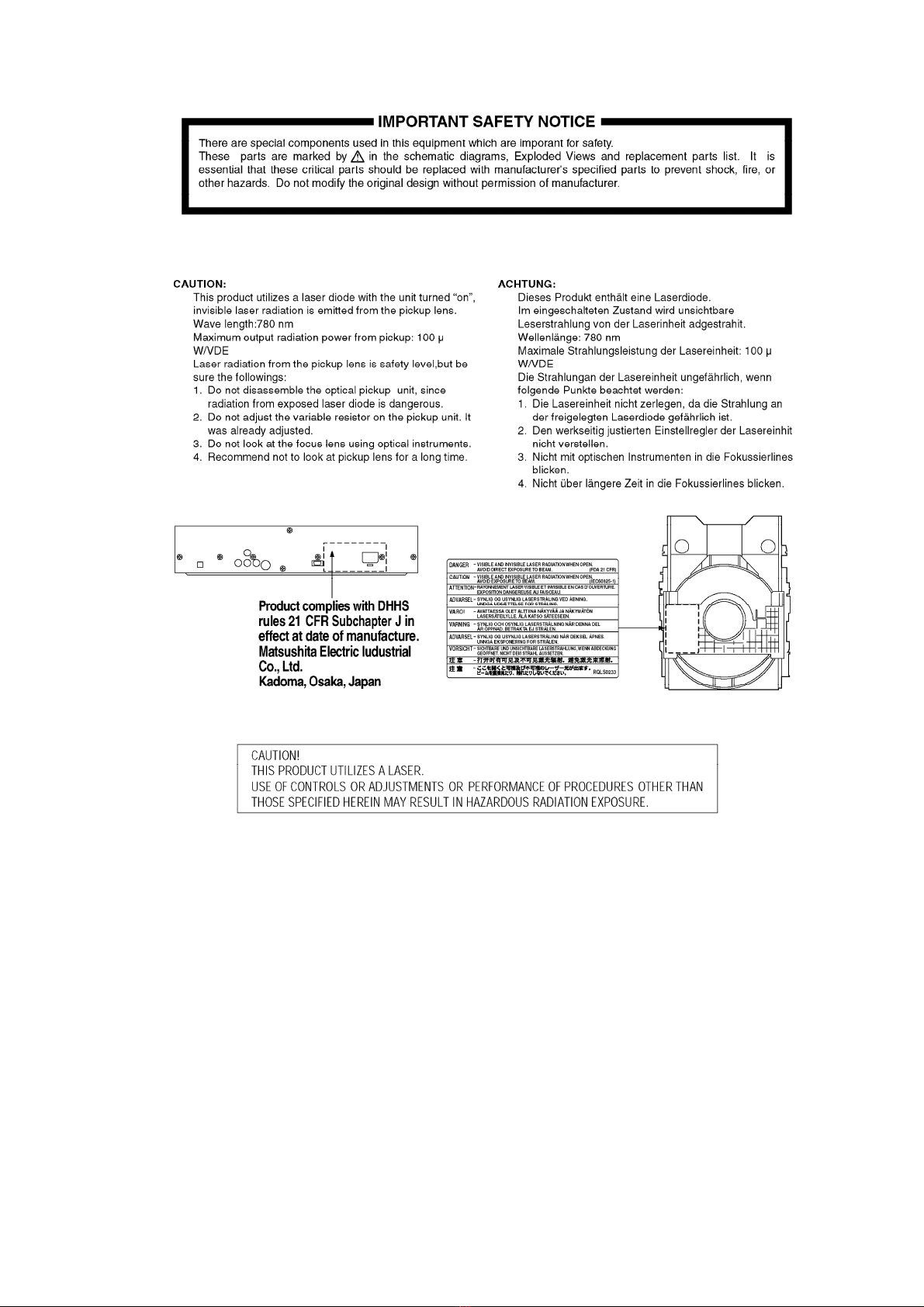

3. Precaution of Laser Diode

4. General Description

4.1. Operating instructions

5. Disassembling the Casing and Checking P.C.B.s

5.1. Dissasembly Procedure

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Lecteur DVD

Panasonic

Panasonic PVD4741 - DVD/VCR DECK Manuel utilisateur

Panasonic

Panasonic DVD-K510 Manuel utilisateur

Panasonic

Panasonic DVD-S42EE Manuel utilisateur

Panasonic

Panasonic DVDS533 - DVD/CD PLAYER Manuel utilisateur

Panasonic

Panasonic DVDA120U - DIG. VIDEO DISCPLAYE Manuel utilisateur

Panasonic

Panasonic DIGA DMR-ES15 Manuel utilisateur

Panasonic

Panasonic DVD-LS80EE Manuel utilisateur

Panasonic

Panasonic DVD-S77 Manuel utilisateur

Panasonic

Panasonic DVD-K520 Manuel utilisateur

Panasonic

Panasonic DVDS43 - DIGITAL STILL CAMERA Manuel utilisateur

Panasonic

Panasonic DMPBD10A - BD/DVD PLAYER Manuel utilisateur

Panasonic

Panasonic DVD Home Theatre System Manuel utilisateur

Panasonic

Panasonic DMP-BD10 - Blu-Ray Disc Player Manuel d'installation

Panasonic

Panasonic DVD-S35 Manuel utilisateur

Panasonic

Panasonic CQ-DX200W5 Manuel utilisateur

Panasonic

Panasonic CQDVR592U - AUTO RADIO/CD/DVD PL Manuel utilisateur

Panasonic

Panasonic TX-15LV1 Manuel utilisateur

Panasonic

Panasonic CQ-VW120W Manuel utilisateur

Panasonic

Panasonic DVD-RV22PP Manuel utilisateur

Panasonic

Panasonic DVD-PV55 Manuel utilisateur

Panasonic

Panasonic DVDRV31 - DIG. VIDEO DISCPLAYE Manuel utilisateur

Panasonic

Panasonic DVDRP82 - DIG. VIDEO DISC PLAY Manuel utilisateur

Panasonic

Panasonic DVD-S700 Mode d'emploi

Panasonic

Panasonic DVDRP56 - DIG. VIDEO DISCPLAYE Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

Sony

Sony DVP-F11 Manuel utilisateur

Philips

Philips DVP3560K/F8 Manuel utilisateur

LENCO

LENCO DVP-740 X2 Manuel utilisateur

JVC

JVC XV-N650BEU Manuel utilisateur

Aiwa

Aiwa XD-DV370 Manuel utilisateur

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuel utilisateur

Denon

Denon DVM-1805 - DVD Changer Manuel utilisateur

Toshiba

Toshiba SD-3815 Manuel utilisateur

Tevion

Tevion 44330 Manuel utilisateur

Samsung

Samsung DVD-HD860 Manuel utilisateur

Sylvania

Sylvania DP170SL8 Manuel utilisateur

Toshiba

Toshiba SD-P1200 Manuel utilisateur

JVC

JVC XV-D9000E Manuel utilisateur

Dolby Laboratories

Dolby Laboratories CP650 Manuel utilisateur

Philips

Philips DVD737K/931 Manuel utilisateur

Denon

Denon DVD-5900 Manuel utilisateur

Philips

Philips DVD 951 Manuel utilisateur

Philips

Philips DVDR3460 Manuel utilisateur
