Reference Manual

Personal Computer

Model No. CF-H1 Series

We recommend that this Reference Manual be printed.

Introduction

zDo not set [Command Prompt] to “Full Screen”.

Terms and illustrations in this manual

Î: Page in this Manual.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Click : Touch the screen with the digitizer pen or finger.

Right-click :

Touch and hold with the digitizer pen.

You can also perform “Right-click” by pressing and holding the button of the digitizer pen, and then tapping the

object.

[start] - [All Programs] :

Click [start], and then click [All Programs].

: Press [ ] (Enter) key.

Ctrl

Press and hold

Ctrl

key, and then press

key.

zThe display of the key may be different from this manual according to the keyboard used. (e.g. “Delete” instead of

“Del”)

Read the term “hard disk” as “flash memory” whenever it appears in this manual.

Regarding Windows XP

Touch Screen Operation

You can use Windows by touching the screen in the same way as you use a mouse.

The screen of this computer has following two pointing device functions.

zDigitizer: can be operated with the digitizer pen (included)

zTouchscreen: can be operated with your finger etc.

If you touch the screen with the digitizer pen and your finger at the same time, the operation by the digitizer pen is enabled.

zTo right-click

You can perform “Right-click” with either of operation below.

zTouch and hold with the digitizer pen.

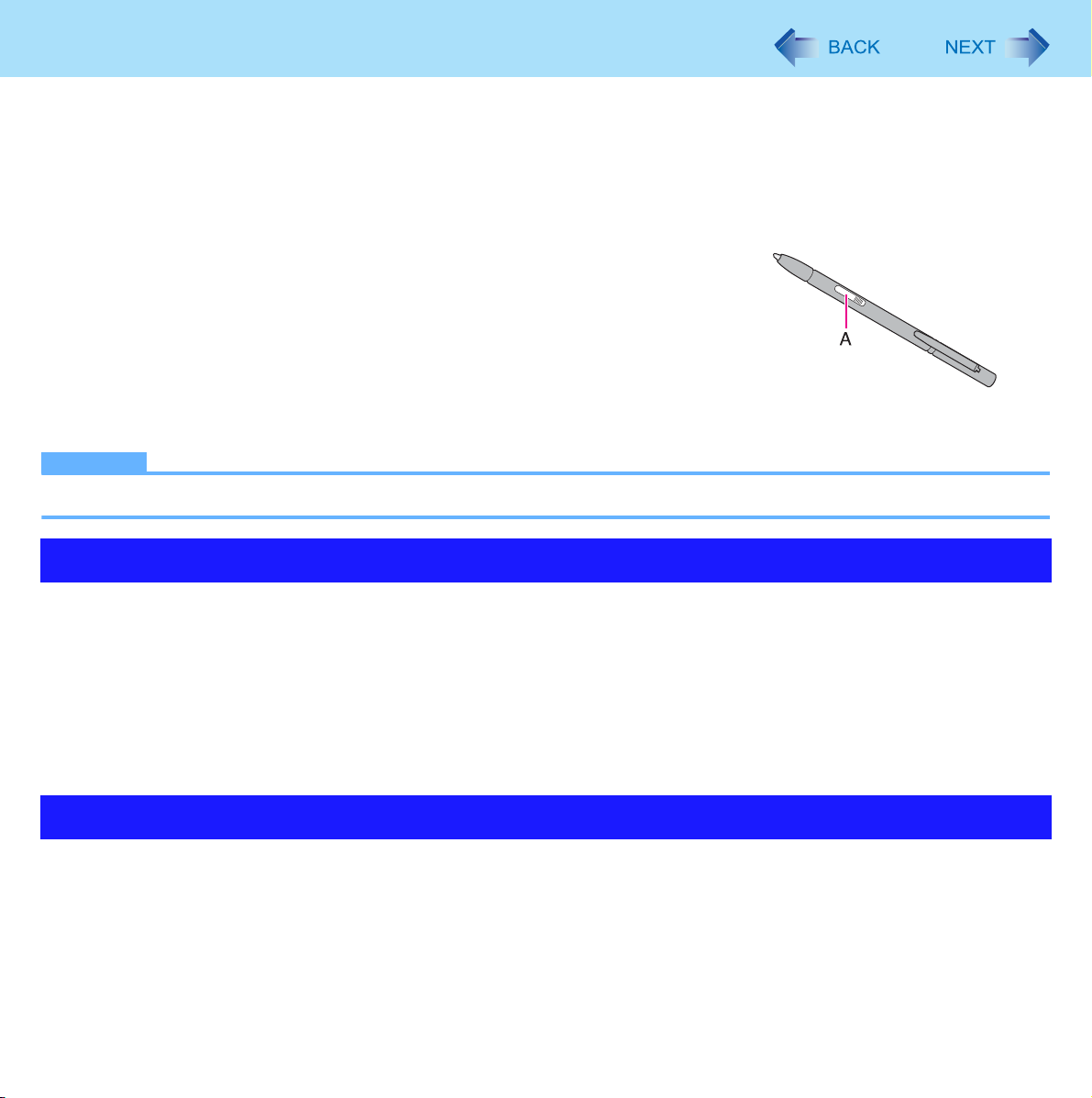

zPress and hold the button (A) of the digitizer pen, and then touch the object.

You can perform “Right-click” with either of operation below.

zTouch and hold with the digitizer pen.

NOTE

zThe operation by touching the screen does not work in the Setup Utility.

zTouch the screen with the digitizer pen (included) or your finger

When touching the screen, use only the digitizer pen (included) or your finger on the surface.

Touching the screen with an object other than the digitizer pen (included) or your fingertip may scar or stain the surface,

causing the malfunction.

zDo not apply too much pressure when touching the screen

Only a light touch is required to touch the screen. Applying too much pressure may damage the surface.

zWhen the screen becomes dirty, wipe it with a soft cloth

The screen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry

cloth. If the dirt does not come off easily, breathe on the surface and try again.

Do not apply water or solvents to the soft cloth.

Operation by touching the screen

Maintaining the performance of the screen

Touch Screen Operation

zCheck the following to prevent the surface of the screen from being scratched

zAre you using the digitizer pen or your finger to operate the screen?

zIs the surface clean?

zIs the cloth clean?

zIs the tip of the digitizer pen clean?

zIs your finger clean?

zDo not touch the screen outside of the LCD display area

The input area is defined by the LCD display screen. Touching the screen outside of the display area may result malfunc-

tions or damage to the screen.

zDo not apply excessive force to the screen

Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the

LCD screen. Any of the above may cause the screen glass to break, or may damage the LCD screen.

zOperation response may be slower in low temperature environments

The screen may respond to operations more slowly when using the computer in temperatures less than 5°C, but this is

not a malfunction. Response time will return to normal when the computer is returned to room temperature.

zIf the cursor jumps to a location other than where the screen was touched, or if the LCD reso-

lution changes, perform the calibration

Perform the procedure of “Calibration” (Îpage 5).

To improve the outdoor visibility of the display, a low reflection coating has been added. In order to avoid scratches and peel-

ing of this coating, an approved soft cloth has been included to wipe the LCD surface of the computer. Before using the com-

puter, be sure to read the instructions provided below.

Things to keep in mind when using the screen

Suggestions About Cleaning the LCD Surface

zBe sure to wipe the LCD display to remove fingerprints, etc., with the soft cloth.

zDo not wipe areas other than the LCD display with the soft cloth.

Touch Screen Operation

• Use the soft cloth when it is dry. Do not apply water or solvents to the soft cloth.

• First, lightly wipe foreign particles and dust adhering to the LCD display on one side of the soft cloth. Do not use force,

since the LCD surface may be damaged with the foreign particles or dust.

Next, wipe off fingerprint, etc., with the other side of the soft cloth.

After wiping off foreign particles and dust, wash the soft cloth (refer to the following) to remove the foreign particles and

dust from the soft cloth.

• When the soft cloth becomes dirty, wash it with neutral detergent. Do not use bleach or a fabric conditioner (softener), or

carry out sterilization by boiling.

• If the LCD gets wet, wipe the surface lightly with the soft cloth.

• While wiping the LCD display, the computer must be turned off.

Digitizer Calibration

To calibrate the digitizer, use the digitizer pen and follow the steps below.

1Click [start] - [Control Panel] - [Printers and other Hardware].

2Click [Tablet and Pen Settings].

3Click [Calibrate...] in [Settings].

4Using the digitizer pen, touch each of 4 “+” target marks one by one, and then click [OK].

Touchscreen Calibration

zTo calibrate the touchscreen, do not use the digitizer pen (included). Use your finger or other objects.

zPerform the calibration for the orientation to be used.

1Click [start] - [Control Panel] - [Other Control Panel Option] - [Touch Settings].

2Click [Calibrate].

3Using your finger or other object, touch of the 4 "+" target one by one, and then click [Fin-

ished].

4Restart the computer.

Calibration

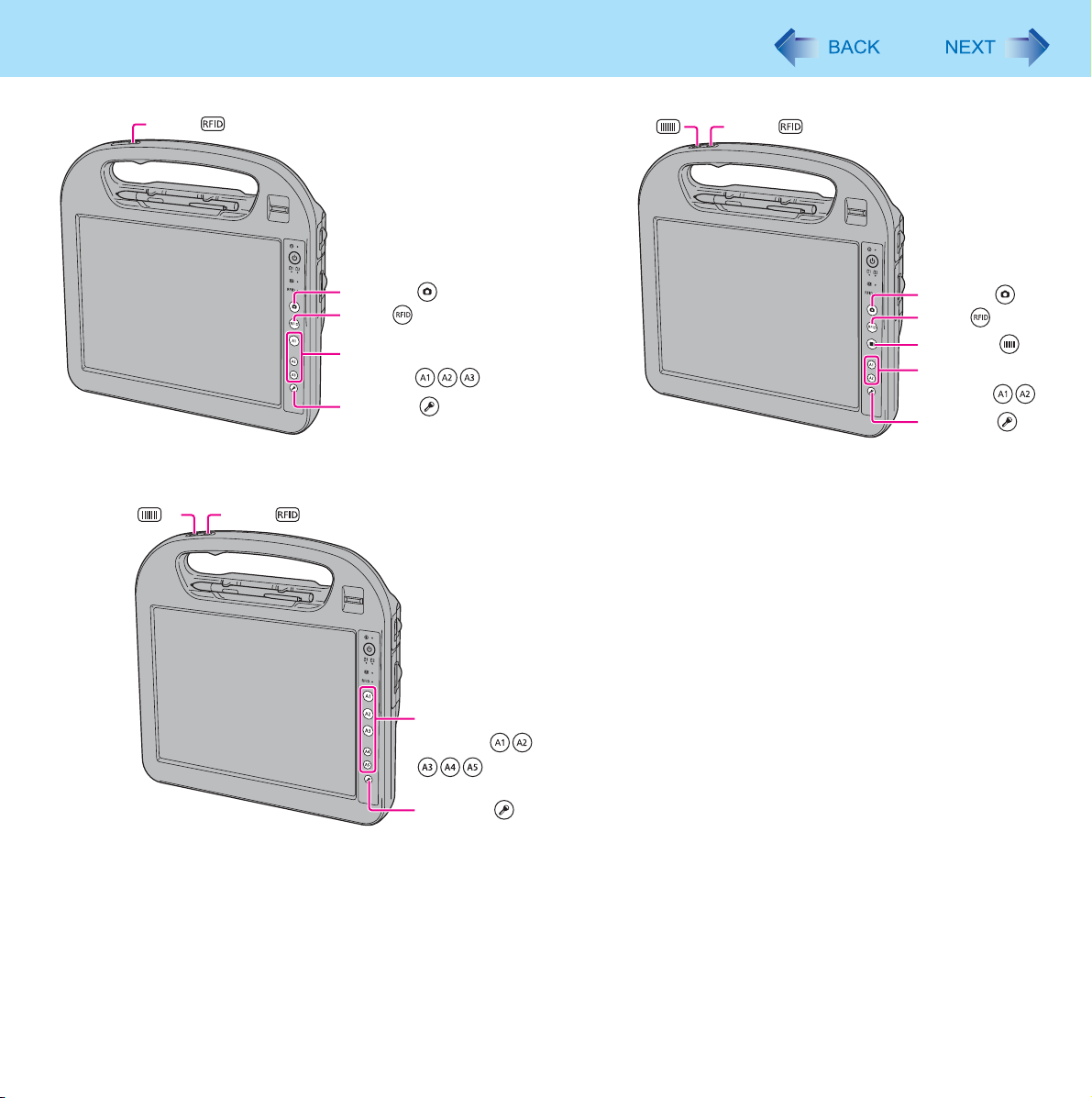

Hardware Buttons

*1 Only for Field model with Barcode Reader

*2 Only for Field model with RFID Reader

RFID

Application

Buttons

RFID

Camera

Security

Barcode RFID

Application

Buttons

Barcode

RFID

Camera

Security

Barcode RFID

Application

Buttons

Security

*1 *2

Hardware Buttons

*3 Only for Healthcare model

*4 Only for model with the RFID Reader

*5 Only for Healthcare model with the Barcode Reader

*6 Only for model with the Barcode Reader

*7 Only for Healthcare model without the Barcode Reader and Field model

*8 Only for Field model

NOTE

zThe Hardware buttons work when the Windows screen is displayed.

zThe Hardware buttons may not work immediately after Windows is started up or the Windows logon screen (or the

Welcome screen) is displayed.

zThe Hardware buttons may not work after time zone is changed. In this case, restart the computer.

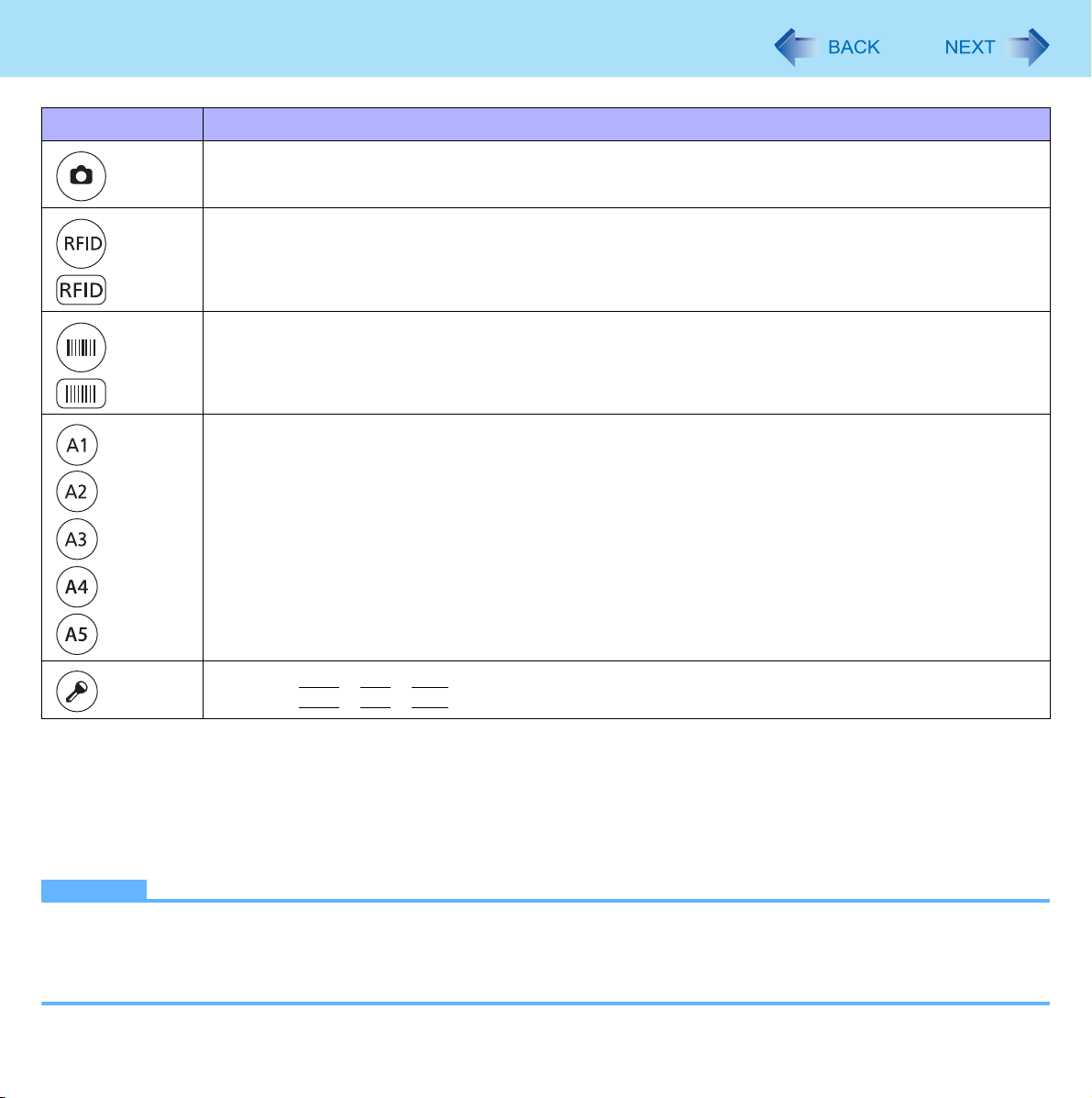

Button Function

*3 Camera Button

Take still pictures. (Îpage 39)

RFID Reader Button

Read the data from RFID tags. (Îpage 48)

Barcode Reader Button

Read the barcode. (Îpage 50)

Application Buttons

Start the registered function or application. (Îpage 16)

Security Button

Works as

Ctrl

Alt

Del

Hardware Buttons

To assign different functions to the Security Button

The Security button functions as

Ctrl

Alt

Del

at the time of purchase.

Also, at the time of purchase, the Security button functions as

while you start up the computer (while [Panasonic] boot

screen is displayed).

You can configure the button to function as buttons

F12

while you start up the computer.

1Start up the Setup Utility (Îpage 79).

2Select [Main].

3Select [SAS Button] and press (Enter).

4Press ÏÐto select the desired button (

F12

) and press (Enter).

5Press F10, and then select [Yes] and press (Enter).

NOTE

zWhen the computer has started up, the Security button functions as

Ctrl

Alt

Del

, regardless of the [SAS Button]

setting.

Software Keyboard

You can use the Software Keyboard instead of the on-screen keyboard of Tablet PC Input Panel. By using the Software Key-

board, you can change the size of the Software Keyboard, and can use the numeric keypad.

NOTE

zYou cannot uninstall Tablet PC Input Panel. When you enter text, select either the Software Keyboard or Tablet PC

Input Panel.

1Log on to Windows as an administrator.

2Click [start] - [Run] and input [c:\util\meiskb\setup.exe], and click [OK].

Follow the on-screen instructions.

3Add a check mark for [Yes, I want to restart my computer now.] and click [Finish].

Installing the Software keyboard

Software Keyboard

1Click [start] – [All Programs] – [Panasonic] – [Software Keyboard].

2Touch the software keyboard.

zTo use shortcut key

Example :

Ctrl

Press

Ctrl

(turns blue) and then press

zIf you added the input language, the language bar (e.g. ) is displayed on the notification area. To select the

keyboard language, use the language bar on the notification area. If the keyboard language does not change,

click the title bar of the software keyboard and then click on the application.

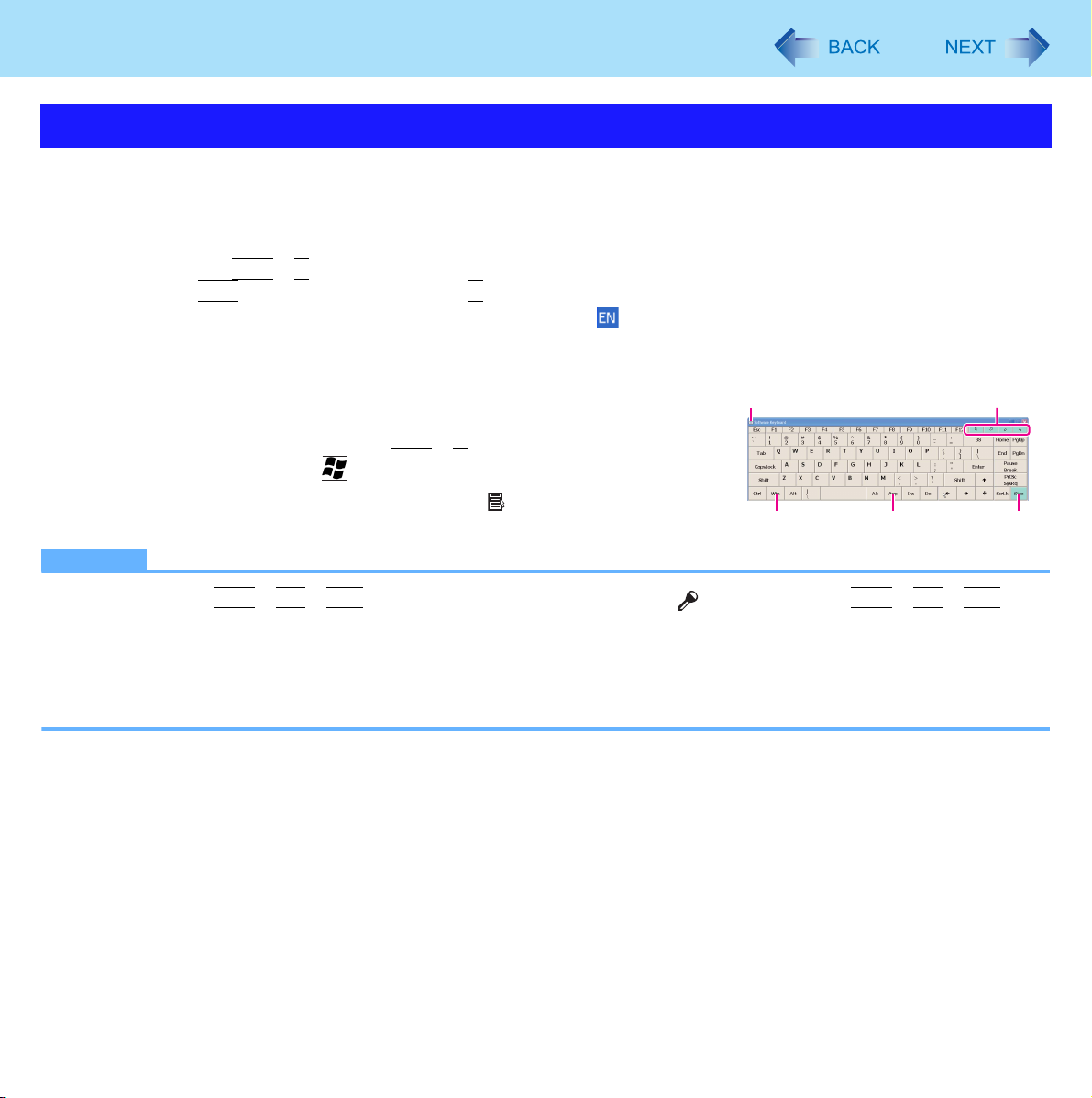

A. Software keyboard menu (Îpage 11)

B. Moves the software keyboard to a corner of the screen.

C. One tap : Works as shortcut key (

Ctrl

etc.).

Two taps : Works as the key.

D. Works as a right-click. (Same function as the key)

E. Switches between QWERTY keyboard and numeric keypad.

NOTE

zYou cannot use

Ctrl

Alt

Del

on the software after logging on. Use [ ] button instead of

Ctrl

Alt

Del

zYou cannot use the software keyboard when the [Command Prompt] screen is set to “Full Screen”.

zYou can set a different language to each application (⇒Windows help), and the keyboard layout switches according to

the application.

zDepending in the language, some keys are displayed in orange. You can use them to input characters such as ëand

ö.

Starting the Software keyboard

DC E
