Removable Face High-Power CD Player/Receiver

Rdcepteur/lecteur CD tapuissance 61evde avec panneau avant amovible

CQ-DPX33/DP22EUC

Operating Instructions

Manuel d'utilisation

(CQ-DPX33EUC)

Please read these instructionscompletelybeforeoperatingthisunit.

II est recommanddde lireattentivement ce manuel avantd'utiliserI'appareil.

Pana$onic welcomes you to our ever growing family of electronic product owners. We know that this

product will bring you many hours of enjeymenL Our reputation is built on precise electronic and me-

chanical engineering, manufactured with carefully selected components and assembled by people

who take pride in their work. Once you discover the quality, reliability, and value we have built into

this product, you too will be proud to be a member of our family.

Use This Equipment Safely

When Driving

Keep the volumelevel low enoughtobe aware ofroadand trafficconditions.

When Car Washing

Do not expose the equipment, includingthe speakers and CDs, to water or excessivemoisture.This

couldcause electrical shorts,fire,or otherdamage.

When Parked

Parking in directsunlight can producevery hightemperaturesinsideyourvehicle. Givethe interiora

chance to cooldownbefore switchingthe uniton.

Use the Proper Power Supply

This equipment isdesigned to operateoff a12 volt,negativegroundbattery system(the normal sys-

tem in a NorthAmerican car.)

Protect the Compact Disc Mechanism

Avoid insertion any foreignmatterstothe slot ofthe compactdisc.

Failureto observethis may causemalfunctiondue toprecisemechanismofthis unit,

Use Authorized Servicenters

Do not attemptto disassemble or adjustthis precisionequipment.Please refer to the Servicenterlist

includedwiththis productforserviceassistance.

For Installation

Unit shouldbe installed in a horizontalpositionwith the frontend up at aconvenientangle, but not

morethan 30°.

Note:

This operating instructionmanua!isfor 2 modelsCQ-DPX33EUC and CQ-DP22EUC. All illustrations

throughoutthis manual representmodel CQ-DPX33EUC unlessotherwise specified.The following

table describesthe differences between2 models.

Models

Operating Controls_

Pre-Out

Remote ControlUnit

CQ-DPX33EUC

2 (FixType)

Yes

CQ-DP22EUC

1(Fix Type)

None

Find the model number and serialnumber on eitherthe backor bottomof the unit, Please record

them in the space below and retainthis booklet as a permanent record of your purchaseto aid in

identificationincase of theft.

MODEL NUMBER CQ-DPX33/DP22EUC SERIAL NUMBER

DATE PURCHASED FROM

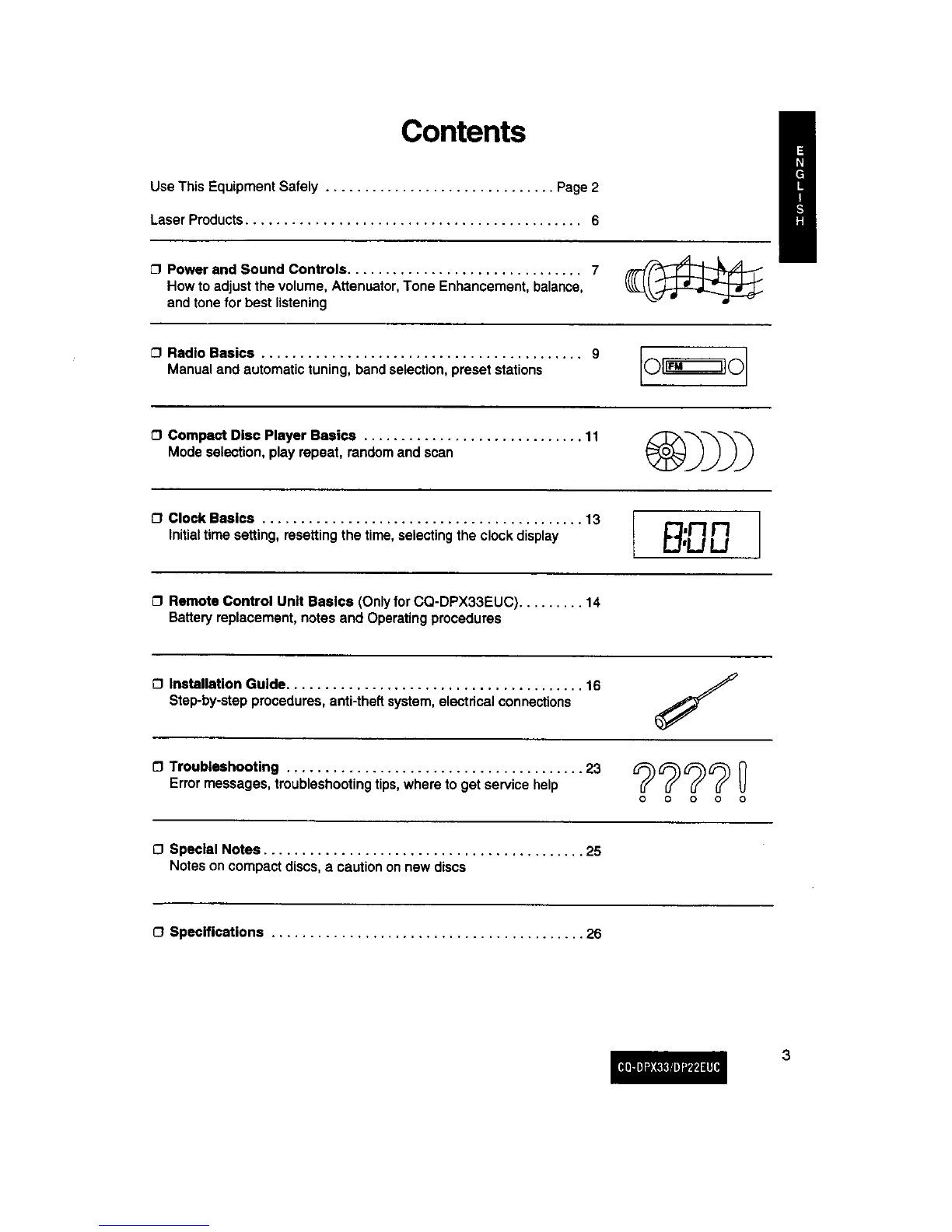

Contents

UseThis Equipment Safely .............................. Page 2

Laser Products ............................................ 6

Power and Sound Controls ............................... 7

How toadjust thevolume, Attenuator,Tone Enhancement, balance,

and tone for best listening

Radio Basics .......................................... 9

Manual and automatictuning, bandselection,preset stations

O Compact Disc Player Basics ............................. 11

Modeselection,play repeat, randomand scan

£3 Clock Basics .......................................... 13

Initial timesetting, resettingthe time, selectingthe clockdisplay

ORemote Control Unit Basics (Onlyfor CQ-DPX33EUC) ......... 14

Battery replacement,notes and Operatingprocedures

£3 Installation Guide ....................................... 16

Step-by-stepprocedures,anti-theftsystem,electrical connections

£3Troubleshooting ....................................... 23

Errormessages, troubleshootingtips,where to get service help 0 0 0 0 0

£3 Special Notes .......................................... 25

Notes on compactdiscs,a cautionon new discs

£3 Specifications ......................................... 26

OLaser Products (The standard described on this page is for U.S.A. only.)

Caution:

This product utilizesa laser.

Use of controls or adjustmentsor performanceof procedures other

than those specified heroin may result in hazardous radiationex-

posure.

Laser products:

Wave length780 nm

LaserPower No hazardousradiationisemittedwith safety protection.

• Label indications and their locations

Certification Label

Front

Identification Label

Productcomplieswith DHHS Rules21

CFR, SubchapterJ in effectas ofdate of

manufacture.

Dalian MatsushitaCommunication

IndustrialCo., Ltd.Dalian,China

MANUFACTURED

ModelNo.

N. DeModbleC Q- D P X 3 3 E UC

L ........... J

12V 4~8Q 15A --- FM75Q

ManufacturedbyDalianMatsushita

CommunicationIndustrialCo., Ltd.

DalianChina MadeinChina

SerialNo. I....... J

N"DeS_rie

I Thisdevicecomplieswithpart15 ol the

iFCCRules,Operationis subjectto the

=conditionthatthisdevicedces notcause

harmfulinterference,

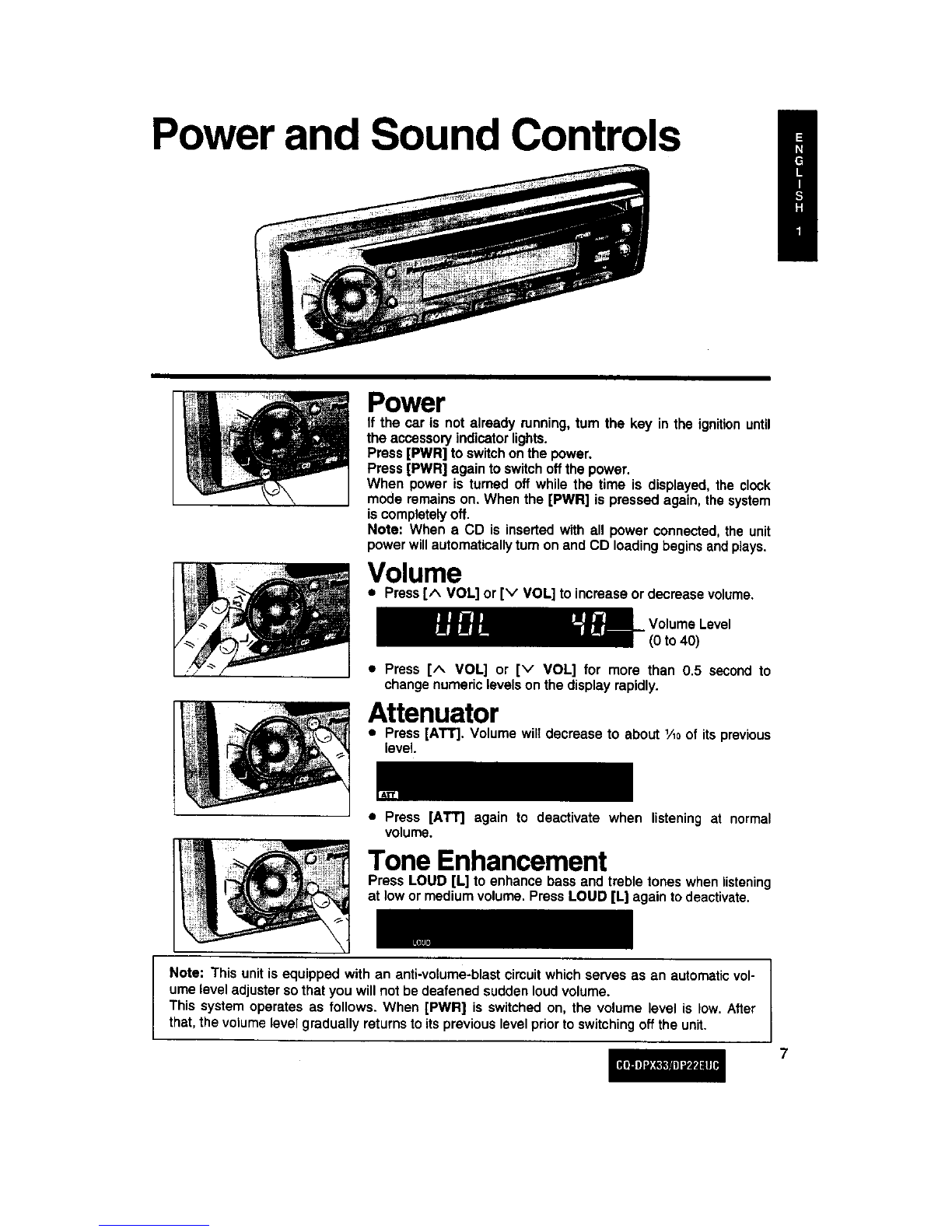

Power and Sound Controls

Power

If the car is not already running,turn the key in the ignitionuntil

the accessoryindicatorlights.

Press[PWR] to switchonthe power.

Press[PWR] againto switchoffthe power.

When power is turned off while the time is displayed, the clock

mode remainson. When the [PWR] is pressed again, the system

iscompletelyoff.

Note: When a CD is insertedwith all power connected,the unit

power willautomaticallyturnon and CD loadingbeginsandplays.

Volume

•Press[^ VOL] or [v VOL] to increaseor decrease volume.

VolumeLevel

(0 to 40)

•Press [^ VOL] or [v VOL] for more than 0.5 second to

changenumeric levelson the displayrapidly.

Attenuator

•Press [AT'r]. Volume will decrease to about 1/loof its previous

level

• Press [ATT] again to deactivate when listening at normal

volume.

Tone Enhancement

Press LOUD [L] to enhance bass and treble tones when listening

at low or mediumvolume. PressLOUD [L] againto deactivate.

Note: This unitisequipped with an anti-volume-blastcircuitwhich serves as an automaticvol-

umelevel adjuster sothat you willnot be deafened suddenloudvolume.

This system operates as follows. When [PWR] is switchedon, the volume level is low. After

that, thevolumelevel graduallyreturnstoitspreviouslevelprior to switchingoffthe unit.

Power and Sound Controls

(continued)

Changing Audio Modes

Press [SEL] toswitchthe audio modeinthe followingorder.

VOLUME-, BASS--*TREBLE-* BALANCE-->FADER

I" I

Bass and Treble

•Press [SELl to select the BASS (TREBLE) mode. Press

[^ VOL] or [v VOL] to increaseor decrease the bass/treble

response.

-12 to 12 -12 to 12

•Press [^ VOL] or [v VOL] for more than 0.5 second to

changenumericlevelson the displayrapidly.

Balance

•Press [SEL] to selectthe BALANCE mode. Press [^ VOL] or

[v VOL] to shiftthe soundvolumetorightor left speakers.

or L 1 to 15 Balance Center

•Press [^ VOL] or [v VOL] for more than 0.5 second to

changenumericlevelsonthe display rapidly.

Fader

•Press [SEL] to select the FADER mode. Press [^ VOL] or

[v VOL] to shift the sound volume to the front or rear

speakers.

or R 1 to 15 BalanceCenter

•Press [^ VOL] or Iv VOL] for more than 0.5 second to

change numericlevelson thedisplayrapidly.

Note: When acontrol mode (BAS/TRE/BAL/FAD) is selected but no operation is made within

5 seconds(2 seconds at volume mode), the display will returnto the normaloperation (Radio,

CD, etc) mode. In sucha case, press [SEL] againtoselectthecontrolmode.

Radio Basics

To change Tuner Mode

You canselect=FM"or "AM"directly.

Selecting a Band

• Press [FM] toselect the bandsin the followingorder.

FMI---*FM2---*FM3

=STEREO" indicator lights if the station is broadcasting in

stereo.

•Press [AM] to selectthe bands.

ManualTuning

Press [> TUNE] or [< TUNE] to move to a higheror lowerfre-

quency.

Seek Tuning

Press and hold [> TUNE] or [< TUNE] for more than 0.5 sec-

ond, then release. The radio automatically stops on the next

station.

MONO/LOCAL Selection

•Much interference is reduced during aweak FM stereo broad-

casts when MONO isON. (Only for FM mode)

•Searching stops automatically at astrong wave station only

when LOCAL is ON.

Press [MONO] to switch on or off the MONO mode as follows.

MONO OFF<---* MONO ON

Press [LOC] to switch on or off the LOCAL mode as follows.

LOCAL OFF _LOCAL ON

Radio Basics (continued)

Pressand Hold

Preset Station Setting

Up to24 stationscan be preset inthe stationmemory as follows;

6 stations 6 stations 6 stations 6 stations

Manual Station Preset

C) Press[FM]or [AM] to selecta desiredband.

_) Use manualor seek tuning to find a stationthat you want to

programintomemory.

_)Press and hold one of the stationselectorbuttons[1] through

[6] untilthedisplayblinks.

Repeat theprocessto set other stationsfor the FM1-3 and AM

bands.

Note: You can change the memory settingby repeatingthe

aboveprocedure.

Tuning in a Preset Station

Press anyofthe buttons[1] through[6] totune inthe stationpre-

set bytheabovesteps_) to (_).

AutoStationPreset

Selecta bandand press [APM] (AUTO PRESET MEMORY).

• The 6 strongestavailable stationswill be automaticallyset in

memorypresetbuttons[1] through[6].

•Once set, the preset stations are sequentially scanned for

5 seconds.

•Pressthe appropriatepreset buttonfor the stationyou wantto

hear.

I _ution: Forsafetymasons, do not attempttoprogramwhile driving. 1

Compact Disc Player Basics

Mode Selection

While the disc is inserted, press [CD] to switch the operation

mode.

\To start the CD Player

Insertthe disc(labelside up) and playbackstartsautomatically.

=LOAd"will be displayeduntilthe disc is loaded.Play starts from

firsttrack.

Play time

-Track number

Note: While the disc is inserted,MDISC"indicatorwill light. If you

press[CD] afterthedisc isejected,the discwillbe re-inserted.

Stopping and Ejecting a Disc

Press[A] to stopCD play, and the disc willquietlyeject from the

CD slot. (Duringdiscejection,=EJ"(EJECT) willbe displayed.)

Selecting a Track

Press[IH_ TRACK] once to go to the next track.Press repeatedly

to stepforwardthroughallthe tracks.

Press [<1<1TRACK] once to play from the beginningof the track

you are listeningto. Press twice to play the previoustrack. Press

repeatedlyto stepbackwardthrough all thetracks.

Compact Disc Player Basics

(continued)

Hold and Releasq Searching a Track

Press and hold [IH_ TRACK] or [<F<l TRACK] for more than

0.5 secondto activatefast forward or reversethrougha track.

Release [IH_ TRACK] or [<1<1TRACK] to resumethe normalCD

playfrom that position.

Repeating a Track

Press[R/R I_] to repeat the currentselection."REF_ indicatorwill

light.

The current selection will continue to repeat until you press

[R/R I_] again.

Random Selection

Pressand hold [R/R I_] for more than 2 seconds."R I_" indicator

will light.A random selection of musicis playedfrom all available

tracks.

To turn offthe random playfeature, pressand hold[R/R I_] again

for more than 2 seconds.

ScanningTracks

Press [SCAN]. The display will blinkand the first 10 secondsof

eachtrackon the discplay in order.

To stop scanning and continue with the current track, press

[SCAN] again.

SelectingbyTrack Number

(Directaccess)

•Press a number from [1] to [6] thenthe correspondingtrackwill

start.

•Press and hold a number from [7] to [12] ([1] to [6]) for more

thanone secondand the correspondingtrack willstart.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Récepteur de voiture

Panasonic

Panasonic CQC8100U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQC8405U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQC700U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQ-C1465N Manuel utilisateur

Panasonic

Panasonic CQ-DF602W Manuel utilisateur

Panasonic

Panasonic CQ-DP200LEE Manuel utilisateur

Panasonic

Panasonic CQ-RX460W Manuel utilisateur

Panasonic

Panasonic CQDF602U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQDP383U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQ-VAD9300U Manuel utilisateur

Panasonic

Panasonic CQ-C1301W Manuel utilisateur

Panasonic

Panasonic CQC700U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQVD7001U - CAR A/V DVD NAV Manuel utilisateur

Panasonic

Panasonic CQ-C1100VN Manuel utilisateur

Panasonic

Panasonic CQC8313U - CAR AUDIO-MULTI-LANG Manuel utilisateur

Panasonic

Panasonic CQ-VW220W Manuel utilisateur

Panasonic

Panasonic CQ-TX5500W Manuel utilisateur

Panasonic

Panasonic CQ-C1301NW Manuel utilisateur

Panasonic

Panasonic CQR520EUC - AUTO RADIO/CASSETTE Manuel utilisateur

Panasonic

Panasonic CQ-VD7003U Manuel utilisateur

Panasonic

Panasonic CQ-DFX683 Manuel utilisateur

Panasonic

Panasonic CR-W405U Manuel utilisateur

Panasonic

Panasonic CQDP383U - AUTO RADIO/CD DECK Manuel utilisateur

Panasonic

Panasonic CQ-DP303W Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
