Panasonic WV-LZA61/2S Manuel utilisateur

Cautions:

•Clean the lens face with care.

Do not clean the lens with strong or abrasive detergents. Use lens

tissue or a cotton tipped applicator and ethanol.

Wipe carefully not to scratch the lens surface.

•Do not use strong or abrasive detergents when cleaning the

lens body.

Use a dry cloth to clean the lens body when dirty.

In case the dirt is hard to remove, use a mild detergent and wipe

gently.

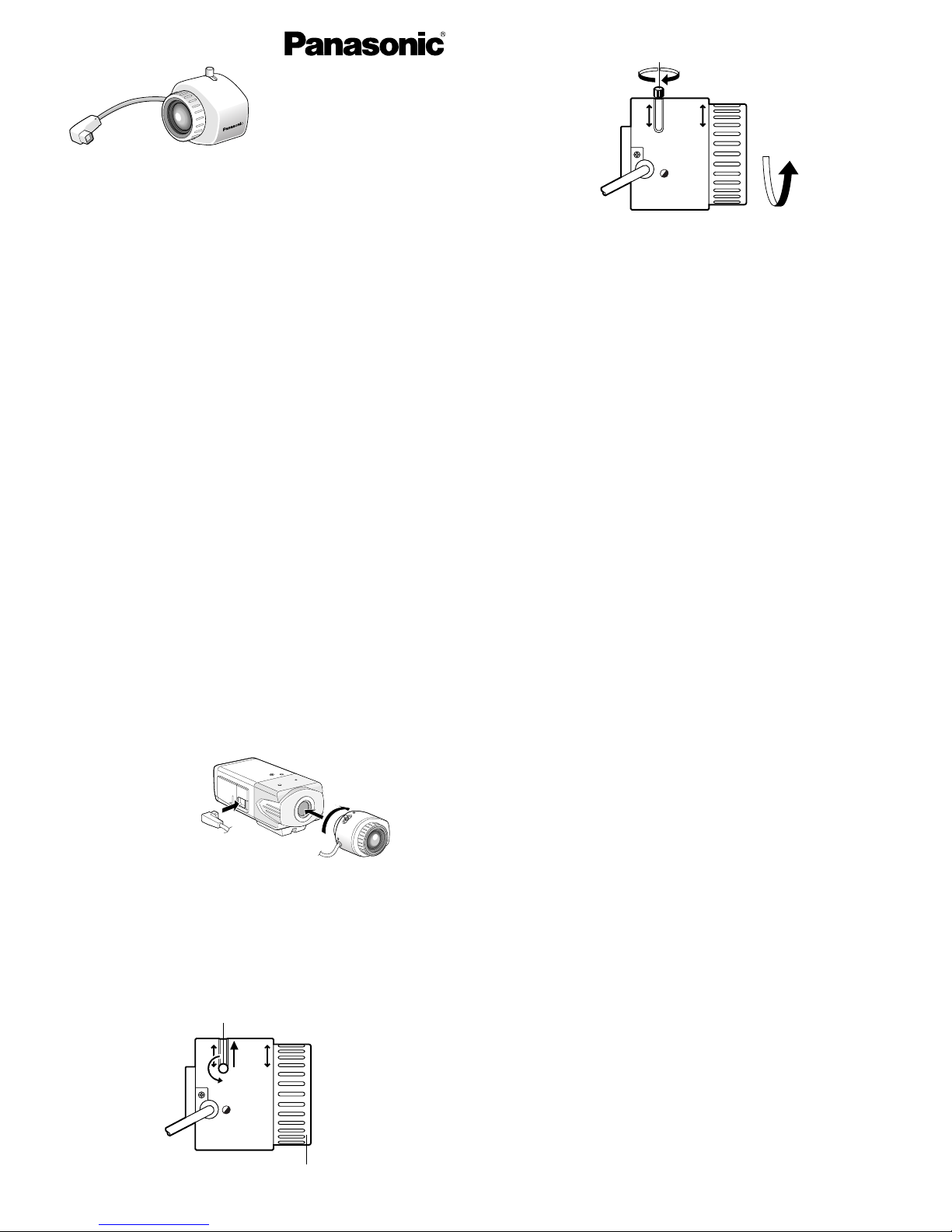

Mounting the Lens

Note: Also refer to the operating instructions for the camera together.

1. Set the lens type selector on the camera as follows.

ALC/ELC \ALC

DC/VIDEO \DC

2. Mount the lens by turning it clockwise on the lens mount of the

camera.

Adjustment

1. Loosen the zoom lock screw by turning it counterclockwise, and

then set this screw to the “T” position.

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Model No.

WV-LZA61/2S

Vari-focal Lens

Instructions

TV LENS

zoom lock screw

focus ring

3.8~8mm1:1.4

WV-LZA61/2S

3. Connect the lens cable to the auto iris lens connector on the side

of the camera.

2. Turn the focus ring toward the “F” and set it to short of stopped

position (over infinity).

3. Shoot an object more than 10 m (30 feet) away. Adjust the flange-

back of the camera.

Verify that an object located 1.2 m (4 feet) away can be brought

into focus by turning the focus ring after moving the zoom lock

screw all the way to the “W”.

4. Set the zoom lock screw to a point between “T” and “W” to choose

the desired angular field of view.

5. Tighten the zoom lock screw by turning it clockwise.

6. Bring the desired object into focus by turning the focus ring.

Specifications

Image size: ø6 mm [4.8 mm (H) x 3.6 mm (V)]

Focal length: 3.8 mm – 8 mm

Maximum aperture ratio: 1:1.4 (Wide), 1:1.8 (Tele)

Angular field of view

Horizontal: 35.6˚ – 73.6˚

Vertical: 26.6˚ – 53.4˚

Focusing range: 1.2 m – ∞(3.9 ft – ∞)

Iris: Auto iris (DC type)

Mount: CS-mount, 1”-32UN

Ambient operating temperature: –10˚C – +50˚C (14˚F – 122˚F)

Dimensions: 61 mm (W) x 53 mm (H) x 46 mm (D)

2-3/8” (W) x 2-1/16” (H) x1-13/16” (D)

Weight: 75 g(0.165 lbs.)

Weight and dimensions indicated are approximate.

Specifications are subject to change without notice.

Turn

TV LENS

3.8~8mm1:1.4

WV-LZA61/2S

N1004-0 3TR003327AAA Printed in Japan

Panasonic Digital Communications & Security Company

Unit of Matsushita Electric Corporation of America

Security Systems Group

www.panasonic.com/cctv

Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094

Zone Office

Eastern: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303

Central: 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205

Western: 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840

PANASONIC CANADA INC.

5770 Ambler Drive, Mississauga,

Ontario, L4W 2T3 Canada (905)624-5010

PANASONIC SALES COMPANY

DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO INC.

San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina,

P.R. 00985 (809)750-4300
