Panasonic ET-EMW200 Manuel utilisateur

ENGLISH

FRANÇAIS

日本語

Commercial Use

Model No.

ET-EMW200

ET-EMW300

ET-EMW400

ET-EMW500

ET-EMS600

ET-EMT700

ET-EMT800

DPQX1425ZA/X1

Zoom Lens 　　　　　　　　　

Operating Instructions

Thank you for purchasing this Panasonic product.

■To ensure correct use of this lens, please read the operating instructions supplied

with the lens and the projector carefully.

■Before using this product, be sure to read “Read this rst!” (Page 3).

■Please save this manual for future use.

■ET-EMW300 / ET-EMW500 / ET-EMT800 released in January, 2020.

ET-EMW200 released in April, 2020.

ET-EMW200 ET-EMW300

ET-EMW400

ET-EMS600 ET-EMT700 ET-EMT800

ET-EMW500

2-ENGLISH

Read this rst! ......................................................................................3

Before Use.............................................................................................4

Preparation............................................................................................5

Before replacing the projection lens........................................................5

Attaching the Lens / Detaching the Lens.................................................5

Peripheral focus adjustment function ......................................................5

Lens calibration .......................................................................................5

Projection relationships.......................................................................6

Lens shift ranges..................................................................................7

Specications .......................................................................................9

Dimensions ...........................................................................................9

Projected image size and Projection distance.......Appendix / Annexe / 付録 1

The "Appendix" can be found after the Japanese language section ( 日本語 ).

█ Contents

ENGLISH-3

Read this rst! Always follow these precautions

WARNING:

Do not look at or place your skin into the light emitted from the lens while the

projector is being used.

Doing so can cause burns or loss of sight.

zStrong light is emitted from the projector’s lens. Do not look at or place your hands

directly into this light.

zTurn off the power when moving away from the projection lens or projector.

Do not project an image with the lens cover attached.

zDoing so can cause re.

CAUTION:

Before replacing the projection lens, be sure to turn off the power and

disconnect the power plug from the wall outlet.

zUnexpected projection of light may cause injury to eyes.

zReplacing the projection lens without removing the power plug may result in electric

shock.

Do not stand in front of the lens while the projector is being used.

Doing so can cause damage and burns to clothing.

zStrong light is emitted from the projector’s lens.

Do not place objects in front of the lens while the projector is being used.

Doing so can cause re, damage to the object, or malfunction of the lens and

projector.

zStrong light is emitted from the projector’s lens.

Do not open the desiccant bag. Do not eat the contents.

Inadvertently ingesting desiccant could be harmful.

zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water

and seek medical attention.

zKeep desiccant out of the reach of children.

4-ENGLISH

■Supported projectors

PT-MZ16K / PT-MZ13K / PT-MZ10K

Note

zThis manual omits the alphabets at the end of projector model numbers.

zModels other than the above may also be supported. Refer to the operating instructions for

your projector or the Panasonic website (https://panasonic.net/cns/projector/).

■Supplied Accessories

Make sure that the following has been provided.

Part name Appearance

Lens cover

1 each for front and rear

Before Use

zThe product is delivered with lens

covers attached.

zThe shape and size of the lens

covers are different for each pro-

duct.

ENGLISH-5

Before replacing the projection lens

Return the projection lens to the home position before replacing or removing it.

For details on how to return the lens to the home position, refer to the operating

instructions of the projector.

Attention

zMake sure that the projector power supply is switched off before attaching or detaching the

projection lens.

zAfter removing the projection lens, store it safely away from vibration or impacts.

zDo not touch the electric contact points of the projection lens with your fingers. Dust and dirt

on the contacts may cause contact malfunctions, while static electricity may damage the unit.

zDo not turn the gear (ring) part of the projection lens barrel by hand. Doing so may damage

the motor.

zDo not touch the surface of the lens with bare hands. Finger prints and dirt on the surface

of the lens will be magnified by the lens and lower the quality of the projected image. Place

the supplied lens cover on the zoom lens when the projector is not in use.

zThe lens is made of glass. The lens could be damaged if brought into contact with or

rubbed against hard objects. Handle the lens carefully.

zUse a clean, soft and dry cloth to wipe away dust and dirt from the projection lens.

Do not use fl uffy cloths containing oil, water or dust for cleaning. The lens is easily

damaged, so do not apply excessive pressure when wiping it.

Attaching the Lens / Detaching the Lens

For details on attaching or removing the projection lens, refer to the operating

instructions for the projector.

Peripheral focus adjustment function

When you change the size of the projected image, the focal balance between the center

and peripheral areas of the screen may shift.

The ET-EMW200 / ET-EMW300 / ET-EMW400 / ET-EMW500 is equipped with a

peripheral focus adjustment function to correct the shift in focal balance between the

center and peripheral areas of the screen.

For instructions on adjusting the peripheral focus, refer to “Projecting” in the operating

instructions for the projector.

Lens calibration

Perform lens calibration after attaching the lens.

For instructions on lens calibration, refer to “Projecting” in the operating instructions for

the projector.

Preparation

6-ENGLISH

Projection relationships

The dimensional relationship between the screen and the projector is shown below.

■Dimensional relationship diagram

L (LW/LT)

SW SH

Screen

Projected image

Note

zThis diagram assumes that the size and position of the projected image will be adjusted so

that the image fills the entire screen.

zThis illustration is not drawn to scale.

L Projection distance

LW Minimum distance

LT Maximum distance

L1 Lens protrusion dimension

SH Projected image height

H Distance from the lens center to the lower edge of the projected image

SW Projected image width

SD Projected image size

zDimension for L1 (approximate values) (Unit: m)

Projector

model

ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 ET-EMS600 ET-EMT700 ET-EMT800

PT-MZ16K /

PT-MZ13K /

PT-MZ10K

0.125 0.124 0.124 0.125 0.117 0.168 0.174

Note

zThe illustrations of projectors in this manual are for informational purposes only and do not

represent a specific projector model. Configurations may vary with the model.

Attention

zTo prevent blocking of the intake and exhaust vents, maintain clearances from walls and objects

of at least 1 000 mm (3'3") for the exhaust vent and at least 500 mm (1'8") for the intake vent.

zAvoid setting up in places which are subject to sudden temperature changes, such as near

an air conditioner or lighting equipment (studio lamps, etc.).

ENGLISH-7

Projection relationships (continued)

■Dimensional relationship

For details on the projection distance (L), refer to “Projected image size and Projection

distance” and “Projection distance formulas” in the Appendix.

Note

zFor details on “Projected image size and Projection distance” for projector models other

than PT-MZ16K / PT-MZ13K / PT-MZ10K, refer to “Setting up” in the operating instructions

of the projector.

Perform the lens position shift within the adjustment range.

Perform lens shift adjustment within the ranges shown in the following illustrations.

The focus may change when the lens position is shifted out of the adjustment range.

This is because the movement of the lens is restricted to protect the optical parts.

Projection position can be adjusted with the optical axis shift based on the home position

in the respective range.

ET-EMW400 / ET-EMW500 /

ET-EMS600 / ET-EMT700 /

ET-EMT800

0.6V 0.6V

0.2H0.2H

0.28V 0.28V

Standard projection

position

Projected image

height V

Projected image width H

Origin position of

the lens mounter

Lens shift ranges

8-ENGLISH

Lens shift ranges (continued)

ET-EMW200

0.4V

0.19H0.19H

0.4V

Standard projection

position

Projected image

height V

Projected image width H

Origin position of

the lens mounter

ET-EMW300

0.5V 0.5V

0.2H0.2H

0.13V 0.13V

Standard projection

position

Projected image

height V

Projected image width H

Origin position of

the lens mounter

Note

zThe home position of the projector a point of origin position for the lens shift (i.e., vertical

and horizontal positions of the lens) based on the results of lens calibration. It is not the

optical center position of the screen.

ENGLISH-9

Dimensions

(Unit: mm)

Model number Dimensions

ET-EMW200

φ175 (6-7/8")

179 (7-1/16")

82 (3-7/32")91 (3-19/32")

314 (12-3/8")

Specications

Check the specifications of each projection lens, and use the appropriate lens for your

intended use.

Model No. ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500

F value 1.84 - 2.14 1.84 - 2.24 1.84 - 2.24 1.80 - 2.35

Focal Length (f)

10.80 mm (7/6ʺ) -

12.52 mm (1/2ʺ)

12.31 mm (1/2ʺ) -

15.43 mm (19/32ʺ)

15.30 mm (19/32ʺ) -

21.10 mm (27/32ʺ)

21.08 mm (27/32ʺ) -

30.00 mm (3/16ʺ)

Dimensions

Width 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ) 179 mm (7-1/16ʺ)

Height 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ) 175 mm (6-7/8ʺ)

Depth 314 mm (12-3/8ʺ) 284 mm (11-3/16ʺ) 284 mm (11-3/16ʺ) 285 mm (11-7/32ʺ)

Net Weight 5.20 k](11.46 lb) 5.20 k](11.46 lb) 5.05 k](11.13 lb) 5.15 k](11.35 lb)

Model No. ET-EMS600 ET-EMT700 ET-EMT800

F value 1.75 - 2.17 1.82 - 2.53 1.85 - 2.39

Focal Length (f)

29.90 mm (1-3/16ʺ) -

46.32 mm (1-13/16ʺ)

46.00 mm (1-13/16ʺ) -

90.50 mm (3/9/16ʺ)

90.30 mm (3-9/16ʺ) -

162.60 mm (6-13/32ʺ)

Dimensions

Width 173 mm (6-13/16ʺ) 173 mm (6-13/16ʺ) 173 mm (6-13/16ʺ)

Height 130 mm (5-1/8ʺ) 130 mm (5-1/8ʺ) 130 mm (5-1/8ʺ)

Depth 267 mm (10-1/2ʺ) 327 mm (12-7/8ʺ) 334 mm (13-5/32ʺ)

Net Weight 3.70 k](8.16 lb) 4.55 k](10.03 lb) 4.75 k](10.47 lb)

10-ENGLISH

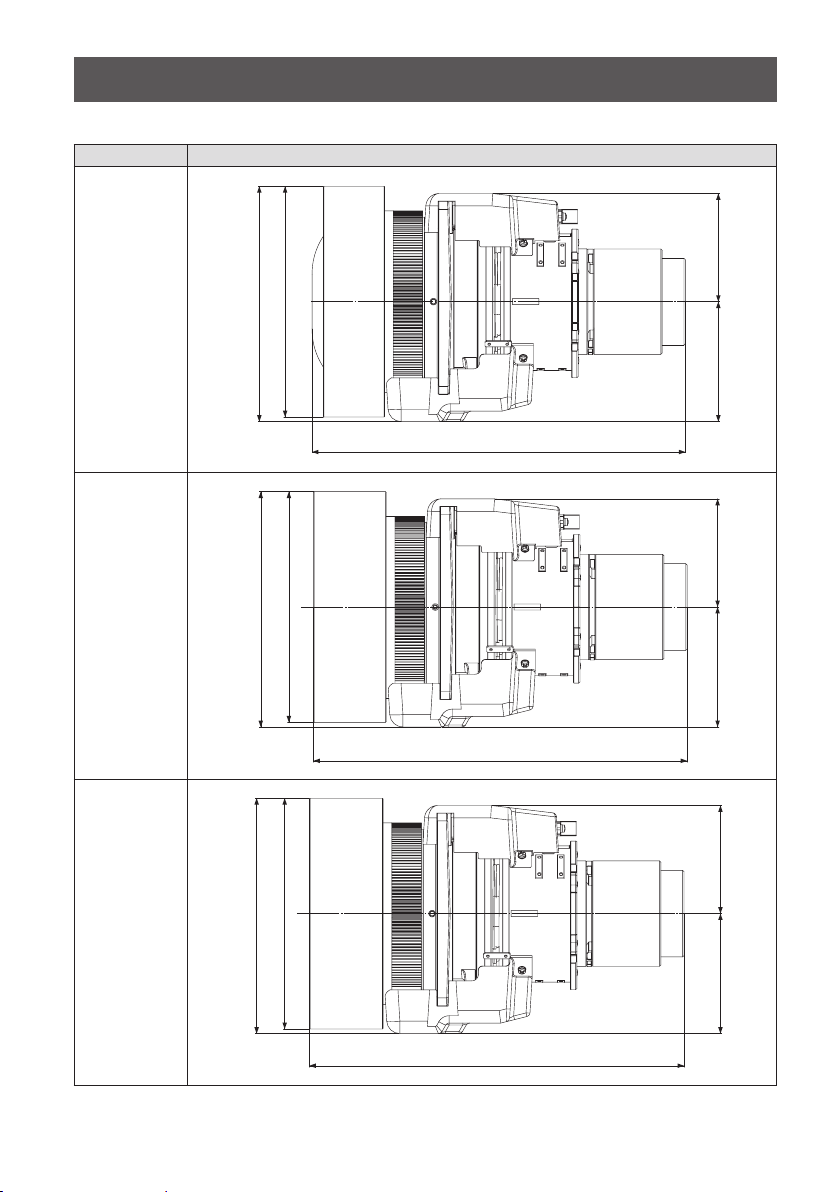

Dimensions (continued)

(Unit: mm)

Model number Dimensions

ET-EMW300

φ175 (6-7/8")

179 (7-1/16")

82 (3-7/32")91 (3-19/32")

284 (11-3/16")

ET-EMW400

φ175 (6-7/8")

179 (7-1/16")

82 (3-7/32")91 (3-19/32")

284 (11-3/16")

ET-EMW500

φ175 (6-7/8")

179 (7-1/16")

285 (11-7/32")

82 (3-7/32")91 (3-19/32")

Autres manuels pour ET-EMW200

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Objectif de l'appareil photo

Panasonic

Panasonic H-HS043 Manuel utilisateur

Panasonic

Panasonic AG-LA7200G Manuel utilisateur

Panasonic

Panasonic Lumix H-FS100300 Manuel utilisateur

Panasonic

Panasonic H-FS1442APP Manuel utilisateur

Panasonic

Panasonic Lumix S-E2470 Manuel utilisateur

Panasonic

Panasonic Lumix H-FSA14140 Manuel utilisateur

Panasonic

Panasonic LUMIX S PRO R1635 Manuel utilisateur

Panasonic

Panasonic WV-LZ62/8S Manuel utilisateur

Panasonic

Panasonic WV-LZ80 Guide de l'utilisateur

Panasonic

Panasonic WV-LA36 Manuel utilisateur

Panasonic

Panasonic ET-DLE085 Manuel utilisateur

Panasonic

Panasonic H-FS35100PP Manuel utilisateur

Panasonic

Panasonic ET-DLE060 Manuel utilisateur

Panasonic

Panasonic DMW-LA7 Manuel utilisateur

Panasonic

Panasonic H-E08018PP Manuel utilisateur

Panasonic

Panasonic WV-LFR4R5C3 Manuel utilisateur

Panasonic

Panasonic Lumix H-H020 Manuel utilisateur

Panasonic

Panasonic Lumix H-X015 Manuel utilisateur

Panasonic

Panasonic Lumix H-XA025 Manuel utilisateur

Panasonic

Panasonic LUMIX S PRO Manuel utilisateur

Panasonic

Panasonic Lumix S-R24105 Guide d'installation

Panasonic

Panasonic LUMIX H-X012E Manuel utilisateur

Panasonic

Panasonic Lumix G Vario H-FS1442AKA Manuel utilisateur

Panasonic

Panasonic ET-D75LE30 Manuel utilisateur

Manuels Objectif de l'appareil photo populaires d'autres marques

THORLABS

THORLABS ELL15 Manuel utilisateur

FUJICA

FUJICA ZC1000 Manuel utilisateur

Tamron

Tamron A09 Manuel

Sony

Sony SEL-55210 Manuel utilisateur

Sony

Sony VCL-HG2037 Manuel utilisateur

Honeywell

Honeywell HLM25V6F12 Manuel utilisateur

Sony

Sony VCL-ST30 Manuel utilisateur

Canon

Canon FD 35 - 70 mm Manuel utilisateur

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuel utilisateur

ARRI

ARRI Lenses Manuel utilisateur

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuel utilisateur

Rokinon

Rokinon DS50M-C Manuel utilisateur

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuel utilisateur

Sony

Sony VCL-DE07T Manuel utilisateur

Canon

Canon FD Lens Manuel

Tamron

Tamron A036 Manuel utilisateur

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuel utilisateur

Tamron

Tamron 272E Manuel utilisateur
