Panasonic AW-PB504N Manuel utilisateur

SDI Card

AW-PB504N

Before attempting to connect, operate or adjust this product,

please read these instructions completely.

Printed in Japan

F1103S0 VQT0H53

-2-

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the

user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (service) instructions in the

literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

indicates safety information.

FCC Note:

This device complies with Part 15 of the FCC Rules. To

assure continued compliance follow the attached

installation instructions and do not make any

unauthorized modifications.

This equipment has been tested and found to comply with

the limits for a class A digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause

harmful interference in which case the user will be

required to correct the interference at his own expense.

This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la class A est conforme à la

norme NMB-003 du Canada.

For CANADA

CAUTION:

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, REFER MOUNTING OF THE

OPTIONAL INTERFACE BOARD TO QUALIFIED

SERVICE PERSONNEL.

-3-

CONTENTS

WARNING/CAUTION FOR SAFETY ...................................................................................... 4

PREFACE .............................................................................................................................. 5

PRECAUTIONS ..................................................................................................................... 5

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ............................................... 6

MOUNTING ........................................................................................................................... 7

CONNECTION ....................................................................................................................... 9

APPEARANCE ....................................................................................................................... 10

SPECIFICATIONS .................................................................................................................. 11

STANDARD ACCESORIES .................................................................................................... 11

-4-

WARNING/CAUTION FOR SAFETY

WARNING

• Refer all servicing to qualified personnel

To reduce the risk of electric shock, don't remove

cover or back, unless you are a qualified personnel.

Refer all mountings, connections, servicing to

qualified service personnel.

• No water or moisture inside

Do not let water or moisture into the product, or

expose it to moisture, to prevent a fire and electric

shock.

• If you see smoke or smell an odor from the product,

if water or other foreign matter gets inside, if it is

damaged by dropping, or if you find anything wrong

with it, immediately stop using it.

• Do not disassemble or modify the product to

prevent a fire and electric shock.

CAUTION

• Do not drop the product, do not expose it to strong

shock, or do not step on it, to prevent a fire and

injuries.

• Do not install the product at a place full of moisture

and dust, which may cause a fire and electric

shock.

-5-

• Installing this SDI card in a convertible camera such

as the AW-E350, AW-E650, AW-E655, AW-E750

makes it possible to output images from the camera

as 270 Mbps (compliant with SMPTE259M

standard) serial digital component signals.

(BELDEN 8281 or equivalent coaxial cable;

max. 200 m)

• EDH (Error Detection and Handling) flags complying

with the SMPTE RP165 standard can be added.

(A switch can be used to enable or disable the

addition of these flags.)

• Zoom focus control of lenses equipped with a

remote control function possible from a WV-CB550

(or similar) control box.

PREFACE

PRECAUTIONS

• Power Off Before Connecting or Disconnecting

Cables

Before plugging or unplugging the cables, be sure

to switch power off.

• Handle Carefully.

Do not drop the product, or subject it to strong

shock or vibration. This is important to prevent

trouble.

• Avoid Humidity and Dust.

Avoid using the product at a humid, dusty place

because much humidity and dust will cause

damage to the parts inside.

• Operating Temperature Range

Avoid using the product at a cold place below

–10°C or at a hot place above +45°C because

extremely low or high temperature will adversely

affect the parts inside.

The AW-PB504 cannot be installed to the

following models;

AW-E300, AW-300A, AW-E300S, AW-E600,

AW-E800, AW-E800A, AW-RP605, AW-PB605

CAUTION

-6-

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

ZOOM/FOCUS

SDI

OUT

SDI

OUT

1ZOOM/FOCUS connector

This is the standard input connector for the lenses

equipped with a remote control function for zoom

focus.

When using a Panasonic pan/tilt head (such as the

AW-PH300A, AW-PH350), use the LENS I/F

connector on the pan/tilt head instead of this

connector.

2SDI output connector [SDI OUT1, 2]

Serial digital component signal can be output.

3Setting switches

1: EDH <ENABLE/DISABLE>

(Factory setting: ENABLE)

An EDH flag is added to SDI output at the

ENABLE setting.

2: Model selection <CAMERA/AW-EX500>

(Factory setting: CAMERA)

Select the type of device to be used.

3: DATA CLIP <NORMAL/CLIP>

(Factory setting: NORMAL)

At the NORMAL setting, signal input is output at

the same level at which it was input.

At the CLIP setting, signal input at smaller then 0%

is output at 0%, and signal input at more than

100% is clipped at 100%.

4: NTSC/PAL switching <NTSC/PAL>

(Factory setting: NTSC)

Leave this switch at the factory setting.

SW NO OFF ON

1 EDH ENABLE DISABLE

2 SETTING CAMERA EX500

3 DATA CLIP NORMAL CLIP

4 NTSC/PAL NTSC PAL

-7-

MOUNTING

• Be sure to ask your store, where you purchased

the product, for mounting.

• Disconnect the camera power connector before

mounting.

• Before handling the card, touch a metal part of

the camera to discharge the static from the

human body.

An anti-static wrist strap is recommended for

added safety.

If you touch the card while you are still charged

with static, it may cause trouble.

• Keep the metal parts of the card free of contact

with other metal parts.

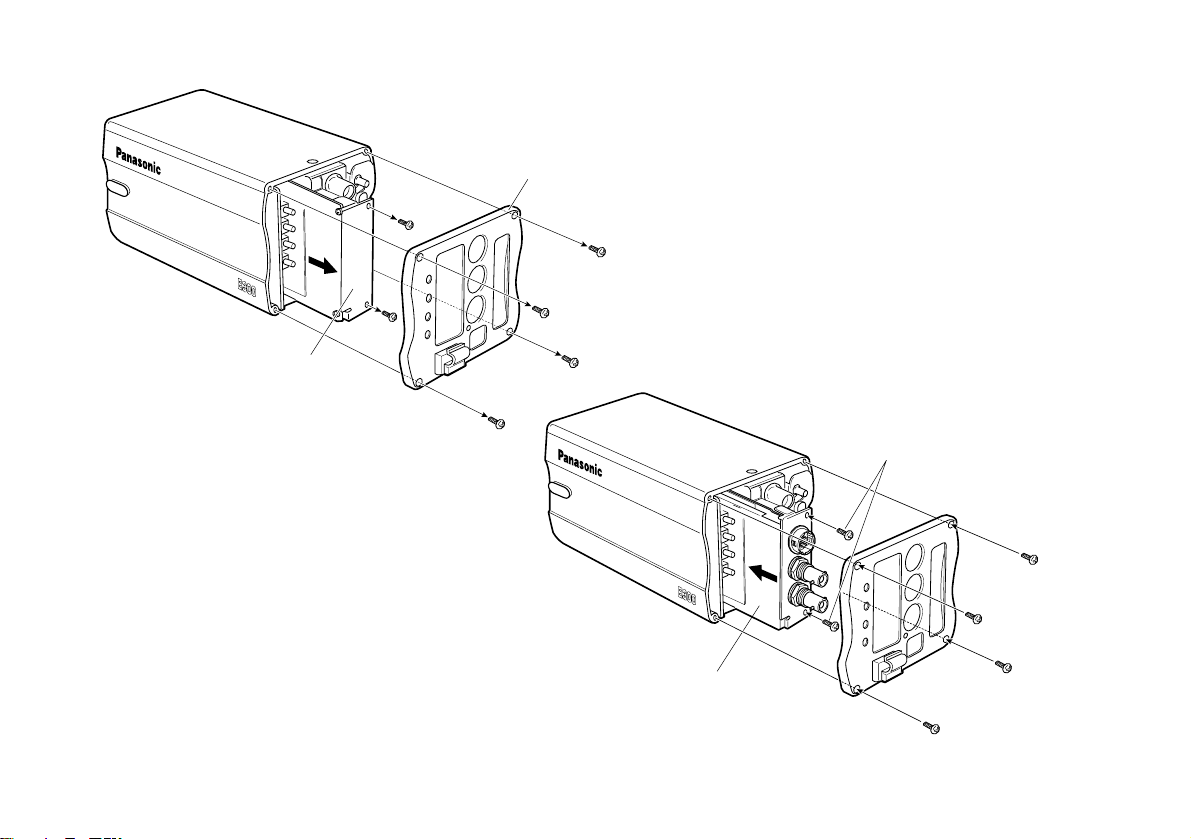

(1) Switch the camera off, and disconnect the power

connector and other cables from the camera.

(2) Loosen the four screws on the rear of the camera

and remove the rear panel.

(3) Loosen the two screws for the option card slot and

remove the cover.

(4) Insert the SDI card along the guide rail at the bottom

of the camera and the tab above.

Insert it securely all the way.

(5) Tighten the two card setscrews securely.

If you have lost the screws, use the screws (6 mm

long) supplied as accessories.

(6) Fasten the rear panel with the four screws.

If you have lost the screws, use the screws (8 mm

long) supplied as accessories.

(7) Plug the cables back as necessary, connect the

power connector, then switch power on.

CAUTION

-8-

Rear panel

Card setscrews (6 mm)

Rear panel

setscrews (8 mm)

SDI card

Option card slot cover

-9-

DC12V IN

G/L

VIDEO

OUT

CONTROL

IN/OUT

VIDEO

G/L

OUT

CAMERA MONITOR

VIDEO OUT

G/L IN

I/F REMOTE

OPTION CARD

IRIS

DC12V IN

ITEM/AWC

YES/ABC

NO/BAR

POWER

OFF

POWER

O I

FUSE(POWER)

FUSE

AC Adaptor

AW-

PS505

SDI

OUT

ZOOM/FOCUS

SDI

OUT

Convertible Camera AW –

E600

• Before cable connection, switch power off.

• Use the AC adaptor AW-PS505 for power supply.

Use the power cable AW-CA4T1.

• For details on connecting individual devices, refer to the respective operating instructions.

• For details on operating individual devices, refer to the respective operating instructions.

■In case of using a remote control box (RCB) WV-CB550

• Connect RCB to the camera with three coaxial cables (video signal, G/L signal, control signal)

(BELDEN 8281 or equivalent, 300 m in maximum extension length).

CONNECTION

Zoom Lens Camera

Remote Cable

(for Zoom/Focus Control)

Camera Cable

VTR etc.

Unit with SDI input

Max. 200 m

Rear View of Camera VIDEO IN

Video Monitor,

VTR etc.

Remote Control Box

WV-CB550

AC120V

60Hz

VIDEO OUT

DC12V

G/L IN

Sync Generator

G/L OUT

AW-CA50T BNC

AC Adaptor AW-PS505

CONTROL

IN/OUT

DC Power Cable

AW-CA4T1

Coaxial cable

(BELDEN 8281 or

equivalent)

-10-

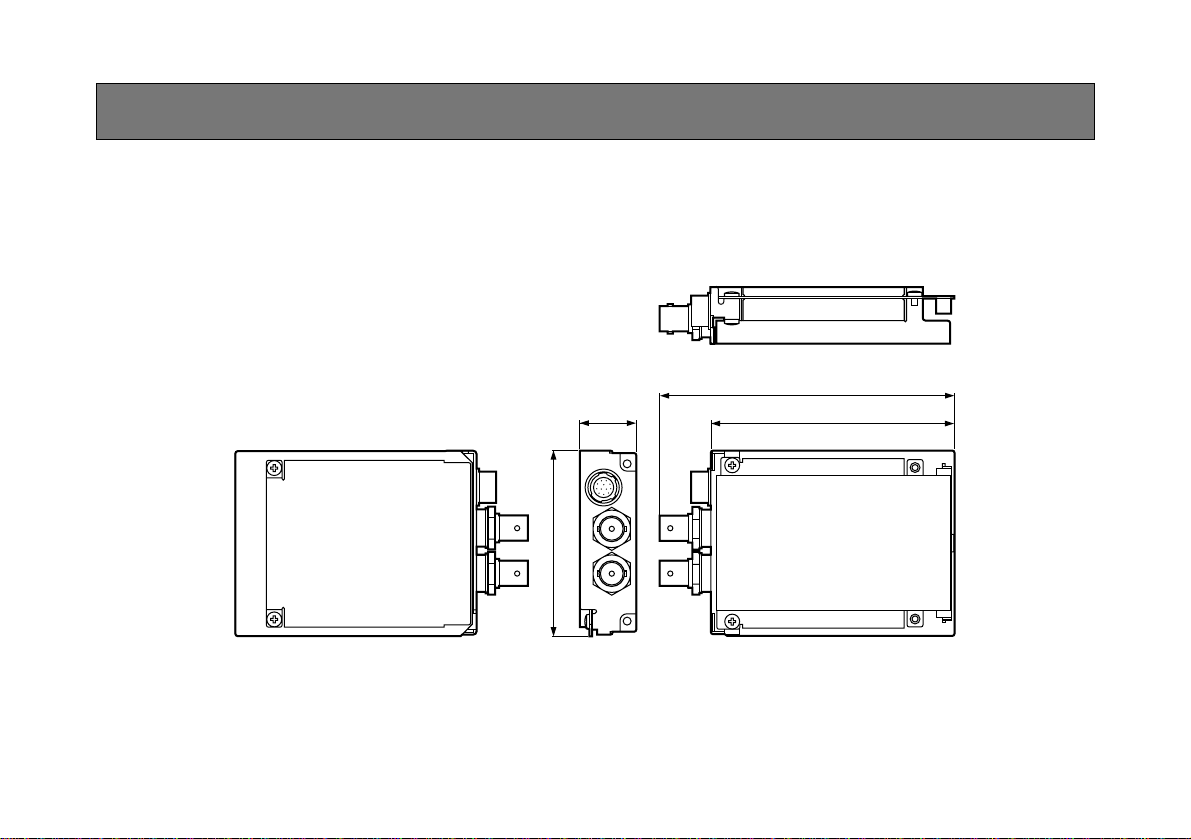

APPEARANCE

Unit: mm (inch)

92 (3-5/8")

111 (4-3/8")

21.5

(27/32")

70 (2-3/4")

SDI

OUT

ZOOM/FOCUS

SDI

OUT

Autres manuels pour AW-PB504N

Table des matières

Autres manuels Panasonic Accessoires pour appareils photo

Panasonic

Panasonic POH1000 Manuel utilisateur

Panasonic

Panasonic WV-VF65B Manuel utilisateur

Panasonic

Panasonic AW-PB303 Manuel utilisateur

Panasonic

Panasonic LUMIX DMW-BGS5 Manuel utilisateur

Panasonic

Panasonic Lumix H-PS14042 Manuel utilisateur

Panasonic

Panasonic GP-US932CSXE Manuel utilisateur

Panasonic

Panasonic DMW-BGGH5 Manuel utilisateur

Panasonic

Panasonic VariCam AU-VSHL1G Manuel utilisateur

Panasonic

Panasonic CGR18650AF Manuel utilisateur

Panasonic

Panasonic LC-R063R4P Manuel utilisateur

Panasonic

Panasonic DP-100 series Manuel utilisateur

Panasonic

Panasonic Varicam AU-VCVF1G Manuel utilisateur

Panasonic

Panasonic Lumix H-ES045 Manuel utilisateur

Panasonic

Panasonic WVQ169 - CCTV CEILING MOUNT BRACKET Manuel utilisateur

Panasonic

Panasonic AS09A51 Mode d’emploi

Panasonic

Panasonic WV-7150D Manuel utilisateur

Panasonic

Panasonic WV-VF42 Manuel utilisateur

Panasonic

Panasonic AG-CVF10G Manuel utilisateur

Panasonic

Panasonic AW-LZ17ST9AG Manuel utilisateur

Panasonic

Panasonic WVRM70 - ACCESSORY Manuel utilisateur

Panasonic

Panasonic WV-Q167 Manuel utilisateur

Panasonic

Panasonic WVPS154 - CAMERA DRIVE UNIT Manuel utilisateur

Panasonic

Panasonic LC-P0612P Manuel utilisateur

Panasonic

Panasonic AJ-HVF20P Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
