Before operating this product, please read the instructions carefully and save this manual for future use.
Operating Instructions
8˝ LCD Viewfinder
Model No. AK-HVF931AEA
VQTB0268-3
2
Safety precautions
wDO NOT REMOVE PANEL COVERS BY
UNSCREWING.
To reduce the risk of electric shock, do not remove
the covers. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING:
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY FROM
ALL LIQUIDS. USE AND STORE ONLY IN
LOCATIONS WHICH ARE NOT EXPOSED TO THE
RISK OF DRIPPING OR SPLASHING LIQUIDS,
AND DO NOT PLACE ANY LIQUID CONTAINERS
ON TOP OF THE EQUIPMENT.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
indicates safety information.
3
Safety precautions ................................................................................................................................................ 2
Overview ................................................................................................................................................................ 3
Accessories ........................................................................................................................................................... 3
Operating precautions .......................................................................................................................................... 4
Parts and their functions ...................................................................................................................................... 5
Adjustments .......................................................................................................................................................... 7
Viewfinder operations ........................................................................................................................................... 8
Appearance .......................................................................................................................................................... 10
Specifications ...................................................................................................................................................... 11
Contents
Overview
The model AK-HVF931A is an LCD viewfinder which is designed for use with the AK-HC930/AK-HC931 multi-format camera.
Accessories
Operating Instructions .................................................... 1
Hood ................................................................................. 1
Tally number sticker .................................................. 1 set
4
Operating precautions
pHandle the viewfinder carefully.
Dropping the viewfinder or subjecting it to strong impact
may cause malfunctioning and/or accidents.
pOperate the viewfinder within a temperature range of
0 °C to +40 °C.
Operation in locations below 0 °C or above 40 °C may
adversely affect the internal parts.
pBe absolutely sure to turn off the power before
connecting or disconnecting the connectors.
pDo not use the viewfinder outdoors.
pInstall the viewfinder at a distance of at least 1 meter
from the monitor.
pMaintenance
Turn off the power, and wipe the viewfinder with a dry
cloth. To remove stubborn dirt, soak a cloth in diluted
kitchen detergent and wring it out well, and then wipe the
viewfinder gently.
pThe images may no longer be output if the format of the
video signals which are input is changed while the
viewfinder’s power is ON. If this has occurred, turn the
power off and then back on.
pThe LCD part of the viewfinder is created with
high-precision technology.
Its percentage of effective pixels is higher than 99.99 %.
Less than 0.01 % of its pixels may be missing or
permanently lit (red, blue or green), but this is not
indicative of any trouble.
pThe LCD protective panel is specially treated.
Wiping it or rubbing it vigorously with a hard cloth may
scratch or mark its surface.
pIf a still image is kept on the display for a prolonged
period of time, a temporary residual image (burn-in) may
result.
(This residual image will disappear if normal moving
images are displayed for a few moments.)
pThe response rate and brightness of the LCD depend on
the ambient temperature.
pAvoid using benzine, paint thinners or other volatile
substances.
pIf a chemically treated cloth is to be used, read the
precautions for its use carefully.
Caution
5
UP tally lamp
When the UP tally selector switch is at ON, this lamp
lights when the red tally signal is input.
The tally number sticker supplied can also be attached to
the lamp.
UP tally selector switch [UP TALLY]
This is used to turn the UP tally lamp to low, high or OFF.
VF tally selector switch [VF TALLY]
This is used to turn the VF tally lamp to low or high.
Aspect ratio selector switch [ASPECT]
This is used to switch the aspect ratio of the LCD screen
from 16:9 to 4:3 or vice versa.
When it is set to “R” (REMOTE), the aspect ratio is
automatically switched from 16:9 to 4:3 or vice versa by
the control on the camera.
Video format selector switch
This is used to select the video format from 1080/60i,
1080/50i or 720/60P.
Power switch [POWER]
This is used to turn the power ON or OFF.
PAN LOCK lever
This is used to secure the unit at the desired angle for
panning.
Camera I/F connector
This D-Sub connector is used for Multi-format camera
(AK-HC930, AK-HC931) interface.
Pin # Signal
1 VF-YOUT
2 VF-PBOUT
3 VF-PROUT
4
5 12C_DATA
6 R_TALLY
7 TA_TALLY
8
9 LCD+12V
10
11 VF-YOUT_GND
12 VF-PBOUT_GND
13 VF-PROUT_GND
14 AGND
15 DGND
16
17 UNREG_GND
18
19 F_GND
20 LCD_ACT
21
22
23 PEAKING_CONT
24 I2C_CLK
25 G_TALLY
26 VF_P_REQ
27
28
29
Parts and their functions
6
TILT DRAG lever
This is used to adjust the torque exerted during tilting.
TILT LOCK lever
This is used to secure the unit at the desired height in the
course of tilting.
Brightness adjustment control [BRIGHT]
This is used to adjust the brightness of the viewfinder
screen.
Contrast adjustment control [CONTRAST]
This is used to adjust the contrast of the viewfinder
images.
Peaking adjustment control [PEAKING]
This is used to adjust the outline of the viewfinder
images.
Power LED
This lights up green when the power is on.
R tally indicators [R]
These indicators light when the R tally signal is input.
G tally indicators [G]
These indicators light when the G tally signal is input.
Lens extender indicator [EXT]
This indicator lights when the extender has been
attached to the lens.
Parts and their functions
7
Adjustments
LOCK
RELEASE
LOCK
RELEASE
To increase
the torque
To reduce
the torque
TILT LOCK lever
PAN LOCK
lever
TILT DRAG lever
The torque exerted during tilting is increased when the
TILT DRAG lever is turned clockwise.
Conversely, it is reduced when the lever is turned
counterclockwise.
To adjust the unit’s height, turn the TILT LOCK lever
counterclockwise (in the direction of RELEASE), adjust
the unit to the desired height, and then turn the TILT
LOCK lever clockwise (in the direction of LOCK) to
secure the unit at that height.
pThe viewfinder can be rotated by 90 degrees to the left or
right by turning the PAN LOCK lever in the direction of
RELEASE.
pTo secure the unit at the desired position, turn the PAN
LOCK lever in the direction of LOCK as far as it will go.
Viewfinder tilting
Viewfinder panning
Exercise care when operating the lever since you may
mark or scratch the unit.
Caution
Do not attempt to pan the unit while PAN LOCK lever
has been secured at the LOCK position.
Otherwise, you may damage the unit or camera.
Caution
8
Viewfinder operations
Stopper
Hood guides
Hood
pTo attach the hood, insert the edges of the hood into the
grooves in the hood guides, and pull the hood down until
stoppers engage.
pTo remove the hood, push the unit up until the edges of
the hood are disengaged from the grooves in the hood
guides.
Attaching and removing the hood
pThe front of the hood can be moved upward.
9
Mounting the viewfinder on the camera
Press the knob on the camera and slide the D-Sub connector cover to detach it.
Detaching the Viewfinder
Press the knob on the camera and slide the viewfinder to detach it.
When the viewfinder is detached, attach the D-Sub connector cover to the camera so that dust does not enter to
the D-Sub connector.
Viewfinder operations
Knob
D-Sub connector
cover
Viewfinder
V form slot
V form edge
Mount the viewfinder on the camera by uniting V form edge of the viewfinder with V form slot on the camera.
When mounting ends, confirm whether the viewfinder is mounted to the camera firmly.
10

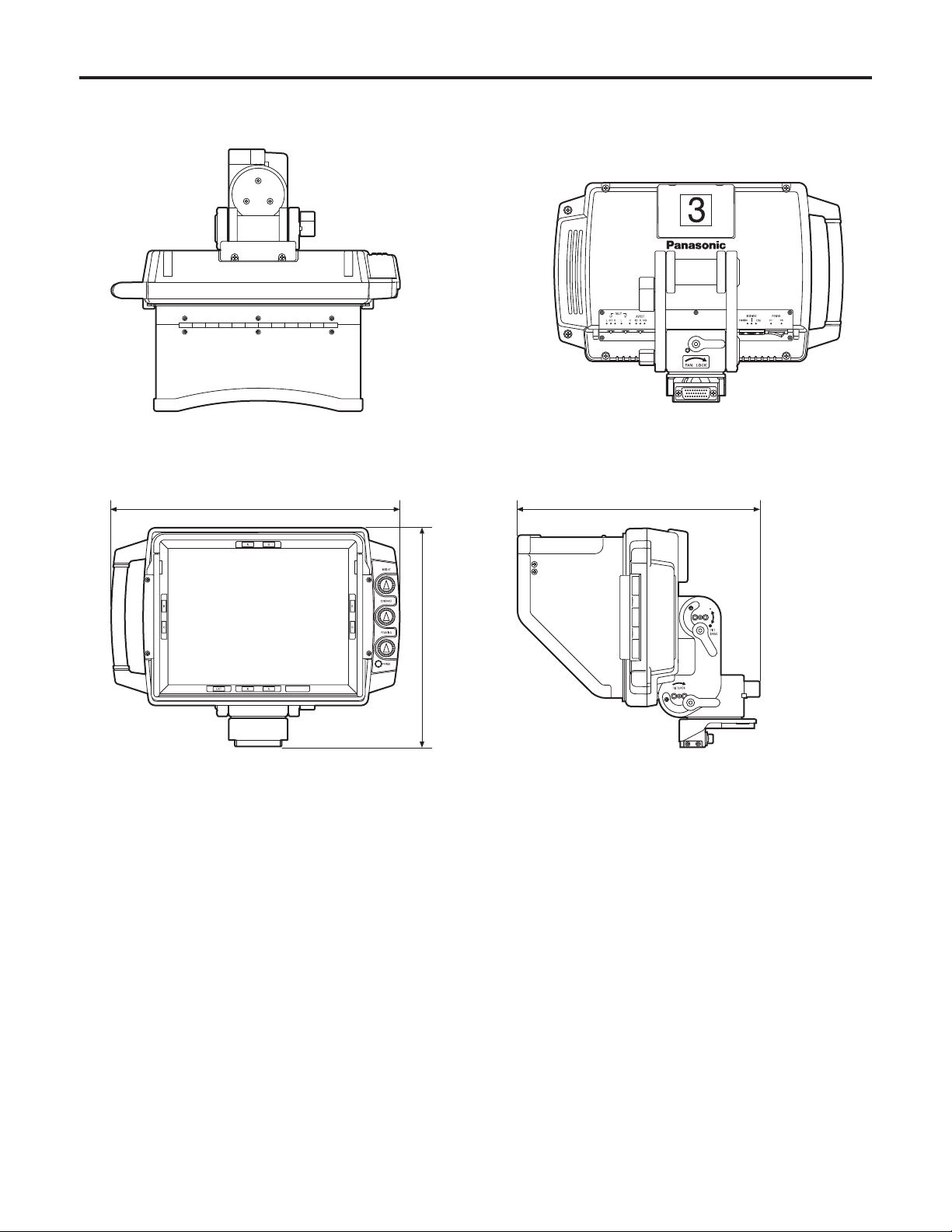

Appearance
275 mm 230 mm
209 mm
