Panasonic NV-GS300 Mode d'emploi

Generated by Clearspace on 2009-11-19Z 1

How to use the Panasonic NVGS300/280

digital video camera - New version

•Before you begin on page 1

•Switching on on page 2

•Inserting cassette on page 5

•Recording on page 6

•Playback on page 9

•Transferring on page 11

•Charging battery on page 12

Before you begin

Make sure you have the following:

1. Panasonic NV-GS300/280 video camera

2. Power adapter/ battery charger

3. Power cables

4. Battery

5. Audio Video (AV) cable

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 2

6. DV Cassette

7. Optional - USB / Firewire cable

Switching on

Recommend: Using mains power at all times where possible to prevent recording to fail

due to battery power loss

If using mains power:

A. Connect power cables to power adapter

B. Connect plug to power source

C. Connect power to back of video camera by sliding connector (looks like a slim

battery) upward until it both terminals click together

If using battery:

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 3

A. Connect battery at back of video camera by sliding it upward until both terminals

click together

1. Press and slide power button at top/ back of video camera to your right

Note: If battery power level is low, charge it (see 'Charging battery')

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 4

To release mains/ battery power from video camera, slide battery release button at

bottom of video camera to side and remove mains power connector/ battery

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 5

Inserting cassette

1. Slide 'Open/Eject' lever at top of video camera up and right

2. Open cassette drawer cover until it clicks (internal cassette holder will

automatically pop up)

3. Insert DV cassette (with arrow facing down and wheels facing into video camera

internal cassette holder)

4. Squeeze internal cassette holder together to close (it will automatically go down)

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 6

5. Close outer cassette drawer cover until it clicks

Recording

A. If using LCD display monitor at side of video camera, open it outward

B. If using Optical view finder at back of video camera, pull it outward (make sure

LCD display monitor is closed)

1. Turn mode dial at back of video camera to select 'tape recording mode' (lens

shutter will automatically open)

2. Set record mode by pressing 'Menu' button at back of video camera

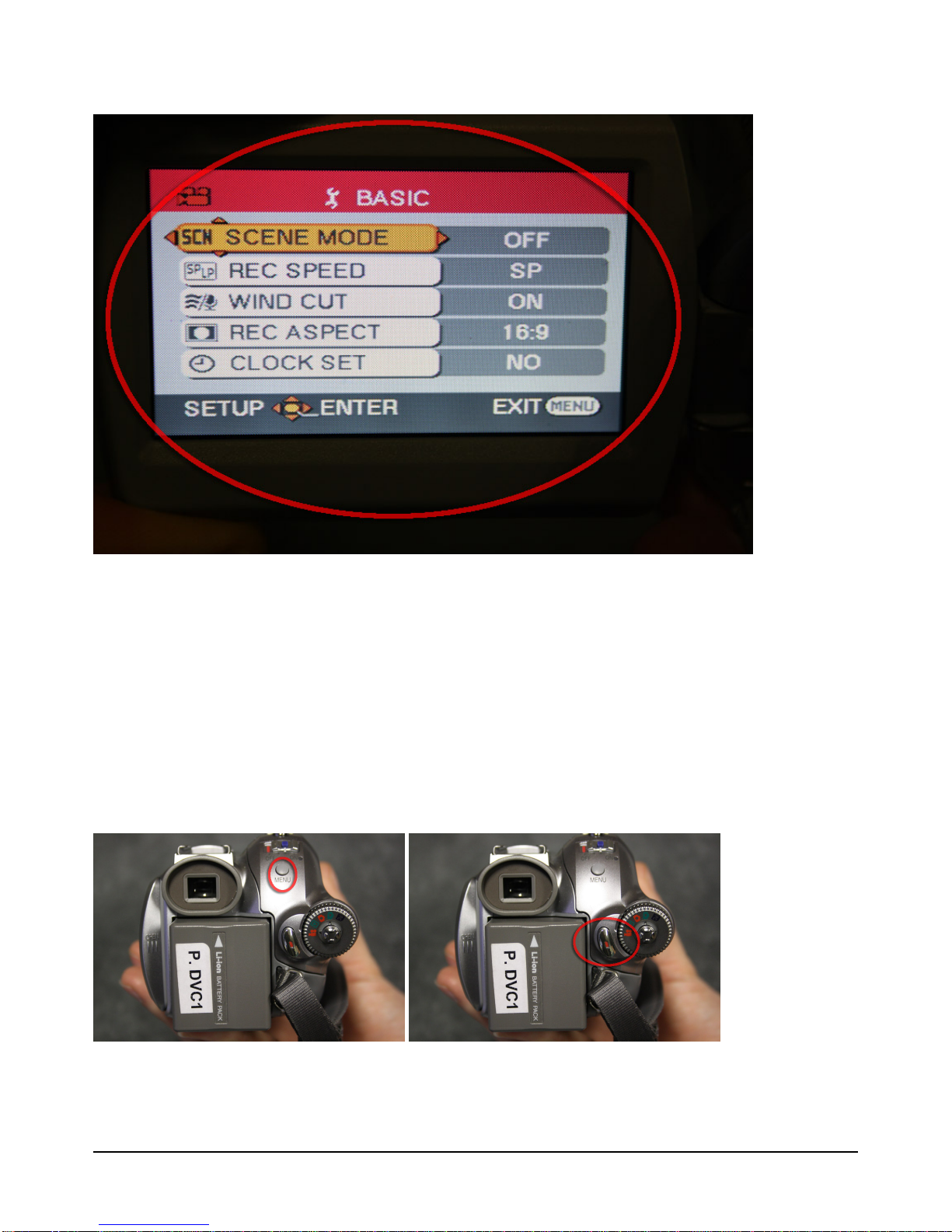

3. Push joystick at back of video camera in to display 'basic menu'

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 7

4. Change record speed and record aspect by moving joy stick down/ up/ left/ right

and pushing it in to select your preference

Recommend record speed; SP and record aspect; 16:9 (widescreen)

SP = Short Play (60mins recording time), LP = Long Play (90mins recording time)

5. Press 'Menu' button to exit

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 8

6. Press record start/ stop button at back of video camera to record

7. Use Zoom lever at top of video camera to zoom in and out

To change focus use the 'Focus' lever at side of video camera. Press it down twice to

select 'manual focus' mode. Use the joystick to alter focus

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 9

To stop recording press record start/ stop button

Playback

A. If using LCD display monitor, open it outward

B. If using Optical view finder, pull it outward (make sure LCD display monitor is

closed)

How to use the Panasonic NVGS300/280 digital video camera - New version

Generated by Clearspace on 2009-11-19Z 10

1. Turn mode dial to select 'tape playback mode' (lens shutter will automatically

close)

2. Move joystick up/ down/ left/ right to play/ pause, rewind, fast-forward or stop

playback

To playback on TV

1. Connect AV cable to video camera

2. Connect AV cable to TV using either Yellow or black and white/ red connectors

AV connections:

Yellow = standard video

Black = super-video

White = left audio
