Panasonic KX-TG6322CS Manuel utilisateur

rights reserved. Unauthorized copying and distribu-

tion is a violation of law.

ORDER NO. KM40802540CE

F22

Telephone Equipment

Model No. KX-TG6322CS

KX-TG6324CT

KX-TGA631CS

KX-TGA631CT

Expandable Digital Cordless Answring

System

Pearl Silver Version

Titanium Black Version

(for Canada)

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

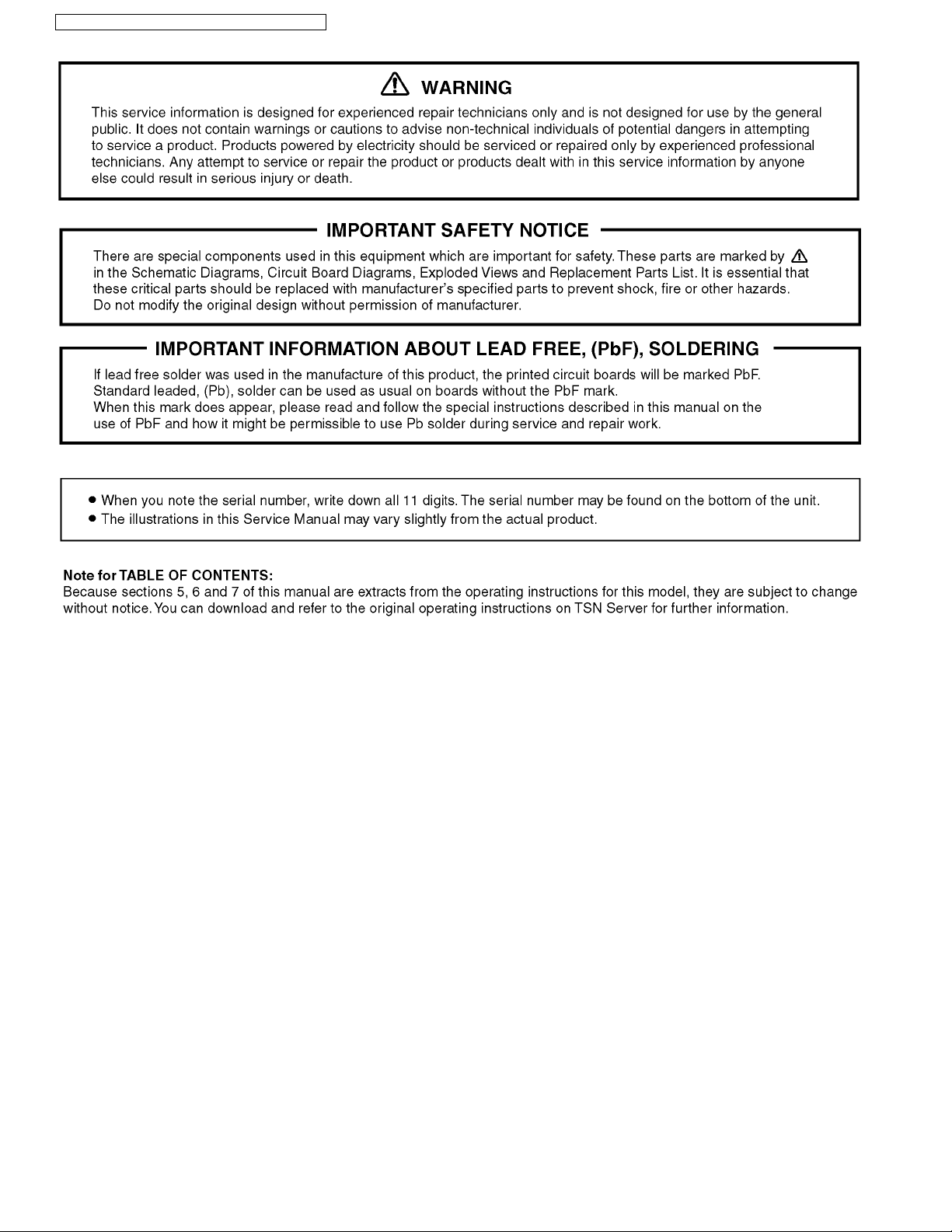

TABLE OF CONTENTS

PAGE

1 Safety Precautions----------------------------------------------- 4

1.1. For Service Technicians --------------------------------- 4

2 Warning -------------------------------------------------------------- 4

2.1. Battery Caution--------------------------------------------- 4

3 Specifications ----------------------------------------------------- 5

4 Location of Controls and Components ------------------- 6

4.1. Controls ------------------------------------------------------ 6

4.2. Display ------------------------------------------------------- 6

5 Installation Instructions ---------------------------------------- 7

5.1. Connections------------------------------------------------- 7

5.2. Battery-------------------------------------------------------- 7

6 Operating Instructions------------------------------------------ 9

6.1. Programmable Settings ---------------------------------- 9

6.2. Error Messages -------------------------------------------12

6.3. Troubleshooting-------------------------------------------13

7 Schematic Diagram ---------------------------------------------17

7.1. For Schematic Diagram---------------------------------17

7.2. Schematic Diagram (Base Unit_Main) --------------18

7.3. Schematic Diagram (Base Unit_RF Part) ----------20

7.4. Schematic Diagram (Handset_Main) ----------------22

7.5. Schematic Diagram (Handset_RF Part) ------------24

7.6. Schematic Diagram (Charger Unit) -----------------25

8 Exploded View and Replacement Parts List -----------26

8.1. KX-TG6311S/KX-TG6312S ----------------------------26

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

1 Safety Precautions

1.1. For Service Technicians

•Repair service shall be provided in accordance with repair technology information such as service manual so as to pre-

vent fires, injury or electric shock, which can be caused by improper repair work.

1. When repair services are provided, neither the products nor their parts or members shall be remodeled.

2. If a lead wire assembly is supplied as a repair part, the lead wire assembly shall be replaced.

3. FASTON terminals shall be plugged straight in and unplugged straight out.

•ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1. Cover plastic parts boxes with aluminum foil.

2. Ground the soldering irons.

3. Use a conductive mat on worktable.

4. Do not grasp IC or LSI pins with bare fingers.

2Warning

2.1. Battery Caution

1. Danger of explosion if battery is incorrectly replaced.

2. Replace only with the same or equivalent type recommended by the manufacturer.

3. Dispose of used batteries according to the manufacturer's Instructions.

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

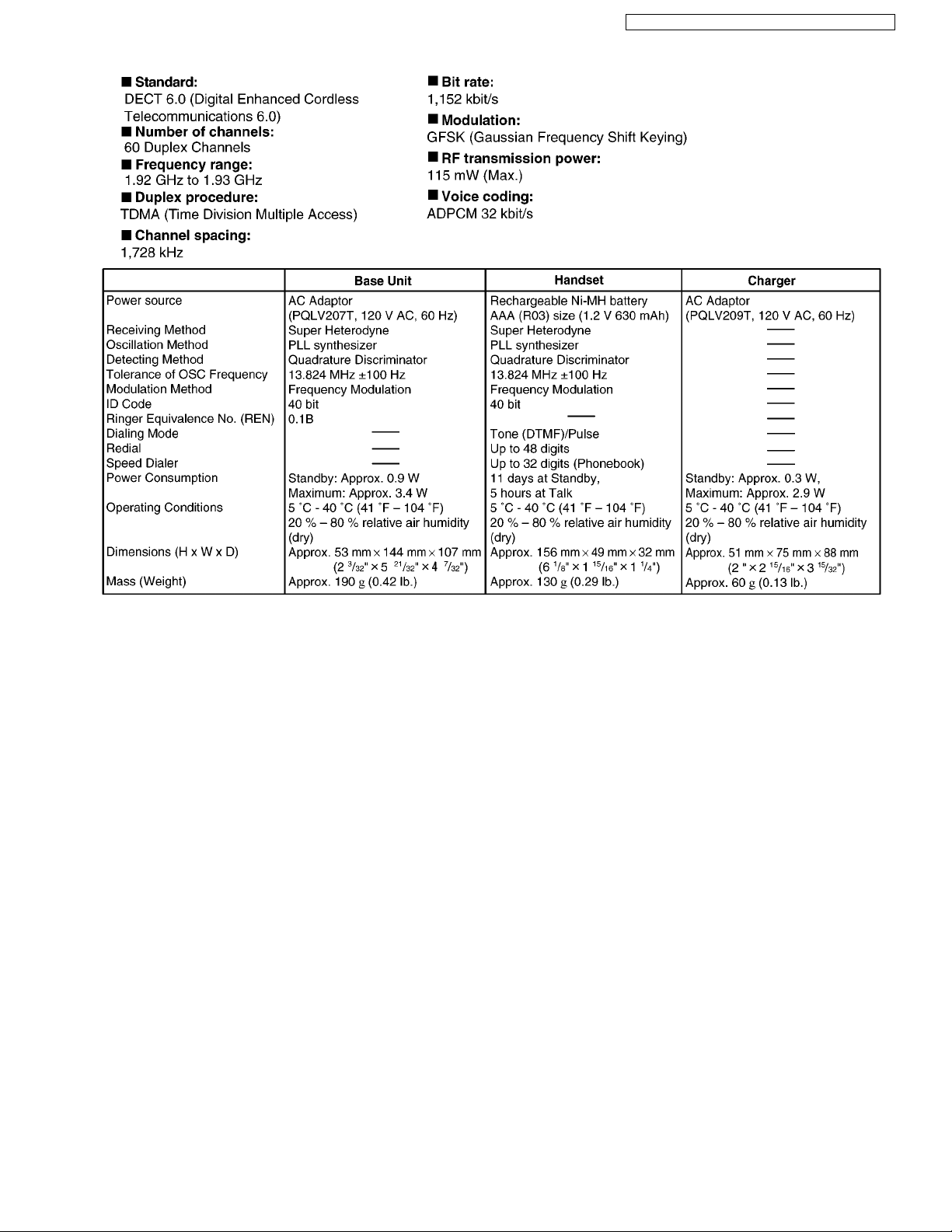

3 Specifications

Note:

• Design and specifications are subject to change without notice.

Note for Service:

•Optional headset: RP-TCA86, RP-TCA92, RP-TCA94, RP-TCA95

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

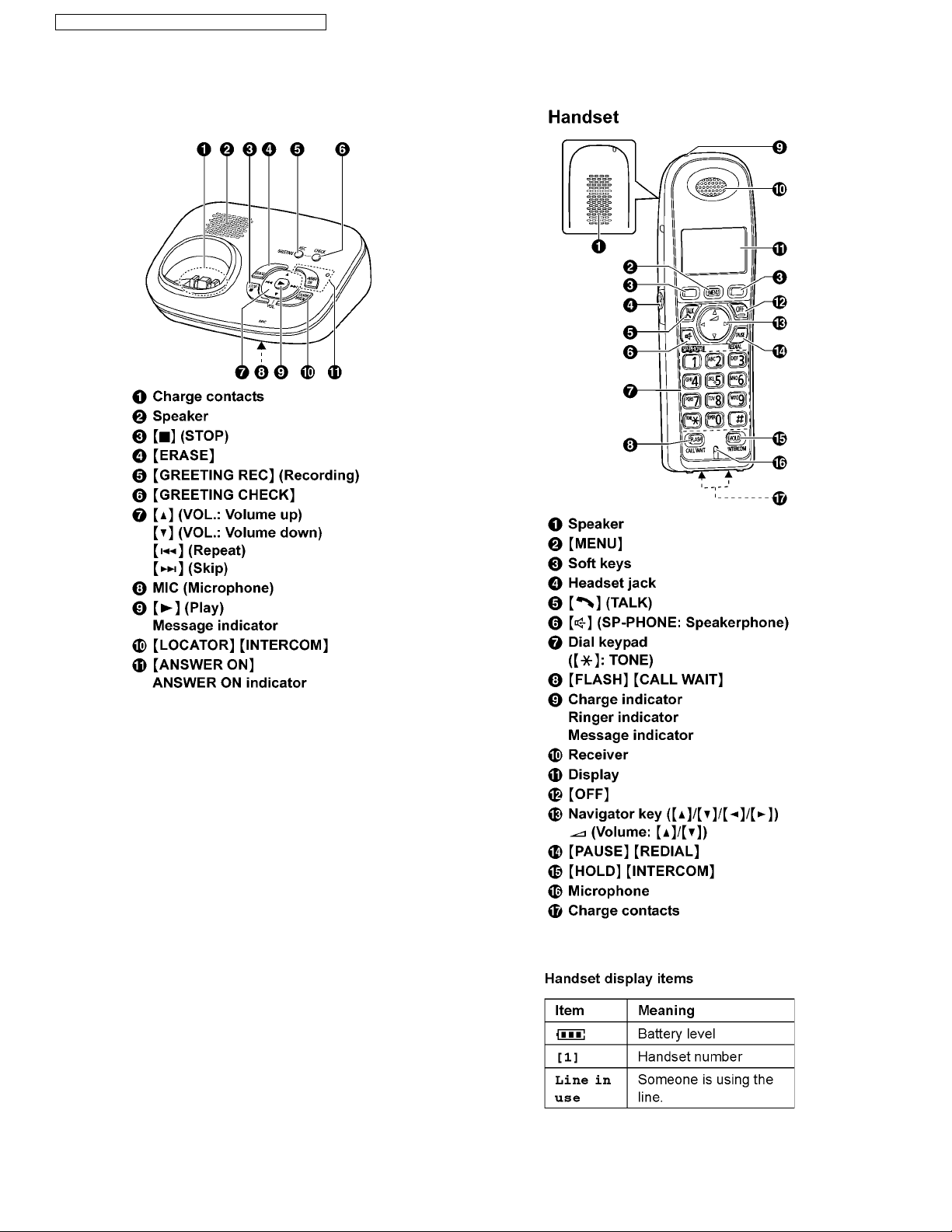

4 Location of Controls and Components

4.1. Controls

4.1.1. Base Unit

4.1.2. Handset

4.2. Display

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

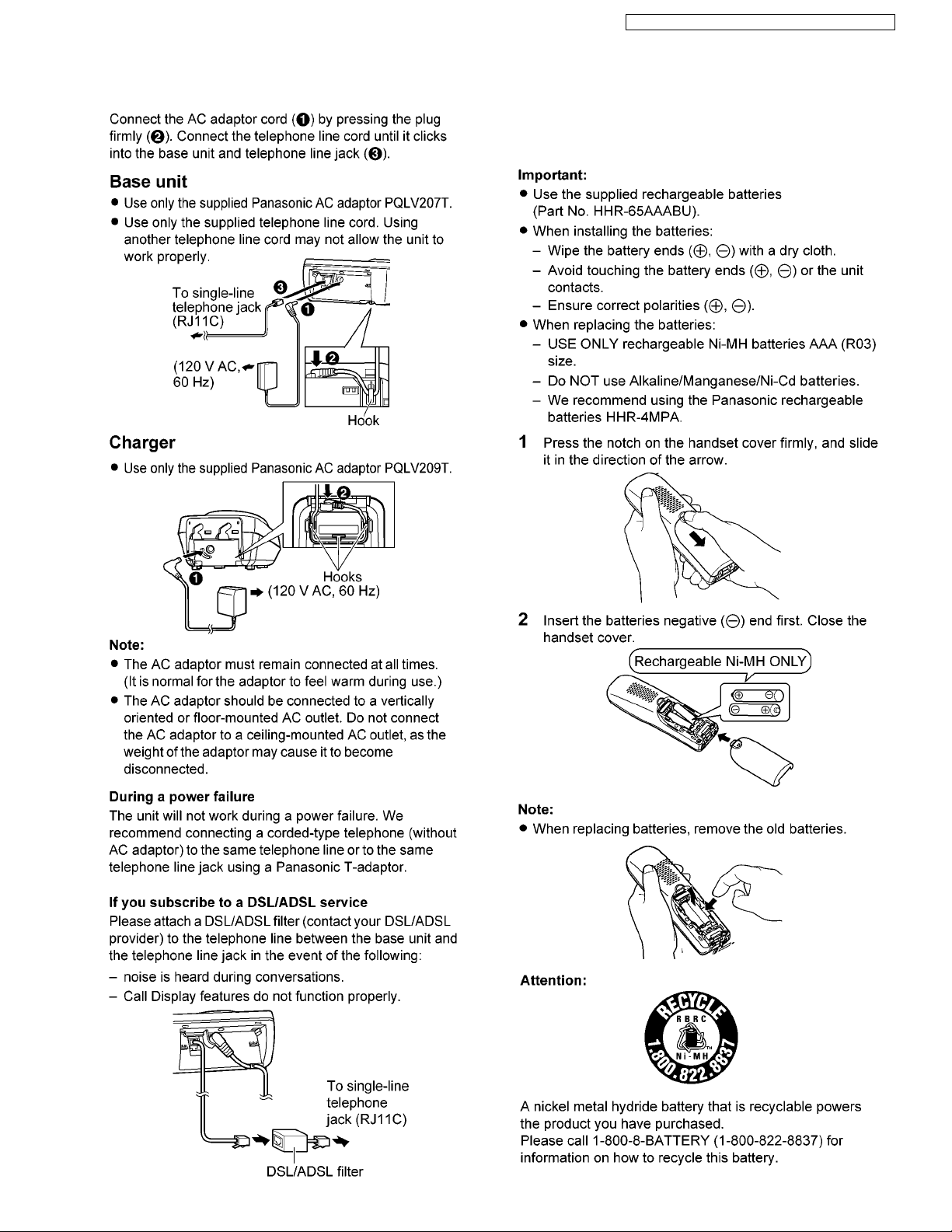

5 Installation Instructions

5.1. Connections 5.2. Battery

5.2.1. Battery Installation and

Replacement

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

5.2.2. Battery Charge

Note for service:

The battery strength may not be indicated correctly if the

battery is disconnected and connected again, even after it is

fully charged. In that case, by recharging the battery as

mentioned above, you will get a correct indication of the

battery strength.

5.2.3. Battery Level

5.2.4. Panasonic Ni-MH Battery

Performance (supplied batteries)

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

6 Operating Instructions

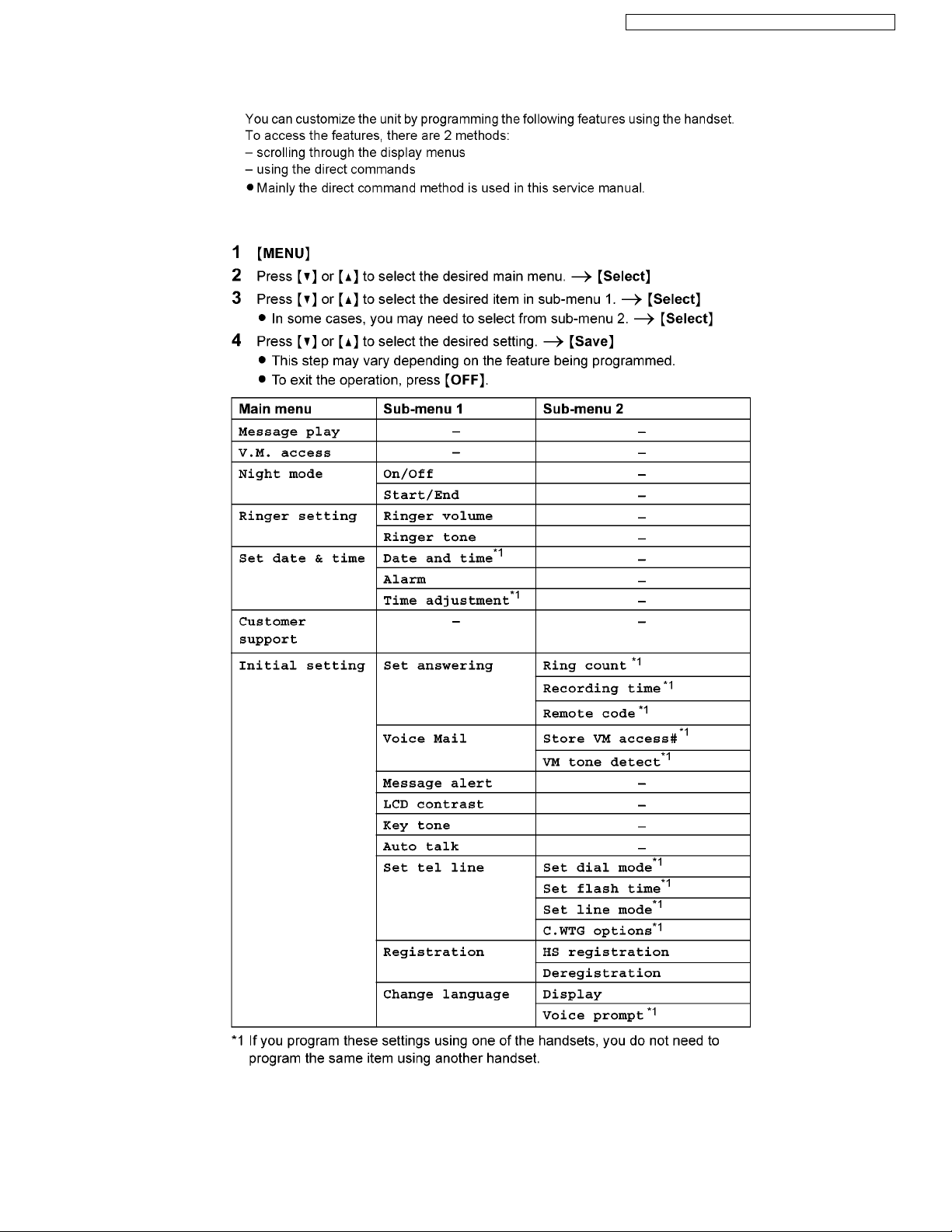

6.1. Programmable Settings

6.1.1. Programming by Scrolling through the Display Menus

KX-TG6322CS/KX-TG6324CT/KX-TGA631CS/KX-TGA631CT

6.1.2. Programming using the Direct Commands
