Panasonic KX-TG2343C Manuel utilisateur

2.4 GHz Digital Cordless Answering System

Operating Instructions

Model No. KX-TG2343C

Pulse-or-tone dialing capability

The unit is Call Display compatible. To display the caller’s name and phone number,

you must subscribe to Call Display service.

PLEASE READ BEFORE USE AND SAVE.

For assistance, please call 1-800-561-5505 or visit us at www.panasonic.ca

Charge the battery for 6 hours before initial use.

PQQX14037ZA.book 1 ページ２００４年２月１９日　木曜日　午後４時５８分

Thank you for purchasing your new Panasonic cordless

telephone.

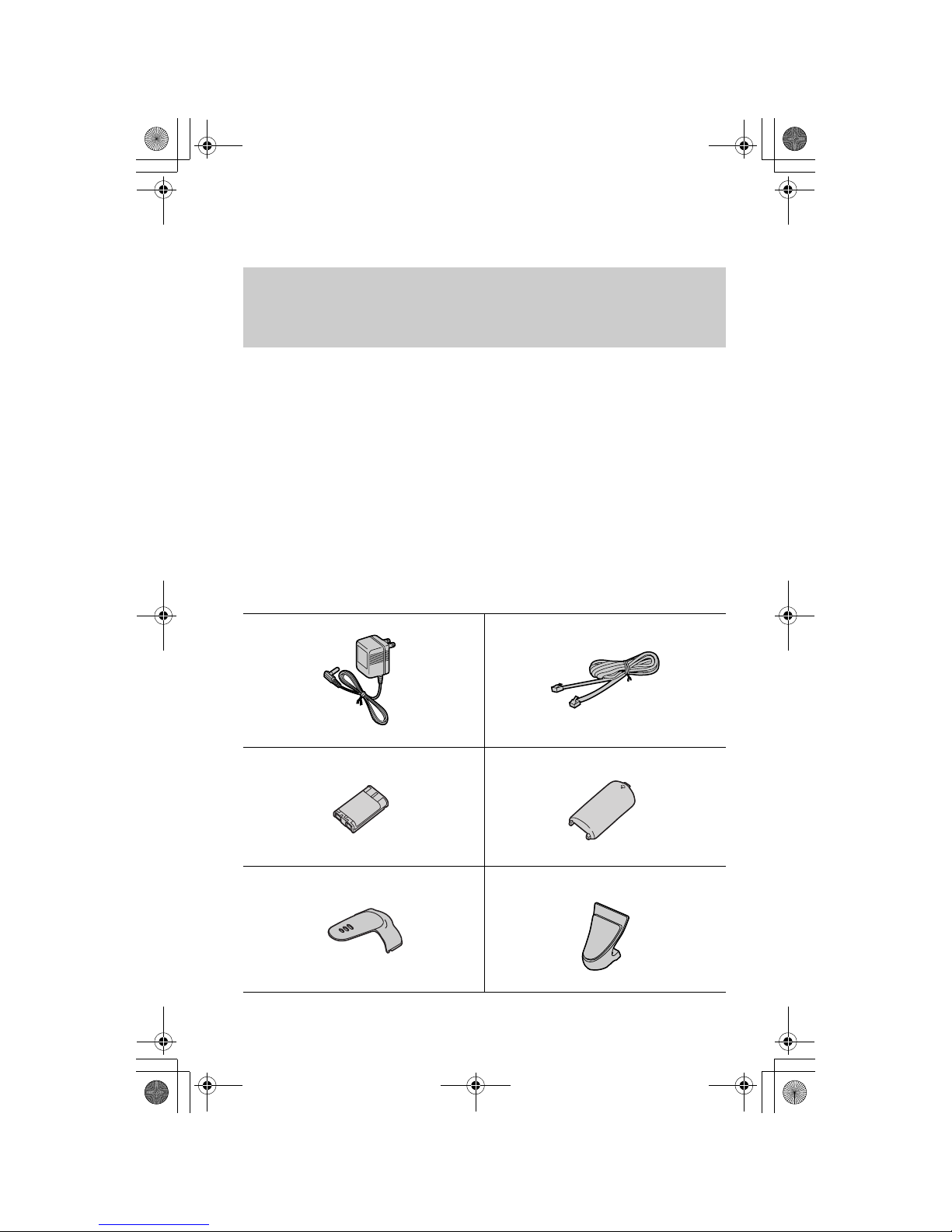

Accessories (included)

Call Display and Call Waiting service, where available, are telephone company

services. After subscribing to Call Display this phone will display a caller’s name

and phone number. Visual Call Waiting/Call Waiting Deluxe, which displays a

second caller’s name and phone number while the user is on another call,

requires a subscription to both Call Display and Visual Call Waiting services.

AAC Adaptor (p. 9)

one

ATelephone Line Cord (p. 9)

one

ABattery (p. 10)

one

AHandset Cover (p. 10)

one

ABelt Clip (p. 60)

one

AShoulder Rest Attachment (p. 60)

one

PQQX14037ZA.book 2 ページ２００４年２月１９日　木曜日　午後４時５８分

For Best Performance

Battery Charge

The handset is powered by a rechargeable Nickel-

Metal Hydride (Ni-MH) battery. Charge the battery

for 6hoursbefore initial use (p. 10).

Base Unit Location/Noise

Calls are transmitted between the base unit and handset using wireless radio

waves. For maximum distance and noise-free operation, the recommended

base unit location is:

Note:

• If you use the handset near a microwave oven which is being used, noise may be

heard from the receiver or the speaker. Move away from the microwave oven and

closer to the base unit.

• If you use the handset near another cordless phone’s base unit, noise may be

heard. Move away from the other cordless phone’s base unit and closer to your

base unit.

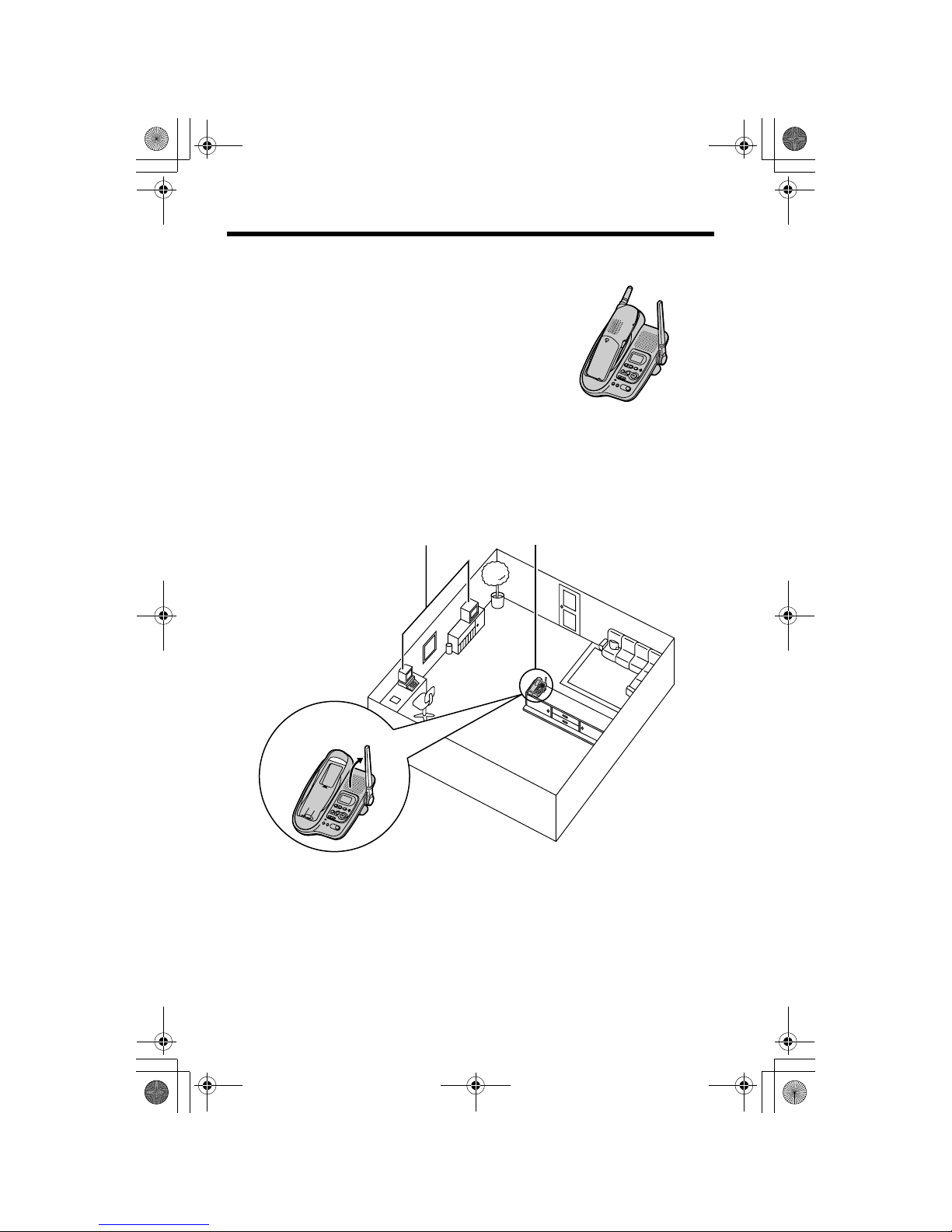

Raise the antenna.

Away from electrical appliances such

as a TV, personal computer or another

cordless phone.

In a HIGH and CENTRAL location

with no obstructions such as walls.

PQQX14037ZA.book 3 ページ２００４年２月１９日　木曜日　午後４時５８分

Contents

Location of Controls . . . . . . . 6

Installation . . . . . . . . . . . . . . . 9

Connections . . . . . . . . . . . . . 9

Installing the Battery in the

Handset . . . . . . . . . . . . . . 10

Battery Charge . . . . . . . . . . 10

Programmable Settings . . . . 12

Programming Guidelines . . 12

Function Menu Table . . . . . 13

Date and Time . . . . . . . . . . 14

Display Language . . . . . . . 15

Voice Guidance

Language . . . . . . . . . . . . . 16

Dialing Mode . . . . . . . . . . . 16

Line Mode . . . . . . . . . . . . . 17

Auto Talk . . . . . . . . . . . . . . 17

Ringer Volume . . . . . . . . . . 18

Ringer Tone . . . . . . . . . . . 19

LCD Contrast . . . . . . . . . . . 20

Preparing the Answering

System . . . . . . . . . . . . . . . . 21

Greeting Message . . . . . . . 21

Caller’s Recording Time . . 23

Number of Rings . . . . . . . . 24

Recording Mode . . . . . . . . 24

Message Alert . . . . . . . . . . 25

Making Calls . . . . . . . . . . . . . 26

Answering Calls . . . . . . . . . . 29

Call Display Service . . . . . . . 30

Using the Caller List . . . . . . 31

Viewing the Caller List . . . . 31

Calling Back from the Caller

List . . . . . . . . . . . . . . . . . . 32

Editing the Caller’s Phone

Number . . . . . . . . . . . . . . 33

Storing Caller Information in the

Phone Book . . . . . . . . . . . 34

Erasing Caller Information . 35

Phone Book . . . . . . . . . . . . . . 36

Storing Names and

Numbers . . . . . . . . . . . . . 36

Dialing from the Phone

Book . . . . . . . . . . . . . . . . . 38

Chain Dial . . . . . . . . . . . . . . 39

Editing an Item in the Phone

Book . . . . . . . . . . . . . . . . . 40

Erasing an Item in the Phone

Book . . . . . . . . . . . . . . . . . 40

Special Features . . . . . . . . . . 41

Handset Locator . . . . . . . . . 41

Temporary Tone Dialing

(For Rotary or Pulse Service

Users) . . . . . . . . . . . . . . . 41

Muting Your Conversation . 41

For Call Waiting Service

Users . . . . . . . . . . . . . . . . 42

Call Waiting Deluxe

Service . . . . . . . . . . . . . . . 43

Using the PAUSE Key

(For PBX Line/Long Distance

Calls) . . . . . . . . . . . . . . . . 46

FLASH Button . . . . . . . . . . 46

Key Tone . . . . . . . . . . . . . . 47

Re-registering the

Handset . . . . . . . . . . . . . . 48

Preparation

Telephone System

PQQX14037ZA.book 4 ページ２００４年２月１９日　木曜日　午後４時５８分

Contents

Preparation Useful InformationAnswering SystemTelephone System

Automatic Answering

Operation . . . . . . . . . . . . . . 49

Setting the Unit to Answer

Calls . . . . . . . . . . . . . . . . . 49

Monitoring Incoming Calls . 50

Listening to Messages . . . . . 51

Using the Base Unit . . . . . . 51

Using the Handset (Remote

Operation) . . . . . . . . . . . . 52

Erasing Messages . . . . . . . . 54

Remote Operation from a Touch

Tone Phone . . . . . . . . . . . . . 55

Remote Code . . . . . . . . . . . 56

Voice Menu . . . . . . . . . . . . 57

Direct Remote

Operation . . . . . . . . . . . . . 58

Wall Mounting . . . . . . . . . . . . 59

Belt Clip . . . . . . . . . . . . . . . . . 60

Shoulder Rest Attachment . . 60

Optional Headset . . . . . . . . . 61

Direct Commands . . . . . . . . . 61

If the Following Appears on

Your Display... . . . . . . . . . . . 63

Troubleshooting . . . . . . . . . . 64

Important Information . . . . . . 68

Safety Instructions . . . . . . . . 69

Specifications . . . . . . . . . . . . 70

Warranty . . . . . . . . . . . . . . . . 71

Answering System Useful Information

Important:

Throughout these Operating Instructions, and

are used to indicate with which unit an operation can be performed.

: Perform with the handset.

: Perform with the base unit.

: Perform with the handset and base unit

separately.

: Perform with the handset and base unit

together.

Handset Base Unit

Handset

Base Unit

Handset Base Unit

Handset & Base Unit

PQQX14037ZA.book 5 ページ２００４年２月１９日　木曜日　午後４時５８分

Location of Controls

Base unit

VOLUME [<], [>] Buttons (p. 22)

MIC (Microphone) (p. 21)

[HANDSET LOCATOR]

Button (p. 41)

NEW MESSAGE

Indicator (p. 51)

Charge Contacts

(p. 11)

Antenna (p. 3)

Display (p. 8)

[ANSWER ON]

Button and

Indicator (p. 49)

[MESSAGE] Button (p. 51)

[SKIP] Button (p. 53)

[GREETING REC]

(Record) Button (p. 21)

[STOP] Button (p. 21, 53)

[GREETING CHECK]

Button (p. 22)

[REPEAT] Button (p. 53)

[ERASE] Button

(p. 22, 54)

CHARGE Indicator (p. 10)

Speaker

PQQX14037ZA.book 6 ページ２００４年２月２０日　金曜日　午前１１時１３分

Preparation

Location of Controls

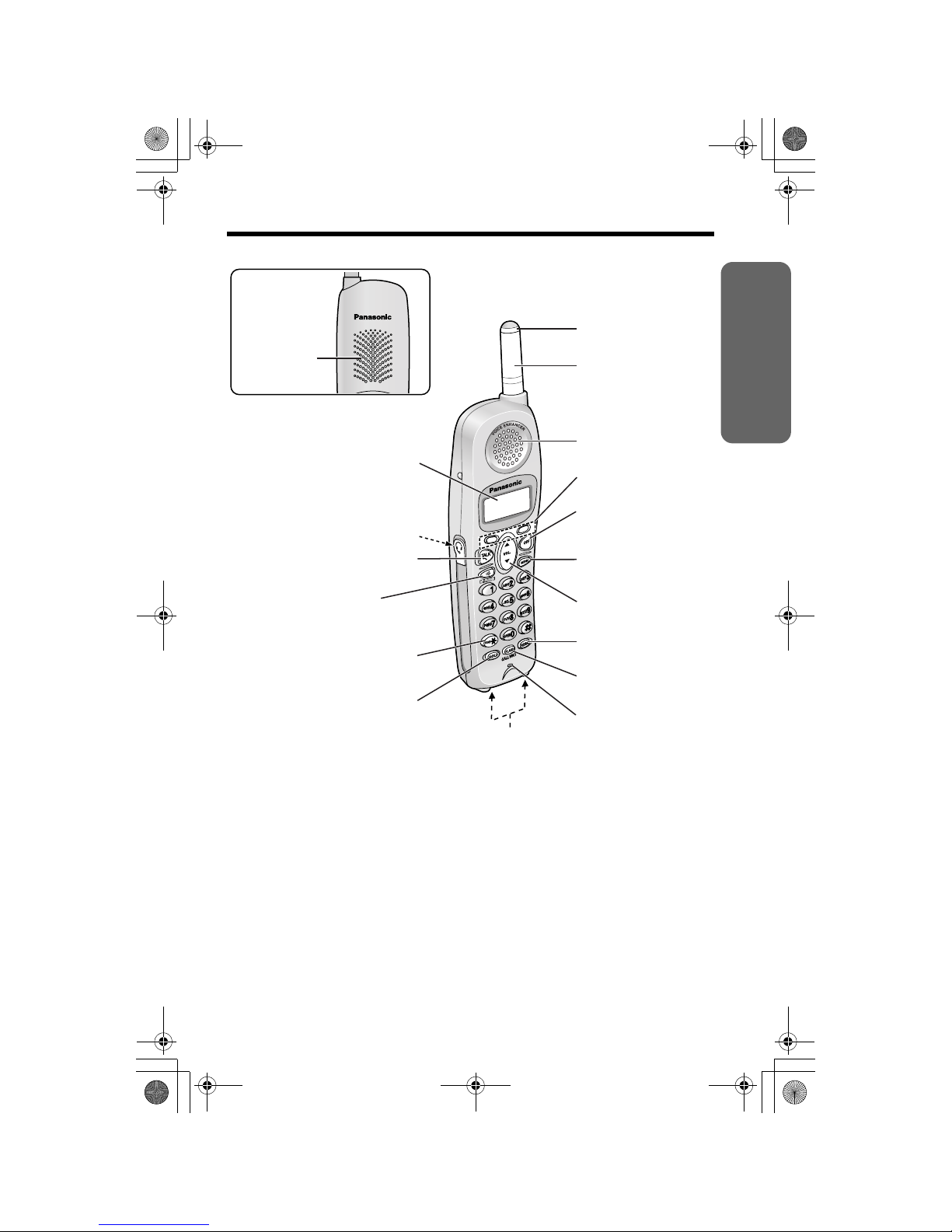

Handset

Antenna

Display

Receiver

Soft Keys (p. 8)

[OFF] Button

(p. 12, 26)

[MENU] Button

(p. 12)

Navigator Key

([

], [

]) (p. 8)

Back side

Speaker

Headset Jack (p. 61)

[C](TALK) Button (p. 26)

[s](Speakerphone)

Button (p. 26)

[*](TONE) Button (p. 41)

[FLASH/CALL WAIT]

Button (p. 42, 46)

[REDIAL] Button

(p. 27)

Charge Contacts (p. 11)

Microphone (p. 26)

[HOLD] Button (p. 28)

Ringer/Message Alert

Indicator (p. 25, 29)

PQQX14037ZA.book 7 ページ２００４年２月１９日　木曜日　午後４時５８分

Location of Controls

Handset soft keys

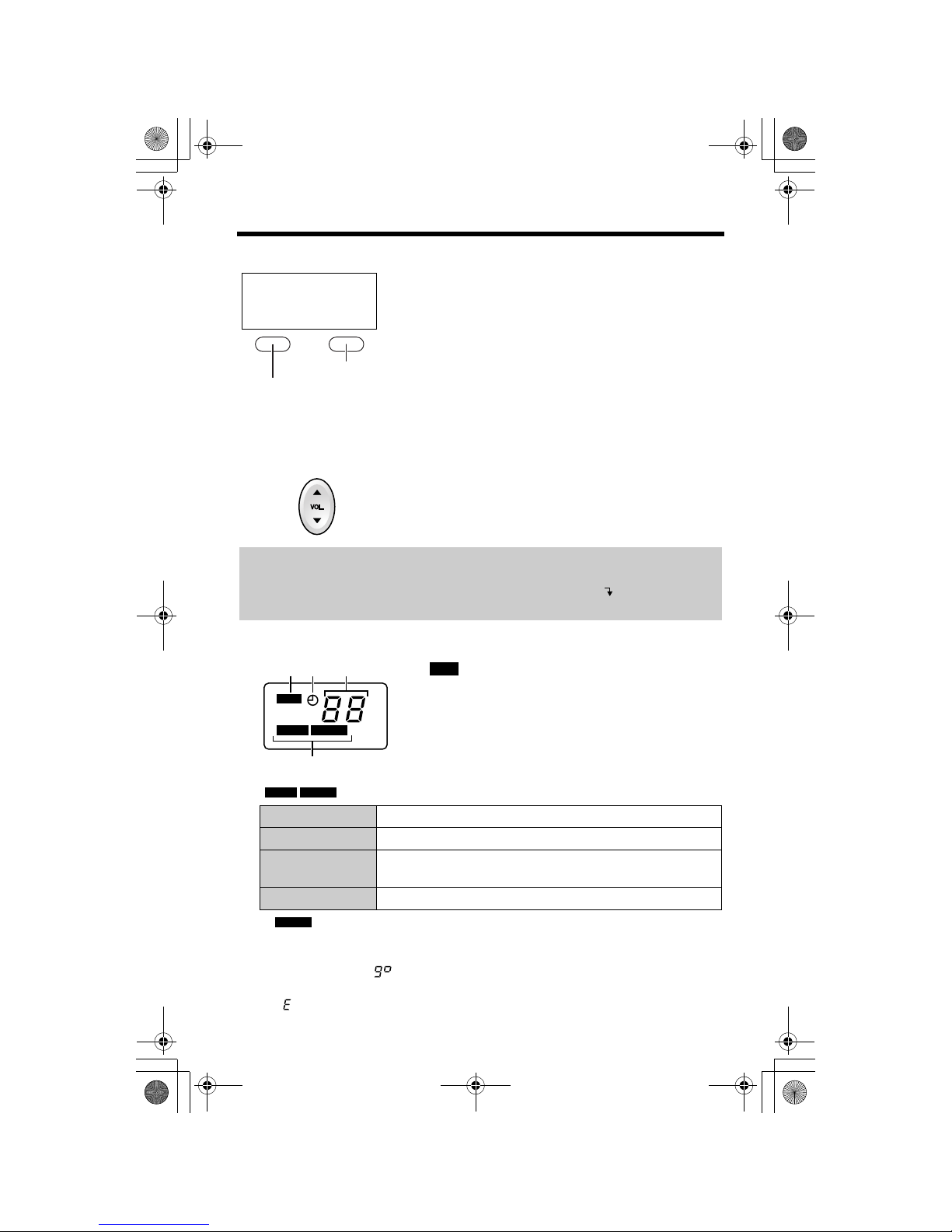

Two soft keys are used to select functions displayed

directly above each key. Functions displayed above the

keys will change depending on the state of use.

On this sample display, “ (VE)” and “Mute ” are

displayed above the soft keys.

• When a function name does not appear above a soft key, the soft key has no

function.

Handset navigator key

Scrolls up [

]and down [

]the function menu, the Caller

List and the phone book.

Increases [

] or decreases [

]the handset ringer and

receiver/speaker volumes.

Base unit display

1“ ” flashes when no new messages can be

recorded. Erase unnecessary messages (p. 54).

2“E” flashes until you set the date and time, and

flashes after a power failure. If it is flashing, set the

date and time (p. 14).

3“ ” functions as follows.

• “ ” displays when a handset is operating the Answering System.

4Message counter shows:

—the total number of recorded messages. If the recording time is set to

“Greeting only”, “ ” will be displayed (p. 23).

—the selected volume level while you are adjusting the volume (p. 22).

—“ ” when your greeting message was not recorded correctly (p. 21).

Throughout these Operating Instructions:

• The soft keys are indicated by what is displayed above the keys.

e.g. “Press Mute.” indicates “Press the soft key below Mute ”.

• The navigator key is indicated by the arrows [

]or [

Off (invisible) The line is free.

On The line is being used.

Flashing A call is on hold on the handset or the Answering

System is answering a call (p. 49).

Flashing rapidly A call is being received.

Talk

00-00-32

(VE) Mute

FULL

LINE IN USE

1 2

FULL

LINE IN USE

IN USE

Pressing the right soft key selects mute “Mute

”.

Pressing the left soft key selects Voice Enhancer “ (VE)

”.

PQQX14037ZA.book 8 ページ２００４年２月１９日　木曜日　午後４時５８分

Preparation

Installation

Connections

• USE ONLY WITH Panasonic AC ADAPTOR PQLV1.

• The AC adaptor must remain connected at all times. (It is normal for the adaptor to

feel warm during use.)

• If your unit is connected to a PBX which does not support Call Display services,

you cannot access those services.

• The unit will not work during a power failure. We recommend connecting a

standard telephone to the same telephone line or to the same telephone jack

using a T-adaptor.

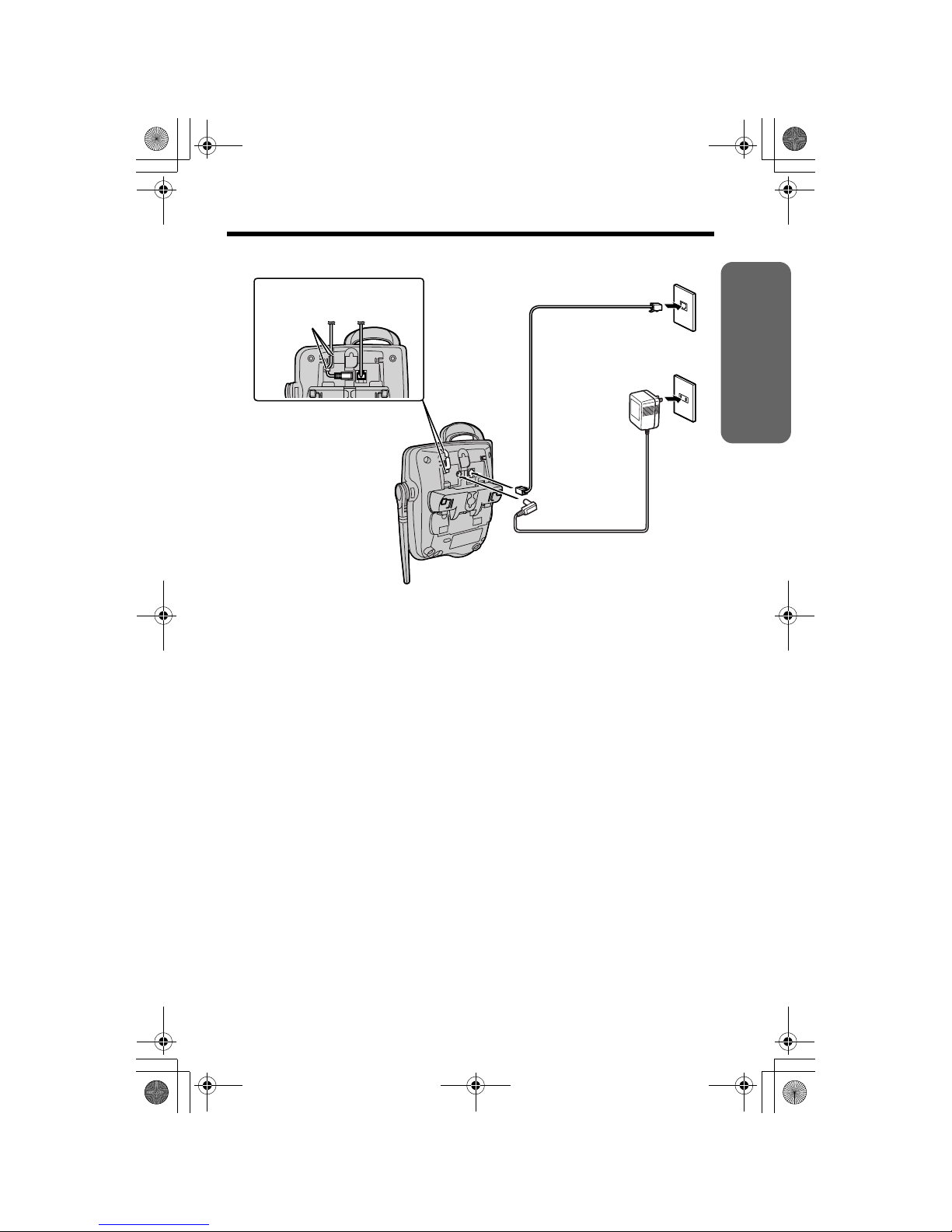

Fasten the AC adaptor cord.

Single-Line Telephone Jack (CA11A)

Telephone Line Cord

Power Outlet

(AC 120 V, 60 Hz)

AC Adaptor

Hooks

PQQX14037ZA.book 9 ページ２００４年２月１９日　木曜日　午後４時５８分

Installation

Installing the Battery in the Handset

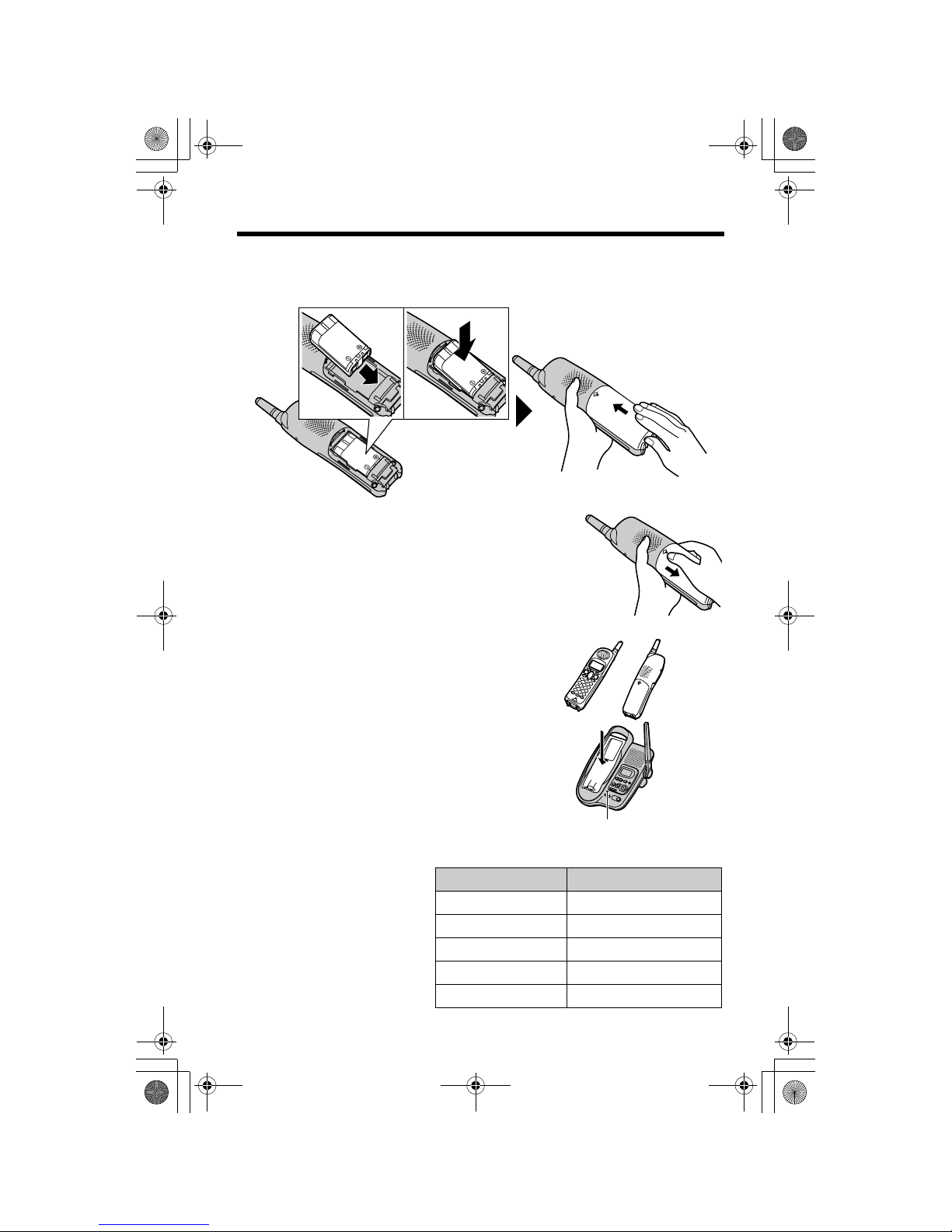

Insert the battery (1), and press it down until it snaps into the compartment (2).

Close the cover.

To replace the battery:

Press the notch on the cover firmly and slide it as indicated

by the arrow. Replace the old battery with a new one

(p. 11). Close the cover and charge the battery for 6 hours.

Battery Charge

Place the handset on the base unit.

Charge for 6hoursbefore initial use.

Repeat charging will require

approximately the same amount of

charging time (6 hours) if the battery is

depleted completely.

• The unit beeps once, the CHARGE

indicator lights, and “Charging” is

displayed.

• When the battery is fully charged, “Charge

completed” is displayed.

Battery strength

You can confirm battery strength

on the handset display.

Battery strength is indicated by

the icons shown in the chart to

the right.

Display prompt Battery strength

5Fully charged

6Medium

7Low

074(flashing) Needs to be recharged.

8Discharged

CHARGE Indicator

PQQX14037ZA.book 10 ページ２００４年２月１９日　木曜日　午後４時５８分

Table des matières

Autres manuels Panasonic Répondeur

Panasonic

Panasonic KX-TG2257S - 2.4 GHz Digital Cordless... Manuel utilisateur

Panasonic

Panasonic KX-TG633SK Manuel utilisateur

Panasonic

Panasonic KX-TG7160E Manuel utilisateur

Panasonic

Panasonic KX-TG4771C Manuel utilisateur

Panasonic

Panasonic KX-TGM422AZ Manuel utilisateur

Panasonic

Panasonic KX-TG6700 Manuel utilisateur

Panasonic

Panasonic KX-TS620BX1 Manuel utilisateur

Panasonic

Panasonic KX-TG8032AL Manuel utilisateur

Panasonic

Panasonic EASA-PHONE KX-T1427BA Manuel utilisateur

Panasonic

Panasonic KX-TGH222AZ Manuel utilisateur

Panasonic

Panasonic KX-TG577 Manuel utilisateur

Panasonic

Panasonic KX-T4300BA Manuel utilisateur

Panasonic

Panasonic KX-TG2346 Manuel utilisateur

Panasonic

Panasonic KX-T1 461 Manuel utilisateur

Panasonic

Panasonic KX-TG2257 Instructions d'utilisation et d'installation

Panasonic

Panasonic KX-TG1062 Manuel utilisateur

Panasonic

Panasonic KX-TG9331 Manuel utilisateur

Panasonic

Panasonic KX-TG6051NZ Manuel utilisateur

Panasonic

Panasonic KX-TG2680N Manuel utilisateur

Panasonic

Panasonic KX-TG2722NZ Manuel utilisateur

Panasonic

Panasonic KX-TGD324AL Manuel utilisateur

Panasonic

Panasonic KX-TGC460E Manuel utilisateur

Panasonic

Panasonic KX-F230BX Guide de démarrage rapide

Panasonic

Panasonic KX-TG7341NZ Manuel utilisateur

Manuels Répondeur populaires d'autres marques

Radio Shack

Radio Shack TAD-795 Manuel utilisateur

AT&T

AT&T 2455 Manuel utilisateur

BellSouth

BellSouth GH9488 Guide de sécurité

GE 2-9985 Manuel utilisateur

Krown

Krown PortaPrinter 2000STD Manuel utilisateur

AT&T

AT&T 1717 Manuel utilisateur

Alcatel

Alcatel TEMPORIS 55-CE Manuel utilisateur

AT&T

AT&T E2562 Manuel utilisateur

Telstra

Telstra Monitor 420 Manuel utilisateur

Kortex

Kortex IAM V90 Manuel utilisateur

Philips

Philips VOIP8551B/05 Manuel utilisateur

Topcom

Topcom LUCCA Answering Machine Manuel utilisateur

TIPTEL

TIPTEL Ergophone 307 Manuel utilisateur

Conairphone

Conairphone TAD2012 Manuel utilisateur

AT&T

AT&T 1738 Manuel d'utilisation

Philips

Philips SE6554B/05 Manuel utilisateur

Lucent Technologies

Lucent Technologies Definity System 75 Manuel utilisateur

Sony

Sony TAM-2000 Manuel utilisateur
