Digital Cordless Answering System

Operating Instructions

Model No. KX-TCD420E

Caller ID Compatible

PLEASE READ BEFORE USE AND SAVE.

Charge the battery for about 7 hours before initial use.

Preparation Cordless Telephone Useful InformationAnswering System

Contents

Preparation

Before Initial Use ......................... 2

Important Information .................. 3

Setting up .................................... 4

Cordless Telephone

Using the Telephone ................... 9

Making Calls.............................. 10

Caller ID .................................... 11

Answering Calls......................... 13

Phonebook ................................ 14

Handset Settings ....................... 18

Base Unit Settings..................... 24

Initial Settings ............................ 26

Multi-unit User Operation........... 28

Intercom .................................... 32

Answering System

Answering System..................... 33

Remote Operation ..................... 40

Useful Information

Before Requesting Help ............ 41

Technical Information ................ 44

Index.......................................... 45

Guarantee ................................. 46

420E.book Page 1 Thursday, March 20, 2003 7:41 PM

Before Initial Use

Thank you for purchasing your new Panasonic digital cordless telephone.

•Order accessory items for all Communications Products with ease and confidence

either by telephoning our Customer Care Centre on:

08700 100 076 Monday - Friday 9:00am - 5:30pm

•Or go on line through our Internet Accessory ordering application at

shop@Panasonic http://www.panasonic.co.uk

•Most major credit and debit cards accepted.

•All enquires transactions and distribution facilities are provided directly by Panasonic

UK Ltd.

•It couldn’t be simpler!

Dear purchaser,

You have acquired a KX-TCD420E, which is a product made in regard with

the European Standards for Cordless Telephones (DECT). DECT technology is

characterized by high-security protection against interceptions as well as high-quality

digital transmission. This telephone was designed for a wide range of applications. For

example, this telephone can be used within a network of base units and handsets,

constituting a telephone system which:

•operates up to 6 handsets at one base unit.

•allows an intercom between 2 handsets.

•allows the operation of a handset at up to 4 base units, expanding the communication

radio area.

Accessories (included)

Caller ID Service, where available, is a telephone company service. After subscribing

to Caller ID, this phone will display the caller’s phone number.

AC Adaptor

PQLV19E

Telephone Line

Cord

PQJA87S

(for UK)

Rechargeable

Batteries

(AAA size)

HHR-4EPT/BA2

(P03P)

Battery Cover

PQKK10134Z4

Additional accessories are available for purchase. Contact your Panasonic Customer

Care Helpline for further details. U.K. 08700 100 076 R.O.I. 01289 8333

420E.book Page 2 Thursday, March 20, 2003 7:41 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 3

Preparation

Important Information

Only use the power supply included with

the product.

Do not connect the AC Adaptor to any AC

outlet other than the standard AC220-

240V.

The apparatus is approved for use with

PQLV19E power supply.

This apparatus is unable to make

emergency telephone calls under the

following conditions:

•The portable handset batteries need

recharging, or have failed.

•During a mains power failure.

•When the Key Lock is set to ON.

•When the unit is in Direct Call mode.

Do not open the base unit or handset

(other than to change the batteries).

This apparatus should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

Care should be taken that objects do not

fall onto, and liquids are not spilled into

the unit. Do not subject this unit to

excessive smoke, dust, mechanical

vibration or shock.

Environment

Do not use this unit near water.

This unit should be kept away from heat

sources such as radiators, cookers, etc. It

should also not be placed in rooms where

the temperature is less than 5°C or

greater than 40°C.

The AC Adaptor is used as the main

disconnect device, ensure that the AC

outlet is located/installed near the unit and

is accessible.

Battery Caution

Use only specified batteries.

Only use rechargeable batteries.

Do not mix old and new batteries.

Do not dispose of batteries in a fire, they

may explode.

Check local waste management codes for

special disposal instructions.

Do not open or mutilate the batteries.

Released electrolyte is corrosive and may

cause burns or injury to the eyes or skin.

The electrolyte may be toxic if swallowed.

Exercise care in handling the batteries in

order not to short the batteries with

conductive materials such as rings,

bracelets and keys.

The batteries and/or conductor may

overheat and cause burns.

Charge the batteries provided in

accordance with the information given in

this operating guide.

Location

•For maximum distance noise-free

operation, place your base unit:

- Away from electrical appliances such

as TV, radio, personal computer or

another phone.

- In a convenient high and central

location.

Safety Caution

The ringer tone is reproduced through the

earpiece. To avoid damage to hearing,

first answer the call, then hold the phone

to the ear.

WARNING:

TO PREVENT THE RISK OF

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN

OR ANY OTHER TYPE OF

MOISTURE.

420E.book Page 3 Thursday, March 20, 2003 7:41 PM

Setting up

Connection

Plug in the AC adaptor and the telephone line cord in order 1, 2, 3.

(Switch on AC mains outlet.)

•Never install telephone wiring during a lightning storm.

Battery Installation

Please ensure the batteries are inserted as shown. part should be inserted first.

Close the cover as indicated by the arrow.

•When you replace the batteries, part should be removed first.

Do not connect the telephone line cord to the phone socket 4until the handset is fully

charged.

The AC adaptor must remain connected at all times (It is normal for the adaptor to feel

warm during use).

Fasten the AC adaptor

cord to prevent it from

being disconnected.

Hook

LINE

To replace the battery:

Press the notch on the cover firmly

and slide it as indicated by the arrow.

Replace 2 batteries and close the

cover then charge the handset for

about 7 hours.

420E.book Page 4 Thursday, March 20, 2003 7:41 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 5

Preparation

Setting up

Battery Charge

At the time of shipment, the batteries are

not charged. To charge, place the

handset on the base unit. Please charge

the batteries for about 7 hours before

initial use. During charging, the battery

icon is as shown below.

Fully charged During charging

The handset which power is off will be

turned on automatically when it is placed

on the base unit.

In normal use, the handset and the base

unit should be powered on at all times.

Battery Life

Battery life is dependent on use and

conditions but in general when using fully

charged Ni-MH batteries (700 mAh):

Talk time: 10hrs approx.

Standby time: 120hrs approx.

When using Ni-Cd batteries (250 mAh):

Talk time: 4hrs approx.

Standby time: 40hrs approx.

(Times indicated are for peak

performance)

The batteries reach peak performance

after several full charge/discharge cycles.

The batteries cannot be overcharged

unless they are repeatedly removed and

replaced.

If battery life is shortened then please

check that battery and charge terminals

are clean.

For maximum battery life, it is

recommended that the handset is not

recharged until battery icon flashes .

Display icon Battery strength

High

Medium

Low

Needs to be

charged

(Flashing)

420E.book Page 5 Thursday, March 20, 2003 7:41 PM

Setting up

Symbols Used in This Operating Instructions

Replacing the Batteries

If the icon flashes after a few telephone calls even when the handset batteries have

been fully charged, 2 batteries must be replaced.

Charge new batteries for approximately 7 hours before initial use.

(The telephone line cord must not be connected to the telephone socket at this

time.)

When replacing the batteries, ensure that the correct battery type is selected.

Selecting the Battery Type

•To exit the operation, press any time.

•Do not use non-rechargeable batteries. If non-rechargeable batteries are fitted and

start charging, it may cause the leakage of the battery electrolyte.

Please use only Panasonic P03P(Ni-MH) or P03H(Ni-Cd) batteries.

Symbol Meaning

To search the desired item, press UP or DOWN.

To select the desired item, press RIGHT.

To search and then to select the desired item, press UP or DOWN then

RIGHT.

To move the cursor to the right or to the left, press RIGHT or LEFT.

To go to the next step.

""The words in ""indicate the words in display.

Search/Select

"OTHER OPT".

Search/Select

"SETTING HS".

Search/Select

"BATTERY TYPE".

Search/Select

"NI-CD" or "NI-MH".

Press

MENU.

420E.book Page 6 Thursday, March 20, 2003 7:41 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 7

Preparation

Setting up

Location of Controls

Handset

Base unit

Handset Display

1 - : PHONEBOOK Button

2 - TALK Button

3 - Navigator Key

4 - REDIAL/PAUSE Button

5 - RECALL Button

6 - : MENU/OK Button

7 - OFF/POWER Button

8 - CLEAR Button

9 - INTERCOM Button

INT

ALL

OFF

Charge

Contact

Charge

Contact

Display

Receiver

Microphone

INT

LINE

PAGE Button

and Indicator

Within range of a base unit

Out of range/No registration/

No power on base unit

Paging

Making or answering calls

Phonebook Mode

In Setting Mode

Battery strength is low.

Battery strength is high.

Answering System ON

Call BAR ON (p.21)

Direct Call ON (p.22)

Key Lock ON (p.23)

Ringer Volume OFF (p.19)

420E.book Page 7 Thursday, March 20, 2003 7:41 PM

8 cm

Wall Template

Setting up

Wall Mounting

This unit can be mounted on a wall.

- Insert screws into the wall. The centre of the screw hole should be 8 cm horizontally

apart.

- Connect the AC adaptor and the telephone line cord.

- Arrange the wires as shown, then mount the unit.

8 cm

Screws

420E.book Page 8 Thursday, March 20, 2003 7:41 PM

Helpline Tel.No. :U.K. 08700 100 076 R.O.I. 01289 8333 9

Cordless Telephone

Using the Telephone

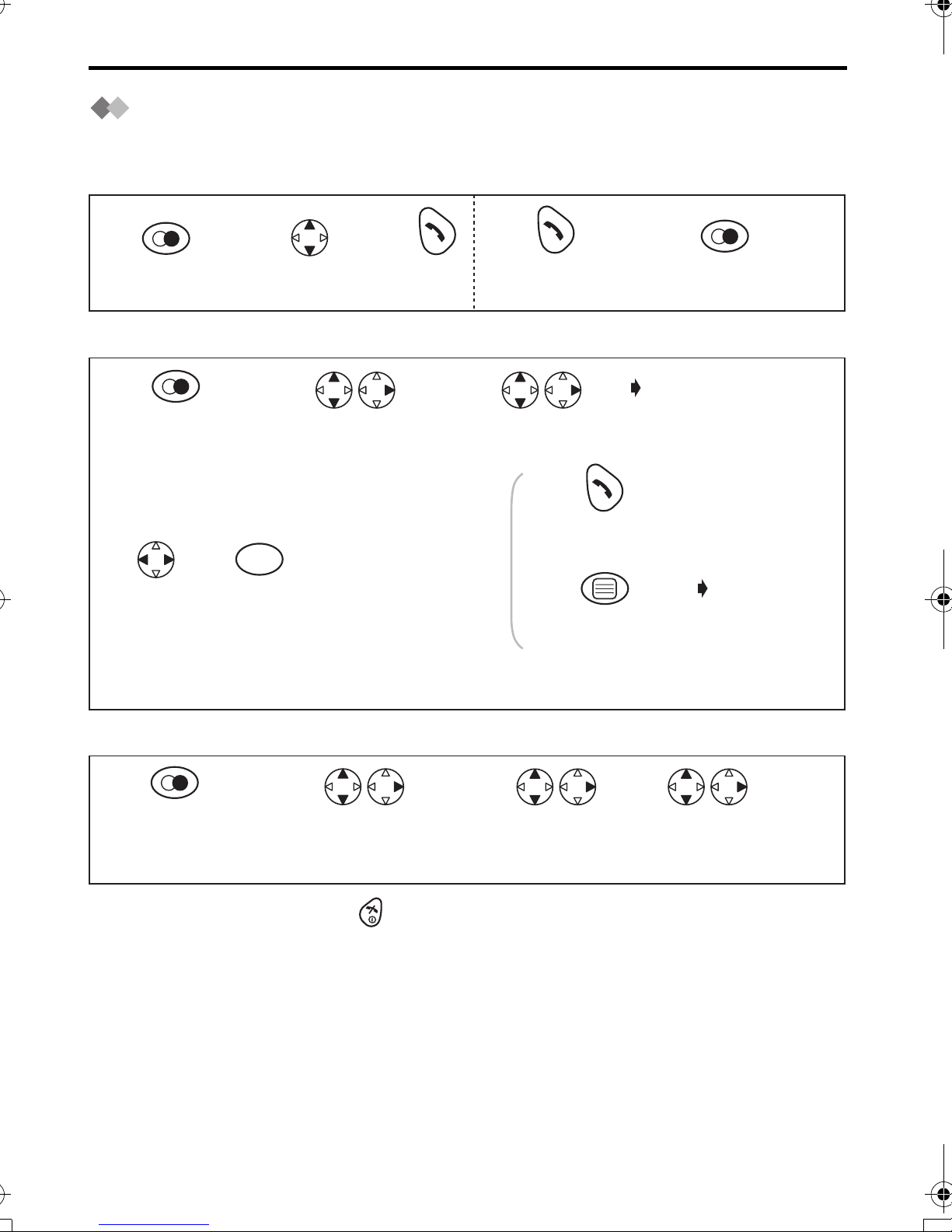

Power On/Off

Power on Power off

*1 When button is released, the display changes to the standby mode.

*2 The display goes blank.

Making a Call

Pre-dialling Post-dialling

*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.

Answering a Call Terminating a Call

•Each ringer will start ringing with lower volume then gradually increase the volume

when receiving a call.

*1 You can also answer a call by pressing any dialling button, INTERCOM, tor x.

Setting the Clock/Date

After a mains power failure the clock needs to be reset. Ensure that icon is not

flashing.

•To exit the operation, press any time.

*1 For example, to set 7:15, enter 0715.

*2 For example, to set the 16th of February, 2003, enter 160203.

Press for more than

2 seconds. *2

Press for more than

1 second. *1

Press TALK.

Phone Number

Press TALK.

Phone Number

1122

Press TALK.

(During a call)

Press OFF.

"INPUT CODE"

Press MENU.Search/Select

"SETTING BS".

Press OK.

Time

Enter time.

4-digit

(24 hour clock) *1

Date

Enter day,

month then

year. *2

Press OK.

twice

"INPUT CODE"

Press

RIGHT.

420E.book Page 9 Thursday, March 20, 2003 7:41 PM

Making Calls

Redialling

The last 10 numbers dialled are stored in the redial list automatically.

Dialling with the Redial List Dialling the Last Number Dialled

Editing the Dialled Number in the Redial List

Clearing One/All Dialled Item(s) in the Redial List

•To exit the operation, press any time.

*1 If there is no item stored in the redial list, the display shows "NO ITEM".

*2 Digits are cleared to the left of the flashing digit.

*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more

than one number, repeat the steps from 4.

Press

REDIAL.*1

Search the desired

dialled item.

Press

TALK.

Press TALK.Press REDIAL.

11223

Press REDIAL.*1 Search/Select the

desired dialled item.

Search/Select

"EDIT CALL NO".

The 1st digit of

the desired dialled

number blinks.

Move

cursor.

If you need to

store a name,

go to Name

on page 14 or

press OK.

Press

CLEAR.*2

Number

Edit the phone

number.*3

Press TALK.

Press OK 3 times

to store the number.

AND/

45 6

Search/Select the

desired dialled item.

Search/Select

"CLEAR" or

"ALL CLEAR".

Search/Select

"YES".

Press REDIAL.*1

12 34

420E.book Page 10 Thursday, March 20, 2003 7:41 PM

Table des matières

Autres manuels Panasonic Répondeur

Panasonic

Panasonic KX-TG572SK Manuel utilisateur

Panasonic

Panasonic KX-TG2248S - 2.4 GHz Digital Cordless Phone Answering... Instructions d'utilisation et d'installation

Panasonic

Panasonic KX-TG6644B Manuel utilisateur

Panasonic

Panasonic KX-TG5671BXS Manuel utilisateur

Panasonic

Panasonic KX-TG6671C Manuel utilisateur

Panasonic

Panasonic KXTCM422B - CORDLES/ANS MAC/HYBR Manuel utilisateur

Panasonic

Panasonic KX-TG1843ALS Manuel utilisateur

Panasonic

Panasonic VE-GD25TA Manuel utilisateur

Panasonic

Panasonic KXF160 - CONSUMER FACSIMILE Manuel utilisateur

Panasonic

Panasonic EASA-PHONE KX-T1000BA Manuel utilisateur

Panasonic

Panasonic KX-TG4131 Manuel utilisateur

Panasonic

Panasonic KX-TCM938B Manuel utilisateur

Panasonic

Panasonic KX-TC1045ALW Manuel utilisateur

Panasonic

Panasonic KX-TCD420NZ Manuel utilisateur

Panasonic

Panasonic KX-TG8321AL Manuel utilisateur

Panasonic

Panasonic KXTG2583B - 2.4 GHZ CORDLESS PHO Manuel utilisateur

Panasonic

Panasonic KX-T1450BA Manuel utilisateur

Panasonic

Panasonic KX-TG2593B Instructions d'utilisation et d'installation

Panasonic

Panasonic KX-TG2680N Manuel utilisateur

Panasonic

Panasonic KX-TG5631S Manuel utilisateur

Panasonic

Panasonic KX-TG1855AL Manuel utilisateur

Panasonic

Panasonic KX-FT37NZ Manuel utilisateur

Panasonic

Panasonic KX-F2350NZ Manuel utilisateur

Panasonic

Panasonic KX-TG8421BX Manuel utilisateur

Manuels Répondeur populaires d'autres marques

Radio Shack

Radio Shack TAD-795 Manuel utilisateur

AT&T

AT&T 2455 Manuel utilisateur

BellSouth

BellSouth GH9488 Guide de sécurité

GE 2-9985 Manuel utilisateur

Krown

Krown PortaPrinter 2000STD Manuel utilisateur

AT&T

AT&T 1717 Manuel utilisateur

Alcatel

Alcatel TEMPORIS 55-CE Manuel utilisateur

AT&T

AT&T E2562 Manuel utilisateur

Telstra

Telstra Monitor 420 Manuel utilisateur

Kortex

Kortex IAM V90 Manuel utilisateur

Philips

Philips VOIP8551B/05 Manuel utilisateur

Topcom

Topcom LUCCA Answering Machine Manuel utilisateur

TIPTEL

TIPTEL Ergophone 307 Manuel utilisateur

Conairphone

Conairphone TAD2012 Manuel utilisateur

AT&T

AT&T 1738 Manuel d'utilisation

Philips

Philips SE6554B/05 Manuel utilisateur

Lucent Technologies

Lucent Technologies Definity System 75 Manuel utilisateur

Sony

Sony TAM-2000 Manuel utilisateur
