Panasonic KX-TCD240E Manuel utilisateur

–1 –

Please read the operating instructions for further details.

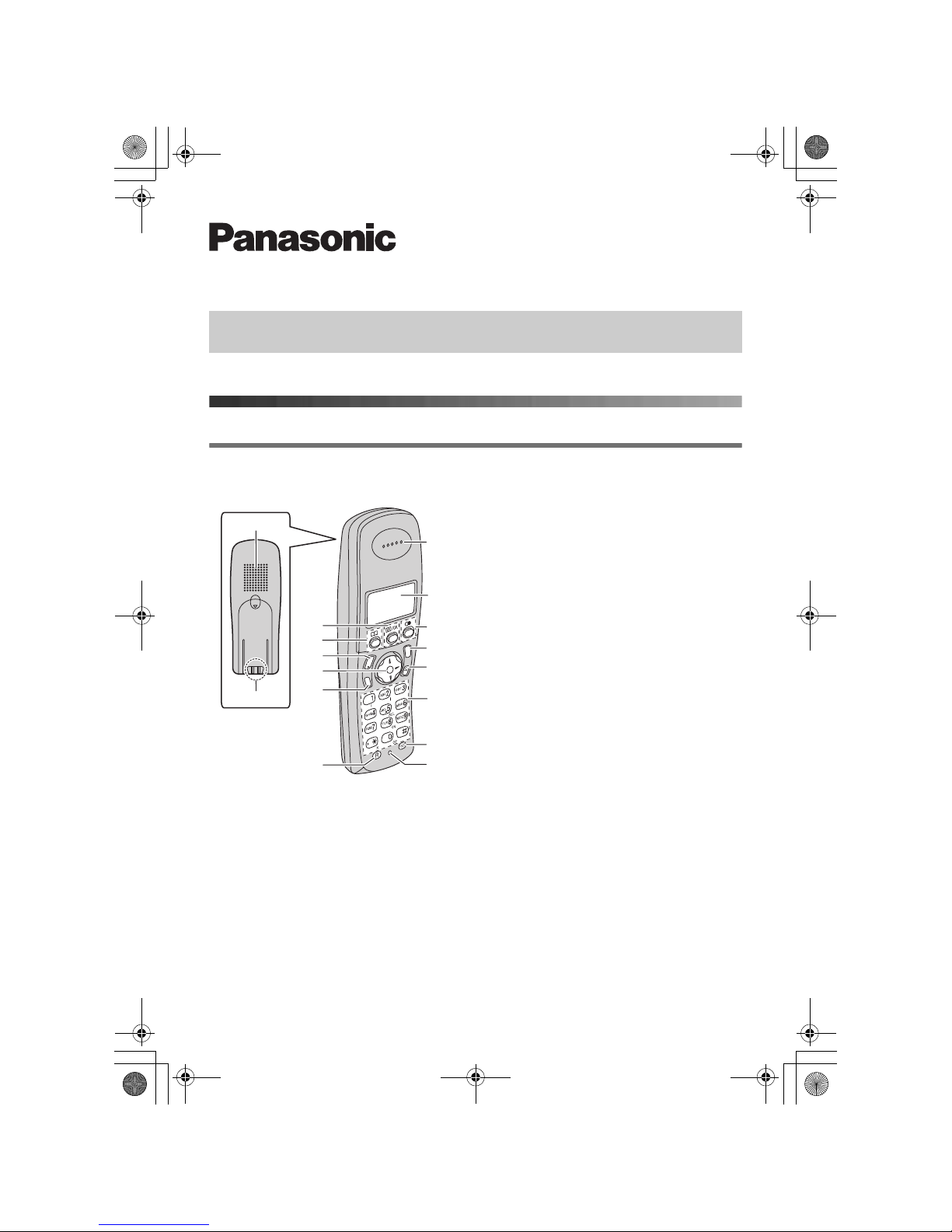

Controls

Handset

ASpeaker

BCharge contact

C{j/OK}(Menu/OK)

D{k} (Phonebook)

E{C} (Talk)

FNavigator key

L {e}{v}: To search for the desired item in

menus.

L{>}: To select the desired item or move

the cursor to the right.

L{<}: To return to the previous screen or

move the cursor to the left.

G{s} (Speakerphone)

H{R}(Recall)

IReceiver

JDisplay

K{R} (Redial/Pause)

L{ih} (Off/Power)

M{C/T}(Clear/Mute)

NDial keypad

LThe icons printed below the dial keys

shown in the illustration (g, d, ■etc.)

indicate answering system operations.

O{INT}(Intercom)

PMicrophone

Digital Cordless Answering System

Model No. KX-TCD240E

Quick Guide

TCD240E(e)_QG.fm Page 1 Wednesday, May 25, 2005 10:53 AM

–2 –

Base unit

ASpeaker

BCharge contact

CDisplay

D{Answer on}/Answer on indicator

E{d}(Greeting)

F{4}(Erase)

GNavigator key

L{>}{<}: To adjust the ringer and

speaker volumes.

L{<}{>}: To select the desired

ringtone or to repeat or skip the

recorded messages.

H{x} (Page)

I{R}(Recall)

J{R} (Redial/Pause)

K{T}(Mute)

LMicrophone

M{s} (Speakerphone)/Speakerphone

indicator

NIn use indicator

LLights up when a handset is in use (on

a call, editing the shared phonebook,

using the answering system, etc.).

LFlashes when a call is being received

or when the answering system is

answering a call.

O{5}(Play/Stop)

BC D

E F G

KL OMNIH

TCD240E(e)_QG.fm Page 2 Wednesday, May 25, 2005 10:53 AM

–3 –

Displays

Handset display icons

Various icons appear on the handset display to indicate the current status of the unit.

Base unit display icons

Following icons appear on the base unit display to indicate the current status of the unit.

wWithin range of a base unit

LWhen flashing: Handset is

searching for base unit. (out

of range of base unit,

handset is not registered to

base unit, no power on base

unit)

LHandset is accessing base

unit. (intercom, paging,

changing base unit settings,

etc.)

kHandset is on an outside call.

oCall bar is on.

uAnswering system is on.

5Battery strength

[VE] Voice enhancer is set to high

or low tone.

[N] Night mode is on.

[X] Key lock is on.

[2] Handset number: The left icon

shows handset 2 example.

-2- Base unit number: The left

icon shows base unit 2

example.

FNew SMS message received

(SMS users only)

[IN USE] The base unit is on a call.

Another handset is on a call or

is using the answering

system.

dAnswering system will answer

calls with a greeting message

and caller message will not be

recorded.

URinger volume is off.

TCD240E(e)_QG.fm Page 3 Wednesday, May 25, 2005 10:53 AM

–4 –

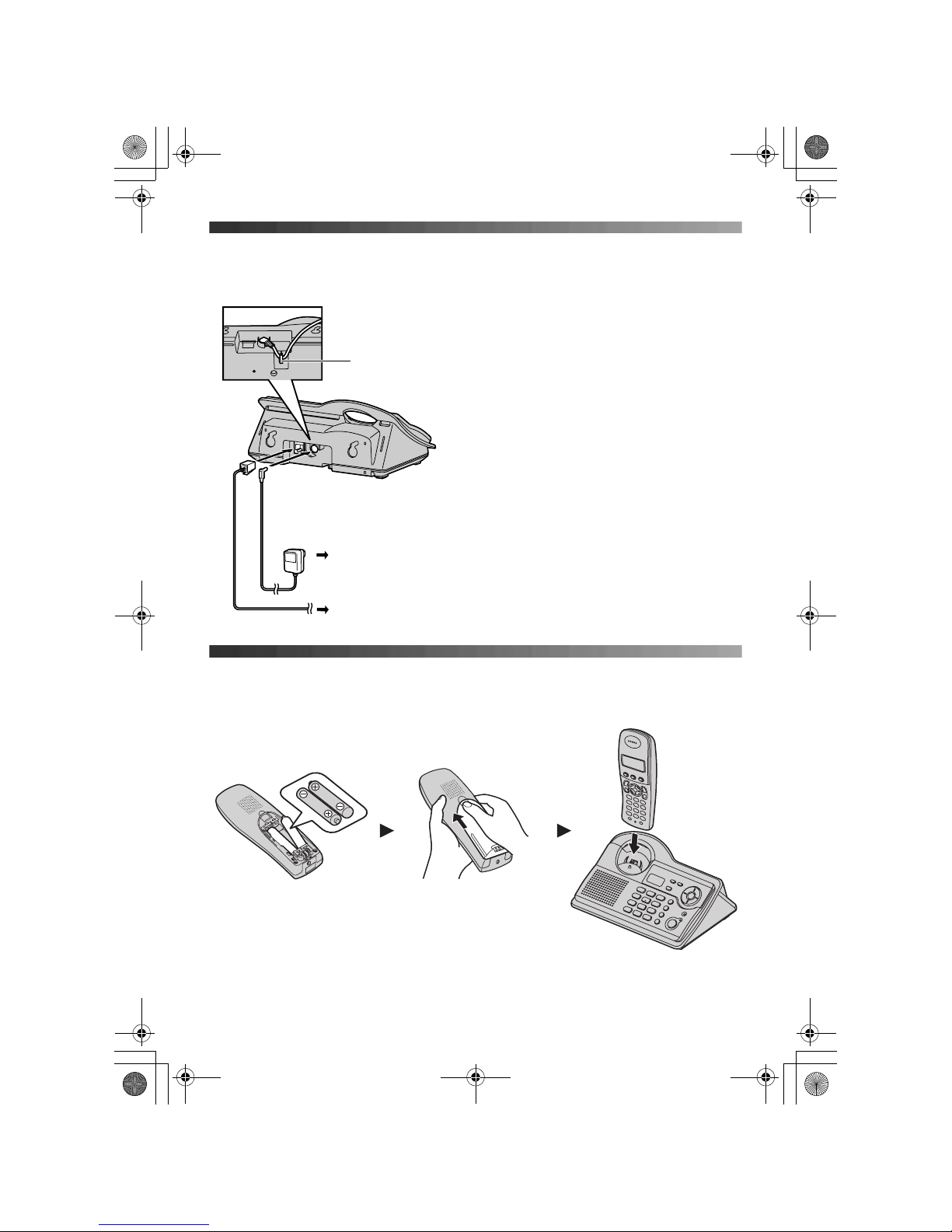

Connections

When the AC adaptor is connected, a short beep will be heard. If it is not heard, check the

connections.

Battery installation

Insert the batteries negative (T) terminal first. Close the handset cover. Place the handset

on the base unit for about 7 hours before initial use.

Note:

LUse only rechargeable batteries.

Important:

LUse only the AC adaptor and telephone

line cord supplied with this unit.

Note:

LNever install telephone wiring during a

lightning storm.

LThe AC adaptor must remain connected

at all times. (It is normal for the adaptor to

feel warm during use.)

(220–240 V, 50 Hz)

To telephone

network

Hook

TCD240E(e)_QG.fm Page 4 Wednesday, May 25, 2005 10:53 AM

–5 –

Turning the power on

Press {ih} for about 1 second.

Setting the date and time

1Press {j/OK}.

2Select “Handset Setup”, then press {>}.

3Select “Time Settings”, then press {>}.

4Select “Set Date & Time”, then press {>}.

5Enter the current day, month and year by selecting 2 digits for each.

6Enter the current hour and minute by selecting 2 digits for each.

LYou can select “AM”, “PM”or 24-hour time entry by pressing {*} repeatedly.

7Press {j/OK}.

8Press {ih}.

Handset basic operations

Feature Operation

To turn the power off Press {ih} for about 2 seconds.

To make a call Dial the phone number, then press {C}.

To turn on the speakerphone Press {s}.

To hang up Press {ih}.

To adjust the receiver or speaker

volume

Press {e} or {v} while talking.

To redial the last number dialled Press {R}, then press {C}.

To make a call using the redial list Press {R}. Press {e} or {v} repeatedly to

select the desired number, then press {C}.

To answer a call Press {C}.

To mute your voice during a call Press {C/T}. To return to the conversation, press

{C/T}again.

To store a name and phone number

in the handset phonebook

Press {k}, {j/OK}, select “New Entry”, then

press {>}.

Enter the party’s name (16 characters max.), then

press {j/OK}. Enter the party’s phone number

(24 digits max.), then press {j/OK}. Select the

desired category for the entry, then press {>}.

Select “Save”, then press {>}. Press {ih}.

LTo enter a name, see the character table in the

operating instructions.

TCD240E(e)_QG.fm Page 5 Wednesday, May 25, 2005 10:53 AM

–6 –

Base unit basic operations

Answering system

To make a call using the handset

phonebook

Press {k}. Press {e} or {v} repeatedly to

display the desired entry, then press {C}.

To adjust the handset ringer volume Press {j/OK}. Select “Handset Setup”, then

press {>}. Select “Ringer Setup”, then press

{>}. Select “Ringer Volume”, then press {>}.

Press {e} or {v} repeatedly to select the desired

volume. Press {>}, then press {ih}.

To change the ringtone used by the

handset for outside calls

Press {j/OK}. Select “Handset Setup”, then

press {>}. Select “Ringer Setup”, then press

{>}. Select “Ext. Ringtone”, then press {>}.

Select the desired ringtone, then press {>}. Press

{ih}.

Feature Operation

To make a call Press {s}, then dial the phone number.

To hang up Press {s}.

To adjust the speaker volume Press {>}or {<}while talking.

To redial the last number dialled Press {s}, then press {R}.

To answer a call Press {s}.

To mute your voice during a call Press {T}. To return to the conversation, press

{T}again.

To adjust the base unit ringer

volume

Press {>}or {<}when a call is received or when

the base unit is in standby mode.

To change the ringtone used by the

base unit for outside calls

Press {>}or {<}when the base unit is in standby

mode. Press {<}or {>}repeatedly to select

the desired ringtone, then press {5}.

Feature Operation

To turn the answering system on/off Press {Answer on}.

To listen to new/all messages Press {5}.

Feature Operation

TCD240E(e)_QG.fm Page 6 Wednesday, May 25, 2005 10:53 AM

–7 –

Sales and support information

Customer Care Centre

LFor customers within the UK: 08700 100 076

LFor customers within the Republic of Ireland: 01289 8333

LVisit our website for product information: www.panasonic.co.uk

LE-mail: customer.care@panasonic.co.uk

Direct Sales at Panasonic UK

LOrder accessory and consumable items for your product with ease and confidence by

phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am

- 5:30pm (Excluding public holidays).

LOr go on line through our Internet Accessory ordering application at

www.panasonic.co.uk

LMost major credit and debit cards accepted.

LAll enquiries transactions and distribution facilities are provided directly by Panasonic UK

Ltd.

LIt couldn’t be simpler!

LAlso available through our Internet is direct shopping for a wide range of finished products,

take a browse on our website for further details.

Customer Care Helpline Tel. No.: U.K. 08700 100 076 / R.O.I. 01289 8333

TCD240E(e)_QG.fm Page 7 Wednesday, May 25, 2005 10:53 AM

PQQW13534ZA DT0505FM0

TCD240E(e)_QG.fm Page 8 Wednesday, May 25, 2005 10:53 AM
