Before operating this machine, please carefully read this manual, and keep this

documentation in a safe place for future reference.

(Illustration shows optional accessories that may not be installed on your machine.) English

Operating Instructions

(For Setting Up)

Digital Imaging Systems

Model No. DP-8060 / 8045 / 8035

Installation Overview

General Installation Overview ....................... 2

Setting Your Machine

Network Configuration................................... 4

■Setting up the Network Configuration......... 4

Installation

■Installing the Printer Driver, and Application

Software

●System Requirements ........................... 7

●Software Setup Procedures .................. 7

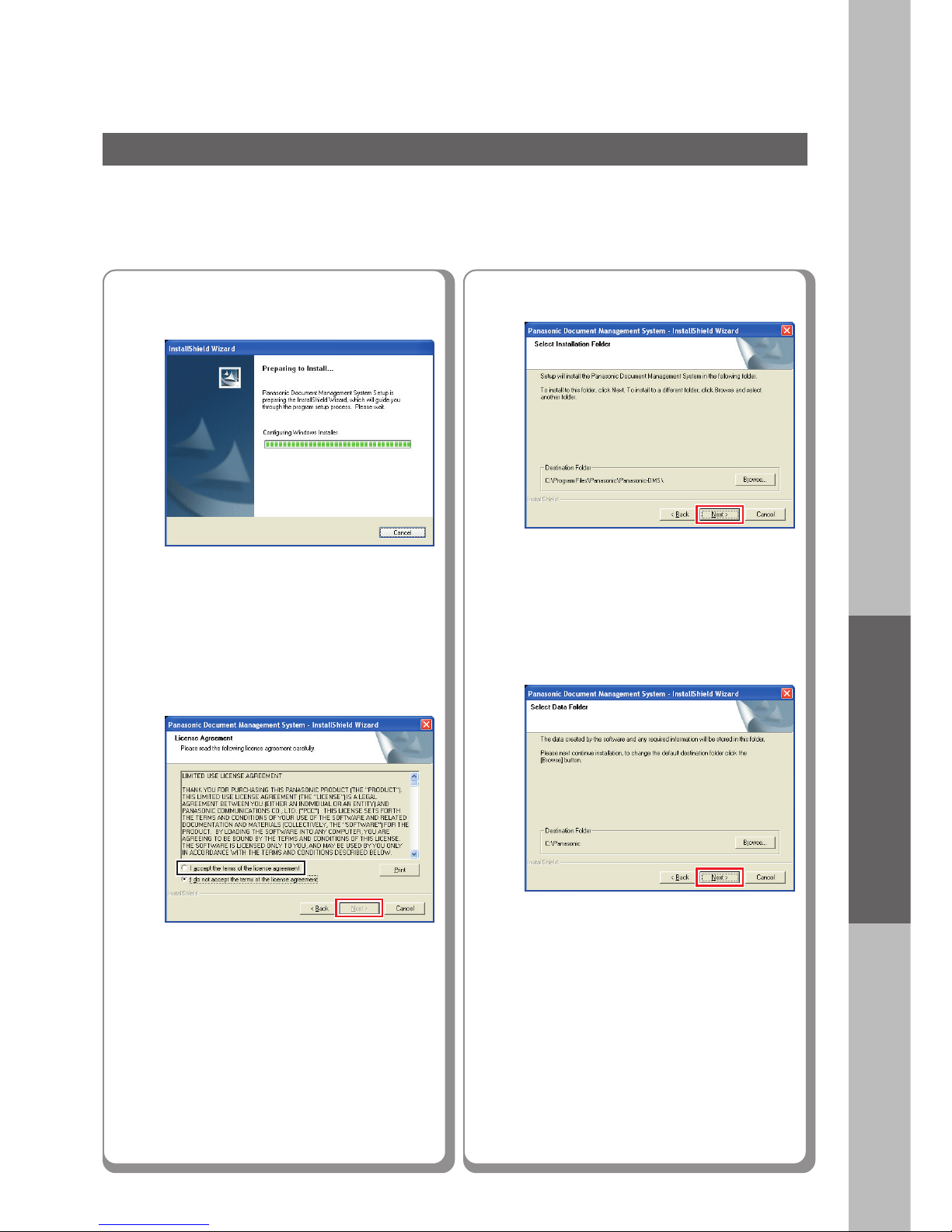

●Installing the Printer Driver (Network

Port Connection), and the Panasonic

Document Management System........... 8

■Parallel Port Printer Connection

●Installing the Printer Driver for

Parallel Port Connection ..................... 12

●Configure the Optional Devices .......... 14

Installation Overview

Setting Your Machine

Setting up

Table of Contents

■Fax Driver

●Installing the Fax Driver ...................... 16

Setting up

■Network Port Printer Connection

●Configure the Shared Setting for the

Network Print Server ........................... 19

Windows NT Server .......................... 19

Windows 2000 Server ....................... 21

Windows Server 2003 ....................... 23

●Setting up your Client PC.................... 25

■Remote Registration

●Registering your PC address

information onto the device. ................ 26

■Email/Internet Fax Function

●

Email/Internet Fax Settings Procedure ..

●

Setting up the Network Configuration ....

■Completion Notice Function

●Setting up the Completion Notice ....... 32

Installation

General Installation Overview

1Turning the Power Switches ON.

Follow the guidelines in this booklet when setting up the machine, and installing each software. Please read all

procedures completely before attempting to setup this machine.

3Installation

■Installing the Printer, and

Application Software

Applications selected from the Software

Selection screen will be automatically

installed. (See pages 7-11)

The installation procedure of Printer Driver

for the Network Port Connection for your

Network Print Server PC is explained below

as an example.

■

Parallel Port Printer Connection

Installing the Printer Driver onto the Parallel

Port. (See pages 12-15)

■Fax Driver

Installing the Fax Driver on your PC.

(See pages 16-18)

Optional Fax Communication Board is

required. (Order Number: DA-FG600)

Turn ON ( ) the Main Power Switch first,

and then turn ON ( ) the Power Switch.

Main Power Switch : Rear of the machine.

Power Switch :

Left side of the machine.

Power Switch

Main Power Switch

Connect all Cables, and the Power Cord

to the machine.

●

Parallel Cable is used for Local Printer

connection.

Telephone Cable is used for connecting the

optional Fax Communication Board (Order

Number: DA-FG600) to the telephone line.

Parallel

Cable

LAN

Cable

Telephone

Line Cable

External

Telephone

Cable

Setting up the Network Configuration.

Setup the Network Configuration using the

Control Panel of the machine. (See pages 4-6)

●Network Configuration should be setup by

the System Administrator.

4Setting up

■Configure the Shared Setting for

the Network Print Server.

Windows NT Server

Windows 2000 Server

Windows Server 2003

(See pages 19-24)

■

Setting up your Client PC.

Connecting the Shared Setting on the

Network Print Server. (See page 25)

■

Setting up the Scanner Configuration

using the Communications Utility.

When using the Network Scanner function.

(See page 26)

■

Email/Internet Fax Function Setup on

the Network

Configuration using the Control Panel of

the machine. (See pages 27-31)

● Network Configuration should be setup

by the System Administrator.

Installation Overview

Setting up Optional Accessories.

■Facsimile Function

Requires the installation of Fax

Communication Board (Order Number:

DA-FG600).

Refer to the Operating Instructions (For

Facsimile and Internet Fax/Email Functions).

●When using the Printer on the MacOS

network environment, the optional Printer

Controller Module (for Adobe®PostScript®

3™) (Order Number: DA-MC800) is

required.

●When using the Printer on the Netware

network environment, the IPX/SPX software

setup wizard, and optional Printer Controller

Module (for PCL 6 Emulation or Adobe®

PostScript®3™) (Order Number: DA-PC800

or DA-MC800) are required.

Refer to the Operating Instruction (For IPX/

SPX Setup Wizard) on the provided CD-

ROM.

●When there are two printer drivers installed

(for Network Port Connection, and Parallel

Port Connection) for the same model, each

printer driver can be used normally.

The Printer driver can be selected from the

Printer List of the Print Screen within the

application software.

Microsoft, Windows, Windows NT and Windows

Server are either registered trademarks or

trademarks of Microsoft Corporation in the United

States and/or other countries.

Microsoft product screen shot(s) reprinted with

permission from Microsoft Corporation.

Novell and NetWare are registered trademarks of

Novell, Inc. in the United States and other countries.

All other trademarks are the property of their

respective owners.

NOTE

■Setting up the Completion Notice.

A Job Completion Notice will be displayed

on the PC screen when the Copy/Print Job

is completed. (See page 32)

In the Optional Software tab, software

can be downloaded by clicking the

application title.

● Following software can be installed from the

Panasonic Website.

Document Manager/Document Viewer

●This software is used to view / edit files,

including the Network Scanner's scanned

data.

Panafax Desktop

●This software is used to send / receive Fax from

your PC.

Web Device Monitor

●

By installing the Web Device Monitor, it is

possible to check the device information from a

web browser.

IPX/SPX Setup Wizard

●

When printing documents to the Novell Netware

network.

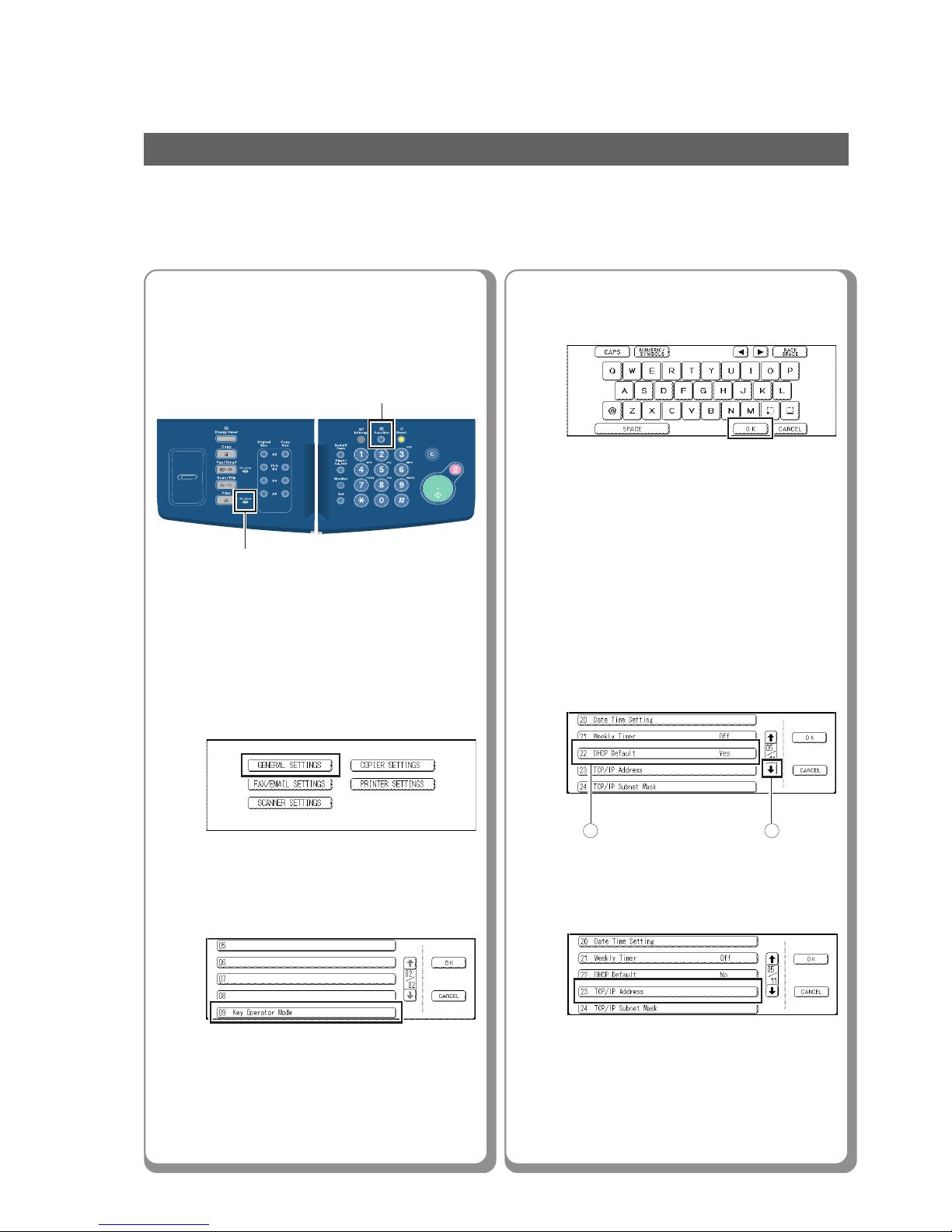

Network Configuration

Before executing the procedures

described below, make sure the Print

On Line LED is lit.

1Press the Function key.

2Select "GENERAL SETTINGS".

3Select "09 Key Operator Mode".

4Enter the Key Operator's password

(8 digits), and then select "OK".

5Scroll to "05/11" screen, and then

select "22 DHCP Default".

If DHCP Default is set to "Yes",

change the setting to "No", and

then select "OK".

6Select "23 TCP/IP Address".

Follow the procedure below if your network is not configured with the DHCP server, and the TCP/IP parameters must be

setup manually.

- IP Address

- Subnet Mask

- Default Gateway

●Default password is "00000000".

To change this password, open "50 Key

Operator Password" in the General Setting

(For key operator), and then re-enter the new

password.

2 1

Function Key

Print On Line LED

●Please wait until the Print On Line LED is ON

before pressing the Function Key.

Setting up the Network Configuration

Setting Your Machine

7Enter the IP Address, and then

select "OK".

Ex: 192.168.1.100

●When entering a 1 or 2-digit number segment,

add "00" or "0" in front of the number to scroll

to the next segment of numbers, or press the

" " key on the Control Panel to enter a

period after the number.

●To correct a mistake, press " " to move

the cursor to the 1st digit of the incorrect

address.

To delete, press "Clear", and re-enter the

correct address.

Scroll to "06/11" screen, and then

select "25 TCP/IP Default Gateway".

9Enter the Subnet Mask, and then

select "OK".

Ex: 255.255.255.0

Continue on the next page...

8Select "24 TCP/IP Subnet Mask".

●When entering a 1 or 2-digit number segment,

add "00" or "0" in front of the number to scroll

to the next segment of numbers, or press the

" " key on the Control Panel to enter a

period after the number.

●To correct a mistake, press " " to move

the cursor to the 1st digit of the incorrect

address.

To delete, press "Clear", and re-enter the

correct address.

1 2 1 2

Network Configuration

12 Press the Reset key.

13 Turn the Power Switch OFF ( ),

and then back ON ( ) again.

●The Power Switch is on the left side of the

machine.

11 Enter the Gateway Address, and

then select "OK".

Ex: 192.168.1.111

●When entering a 1 or 2-digit number segment,

add "00" or "0" in front of the number to scroll

to the next segment of numbers, or press the

" " key on the Control Panel to enter a

period after the number.

●To correct a mistake, press " " to move

the cursor to the 1st digit of the incorrect

address.

To delete, press "Clear", and re-enter the

correct address.

1 2

Setting up the Network Configuration

Installation

■System Requirements

Setting Your Machine

Installing the Printer Driver, and Application Software

■Software Setup Procedures

1. Selecting the software

•Printer Driver

When using Print function.

•Job Status Utility

A Job Completion Notice pops-up on your PC's

Desktop when the Copy/Print Job is completed.

•Fax Driver*1 *2

(See pages 16-18)

•Quick Image Navigator

When using the Network Scan function.

•Communications Utility

When using the Network Scan function.

•Device Explorer and Device Monitor

When browsing the Machine condition.

•Configuration and Address Book Editor*1

When browsing and editing the Machine

Configuration, and the Address Book.

These software are not selected in the default setting.

When installing these software, select them in this step.

Fax Driver is available when the optional Fax

Communication Board is installed.

2.Installing the software.

The selected software will be automatically

installed.

3.Restart the PC.

(See page 8)

(See pages 8-11)

(See page 11)

• Personal Computer : IBM PC/AT, and compatibles

(CPU Pentium II or greater is

required, Pentium 4 or greater is

recommended)

• Display : 800x600 Pixel or geater

(recommended), and a 16-bit

High Colour video adapter, or

greater (True Colour is

recommended)

• Operating System : Windows 98*1, Windows Me *2,

Windows NT 4.0*3(With Service

Pack 3 or later is required),

Windows 2000*4, Windows XP*5,

Windows Server 2003*6

• System Memory : The minimum recommended

Memory for each OS is as

follows:

Windows 98, Windows Me :

128 MB or greater

Windows 2000, Windows XP,

Windows NT 4.0,

Windows Server 2003 :

256 MB or greater

• Free Disk Space : 200 MB or greater

• CD-ROM Drive : Used for installing the software,

and utilities from the CD-ROM

• Interface : 10Base-T/100Base-TX Ethernet

port, Parallel Port (For Printer)

•

Application Software

:Microsoft Internet Explorer 5.0 or

later

*1Microsoft®Windows®98 operating system (hereafter

Windows 98)

*2Microsoft®Windows®Millennium Edition operating

system (hereafter Windows Me)

*3Microsoft®Windows NT®operating system Version

4.0 (hereafter Windows NT 4.0)

*4Microsoft®Windows®2000 operating system

(hereafter Windows 2000)

*5Microsoft®Windows®XP operating system (hereafter

Windows XP)

*6Microsoft®Windows ServerTM 2003 operating system

(hereafter Windows Server 2003)

Continue on the next page...

Installation

■Installing the Printer Driver (Network Port Connection), and the Panasonic

Document Management System

If you choose "Custom Install", you

can select the desired Software.

Click "Install", and selected

software will be installed.

1Insert the "Panasonic Document

Management System" CD-ROM.

The Panasonic opening screen is

displayed.

2Select "Complete Install".

Installing the Printer Driver, and Application Software

●If the CD-ROM does not launch

automatically, double click "My Computer"

on the Desktop, or on the Start menu, and

then double click the CD-ROM icon.

Language Selection

●The Screen Language will automatically

default to the language used by your PC.

If you want to change the language, click

"Language", and then select the preferred

language, and click "OK".

●Click "Documentation" tab to view the

Read Me First files, or Operating

Instructions for each software.

●If you do not want to install some of the

software, click the checkbox to deselect the

default selection.

●Select additional software you wish to

install with the default software by clicking

their respective checkbox.

Installation

3The InstallShield Wizard screen is

displayed.

4Check "I accept the terms of the

license agreement", and then click

"Next".

Continue on the next page...

5Click "Next".

●Above Screen will not be shown when the

other model's Panasonic Document

Management System has been installed.

6Click "Next".

●The above Screen will not be shown if there

is another model's Panasonic Document

Management System installed.

●Make sure that your machine is connected

to the network properly, and/or the Power

Switch is ON before clicking "Next".

Installation

7The Wizard automatically searches

for machines connected to your

network, and displays the found

units in the Network Printer

Device window.

●Only the machines connected to the same

subnet can to be used as a network printer.

●If your machine has not been connected to

the network yet, enter its allocated IP

Address, and then click "Next" to proceed

with the installation.

■Installing the Printer Driver (Network Port Connection), and the Panasonic

Document Management System

Installing the Printer Driver, and Application Software

10 Click "Next".

●Undo the check box if you do not wish to

load the Communications Utility with

Windows.

9The Wizard automatically searches

for machines connected to your

network, and displays the found units

in the Network Fax Device window.

Select your network FAX, and then

click "Next".

●Only the machines connected to the same

subnet can to be used as a network Fax.

●If your machine has not been connected to

the network yet, enter its allocated IP

Address, and then click "Next" to proceed

with the installation.

8Click "Next".

●Undo the check box if you do not wish to

make the printer default.

Autres manuels pour WORKIO DP-8060

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Imprimante tout-en-un

Panasonic

Panasonic KXFLB881 - Network Multifunction Laser... Manuel utilisateur

Panasonic

Panasonic KX-PS8000 Manuel utilisateur

Panasonic

Panasonic KX-MB262CX Manuel utilisateur

Panasonic

Panasonic KX-MB1520BL Manuel d'utilisation

Panasonic

Panasonic DP-C266 Manuel utilisateur

Panasonic

Panasonic DP-8130 Manuel utilisateur

Panasonic

Panasonic 3010 Manuel utilisateur

Panasonic

Panasonic Workio DP-C262 Manuel utilisateur

Panasonic

Panasonic KXMB2000E Manuel d'utilisation

Panasonic

Panasonic DP-6030 Manuel utilisateur

Panasonic

Panasonic KX-FLB811 - FLAT BED FAX Manuel de la liste des pièces

Panasonic

Panasonic DP-C406 Manuel utilisateur

Panasonic

Panasonic DP-4530 Manuel utilisateur

Panasonic

Panasonic KX-MB261E Manuel utilisateur

Panasonic

Panasonic Workio DP-3510 Comment utiliser

Panasonic

Panasonic Panafax UF-9000 Manuel utilisateur

Panasonic

Panasonic Workio DP-3030 Manuel utilisateur

Panasonic

Panasonic DP-C406 Manuel utilisateur

Panasonic

Panasonic Workio DP-1820P Manuel utilisateur

Panasonic

Panasonic DP-8025 Manuel utilisateur

Panasonic

Panasonic DP-2310/3010 Comment utiliser

Panasonic

Panasonic WORKIO DP-8035 Manuel utilisateur

Panasonic

Panasonic KX-MB2010BL Manuel d'utilisation

Panasonic

Panasonic KXF-493C Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur
