USER'S MANUAL

Compact Laser Displacement Sensor

HL-G1 Series (Console-dedicated Version)

HL-G1 Series User’s Manual (Console-dedicated Version)

Introduction

Thank you for downloading the "Screen Data for GT-series Programmable Display for

the HL-G1-series Compact Laser Displacement Sensor." Read this manual carefully

and be sure you understand the information provided before attempting to install and

operate the product so that the product will fully demonstrate its superior performance.

Refer to the website of Panasonic Industrial Devices SUNX Co., Ltd.

(http://panasonic.net/id/pidsx/global) for the latest information on the product as well

as the latest version of the manual.

Note

1. The illustrations of the product in the manual may differ from the actual design of the

product.

2. The contents of this user's manual may change without notice for possible improvements

in the future.

system, or transmitted, in any form, or by any means, mechanical, electronic,

photocopying, recording, or otherwise, without the prior written permission of Panasonic

Industrial Devices SUNX Co., Ltd.

4. The utmost attention has been paid to the creation of this manual. Should you find any

errors, omissions or inaccuracies, contact the nearest office of Panasonic Industrial

Devices SUNX Co., Ltd.

5. Panasonic Industrial Devices SUNX Co., Ltd. shall be in no case responsible for any

consequences resulting from your operation of the product.

Conventions

The following conventions are used to indicate and classify precautions in this manual.

Always heed the information provided with them.

Indicates information that, if not heeded, is likely to result in

loss of life or serious injury.

Indicates information that, if not heeded, could result in

relatively serious or minor injury, damage to the product, or

faulty operation.

Explains matters that should be observed or mistakes that

the user is apt to make.

Explains items that should be kept in mind, relevant

information in detail, and references.

HL-G1 Series User’s Manual (Console-dedicated Version)

Table of Contents

Introduction ............................................................................................................ 0

Table of Contents ...............................................................................................................1

1. Introduction of HL-G1 Dedicated Console ......................................................... 2

1-1 Using GT Series for HL-G1 Series................................................................................ 2

1-2 Applicable Programmable Display Models.................................................................... 3

1-3 Steps to Introduce Dedicated Console.......................................................................... 4

2. Nomenclature ..................................................................................................... 5

3. Acquiring and Writing Screen Data .................................................................... 6

3-1 Use Condition ............................................................................................................... 6

3-2 Downloading Dedicated Software................................................................................. 9

3-3 Installation of GT Virtual UART Driver......................................................................... 10

3-4 Writing Screen Data.................................................................................................... 14

4. Sensor Connections and Initial Settings .......................................................... 15

4-1 Mounting Console....................................................................................................... 15

4-2 Connecting Dedicated Console to HL-G1................................................................... 16

4-3 HL-G1 Settings ........................................................................................................... 17

4-4 Changing and Saving Display Language of Console .............................................................. 18

5. Screen Configuration and Basic Operation...................................................... 19

5-1 Top Menu Screen and Basic Buttons.......................................................................... 19

5-2 Basic Console Operation ............................................................................................ 20

5-3 Console-dedicated Functions ..................................................................................... 23

6. Screen Transition Charts.................................................................................. 25

6-1 GT02 Screen Transition.............................................................................................. 25

6-2 GT12 Screen Transition.............................................................................................. 28

7. Procedure for Deleting GT_USB Driver ........................................................... 31

HL-G1 Series User’s Manual (Console-dedicated Version)

1. Introduction of HL-G1 Dedicated Console

1-1 Using GT Series for HL-G1 Series

The HL-G1□□-S-J Compact Laser Displacement Sensor (a high-functional

model of the HL-G1 Series) will work as a dedicated console or USB/RS-485

converter if the Panasonic Industrial Devices SUNX's GT-series Programmable

Display is connected to the HL-G1□□-S-J and dedicated screen data is written

to the Programmable Display. The setting and monitoring software tool HL-G1SMI

is available to the HL-G1□□-S-J while HL-G1□□-S-J is used as a

USB/RS-485 converter.

■Used as Dedicated Console

By writing dedicated screen data to the Programmable Display, sensor head

settings can be made to and measurement values can be monitored from the

HL-G1□□-S-J as a dedicated console under remote control.

The number of sensor heads operable varies with the GT-series model.

For information on the applicable models and number of sensor heads operable,

refer to "1-2 Applicable Programmable Display Models."

■Used as RS-485 Console

A USB/RS-485 converter is required when using the setting and monitoring

software tool HL-G1SMI through a personal computer (PC) for HL-G1-series

sensor heads. The GT Series can be used as a USB/RS-485 converter.

The GT Series will be available as a converter after dedicated screen data is

written to the GT Series.

Settings and monitoring will be available with a maximum of 16 sensor heads

connected in the case of the HL-G1SMI.

When the GT Series is used as a converter, the control screen of the GT Series

and communication behaviors of the sensor heads will be temporarily suspended

while the PC is in communication with the sensor heads.

HL-G1 Series User’s Manual (Console-dedicated Version)

1-2 Applicable Programmable Display Models

Panasonic Industrial Devices SUNX's GT-series Programmable Display (any of the

following models sold separately) can be used as a dedicated console by connecting

the Programmable Display to the high-functional model (HL-G1□□-S-J) of the

HL-G1 Compact Laser Displacement Sensor and writing dedicated screen data to

the Programmable Display.

The dedicated console makes it possible to make sensor head settings and monitor

measurement values remotely.

GT-series Programmable Display models applicable

Applicable series names ··················· GT02 or GT12 Series

Power supply voltage ······················· 24 VDC

Communications port ······················· RS-485 (RS-422)

SD card memory slot ······················· None (or not used)

Products applicable

No. of connection

units

Product

name Screen Backlight Body color Product no.

Pure black AIG02GQ14D

GT02G Green/Orange/Red Hairline silver AIG02GQ15D

Pure black AIG02MQ14D

Single

connection GT02M

3.8-inch

STN

240 x 96

dots White /Pink/ Red Hairline silver AIG02MQ15D

AIG12GQ04D

Pure black AIG12GQ14D

AIG12GQ05D

GT12G Green/Orange/Red

Hairline silver AIG12GQ15D

AIG12MQ04D

Pure black AIG12MQ14D

AIG12MQ05D

Multi connection

(1 to 4 units)

GT12M

4.6-inch

STN

320 x 120

dots White /Pink/ Red

Hairline silver AIG12MQ15D

• The GT02□Series can control only a single sensor head when it is used as a

dedicated console and up to 16 sensor heads when it is used as a USB/RS485

converter.

• The GT12□Series can control up to four sensor heads when it is used as a

dedicated console and up to 16 sensor heads when it is used as a USB/RS485

converter.

For information on the installation and connection of the GT Series, download the

GT-series User's Manual. Read the manual carefully and be sure you understand the

information provided before attempting to install and operate the GT Series.

GT02 Series measurement

value display

GT12 Series measurement value display

(with four HL-G1 units connected)

HL-G1 Series User’s Manual (Console-dedicated Version)

1-3 Steps to Introduce Dedicated Console

This section provides brief information on the introduction of the GT Series as a

dedicated console.

For the procedure in detail, refer to "3. Acquiring and Writing Screen Data”.

●Preparation

• PC connected to the Internet

* For the operating environment of the PC, refer to "GT-series User's Manual"

(p. 1-9).

• USB cable (for A-to-mini B-connector connection)

• Power supply for Programmable Display (24 VDC)

●Writing HL-G1-dedicated screen data to the GT-series

Acquiring and writing screen data

[1] Downloading dedicated software

[2] Writing screen data to the GT Series

●Using GT Series as HL-G1-dedicated console.

Connecting the console to the sensor head and making initial settings

[1] Installation: See 4-1.

[2] Connecting the dedicated console to the HL-G1: See 4-2.

[3] Making HL-G1 settings: See 4-3.

[4] Changing and saving the display language of the console: See 4-4.

Console operation

[1] Basic operation: See 5-6.

[2] Console-dedicated function: See 5-7.

[3] Setting of each function and measurement value display (list of screen

transition) : See 6.

●Used as USB/RS-485 converter

[1] Installation: See 4-1.

[2] Connection of PC and GT Series to HL-G1: See 4-2.

The PC and GT are connected with USB cable and the GT and HL-G1 are

connected with RS-485 cable.

[3] HL-G1 settings: See 4-3.

For each function of the sensor head, refer to the "HL-G1-series User's Manual”.

HL-G1 Series User’s Manual (Console-dedicated Version)

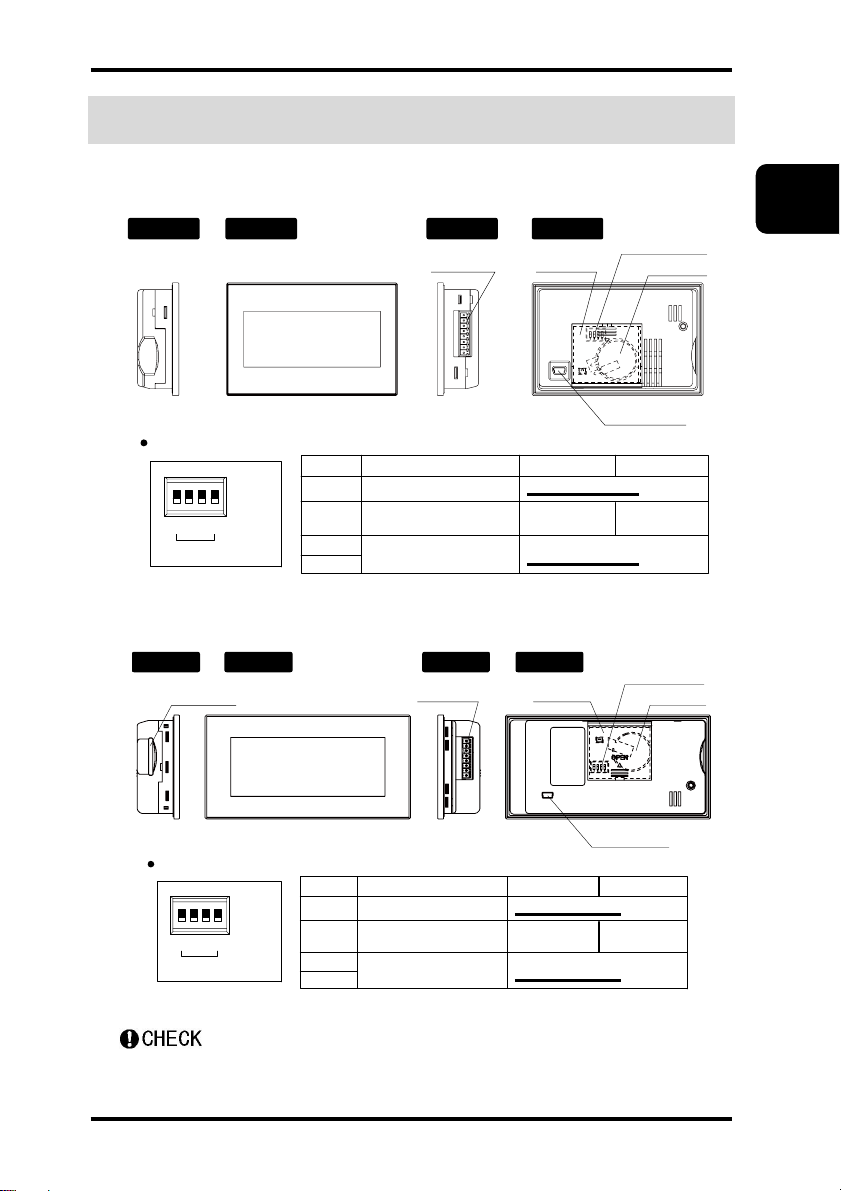

2. Nomenclature

GT02 Series

GT12 Series

The SD memory card slot or internal battery is not used in the case of using either one of the

above as a dedicated console for the HL-G1 Series.

Front view

Side view Rear view

Operation mode setting switch

OFF

1 2 3 4

MODE

SW No.

Reserved (not used)

Function

Not allowed to go to

system menu

Reserved (not used)

Always turned OFF

OFF ON

Movement

possible

Movement

prohibited

COM. Port Battery cover Battery holder

Operation mode

setting switch

Side view

USB connector

(mini B)

Operation mode setting switch

OFF

1 2 3 4

MODE

COM. Port

SD card

memory slot Battery cover Battery holder

Operation mode

setting switch

USB connector

(mini B)

Front view

Side view Rear viewSide view

SW No.

Reserved (not used)

Function

Not allowed to go to

system menu

Reserved (not used)

Always turned OFF

OFF ON

Movement

possible

Movement

prohibited

HL-G1 Series User’s Manual (Console-dedicated Version)

3. Acquiring and Writing Screen Data

3-1 Use Condition

B-E-20120101

Software License Agreement

Panasonic Industrial Devices SUNX Co., Ltd. (“PIDSX”) grants to you a license to

use this Software on condition that you accept this Agreement. You must read this

Software License Agreement (this “Agreement”) carefully before using this Software.

Only in case that you accept this Agreement, you may start your use of this

Software.

Your unsealing the package of this Software, or your downloading, installing or

launching this Software or the like shall be deemed as your acceptance of this

Agreement.

Article 1 Grant of License

PIDSX hereby grants to you a non-exclusive license to use this Software

only in combination with PIDSX product(s) specified in the manual of this

Software (the “Product”) in accordance with the terms of this Agreement.

You may not use this Software in connection with products of any third

party other than PIDSX.

Article 2 Restrictions

You may NOT:

(1)Modify, reverse engineer, decompile, or disassemble this Software,

(2)Use this Software by methods or for purposes other than those specified in the

manual of this Software provided by PIDSX, nor

(3)Distribute, rent, lease or otherwise transfer this Software to any third party;

provided, however, that you may assign the rights to use this Software under this

Agreement along with the Product on the condition that the assignee agrees to

be bound by all the terms of this Agreement. In the case of such assignment, you

must deliver any and all the copies of this Software and all the accompanying

materials to the assignee and you may not retain any copies of this Software

including backups.

Article 3 Disclaimer

3-1. PIDSX HEREBY DISCLAIMS ALL OTHER WARRANTIES ON THIS

SOFTWARE, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

HL-G1 Series User’s Manual (Console-dedicated Version)

LIMITED TO THE IMPLIED WARRANTIES OF MARCHANTABILITY,

FITNESS FOR PARTICULAR PURPOSE, AND NON-INFRINGEMENT

OF THIRD PARTY RIGHTS.

3-2. UNDER NO CIRCUMSTANCES SHALL PIDSX BE LIABLE FOR ANY

DAMAGES (INCLUDING DIRECT, INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL OR WHATSOEVER) ARISING OUT

OF THE USE OF THIS SOFTWARE, INABILITY TO USE THIS

SOFTWARE, DEFECTS IN THIS SOFTWARE (e.g., BUGS, SECURITY

HOLES, AND MALFUNCTION), OR OTHERWISE IN CONNECTION

WITH THIS SOFTWARE.

Article 4 Term

4-1. This Agreement shall come into effect upon your unsealing the package of

this Software, or your downloading, installing or launching this Software

or the like.

4-2. PIDSX may terminate this Agreement immediately, if you breach any of the

provisions of this Agreement.

4-3. You shall, at your own costs, return, delete or destroy this Software and

any of its copies within four (4) weeks after termination of this Agreement.

Article 5 Export Control

You shall comply with all laws and regulations regarding export control

under any competent jurisdiction, including but not limited to the Japanese

Foreign Exchange & Foreign Trade Control Law, the export control

regulations based on resolutions of the United Nations Security Council,

etc. If any license or appropriate approval from a governmental authority is

required under the applicable laws, you may not export this Software

without such approval to any countries either directly or indirectly.

Furthermore, you shall neither use nor sell this Software for military

purposes either directly or indirectly.

Article 6 Intellectual Property Rights

All intellectual property rights in this Software, including the copyright,

belong to PIDSX and/or the licensors of PIDSX.

Article 7 Upgrade of this Software

7-1 Release of future upgrades or updates of this Software is not guaranteed

and left to the sole discretion of PIDSX. Furthermore, PIDSX may

charge fees for upgrading or updating of this Software.

7-2. If any upgrades or updates are provided to you either for fees or for free,

such upgrades or updates shall be deemed as a part of this Software and

shall be governed by this Agreement, unless PIDSX designates

HL-G1 Series User’s Manual (Console-dedicated Version)

otherwise at the time of provision of such upgrades or updates.

Article 8 Limitation on Liability

AGGREGATE LIABILITIES OF PIDSX IN CONNECTION WITH THIS

AGREEMENT OR THIS SOFTWARE SHALL IN NO EVENT EXCEED

TEN THOUSAND (10,000) YEN.

Article 9 Governing Law and Jurisdiction

9-1. This Agreement shall be governed by the laws of Japan.

9-2. Should any dispute arise from or in connection with this Agreement,

Nagoya District Court, Japan shall exclusively have the jurisdiction over

such dispute.

Autres manuels pour HL-G1 Series

Table des matières

Autres manuels Panasonic Accessoires

Panasonic

Panasonic TK712SSQP Manuel utilisateur

Panasonic

Panasonic Schottky Barrier Diodes MA3SE020G Manuel utilisateur

Panasonic

Panasonic MCO-170AICUVH Series Manuel utilisateur

Panasonic

Panasonic PX-2 Series Manuel utilisateur

Panasonic

Panasonic KX-TDA0155CE Manuel utilisateur

Panasonic

Panasonic Light Emitting Diodes LN29RPX Manuel utilisateur

Panasonic

Panasonic TYTP10E Manuel utilisateur

Panasonic

Panasonic MA4X713 (MA713) Manuel utilisateur

Panasonic

Panasonic Schottky Barrier Diodes MA2Z7840G Manuel utilisateur

Panasonic

Panasonic CX-400 Series Manuel utilisateur

Panasonic

Panasonic MA2J113 (MA113) Manuel utilisateur

Panasonic

Panasonic MCO-230AIC Manuel utilisateur

Panasonic

Panasonic MA2YJ50 Manuel utilisateur

Panasonic

Panasonic MA6X122 (MA122) Manuel utilisateur

Panasonic

Panasonic Light Emitting Diodes LNJ253W82RA Manuel utilisateur

Panasonic

Panasonic MA22F20 Manuel utilisateur

Panasonic

Panasonic HG-S Series Manuel utilisateur

Panasonic

Panasonic MAZDxxxG Series Manuel utilisateur

Panasonic

Panasonic MA4ZD03 Manuel utilisateur

Panasonic

Panasonic WX-LA20 Manuel utilisateur

Panasonic

Panasonic AJ-YA901 Manuel utilisateur

Panasonic

Panasonic AJ-HDP151P Manuel utilisateur

Panasonic

Panasonic D-IMager EKL3104 Manuel utilisateur

Panasonic

Panasonic LNJ0F1C5FRA4 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Manuel utilisateur
