Palsonic MODEL 5169 Manuel utilisateur

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL:(02)9313 7111

FAX:(02)9313 7555

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA:1300 657 888

51CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 5169

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4164

Standards Australia

APP No: N15959

Congratulations on your purchase of this Palsonic colour television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the

many functions and excellent effects of this receiver.

Retain is manual in an easily accessible location for future reference.

Contents

Notes for operation ....................................................................................................

Installation and Appearance 1

Antenna connection ..................................................................................................................................

Power switch ............................................................................................................................................

Operation panel ........................................................................................................................................

Operation

Switching on/off - Standby button ............................................................................................................

Channel preset ..........................................................................................................................................

Remote Control unit ..................................................................................................................................

Channel selection ......................................................................................................................................

Sound control ............................................................................................................................................

Picture control ...........................................................................................................................................

Sleep button ..............................................................................................................................................

Timer operation ........................................................................................................................................

System selection .......................................................................................................................................

Interfaces ....................................................................................................................

Trouble shooting ........................................................................................................

Specifications .............................................................................................................

This equipment has been designed and manufactured to meet the highest international

standards, but, like any electrical apparatus which is operated at mains voltage, care must be

taken if you are to obtain the best results and safety is to be assured. This is particularly

important with audio and TV equipment.

read this handbook carefully and keep it handy for ready reference.

ensure that all electrical connections (including the mains plug, extension leads and

interconnections between pieces of equipment) are properly made and in accordance

with the manufacturer’s instructions. Check that the mains fuse rating is correct.

always call in your dealer if you are ever in doubt about the installation, operation or

safety of your equipment, he is the best person to advise you.

unplug the power cord if the appliance is left unused.

obstruct the necessary all round ventilation: moderate heat is generated when product

is operating - ensure installation is clear of curtains etc. Do not obstruct cooling

vents on rear of cabinet.

Remember that to obtain the best performance and lasting satisfaction from your

equipment : -

have it regularly maintained by a reliable service organisation: ensure that it is correctly

used by all the family.

ABOVE ALL:-

Never let children push anything into holes or slots in the cabinet - this could result in an

electric shock.

Never guess or take chances with electrical equipment of any kind-it is better to be safe than

sorry.

WARNING:

To prevent fire or shock hazard do not expose this appliance to rain or moisture.

No user serviceable parts inside. Refer servicing to qualified service personnel. Never

remove covers unless qualified to do so; this unit contains dangerous voltages.

LOCATION:

LOCATE appliance in the room where direct light does not strike the screen.

ALLOW adequate space between the appliance and the wall to permit proper ventilation.

AVOID excessive warm and dusty location to prevent possible damage to the cabinet and

component failure.

NEVER install the appliance in a strong magnetic field.

CONNECT the appliance to AC 230 or 240 V, 50Hz outlet

DON'T

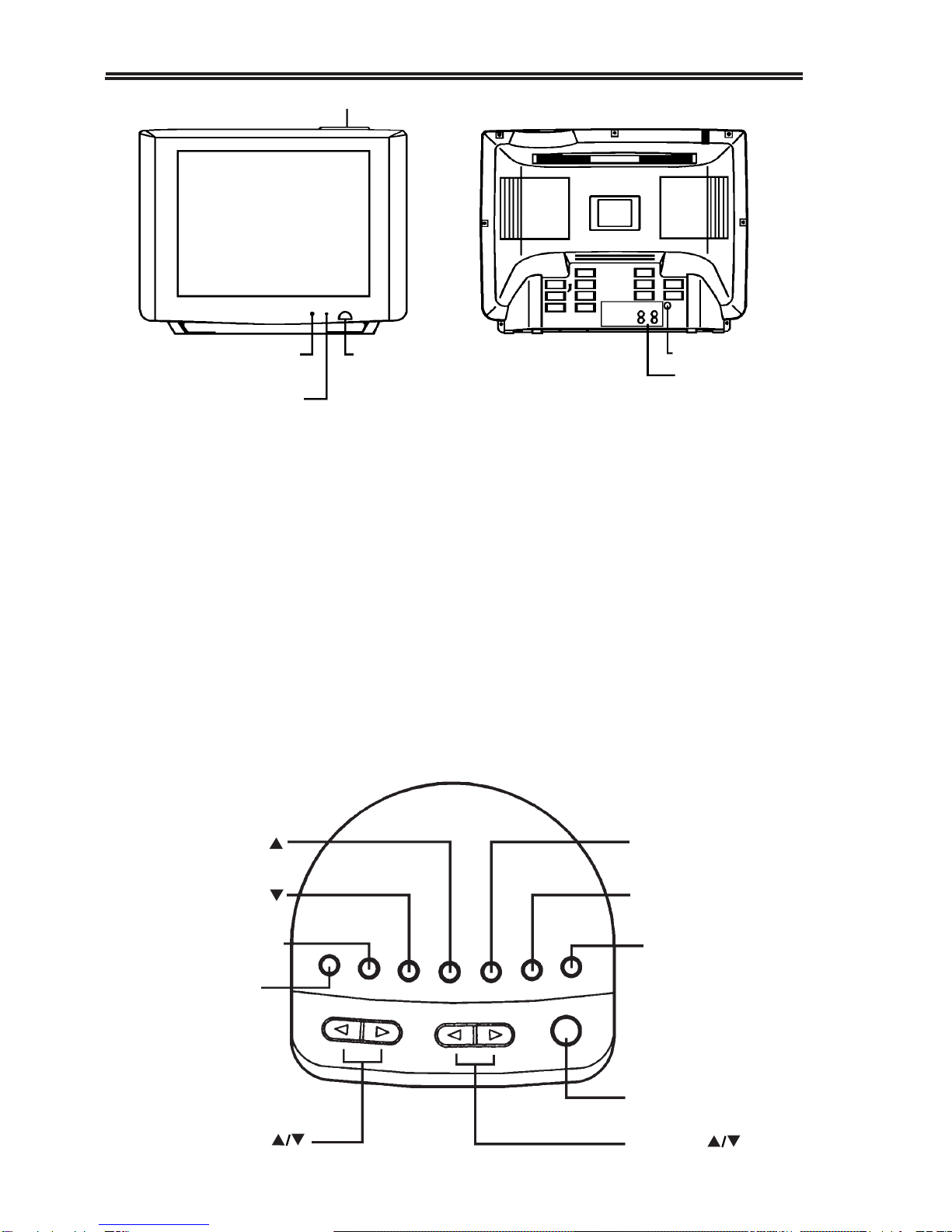

CONTROL PANEL

REMOTE SENSOR

POWER INDICATOR

ANTENNA INPUT

AV IN OUT

1. ANTENNA CONNECTIONS

1.1 Optimum colour reception requires a good antenna. An out-door antenna will be more

effective to obtain a clear-picture.

1.2 Insert the out-door antenna into the antenna socket on the cabinet back. Adjust the direction

or position of the outdoor antenna for the best possible picture.

2. POWER SWITCH

2.1 Press the power switch when the power is off, the indicator (red) lights up, the screen is

dark, the TV is in standby mode.

2.2 If you want to cut off the power completely, and do not-want to use On Timer function,

press the Power Switch again to disconnect the set's power and confirm that the indicators go

out.

3. PANEL OPERATION:

POWER SWITCH

MANUAL TUNING

CHANNEL

VOLUME

STANDBY

PRESET ON/OFF

MANUAL TUNING

SKIP

AUTO PRESET

AV/TV

TINT

3.1 STANDBY ( ) Button

3.1.1 Press STANDBY ( ) button to turn on the set (the indicator shows yellow) when the set

is in STANDBY mode (the indicator shows red) , the channel position number is displayed

in the screen. Press STANDBY ( ) button to return the set to the STANDBY mode when

the set is in OPERATION mode, and the indicator shows red.

3.2 CHANNEL PRESET

3.2.1 AUTO PRESET

3.2.1.1 Press PRESET ON/OFF button to set PRESET mode. The current band and channel

position will be displayed on screen. (In green)

3.2.1.2 Press AUTO PRESET button, the appliance will search for the signal of TV stations

in the order of VHFL, VHFH and UHF as shown in the following and memorise them

from channel number 1 position.

3.2.1.3 When presetting is over, the channel position is set to number 1 automatically.

3.2.1.4 Press PRESET ON/OFF button to exit preset mode.

NOTE: * During presetting, the green bar turns into yellow.

The moving bar indicates the change of tuning frequencies.

* During presetting, auto presetting will be cut off if any one of STAND BY button,

PRESET ON/OFF button or AUTO PRESET button is pressed.

3.2.2 MANUAL TUNING

3.2.2.1 Press PRESET ON/OFF button to set preset mode.

3.2.2.2 Select a channel position.

If "SKIP" displays on the screen, press "SKIP" button to exit "SKIP" mode.

3.2.2.3 Press and hold MANUAL TUNING button until your desired program appears.

UHFVHFL VHFH

llllllllll.....

8 SKIP

SKIP

lllllllll.....

8 VHFH

UHF

VHFH

VHFL

MFT

3.2.2.4 Press PRESET ON/OFF button to exit preset mode.

The searched program station has been memorised at the present channel position,

3.2.2.5 Repeat 1~ 4 steps to search another channel.

NOTE : * If the same channel position is selected during repeat operation, the former

memory will be erased.

* If some channel position is tuned by MANUAL TUNING mode, AFC (automatic

frequency control) function is defeated in this channel position.

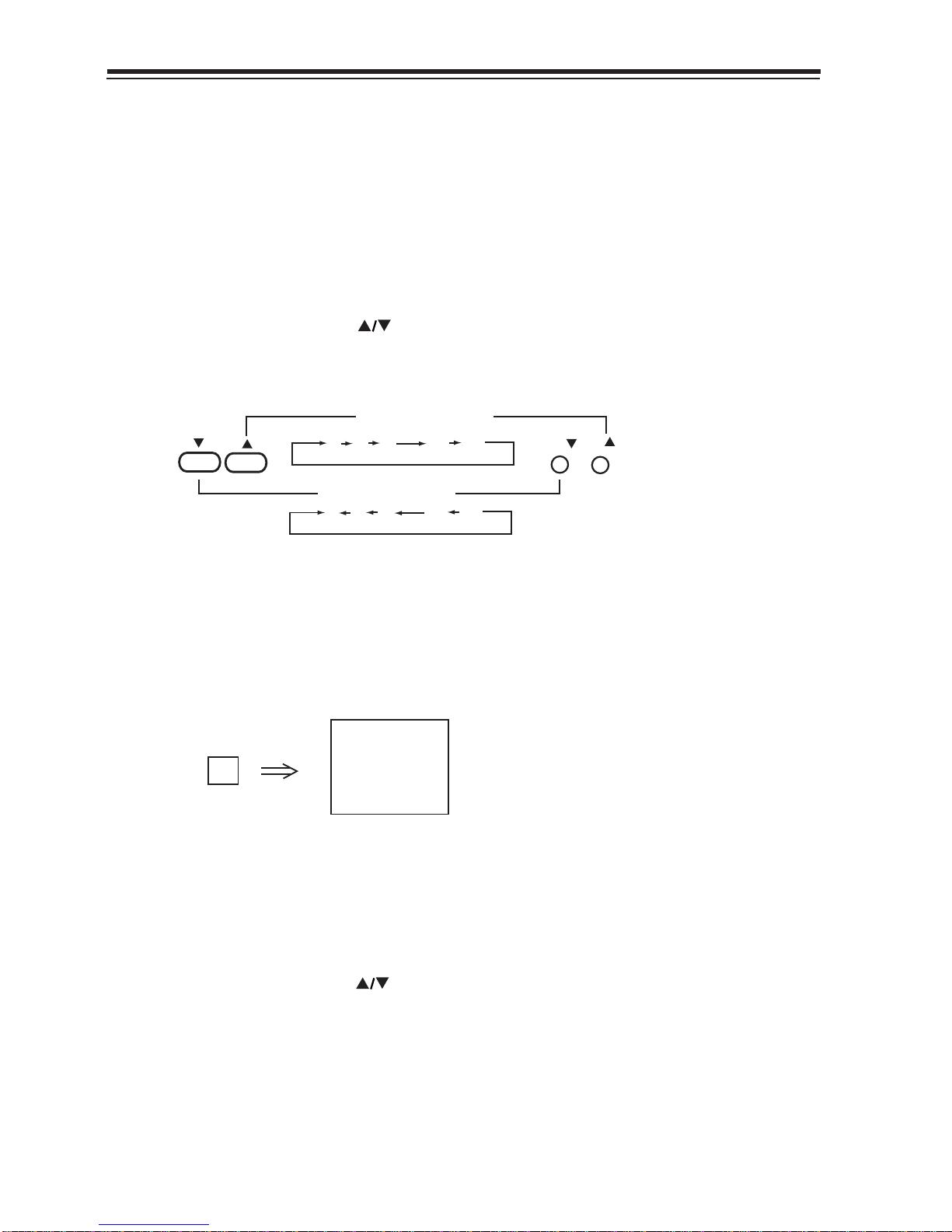

3.3 SKIP BUTTON

3.3.1 FUNCTION

When CHANNEL SELECTOR ( )button is used to select channel, the channels

will be skipped if they are set to "SKIP" mode. For example: Set 2~7 channels to

"SKIP" mode, the procedure of channel position increasing or decreasing is as

shown.

3.3.2 OPERATION:

3. 3.2.1 Press PRESET ON/OFF button to set preset mode.

3. 3.2.2 Select a channel by using CHANNEL SELECTOR button.

3.3.2.3 Press "SKIP" button, "SKIP" will be-displayed on the screen to indicate that the

channel is at "SKIP" mode.

3. 3. 2. 4 Repeat 2~3 steps to skip another channel.

3. 3. 2. 5 Press PRESET ON/OFF button to exit preset mode.

3.4 CHANNEL SELECTION

3.4.1 This set is preset to Australia channels 2, 7, 9, 10, 28 on those numbers. If you wish

to change the settings, or add more channels the method is quite straight forward.

3.4.2 Press CHANNEL SELECTOR ( )on the appliance, the channel number will be

increased or decreased as shown in the following Fig. , and displayed in the upper right

corner of the screen.

1 8 9 99 0

(REMOTE) (THE APPLIANCE)

CHANNEL DECREASE

CHANNEL INCREASE

1 8 9 99 0

CH CH CH

3 SKIP

llllllllllllll

SKIP

3.5 VOLUME CONTROL

3.5.1. Press the VOL button to increase volume ; the green bar on the screen moves right.

3.5.2. Press the VOL button to decrease volume ; the green bar on the screen moves left.

Display of minimum volume Display of maximum volume

.........................

3.6 AV/TV SELECTOR

Press AV/TV button to change TV mode to AV mode when the set is in receiving (TV)

mode. On the contrary, press it to change AV mode to TV mode when the set is in VIDEO

mode.

3.7 TINT CONTROL

Use this knob to control colour tone during reception of pictures when using the NTSC system.

1 2 3 99 0

(REMOTE) (THE APPLIANCE)

CHANNEL DECREASE

CHANNEL INCREASE

1 2 3 99 0

CH CH CH

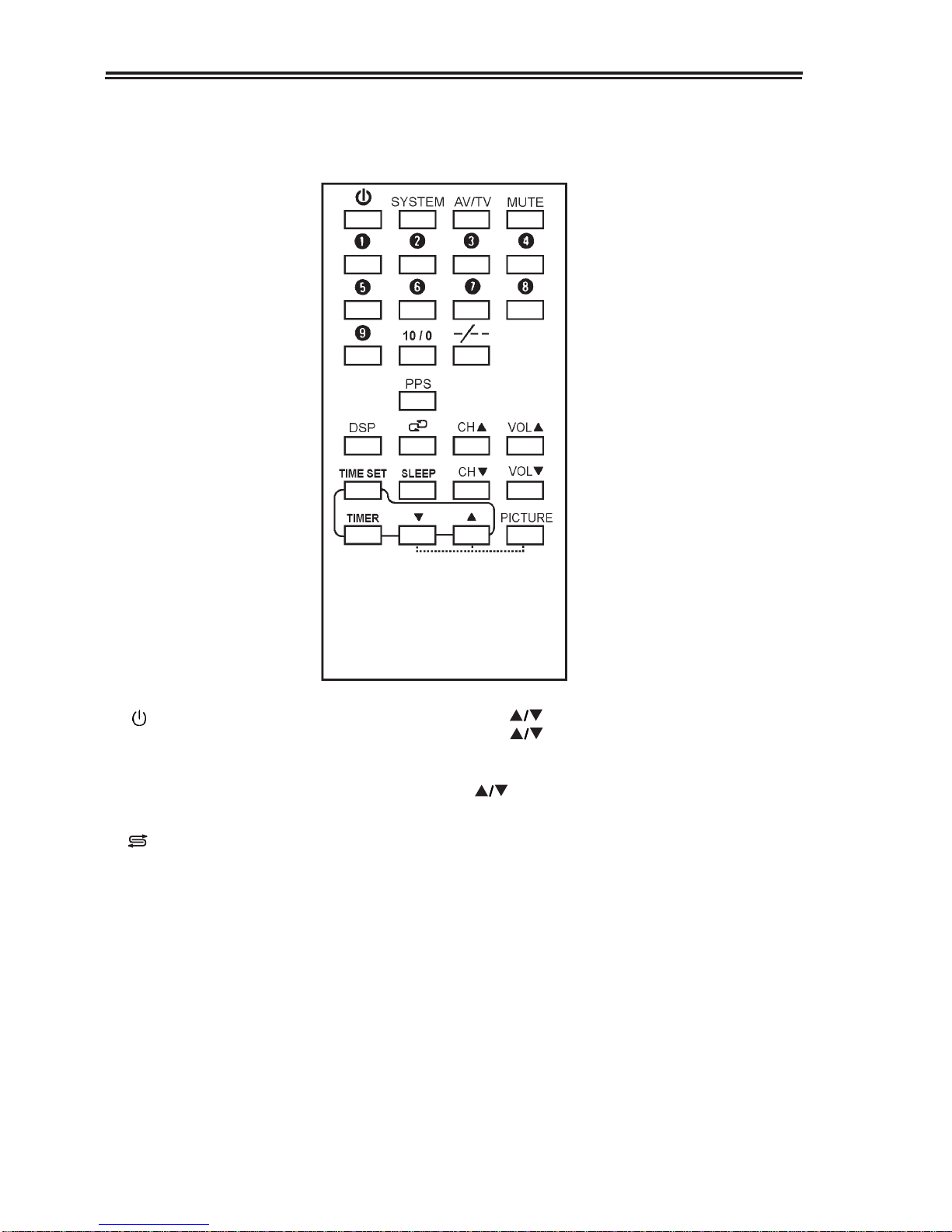

4. REMOTE CONTROL OPERATION:

REMOTE CONTROL UNIT

: STANDBY

1 ~ 9 : DIGITAL CHANNEL SELECTOR

10/0 : CHANNEL 10 OR CHANNEL 0 SELECTOR

SYSTEM : COLOUR SYSTEM CONTROL

-/- - : DIGIT OR TWO DIGIT CHANNEL

SELECT

: PREVIOUS

4.1 INSTALLING BATTERIES:

4.1.1 Remove the battery cover of Remote Control Unit.

4.1.2 Insert two "AAA", 1.5V batteries, making sure the polarity ( + or - ) of the batteries

matches the polarity marks inside the unit.

4.1.3 Close the battery cover

NOTE: * When the Remote Control Unit is not used for a long time or the batteries are worn out,

take out the batteries to prevent electrolyte leakage.

* Take care not to drop, dampen, dissemble the Remote Control Unit.

4.2 STANDBY BUTTON

Refer to 3.1.

CH : CHANNEL SELECTOR

VOL : VOLUME CONTROL

PPS : PERSONAL PREFERENCE SELECT

(BRIGHTNESS, COLOUR)

: PICTURE/TIME ADJUSTMENT

PICTURE : PICTURE CONTROL

DSP : DISPLAY

4.3 CHANNEL SELECTION

4.3.1 Press CHANNEL SELECTOR ( ) the channel number will be increased or

decreased and displayed in the upper right corner of the screen.

4.3.2 Use the DIGITAL CHANNEL SELECTOR button for direct channel selection.

1) 1~10 channel

Method 1:

Example:

To select channel 2

To select channel 10

(Display)

Method 2:

Example:

To select channel 2

To select channel 10

2) 11~99 channel

To select channel 28

3) 0 channel

Press -/-- Press 2

Press -/-- Press 10/0

- -

Press -/-- Press 10/0

- - 2

Press 2

Press -/-- Press 1

- - 10

Press 10/0

Press -/-- Press 2

- - 28

Press 8

Press -/-- Press 10/0

- - 0

Press 8

6 5

4.3.3 PREVIOUS BUTTON

Pressing this button to select the channel that was tuned immediately before the one being

watched. For example: If you are watching the program on channel 6, and the previous

previous programme you watched was was on channel 15; then you can press the button

to reach channel 15, press it again to return channel 6.

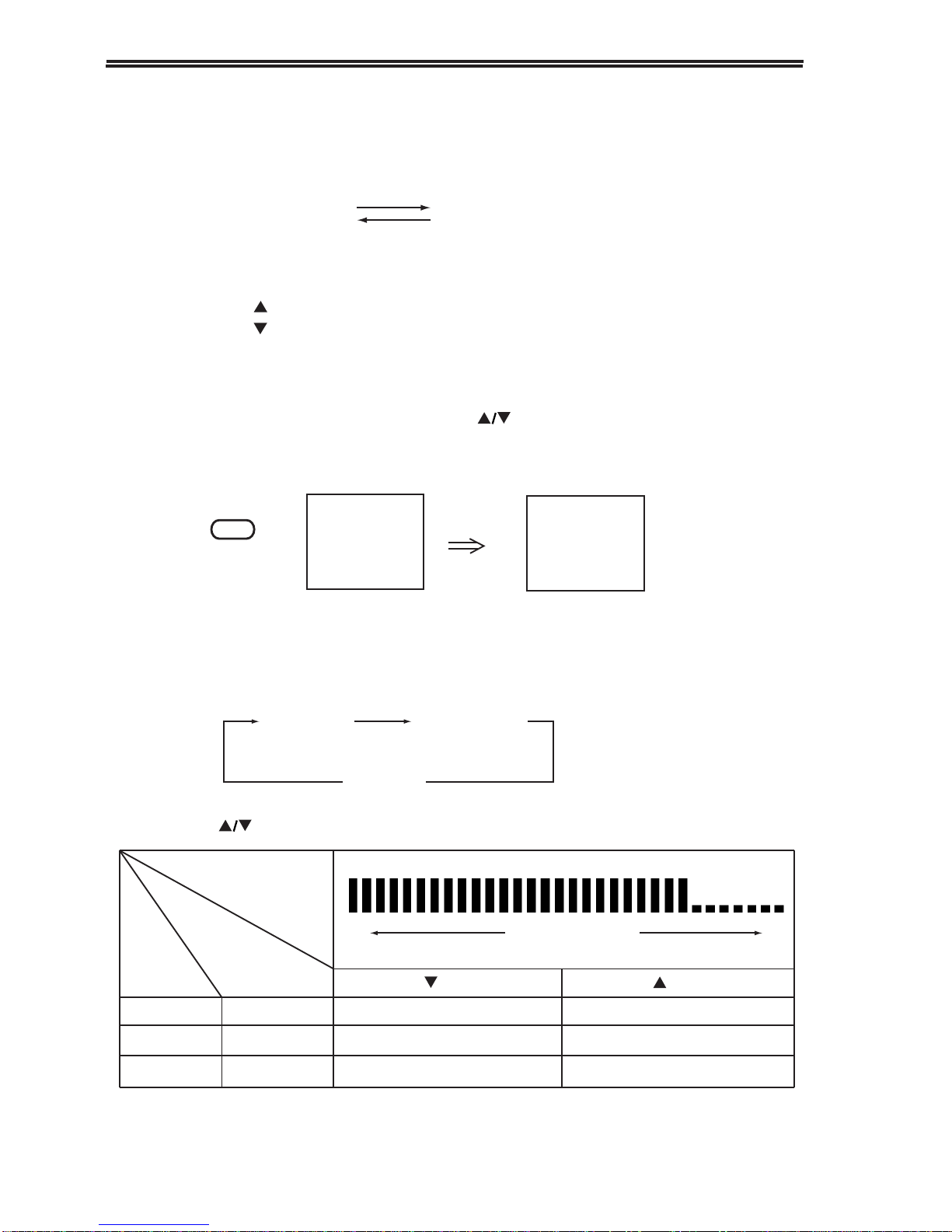

4.4 SOUND CONTROL

4.4.1 VOLUME CONTROL

4.4.1.1 Press the VOL button to increase volume; the green bar on the screen moves right.

4.4.1.2 Press the VOL button to decrease volume; the green bar on the screen moves left.

4.4.2 MUTE BUTTON

When there is a phone call or a visitor, it can temporarily shut off the sound without affecting

the picture.

To resume normal, press the MUTE or VOLUME ( ) button. The previous volume will

be displayed for 4 seconds.

4.5 PICTURE CONTROL

4.5.1 Press the PICTURE CONTROL button on the Remote Control Unit.

The FUNCTION to be adjusted is selected in sequence as shown in the following chart at

every press of the button.

4.5.2 Adjust the button to obtain satisfactory picture.

VOLUME

CONTRAST BRIGHTNESS

COLOUR

ON SCREEN

DISPLAY Press button Press button

Colour COLOUR Pale Deep

Brightness BRIGHTNESS Dark Light

FUNCTION

Contrast CONTRAST

CAPTION

DISPLAY

Weak Strong

Green Bar Moves

MUTE PRESS

AGAIN

llllllllll.....

l..............

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Palsonic TV

Palsonic

Palsonic 8110Y Manuel utilisateur

Palsonic

Palsonic 8010PF Manuel utilisateur

Palsonic

Palsonic MODEL 6823G Manuel utilisateur

Palsonic

Palsonic 6830TG Manuel utilisateur

Palsonic

Palsonic 6845PFST Manuel utilisateur

Palsonic

Palsonic MODEL 5160G Manuel utilisateur

Palsonic

Palsonic TFTV321HL Manuel utilisateur

Palsonic

Palsonic MODEL 7600WS 1 Manuel utilisateur

Palsonic

Palsonic MODEL 7128G Manuel utilisateur

Palsonic

Palsonic 6840TS Manuel utilisateur

Palsonic

Palsonic TFTV4000FHD Manuel utilisateur

Palsonic

Palsonic MODEL 5139 Manuel utilisateur

Palsonic

Palsonic 6850TKPF Manuel utilisateur

Palsonic

Palsonic 3425G Manuel utilisateur

Palsonic

Palsonic 8110 Manuel utilisateur

Palsonic

Palsonic PDP4220HD Manuel utilisateur

Palsonic

Palsonic 7128 Manuel utilisateur

Palsonic

Palsonic 7118 Manuel utilisateur

Palsonic

Palsonic MODEL 6738 Manuel utilisateur

Palsonic

Palsonic 6865PFST Manuel utilisateur

Palsonic

Palsonic TFTV5580M Manuel utilisateur

Palsonic

Palsonic 6826G Manuel utilisateur

Palsonic

Palsonic 6860PFST Manuel utilisateur

Palsonic

Palsonic 5145PF Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
