Palsonic 6850TKPF Manuel utilisateur
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888
68CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 6850TKPF
OWNER'S MANUAL
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4166
Standards Australia
APP No: N15899
1
Hyperband
Automatic channel preset
Full function remote control
200 preset channels
Intellectualized I2C-bus control
AV input/output (RCA) jacks
DVD input jacks
Selectable picture
ON timer/OFF timer/Sleep timer
Channel scan
Channel edit
Child lock
Hotel lock
Game
Calendar
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Main features
2
Safety precautions
Note: This TV set can operate on an AC power of 240V, 50Hz. You must not use a power supply
of any other type.
When any unusual situation occurs, turn off the
power supply at once and remove the plug from the
wall outlet. Contact a qualified service department in
your local area.
When cleaning dust off the picture tube disconnect
the power first. You can wipe lightly with a piece of
dry, clean and soft cloth.
Avoid exposing the set to direct sunlight and other
sources of heat to prevent damage to the cabinet
and components.
Do not expose the TV set to rain or excessive
moisture. Avoid using the set in very warm or
damp places and never use it in a bathroom.
High voltage exists in this TV set. Do not remove the
cover.
3
Don't overload wall outlets; extension cords, or
integral convenience receptacles as this can result
in a risk of fire or electric shock.
Do not cover the ventilating hole in the cabinet
Keep a space of more than 10cm from the walls to the
TV set to ensure adequate ventilation.
If the power cord or the plug is damaged contact a
qualified service department for service.
When the TV set is to be left unattended for a long
period of time, turn off the power supply and remove
the plug from the wall outlet.
Don't try to push anything into the cabinet or place
any vessel with water on the TV set.
Safety precautions
Identification of Controls
4
Front
Power Switch
Indicator
Remote Sensor
AV2 input
(VIDEO, AUDIO; L, R)
Antenna input
AV output
(VIDEO, AUDIO; L, R)
DVD input
(VIDEO; Y,Cb,Cr,
AUDIO; L/MONO, R)
AV1 input (VIDEO,
AUDIO; L/MONO, R)
CHANNEL DOWN
VOLUME DOWN
MENU
CHANNEL UP VOLUME UP
TV/AV
MENU AV/TV CH- CH+ VOL- VOL+
Back
S-VIDEO input

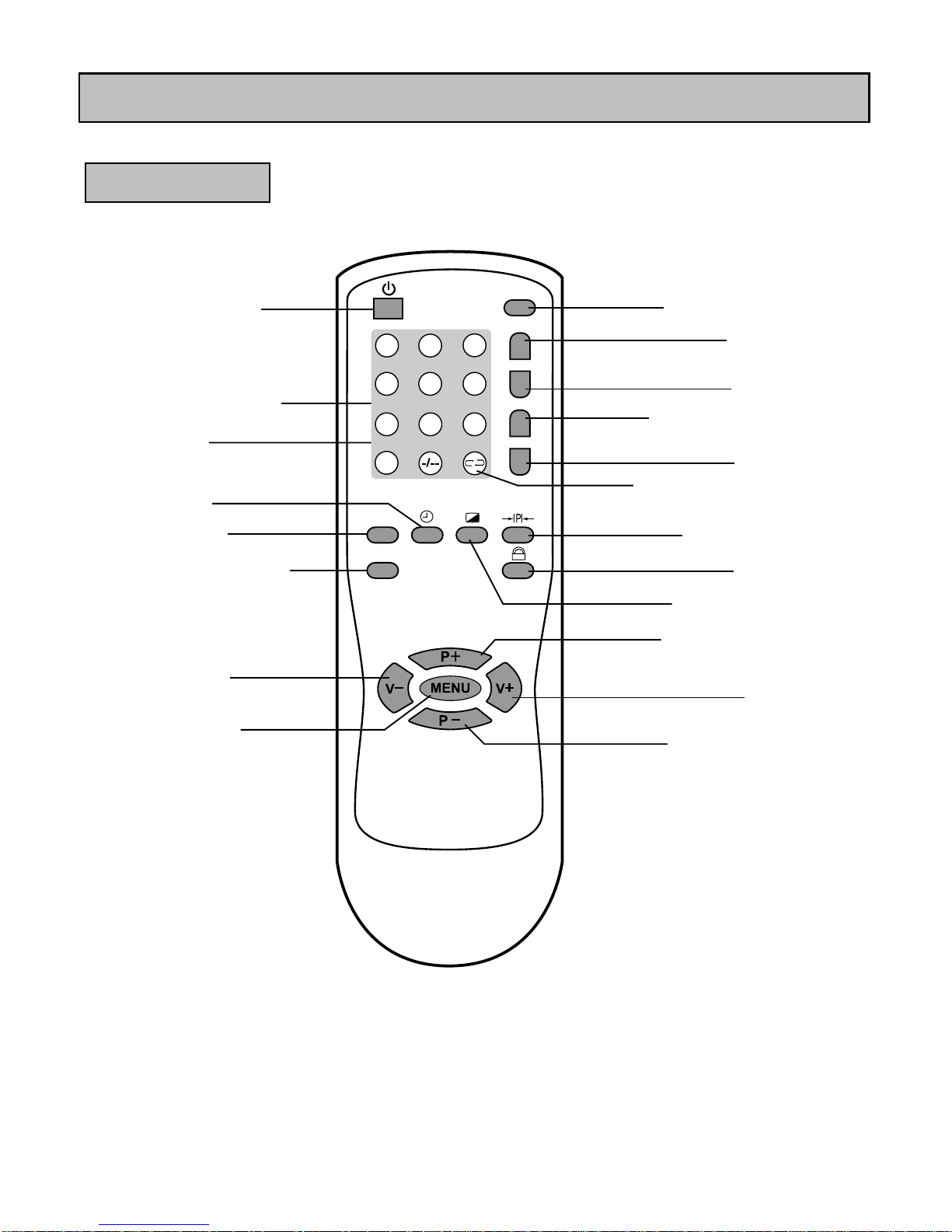

Remote control
5
Identification of Controls
Power on/standby
Direct channel select
Digit select
Sleep timer
Program scan
Enter into music mode
Volume down
Open the menu
TV/VIDEO input select
Game playing
Picture zoom
Recall on-screen display
Sound mute
Picture mode select
Lock setting
Access picture menu
Select higher program
Volume up
Select lower program
Return to previous channel
5
3
2
1
7 9
8
6
4
0
TV/AV
ZOOM
GAME
CALL
MUTE
SCAN
MUSIC
Notes:
6
Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be
used. The exact type and position of the aerial will depend upon your particular area.
It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which
may occur due to radio wave conditions.
The aerial cable should not be bundled with the power cord and the like.
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on
the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable
viewing.
Antenna connection
TV REAR
Notes:
Install two "AA" batteries
matching the +/- polarities
of the battery to the +/-
marks inside the battery
compartment.
7
Installing batteries
Do not try to recharge batteries that are not
intended to be recharged.
Use only the size and type of batteries specified.
Do not mix different types of batteries together
or old batteries with fresh ones.
When the remote control will not be used for a
long period of time or when the batteries are
worn out, remove the batteries.
Do not throw the batteries into a fire. Dispose of
used batteries in the specified manner.
Do not drop, dampen or disassemble the remote
control.
Effective range of the Remote
When there is an obstacle between the TV
and the transmitter, the transmitter may not
operate.
When direct sunlight, and incandescent lamp,
fluorescent lamp or any other strong light
shines on the REMOTE SENSOR of the TV
the remote operation may be unstable.
Open the battery cover.
Replace the battery cover. Notes:
Preparing the remote control
5
3
2
1
7 9
8
6
4
0
TV/AV
ZOOM
GAME
CALL
MUTE
SCAN
MUSIC
External equipment connections
8
VTR without
S-VIDEO terminal VTR without
S-VIDEO terminal
The following describes how to use and connect the TV with other AV equipment (for example, VTR, Video
Camera, DVD, Video game, etc.) Please refer to the owner's manual of the equipment to be connected as
well.
Connect side AV inputs
To access the unit connected
to these jacks, press TV/AV
button until AV2 appears on
the screen.
TV SET SIDE Yellow (video)
White (audio L/MONO)
Red (audio R)
Video game
Connect rear AV inputs
If your video equipment has a S-VIDEO output terminal, connect it to the S-VIDEO input terminal on the
unit. If not, connect it to the VIDEO terminal (RCA ).
The S-VIDEO and AV1 use the same group of audio input terminals.
To audio
outputs
: Yellow (video)
: White (audio L/MONO)
: Red (audio R)
To video
output
TV SET REAR
To audio
outputs
To access the unit connected to these jacks, press TV/AV button until AV1 or SVHS appears on the screen.
To connect AV input terminals
To S-VIDEO
output terminal
W
YYR
W
YY
R
W
YR
To video
outputs
W
Y
R
W
Y
R
To audio
outputs
Signal
W
Y
R
W
R
W
R
External equipment connections
9
The figure below shows how to connect the DVD input terminals of the TV set to the DVD Player, Laser Disk
Player, etc.The TV set rear
DVD Player,
Laser Disk Player etc.
:Direction of the signal
:White (audio L/MONO)
:Red (audio R, CR)
:Green (Y)
:Blue (CB)
To access the unit connected to these jacks, press TV/AV button until YUV appears on the screen.
Notes:
1. Both the CR terminal and the audio R terminal are red for easy identification. Make sure they are
correctly connected.
2. DVD and AV1 use the same group of audio input terminals.
You can connect an audio system to the AV output jacks on the TV set rear to enjoy a high-quality sound
from the audio system, or you can connect the AV output jacks to the VTR to record the program you like.
To external input
Audio System
Yellow (video)
white (audio L)
red (audio R) Another VTR for
recording
To connect DVD input terminals
To connect the AV Outputs
The TV set rear
W
Y
R
Signal
W
Y
R
W
Y
R
Signal
To video input
To audio inputs
G
B
W
R
Signals
YCBCRRL
