PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL: (02) 9313 7111

FAX: (02) 9313 7555

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA: 1300 657 888

68CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 6827G

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4166

Standards Australia

APP No: N15899

Channel selection ..............................................

Convenient Picture Controls ..........................

Convenient Sound Control and Sleep Timer ..

SYSTEM setting ..............................................

Special functions ..........................................

CLOCK setting ...................................................

Channel reservation ..........................................

Turning the Power On/Off .................................

Tuning in ............................................................

CONNECTING OTHER EQUIPMENT

External Equipment Connections.....................

To connect AV input terminals..........................

To connect MONITOR

output terminal...................................................

OTHERS

Troubleshooting.................................................

Specifications.....................................................

Front view ............................................

Back view .............................................

Remote controller .................................

Antenna connection ..............................

Battery installation ................................

Cautions for safety ...............................

Features ...............................................

INTRODUCTION

NOTES FOR OPERATION

INSTALLATION

APPEARANCE

Contents

OPERATION

To preset channels (Auto Search) ....................

To preset channels (Manual Search )...............

To skip unnecessary position numbers ............

MFT (Manual Fine Tuning) ...............................

The setting of colour and sound system ...........

Congratulations on your purchase of this Palsonic colour television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the many functions

and excellent effects of this receiver.

Retain this manual in an easily accessible location for future reference.

* Screen displays and illustrations in this manual may differ from the actual ones for better visibility.

Introducing the menu.............................

MENU INSTRUCTION

16-17

INTRODUCTION

Features

Hyperband

English/Chinese on-screen menu display

256 preset channels

Intellectualized I C-bus control

Full function remote control

ON timer/OFF timer

Four picture modes' setting

AUDIO/VIDEO input & output terminals

S-VIDEO terminal

Games, Calendar function

Advanced picture improvement circuit

Digital AFT technology

Channel reservation

NOTES FOR OPERATION

Do not let the TV set be in stand-by condition for a long period of time. When it is not in use, please

turn off the power supply and remove the power plug. When it is to be left unattended for

a prolonged period of time, it is recommended to disconnect the connection to the outdoor aerial, to

avoid thunder strike.

Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted

on the TV set.

Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power

supply of the other type.

When an unusual situation

occurs, turn off the power

switch at once and remove

the plug from the wall outlet.

Contact a qualified service

department in your local area.

Do not expose the TV set to

rain or excessive moisture, to

prevent tire disaster or

electric shock. Avoid using

the set in very warm or damp

places. Never use it in a

bathroom.

There exists High Voltage in

this TV set. Do not remove

the cover to avoid danger.

The TV set should be placed

on an adequate place without

exposing it to direct sunlight

and other sources of heat to

prevent the deformation of the

cabinet or damage to components.

When the TV set is to be left

unattended, please turn off the

power switch and remove the

plug from the wall outlet.

In order to wipe dust off the

picture tube or off the cabinet,

you should remove the power

plug from the wall outlet first.

You can wipe lightly with a

piece of dry, clean, soft cloth.

Do not cover the Ventilating

holes in the cabinet. Keep a

space of more than 5cm from

the walls to the TV set, to

guarantee the good ventilation.

When the power cord or the

plug is damaged, please

contact a qualified service

department to get service.

Cautions for safety

Effective range of the remote

control operation

Antenna Connection

(1) Remove the back battery cover.

Installation

To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV cable. If

the signals are strong enough, you may use an indoor aerial.

Note: In case of using the

Twin-lead aerial feeder (300 )

for UHF/VHF aerial, use a 300-75

ohm adaptor (not supplied)

When using the coaxial cable (not

supplied) (75 ) for UHF/VHF

aerial, connect the plug into the

75 ohm aerial socket directly.

Note:

When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off the

power switch on the TV while connecting the antenna lead.

In thunder and lightning weather, please disconnect the outdoor aerial to avoid thunder/lightning

strike.

(2) Insert two size AAA batteries according to

the polarity indication inside the remote

controller.

Notes:

1. When the remote controller is not used for

an extended period of time or the batteries

are worn out, please remove the batteries in

time to avoid battery leakage.

2. Avoid moisture and mechanical shock to

the remote controller.

3. Do not drop, dampen or disassemble the

remote controller.

Battery installation

Back View

Front view

Note:* Functions of MENU, TV/AV, VOL , CH , are also provided to the

remote controller.

Appearance

Channel up

TV/AV

MENU Channel down

Volume up

Volume down

AV3 input terminals

(VIDEO, AUDIO L/MONO, R)

POWER SWITCH

REMOTE SENSOR

INDICATOR

AV1 input terminals

(VIDEO, AUDIO L/MONO, R)

AV2 input terminals

(VIDEO, AUDIO L/MONO, R)

ANTENNA INPUT

S-VIDEO

MONITOR output terminals

(VIDEO, AUDIO L/MONO, R)

Remote Controller

Appearance

POWER ON/STANDBY

COLOUR SYSTEM

SELECT

CHANNEL DIRECT SELECT

SOUND MUTE

VOLUME DOWN

CHANNEL SCAN

PICTURE MEMORY SELECT

AV/TV

SLEEP TIMER

ON-SCREEN CALL

CHANNEL UP

VOLUME UP

CHANNEL DOWN

PICTURE MENU

PREVIOUS CHANNEL

(when there is no menu

on screen, it can be used

to swap the current viewed

channel with the previous one.)

POSITION

BAND

SKIP

MFT

AUTO MEMORY

008

VHFL

OFF

100

COLOR

BRIGHT

CONT

SHARP

CALENDAR

GAME 1

GAME 2

Introducing the menu

You can use the on-screen menus to set the picture quality and other settings. You can use buttons on

both the remote controller and the TV to operate the menus.

Normal Screen

Press MENU button

Notes:

To select each item, use the or

button.

To adjust or set each item, use the

or button.

NOW TIME

ON TIME

OFF TIME

ON CHANNEL

TIME ADJ

18.3018

OFF

Menu Introduction

Press MENU button

SELECT: SET:

TIME

CHANNEL OFF

LANGUAGE

C.SYSTEM

S.SYSTEM

B.B SET

ENG/

AUTO

Press the button or any one of 0~9 number buttons on the remote controller to

turn the set on and the green indicator lights up.

Without using the remote controller, you can directly press VOL or CH

or TV/AV button on the set to turn on the TV.

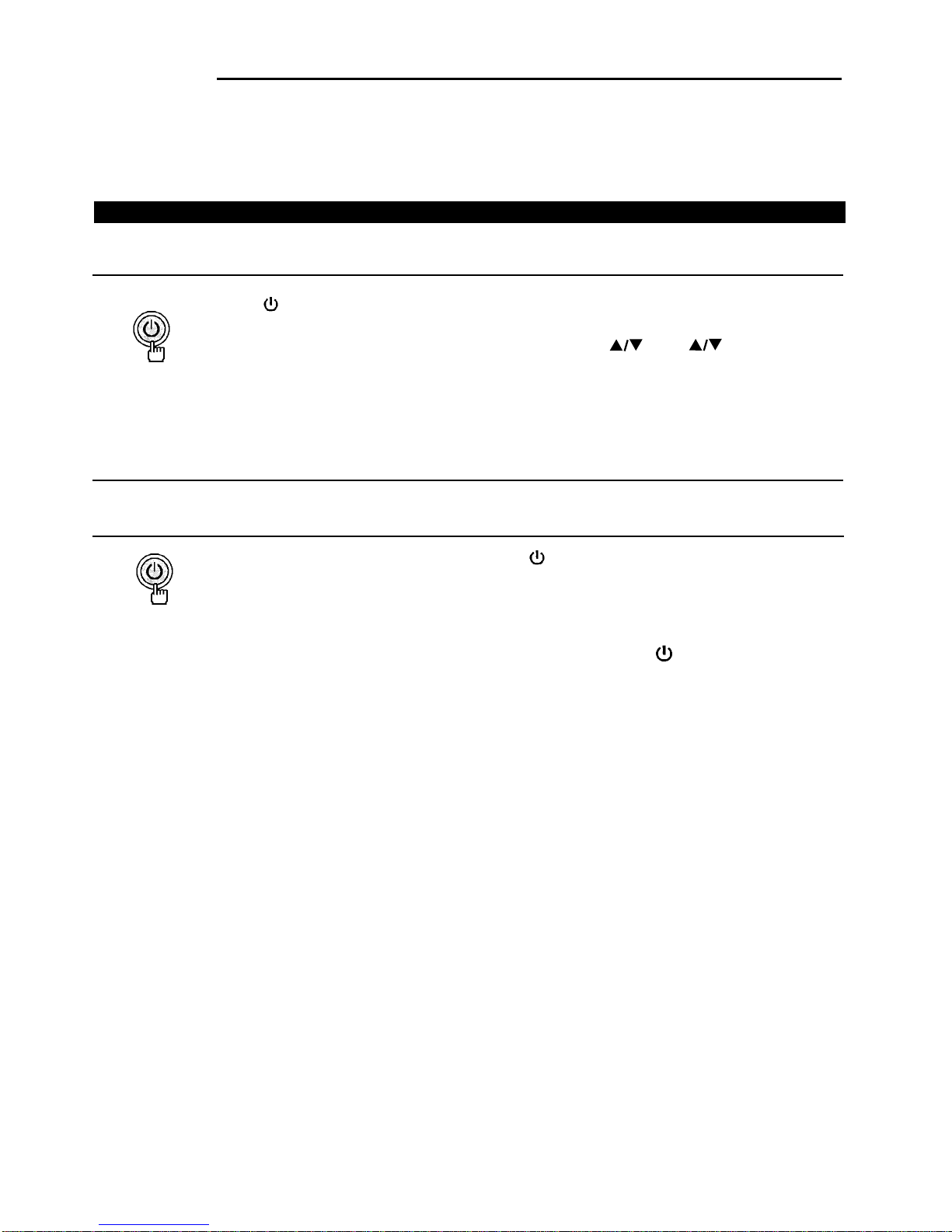

To turn the power on/off

1. Press the POWER switch, the red power indicator lights up.

Turning the Power On/Off

OPERATION

If you want to turn off the TV temporarily, press the button on the remote controller to

switch the set to standby mode.

The following describes how to turn the TV on/off using the TV's main switch and the remote

controller.

3. Press the POWER switch to turn off the set completely.

Special indication:

Auto-Power-Off function: there are two kinds of Auto-Power-Off function:

If a vacant channel is tuned or TV broadcast for a day is finished, and the blue background appears

on the screen, the TV will automatically turn off after about 15 minutes.

*Note:

If there are no input signals to the TV when the TV set is on, a blue background will

appear on the screen (when B.B (blue back) is set ON.)

After 15 minutes if there are still no signals to the TV, it will enter into standby mode

automatically

2. Sleep-timer function.

Note:

To prolong the picture tube's life, us a delayed shut-down circuit is adopted. The button

functions only when the set is turned on for more than 5 seconds.

3. OFF timer function

Press the (PRESET) menu,

press the or button to select

AUTO MEMORY.

Press the MENU button repeatedly to select and

highlight the icon, and the PRESET menu

appears on the screen automatically.

OPERATION

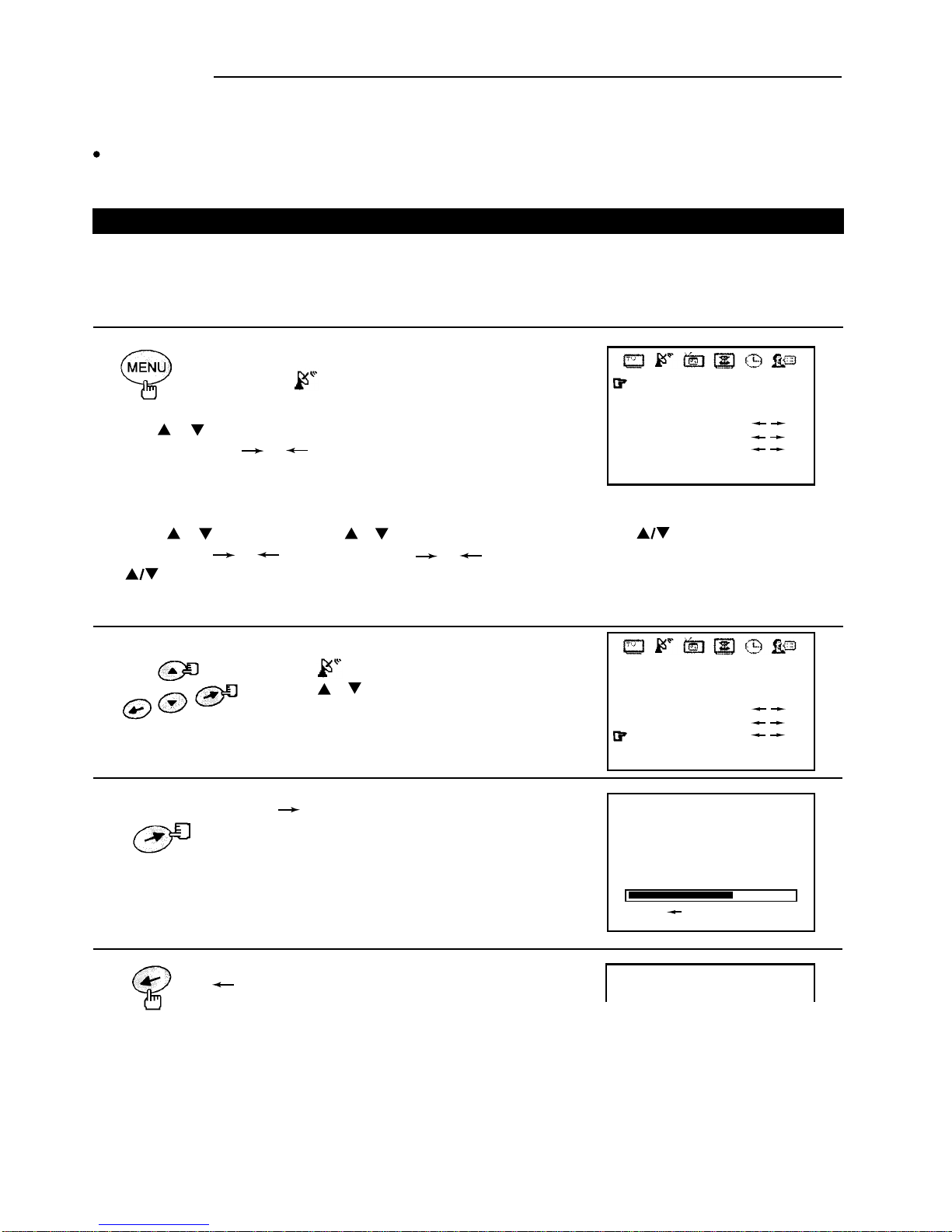

Tuning in

There are two ways to preset channels: to preset channels automatically and to preset channels

manually. Below we will describe how to preset the channels by making use of the menu.

Use the AUTO SEARCH function to preset all the active channels in your local area automatically.

To enter into menu

Note: If this manual the MENU button refers to the MENU button on the remote controller or on the

TV set, the or button refers to the or button on the remote controller or CH button

on the TV set, the or button refers to the or button on the remote controller or the

VOL button on the TV set.

AUTO SEARCH

Press the button to start the AUTO SEARCH. All

active channels will be preset and stored into the

memory automatically. After presetting, the TV will

return to the first channel program.

3. During the process of AUTO SEARCH, pressing the

button on the remote controller will stop the

process the and TV will return to the first channel

program.

To preset channels (Auto search)

Press the or button to select the item upward or downward

in the menu, press the or button to enter into the selected

item.

008

VHFL

OFF

POSITION

BAND

SKIP

MFT

AUTO MEMORY

lllllllllllll

lllllllllllllllllllllllllllllllll

008

VHFL

OFF

POSITION

BAND

SKIP

MFT

AUTO MEMORY

lllllllllllll

lllllllllllllllllllllllllllllllll

AUTO MEMORY 4 VHFL

STOP

Table des matières

Autres manuels Palsonic Téléviseur à tube cathodique

Palsonic

Palsonic 5179 Manuel utilisateur

Palsonic

Palsonic 6125TS Manuel utilisateur

Palsonic

Palsonic 4890 Manuel utilisateur

Palsonic

Palsonic 3410 Manuel utilisateur

Palsonic

Palsonic 5140TS Manuel utilisateur

Palsonic

Palsonic 3400 Manuel utilisateur

Palsonic

Palsonic 6825G Manuel utilisateur

Palsonic

Palsonic 3499 Manuel utilisateur

Palsonic

Palsonic 6828PFS Manuel utilisateur

Palsonic

Palsonic 6159G Manuel utilisateur

Palsonic

Palsonic 5159 Manuel utilisateur

Palsonic

Palsonic 6160G Manuel utilisateur

Palsonic

Palsonic 6830G Manuel utilisateur

Palsonic

Palsonic 3499G Manuel utilisateur

Palsonic

Palsonic 5155PF Manuel utilisateur

Palsonic

Palsonic 5159P Manuel utilisateur

Palsonic

Palsonic 3490 Manuel utilisateur

Palsonic

Palsonic 5155PF Manuel utilisateur

Palsonic

Palsonic 3499P Manuel utilisateur

Palsonic

Palsonic 2418 Manuel utilisateur

Palsonic

Palsonic 5180G Manuel utilisateur

Palsonic

Palsonic 6158 Manuel utilisateur

Palsonic

Palsonic 3410P Manuel utilisateur

Palsonic

Palsonic 6140GY Manuel utilisateur

Manuels Téléviseur à tube cathodique populaires d'autres marques

JVC

JVC AV-21QS5SP Manuel utilisateur

Philips

Philips COLOR TV 25 INCH TABLE TR2517C Manuel utilisateur

Hitachi

Hitachi 27CX01B Manuel utilisateur

LG 30FZ1DC Manuel utilisateur

Sony

Sony FD TRINITON WEGA KV-24FS120 Manuel utilisateur

RCA

RCA F19442 Manuel utilisateur

Samsung

Samsung CS761 Manuel utilisateur

Philips

Philips 29PT4973 Manuel utilisateur

Panasonic

Panasonic TC-29P100 Series Manuel utilisateur

RCA

RCA F19422 Manuel utilisateur

Sony

Sony WEGA KV 32HS20 Manuel utilisateur

Samsung

Samsung SlimFit TX R3079WH Manuel utilisateur

Toshiba

Toshiba CF13H22 Manuel utilisateur

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manuel

Toshiba

Toshiba 14AF41 Manuel utilisateur

Philips

Philips 21PT9469 Manuel utilisateur

Mitsubishi

Mitsubishi CS-35305 Manuel utilisateur

Hitachi

Hitachi 35UX60B, 35TX10B Manuel utilisateur
