34CM CORDLESS REMOTE COLOUR TELEVISION

MODEL: 3499P

OWNER'S MANUAL

Type Tested

Electrical

Safety

AS/NZS 3250 Lic 4163

Standards Australia

APP No: N15957

Channel selection ........................................

Convenient Picture Controls ......................

Convenient Sound Controls .......................

Other functions ............................................

Front view ............................................

Back view .............................................

Remote controller ................................

Antenna connection ............................

Battery installation ..............................

Cautions for safety ...............................

Features ...............................................

Congratulations on your purchase of this Palsonic colour television receiver.

We recommend that you thoroughly read this manual before use to fully enjoy the many functions

and excellent effects of this receiver

Retain this manual in an easily accessible location for future reference.

* Screen displays and illustrations in this manual may differ from the actual ones for better

visibility.

Contents

INTRODUCTION OPERATION

Turning the Power On/Off ..........................

Tuning in ......................................................

NOTES FOR OPERATION

INSTALLATION

To preset channels (Auto search) ...........

To preset channels (Manual search) ......

To skip unnecessary position numbers ...

MFT (Manual Fine Tuning) .....................

The setting of colour system ...................

APPEARANCE

Sleep timer and to select the

language for OSD.................................

CONNECTING OTHER EQUIPMENT

External Equipment Connections ........

To connect AV input terminals ...........

To connect TV output terminals ...........

OTHERS

Troubleshooting .......................................

Specifications ............................................

INTRODUCTION

Features

Hyperband

English/Chinese on-screen menu display

100 preset channels

Auto search, manual search

Intellectualized I C-bus control

Sleep timer, Auto Power -Off & Blue background display

Four picture modes' setting

AUDIO/VIDEO input & output terminals

Advanced picture improvement circuit

1. Built-in digital comb filter (NTSC)

To attain the complete separation of brightness and colour signals, to reduce colour

interface, blurry and dotted interruptions, to make the picture clearer

2. Black level stretching circuit

To extend the dynamic scope of the picture, to make the picture level clearer.

NOTES FOR OPERATION

Do not let the TV set be in stand-by condition for a long period of time. When it is not in use, please

turn off the power supply and remove the power plug. When it is to be left unattended for

a prolonged period of time, it is recommended to disconnect the connection to the outdoor aerial, to

avoid thunder strike.

Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted

on the TV set.

Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power

supply of the other type.

When an unusual situation

occurs, turn off the power

switch at once and remove

the plug from the wall outlet.

Contact a qualified service

department in your local area.

Do not expose the TV set to

rain or excessive moisture, to

prevent tire disaster or

electric shock. Avoid using

the set in very warm or damp

places. Never use it in a

bathroom.

There exists High Voltage in

this TV set. Do not remove

the cover to avoid danger.

The TV set should be placed

on an adequate place without

exposing it to direct sunlight

and other sources of heat to

prevent the deformation of the

cabinet or damage to components.

When the TV set is to be left

unattended, please turn off the

power switch and remove the

plug from the wall outlet.

In order to wipe dust off the

picture tube or off the cabinet,

you should remove the power

plug from the wall outlet first.

You can wipe lightly with a

piece of dry, clean, soft cloth.

Do not cover the Ventilating

holes in the cabinet. Keep a

space of more than 5cm from

the walls to the TV set, to

guarantee the good ventilation.

When the power cord or the

plug is damaged, please

contact a qualified service

department to get service.

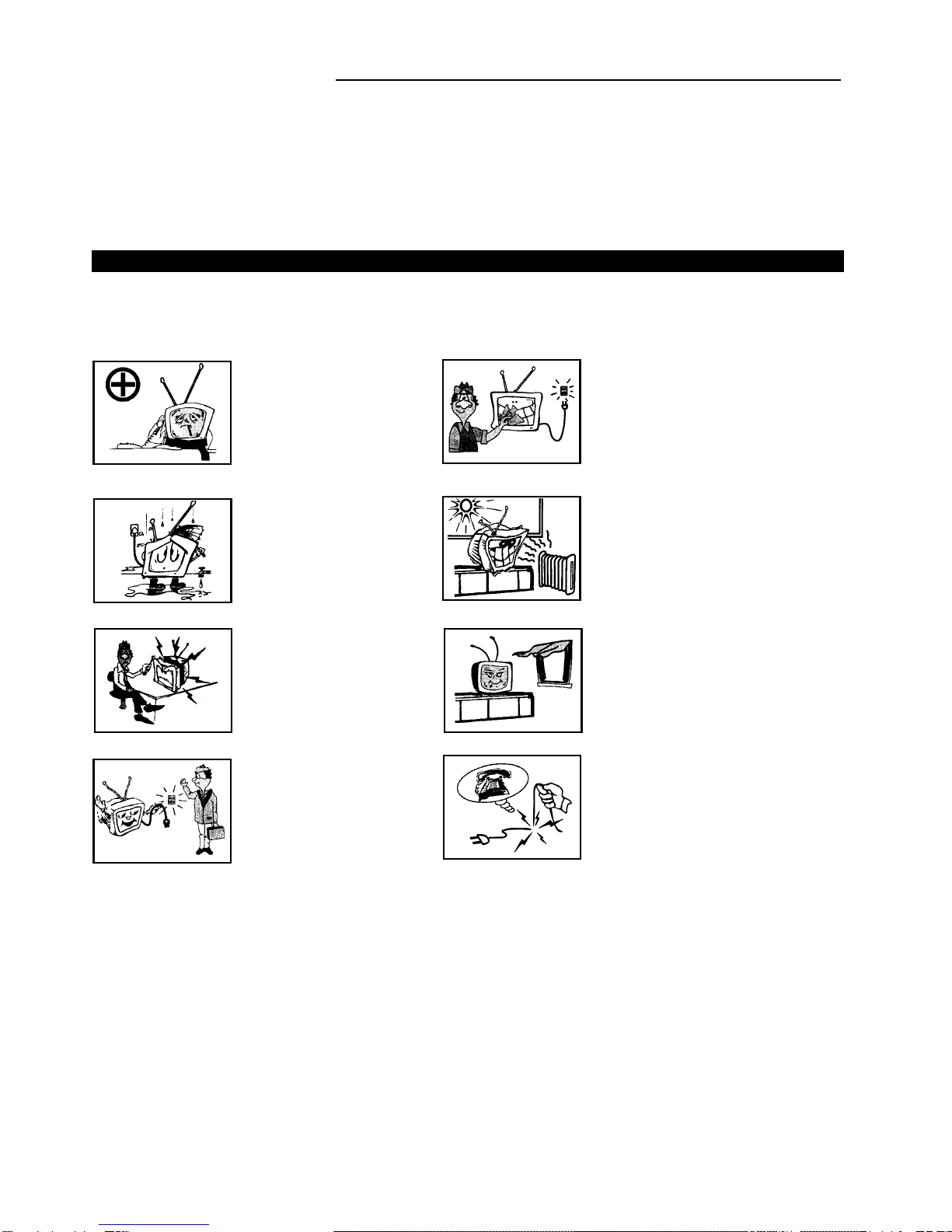

Cautions for safety

Effective range of the remote

control operation

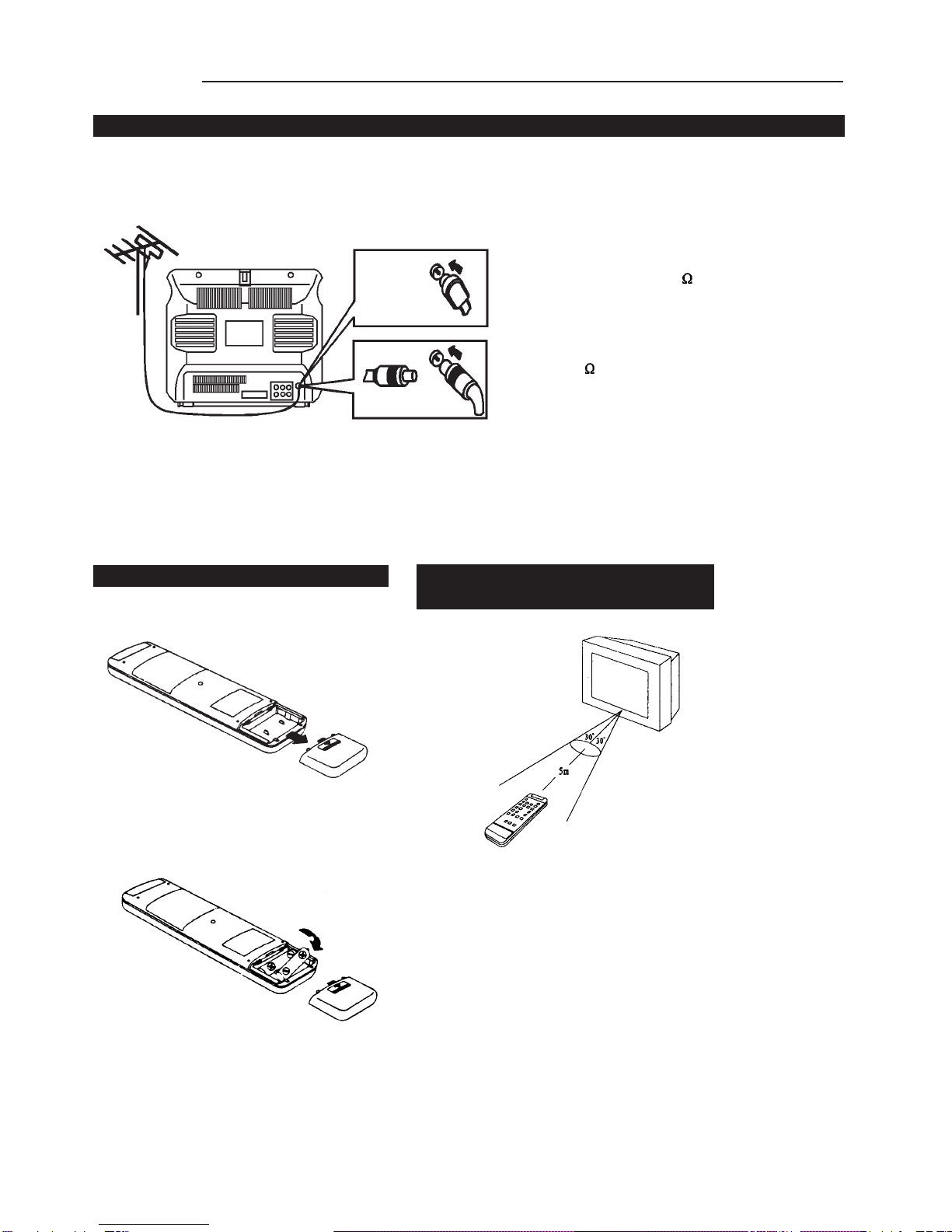

Antenna Connection

(1) Remove the back battery cover.

Installation

To ensure a bright-coloured and clear picture, you should use an outdoor aerial or CATV cable. If

the signals are strong enough, you may use an indoor aerial.

Note: In case of using the

Twin-lead aerial feeder (300 )

for UHF/VHF aerial, use a 300-75

ohm adaptor (not supplied)

When using the coaxial cable (not

supplied) (75 ) for UHF/VHF

aerial, connect the plug into the

75 ohm aerial socket directly.

Note:

When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off the

power switch on the TV while connecting the antenna lead.

In thunder and lightning weather, please disconnect the outdoor aerial to avoid thunder/lightning

strike.

(2) Insert two size AAA batteries according to

the polarity indication inside the remote

controller.

Notes:

1. When the remote controller is not used for

an extended period of time or the batteries

are worn out, please remove the batteries in

time to avoid battery leakage.

2. Avoid moisture and mechanical shock to

the remote controller.

3. Do not drop, dampen or disassemble the

remote controller.

Battery installation

Back View

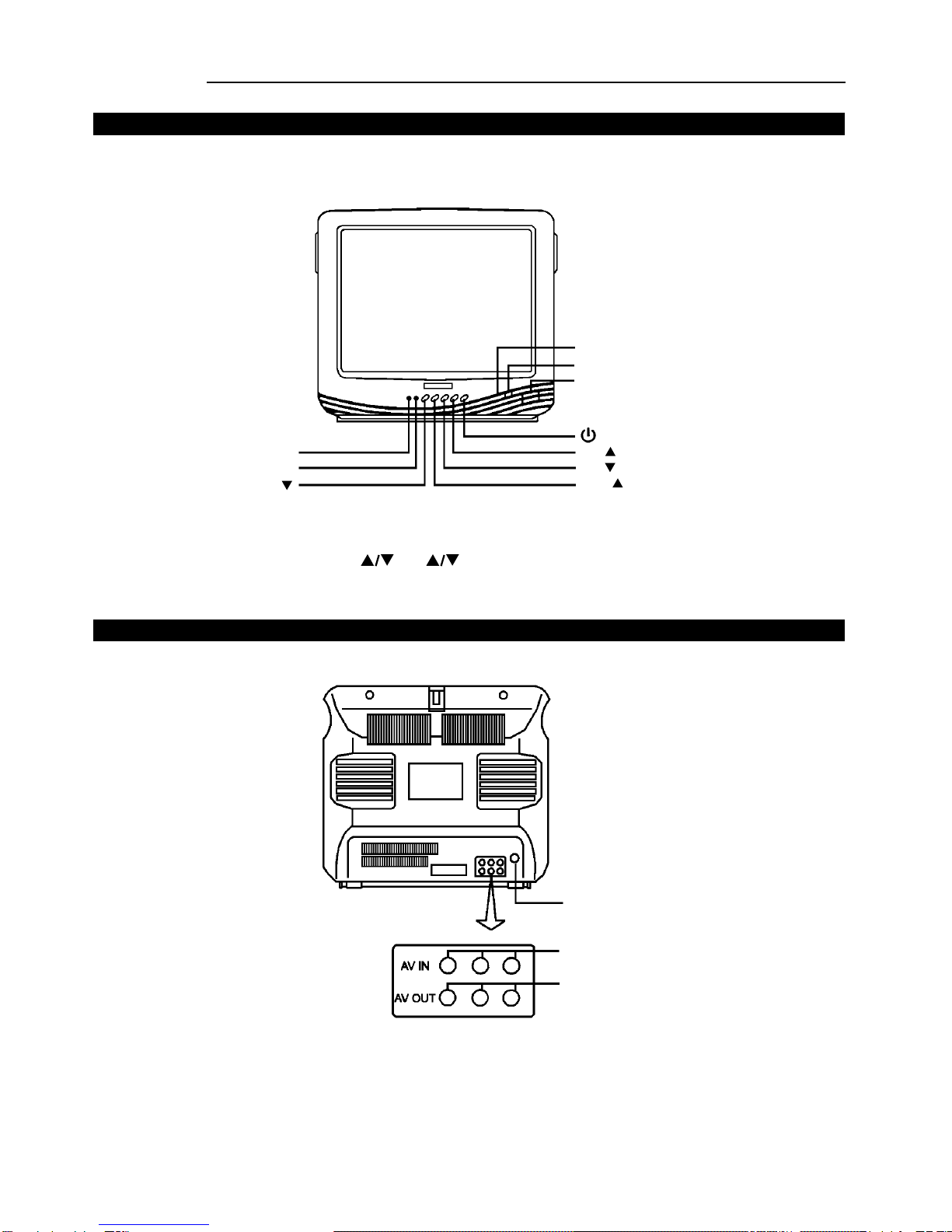

Front view

Note:* Functions of MENU, TV/AV, VOL , CH , are also provided to the

remote controller.

* S-VHS is S-VIDEO.

Appearance

AV1 IN (VIDEO

AUDIO L/MONO, R)

AV OUT (VIDEO

AUDIO L/MONO, R)

VOL

STANDBY

TV/AV

VOL

INDICATOR

REMOTE SENSOR

POWER SWITCH

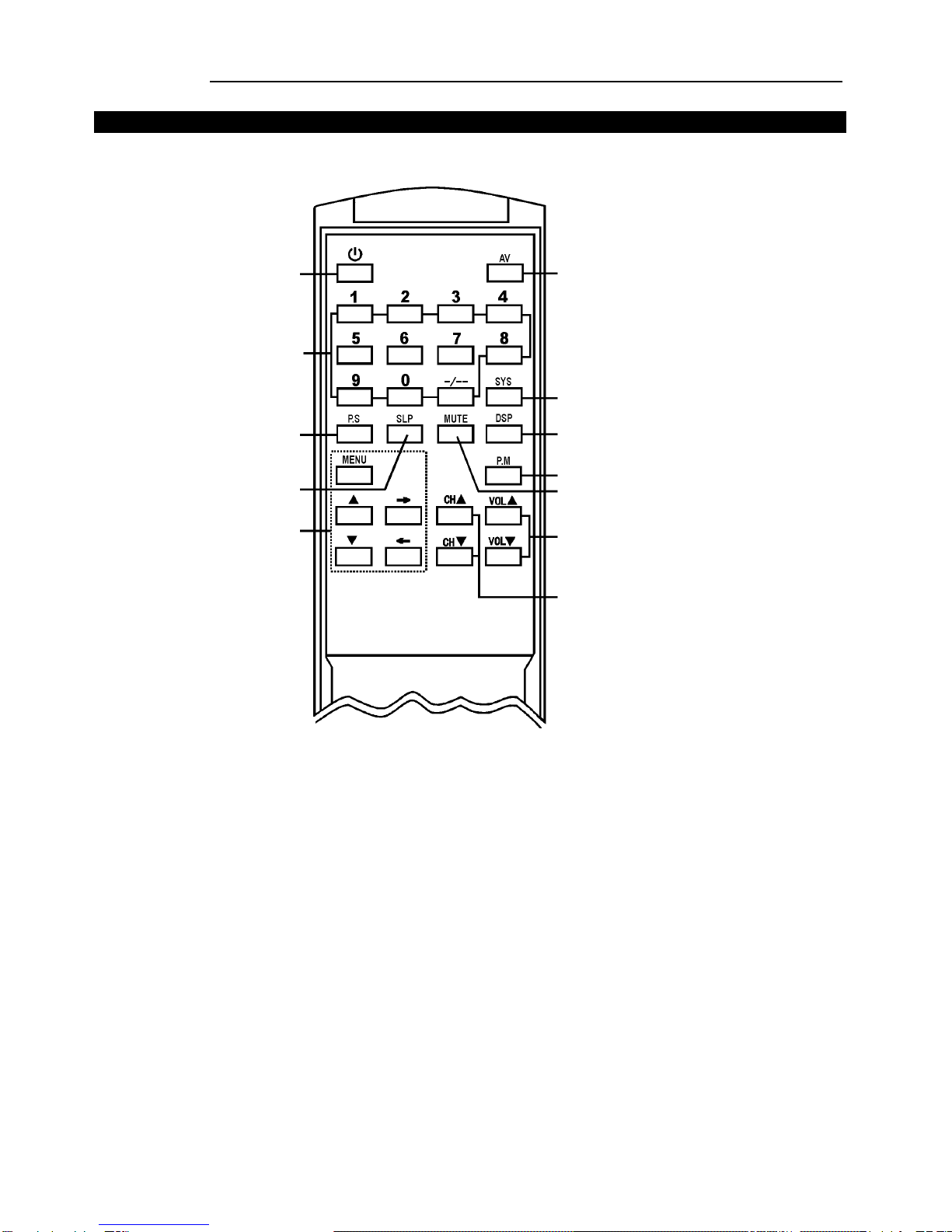

Remote Controller

Appearance

POWER ON/STANDBY

CHANNEL DIRECT SELECT

PICTURE MEMORY SELECT

SLEEP TIMER

MENU CONTROL

TV/AV

COLOUR SYSTEM SELECT

ON-SCREEN CALL

PICTURE MENU

SOUND MUTE

VOLUME CONTROL

CHANNEL SELECTION

If no picture appears on the screen, press the button or any one of 0~9 number buttons on

the remote controller to turn the set on.

Without using the remote controller, you can directly press VOL or CH or

TV/AV button on the set to turn on the TV.

To turn the power on/off

1. Press the POWER switch, the red power indicator lights up.

Turning the Power On/Off

OPERATION

If you want to turn off the TV temporarily, press the button on the remote controller to

switch the set to standby mode.

The following describes how to turn the TV on/off using the TV's main switch and the remote

controller.

3. Press the POWER switch to turn off the set completely.

Special indication:

Last-Mode-Memory: after turning off the power, the last TV mode, picture and sound setting

mode and preset channels all are memorised. Therefore, next time you turn on the TV, the TV will

work in the previous setting mode.

If you directly pressed the main power switch on the TV to turn it off, you must press the

main power switch to turn on the TV.

If you pressed the main power switch to turn off the TV when in standby mode, press the

main power switch and then operate from the remote controller to turn the TV on.

Auto-Power-Off function: there are two kinds of Auto-Power-Off function:

If a vacant channel is tuned or TV broadcast for a day is finished, the TV will automatically

turn off after about 15 minutes.

Sleep-timer function. However, if the Sleep-timer is operating, it takes precedence, that is,

the function of Auto-Power-Off, if no signals received will be ineffective.

*Note:

If there are no input signals to the TV when the TV set is on, a blue background will

appear on the screen (when B.B (blue back) is set ON.)

After 15 minutes if there are still no signals to the TV, it will enter into standby mode

automatically

OPERATION

Tuning in

There are two ways to preset channels: to preset channels automatically and to preset channels

manually. Below we will describe how to preset the channels by making use of the menu.

Use the AUTO SEARCH function to preset all the active channels in your local area

automatically.

To enter into menu

Press the MENU button repeatedly to call up the POS. MEMORY

menu on the screen.

Note: The MENU button refers to the MENU button on the remote

controller or on the TV set, the or button refers to the or

button on the remote controller or CH button on the TV set, the

or button refers to the or button on the remote

controller or the VOL button on the TV set.

AUTO SEARCH

1. Press the or button to select and highlight

AUTO MEMORY.

Press the button to start the AUTO SEARCH. All active

channels will be preset and stored into the memory

automatically. After presetting, the TV will return to the first

channel program.

During the process of AUTO SEARCH, pressing the

button on the remote controller will stop the process and the

TV will return to the first channel program.

To preset channels (Auto search)

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

AUTO MEMORY 5 VHFH

!!!!!!......

STOP

OPERATION

Tuning in (continued)

Use the MANUAL SEARCH function if desired channels can not be preset with the AUTO-

SEARCH or if you would like to preset channels to specific position numbers one by one.

It is convenient to set the channel numbers to the same position numbers using MANUAL

SEARCH and SKIP functions.

Manual search

If AUTO SEARCH can not preset the desired channels, or you want to preset the desired

channels one by one with the preferred channel numbers, please make use of Manual search.

Enter into POS.MEMORY menu, press the or button to

select and highlight POSITION. Press the or button to

select a desired position number (from 00~99).

Note: press the or button to select a channel number

within 0.7 second. Press and hold the or button for over

0.7 second to select a decimal number.

Press the or button to select and highlight SEARCH. Press

the button to search channels from current channel to higher

channel. Press the button to search channels from current

channel to lower channel. When a channel is located, the

searching stops, this channel is then memorised with the preset

channel number.

you can also make use of BAND selection to quicken the

searching process in your desired band. Pressing the or

button moves the band to the next step in the sequence below.

VHFH UHF

3. When you want to store another channel with another position, repeat steps 1 & 2 above.

To preset channels (Manual search)

VHFL

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

POS.MEMORY

POSITION 01

BAND VHFL

SKIP OFF

SEARCH DOWN

MFT DOWN

AUTO MEMORY

!!!!!!......

Note:

Table des matières

Autres manuels Palsonic Téléviseur à tube cathodique

Palsonic

Palsonic 4910 Manuel utilisateur

Palsonic

Palsonic 6138 Manuel utilisateur

Palsonic

Palsonic 5159 Manuel utilisateur

Palsonic

Palsonic 5130TS Manuel utilisateur

Palsonic

Palsonic 3499G Manuel utilisateur

Palsonic

Palsonic 3499 Manuel utilisateur

Palsonic

Palsonic 6125TS Manuel utilisateur

Palsonic

Palsonic 3430GM Manuel utilisateur

Palsonic

Palsonic 5138HT Manuel utilisateur

Palsonic

Palsonic 3435TS Manuel utilisateur

Palsonic

Palsonic 6825G Manuel utilisateur

Palsonic

Palsonic 6159G Manuel utilisateur

Palsonic

Palsonic 6140G Manuel utilisateur

Palsonic

Palsonic 6830GY Manuel utilisateur

Palsonic

Palsonic 5140TS Manuel utilisateur

Palsonic

Palsonic 6159 Manuel utilisateur

Palsonic

Palsonic 5120B Manuel utilisateur

Palsonic

Palsonic 5155PF Manuel utilisateur

Palsonic

Palsonic 6827G Manuel utilisateur

Palsonic

Palsonic 4890 Manuel utilisateur

Palsonic

Palsonic 6158 Manuel utilisateur

Palsonic

Palsonic 3490 Manuel utilisateur

Palsonic

Palsonic 6140GY Manuel utilisateur

Palsonic

Palsonic 5169P Manuel utilisateur

Manuels Téléviseur à tube cathodique populaires d'autres marques

JVC

JVC AV-21QS5SP Manuel utilisateur

Philips

Philips COLOR TV 25 INCH TABLE TR2517C Manuel utilisateur

Hitachi

Hitachi 27CX01B Manuel utilisateur

LG 30FZ1DC Manuel utilisateur

Sony

Sony FD TRINITON WEGA KV-24FS120 Manuel utilisateur

RCA

RCA F19442 Manuel utilisateur

Samsung

Samsung CS761 Manuel utilisateur

Philips

Philips 29PT4973 Manuel utilisateur

Panasonic

Panasonic TC-29P100 Series Manuel utilisateur

RCA

RCA F19422 Manuel utilisateur

Sony

Sony WEGA KV 32HS20 Manuel utilisateur

Samsung

Samsung SlimFit TX R3079WH Manuel utilisateur

Toshiba

Toshiba CF13H22 Manuel utilisateur

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manuel

Toshiba

Toshiba 14AF41 Manuel utilisateur

Philips

Philips 21PT9469 Manuel utilisateur

Mitsubishi

Mitsubishi CS-35305 Manuel utilisateur

Hitachi

Hitachi 35UX60B, 35TX10B Manuel utilisateur
