PAG L90 Slim Manuel utilisateur
PAG L90 Slim Battery
User Guide
U5129
PAG Ltd.
565 Kingston Road
London SW20 8SA
United Kingdom
T: +44 (0)20 8543 3131
www.paguk.com
Disclaimer
The information contained in this document is correct at
the time of publication. PAG Ltd. reserves the right to
change specifications or product details without
notification. Changes to product details will be
incorporated in the next version of the document.
PAG updates documents on a regular basis.
Trademarks
All PAG registered trademarks are the property of PAG Ltd.
All third party trademarks are acknowledged as such.
Copyright © 2019 PAG Ltd. All rights reserved
Thank you for choosing the PAG L90 Slim Battery.
Please read the important safety information and
instructions before using your battery.
3
Section Page
1 Introduction 4
2 Specification 6
3 Charging 7
4 Discharging 8
5 Storage 9
6 Battery Display 10
7 Battery Protection Features 12
8 Safety Information 13
9 Servicing 14
10 Recycling 15
11 Guarantee 16
12 Air Transport Regulations 17
Contents
1.7 The PAG L90 Slim incorporates a superior design, a high-quality
construction and long-life, premier-quality Li-Ion cells, which have no
memory effect and are completely recyclable.
1.8 It features a D-Tap output to enable thpowering of 12V camera
accessory in addition to powering the camera.
1.9 It incorporates the industry’s first numeric Run Time, Capacity & Data
Display, which senses the orientation of the battery and rotates to
ensure legibility.
1.1 Models covered by these instructions:
The PAG L90 Slim is a V-Mount battery designed for compatibility with
the Sony V-Mount specification.
Model Name Capacity Output Connector
9307V PAG L90 Slim 90Wh D-Tap
1.2 The PAG L90 Slim battery has a low-profile and lightweight design,
coupled with a high-current capability, making it ideal for use with
small cameras that have a high power consumption, in situations
where battery size and weight must be kept to a minimum.
1.3 It has been designed to withstand the vibration associated with
multi-rotor aerial platforms.
1.4 It incorporates the latest high-capacity, high-current cells which give
it a greater energy density than most V-Mount Li-Ion batteries of an
equivalent capacity.
1.5 It has a capacity of 90 Watt-hours and delivers a maximum continuous
current of 10A.
1.6 It is an intelligent battery which manages its own charge and
discharge safely. It can be charged using the Li-Ion chargers of most
reputable manufacturers.
1. Introduction
4
D-Tap Output
5
1. Introduction
1.10 Run-Time is displayed, on-load, to a resolution of minute. Capacity/
state-of-charge is displayed to a resolution of 1%. Data displayed
includes the number of charge/discharge cycles and software version.
1.11 The L90 Slim detects and adapts automatically to multiple camera
data systems, to provide capacity information in the viewfinder/LCD of
various cameras.
1.12 The L90 Slim is future-proof; its firmware can be updated easily by the
user in the field.
Run-Time,
Capacity &
Data Display
Display
Button
1.13 The battery features a comprehensive and fail-saf electronic protection
system, which guards against conditions that reduce battery life.
1.14 The protection system circuit is coated to ensure operation of the
safety systems in the event of damage to the battery.
1.15 PAG’s battery design philosophy ensures that the L90 Slim provides
the longest possible working life. The battery is guaranteed for 2
years, without restrictions on the conditions of use.
1.16 The PAG L90 Slim has been tested to UN 38.3 standard by an
independent authority and certified safe for air transport in
accordance with IATA regulations.
1.17 The battery has a capacity that is below 100Wh and is therefore
suitable for transport on passenger aircraft, in carry-on luggage,
without quantity restriction.
2.1 Cell Technology: Premium grade, high-capacity, high-current, sealed,
Lithium-Ion rechargeable cells.
2.2 Capacity: 6.1 Ampere-hours nominal, 90 Watt-hours.
2.3 Voltage: 14.8V nominal. 8 cells connected in series/parallel (4S2P).
Each cell has a nominal voltage of 3.7V.
2.4 Output Current: The rated maximum continuous output current is
10 Amperes.
2.5 Output Connector (Model 9307V only):
1 x D-Tap (2-pin), 12V (unregulated).
2.6 Temperature Range:
Charging:
0°C to +40°C Optimum +10 to +30°C
+32°F to +104°F Optimum +50°F to +86°F
Discharging:
-20°C to +50°C Optimum +10°C to +40°C
-4°F to +122°F Optimum +50°F to +104°F
Storage:
-10°C to +40°C Optimum 0°C to +20°C
+14°F to +104°F Optimum +32°F to +68°F
2. Specification
6
2.7 Dimensions (L x W x H):
140mm (5.51”) x 85mm (3.34”) x 35mm (1.37”)
2.8 Weight:
567g (1.25lbs).
3.3 PAG L90 Slim batteries display their individual status on their display,
when charging. The orientation of the display adjusts automatically
according to the orientation of the battery.
3.4 Charge Times: Times given are for fully-discharged batteries to fully-
charged, using a PAGlink PL16 charger.
7
3. Charging
3.1 IMPORTANT: The battery has been discharged for transit, and should
be fully charged before use.
Read the charger handbook before attempting to charge the battery.
The battery is protected electronically, and will not accept a charge
from unsuitable chargers.
3.2 PAG L90 Slim batteries can be charged using the following PAG
V-Mount Li-Ion chargers:
9707 PAGlink PL16 Charger 2-positions
9711 PAGlink PL16+ Charger 4-positions
9713V PAGlink Micro Charger 1-position
9702VR PAG RMC4X Charger 4 positions Discontinued
9708 PAGlink Cube Charger 4-positions Discontinued
9702V PAG Cube Charger 4 positions Discontinued
9710 PAGlink Micro Charger 1-position Discontinued
9700V PAG V4-iPC Charger 4-positions Discontinued
9613V PAG V2 Charger 2-positions Discontinued
Constant-voltage, V-Mount Li-Ion chargers of other reputable
manufacturers are also suitable.
1 battery 2 hrs 30 mins
2 batteries 3 hrs
4 batteries 6 hrs
8
4. Discharging
4.1 The battery incorporates a precision fixed end-of-discharge cutoff, set
to 12.5V, as measured by the battery. This cutoff will operate only if
the battery capacity is less than 5%, eliminating unwanted cutoff
operation due to high current and low battery temperature.
4.2 Maximum continuous discharge current is 10A. The battery incorpo
rates an accurate precision current limit, and consumption above 10A
(for more than 5 seconds) will trigger the over-current protection,
turning the battery output off.
4.3 If the battery is discharged at too high a rate, even momentarily, the
protection circuit may be triggered, disconnecting the battery output.
4.4 If the battery has been shut down by its protection circuit it can be
recovered by simply removing it from the load and pressing the
display button, provided the battery still retains some charge.
4.5 The battery may be discharged within the temperature range -20°C to
+50°C, but for optimum performance +10°C to +40°C is recommended.
When the battery has been discharged at a high rate it will become
warm, and it is advisable to let it cool before charging. The operating
time will be shorter in conditions of low temperature, and discharging
will be electronically inhibited if the battery temperature is below -
20°C.
4.6 Computer Reset
The battery features a computer reset function, which may be required
in exceptional circumstances. This is achieved by holding-in the
display button for 20 seconds.
9
5. Storage
5.1 For long-term storage, the battery should be initially in the half
charged state (between 20% and 80%).
5.2 The battery can be put into ‘Sleep Mode’ for long term storage.
This will reduce the level of self-discharge. See Section 6.4 Data
Display to discover how to put the battery into ‘Sleep Mode’ and how
to wake the battery.
5.2 Maintenance charging is not required during storage.
5.3 Store in a cool, dry place at a temperature between -10°C to +40°C.
Long-term storage outside of this temperature range may reduce the
battery’s life.
5.4 The battery should be in a fully charged state before use. After
extended storage it is advisable to give the battery a top-up charge.
10
6. Battery Display

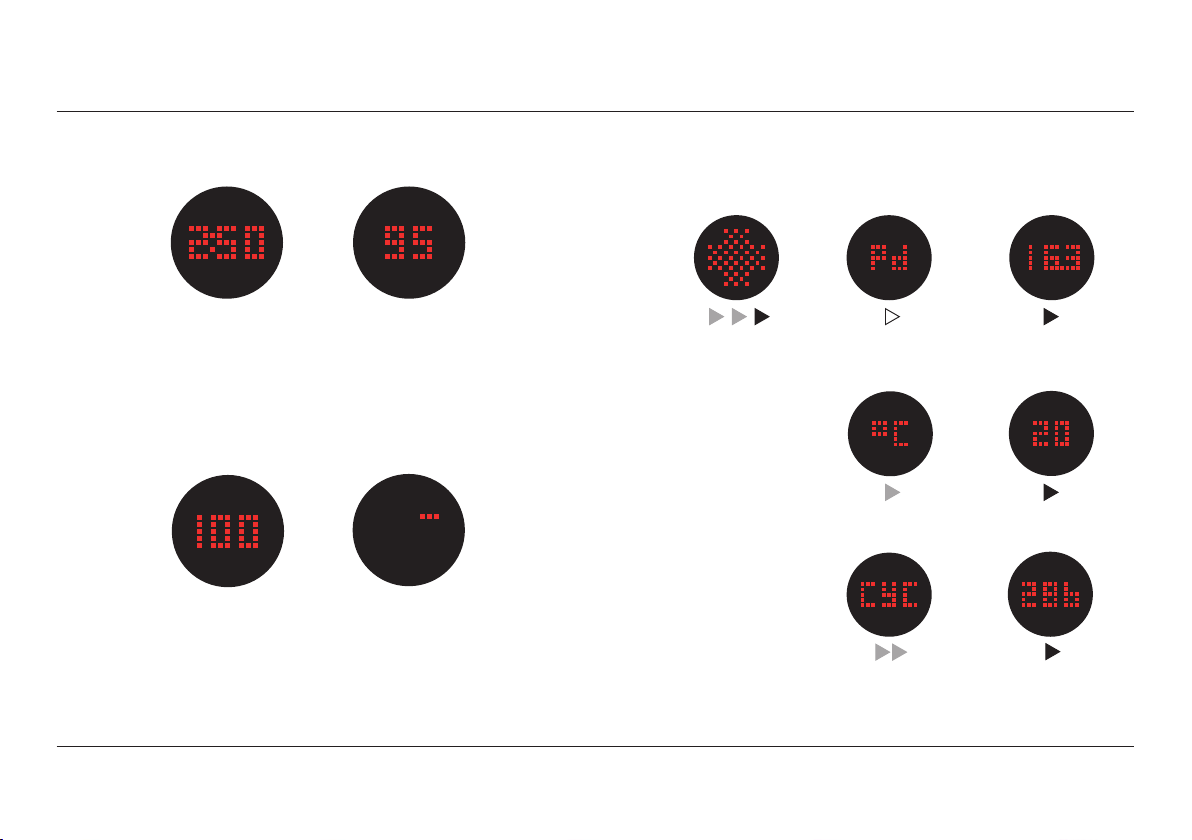

6.1 Run-Time & Capacity
1. When connected to equipment that is turned on, two presses of the
battery’s display button will show a predicted run-time against the
given load, expressed in hours and minutes.
2. A single button press of the display, whether the battery is off or
on-load, shows a percentage figure of available capacity, to a
resolution of 1%.
3. When the battery is fully charged the display will indicate 100%.
4. When battery is fully-discharged the display will indicate as above.
The accuracy of the display is maintained by tracking battery performance
and adjusting calibration values to compensate for the aging of the cells.
12
34
6.2 Data Display
The battery display can reveal data stored in the battery’s internal
microprocessor using a series of button presses:
Press x3 in 1 second
intervals & hold to
enter data mode
Release to see 1st menu
item: ‘Pd’ (voltage)
Press & hold for 3
seconds to see voltage
reading
Press without holding
for 2nd menu item
Press twice without
holding for 3rd menu
item
Press & hold for temper-
ature in degrees celsius
Press & hold for number
of charge/discharge
cycles
