1. Scope of Application

This is to describe VPC-HD10, analog color HD (720P) board camera assembly.

All specifications contained herein are subject to change without prior notice.

Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera assembly must not be used for any nuclear equipments or aerospace equipments with which

mechanical failure or malfunction could result in serious bodily injury or loss of human life. Our warranty

does not apply to damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

zDo not directly touch the board camera while camera is in operation. The board camera can be very hot

and you may burn yourself.

zDo not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

zDo not directly touch the optical surface. CMOS image sensor is fragile.

zDo not use or store the camera assembly in the dusty or humid places.

zDo not apply excessive force or static electricity that could damage the camera assembly.

zIn some cases, hunting may occur when using electric iris, depending on the object to shoot.

zIn some cases, color may change under fluorescent lamp when using electric iris.

zDo not shoot direct images that are extremely bright (e.g., light source, sun, etc). When the camera is

not in use, please put the protection cap on.

zFollow the instructions in Chapter 7, “External Connector Pin Assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

In case of abnormal operation, contact the distributor from whom you purchased the product.

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

3. Product Outline

VPC-HD10 is a HD (720P) output, color board camera assembly utilizing 1/3 type CMOS image sensor.

With our own image processing technologies, electrical zoom, long time exposure function, OSD functions,

and others are incorporated into the camera.

32x32mm ＋42x42mm (2 boards) in size should best match for embedded systems.

HD 720p/60, 720p/59.94、720p/50 analog component (Y/Pb/Pr) and RGB output available.

Key Features

□Long time exposure shutter function enables to capture clear images even under low illumination.

□On Screen (OSD) function enables to set camera settings by menu. (OSD operational switch needed).

□Camera settings can be set with RS 232C via PC. (Dedicated remote control unit needed).

4. Bundled Items

4.1. Standard Bundled Items

□Board Camera

□Cable Harness for power supply and video signal output. (10pins connector, 10 cores)

□Camera fixing screws (4pcs)

4.2. Optional Items

□Dedicated lens

□Cable Harness for OSD switch connection. (10pins connector)

□RE-300: Remote control cable (Between camera and PC)

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

5. Specifications

5.1. General Specifications

Device Type 1/3 type COMSSONY IMX035LQR-C

Effective Pixel Numbers 1329(H) × 1049(V)

Unit Cell Size 3.63µm(H) ×3.63µm(V)

(1) Pick up device

Chip Size 7.64mm(H) × 7.64mm(V)

(2) Resolutions 1280(H) × 720(V)

(3) Aspect Ratio 16 : 9

60fps Horizontal Frequency 45 kHz

Vertical Frequency 60 Hz

59.94fps Horizontal Frequency 44.95 kHz

Vertical Frequency 59.94 Hz

50fps Horizontal Frequency 37.50 kHz

(4) Video output frequency

Vertical Frequency 50 Hz

(5) Sync. system Internal sync

Analog Component Output : Y/Pb/Pr 1Vp-p (3 Values, Sync signals) 75Ωterminal

RGB Output : RGB1Vp-p(without SYNC ) 75Ωterminal

(6) Video output standard

HD, VDTTL level (over 2.1V1KΩterminal)

(7) Horizontal resolution 600TV lines (contour correction SHARP)

(8) Sensitivity F4.0 2000lx

60fps,59.94fps : F2.5 6.0lx (with dedicated board camera lens)

F1.4 3.0lx (with F1.4 lens)

50fps : F2.5 5.0lx (with dedicated board camera lens)

F1.4 2.5lx (with F1.4 lens)

(9) Minimum illumination

Conditions : VIDEO 50%, AGC 36dB, Electrical Shutter OFF

(10) Dust or stains

in optical systems

No dust or stain shall be detected on the testing screen with dedicated lens installed, or

with setting the camera aperture at F16 if there is no lens.

(11) Power requirements DC+9〜+15V

(12) Power consumption 2.0W (Max. 2.4 W) at DC+12V IN

(13) Dimension Refer to overall dimension drawing.

(14) Mass Approx. 45g (including optional dedicated lens).

(15) Lens Mount Dedicated board camera lens mount. ※Refer to overall dimension drawing.

AGC (Max gain : +18dB, +24dB, +30dB, +36dB), AGC OFF(0dB)(16) Gain Setting

MANUAL : 0dB〜36dB

OFF : 1/60(60fps, 59.94fps),1/50(50fps)

FL : 1/100(60fps, 59.94fps), 1/120(50fps)

MANUAL : 1/10k, 1/4k, 1/2k, 1/1k, 1/500, 1/250, 1/120, 1/100, 1/60, 1/50, 1/30, 1/25,

1/15, 1/8, 1/4, 1/2, 1s, 2s, 4s, 8s

(17) Shutter Speed Variable

Range

AUTO : 1/10ks〜8s (Upper or lower limit can be set.)

ATW1 : 2200〜9000K, ATW2 : 3200〜6500K

(18) White Balance

Adjustment Range Preset:3200K, 4800K, 6500K, Manual: 2200〜9000K

(19) Electrical Zoom ×1〜×4 PAN, TILT

(20) AUTO IRIS Signals Responses are adjustable.

Usable with electrical shutter (with priority to electrical shutter).

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

(21) Back Light Divided into 49 screens (7x7), and each screen can be individually masked. (Masked

part shall be ignored.) The same settings are applicable to ATW.

Character Display: alphanumeric characters and symbols (Max 24 letters)

Display Position: The upper left portion of the screen (fixed)

(22) Character Display

Characters can be edited by OSD.

(23) Contour Correction SHARP/STD./SOFT selectable.

(24) Chromaticness

Adjustment

Chromaticness is adjustable. 255(typ.)〜0(B/W)

(25) Gamma Compensation Gamma is adjustable. γ=0.45〜1.0 Data (127〜0)

OFF/ON (Initial Setting) / ON (User Setting)

Maximum correction value: 63 values (Depending on conditions.)

Maximum correction value and detection start level can be set.

(26) Pixel Defect

(White Spot) Correction

※When correction is started after blocking light, long time exposure and AGC is set

automatically to start.

Operable via RS232C.

9600bps(typ), with no parity, stop pit: 1bit

(27) Remote Control

Operation

Communication speed selection : 2400, 4800, 9600, 19200 bps

UL: Conform to UL Standard including materials and others.

CE: Emission: EN55022:2006(Class B)

Immunity: EN55024:1998/A1:2001/A2:2003

(28) Safety/Quality standards

RoHS: Conform to RoHS

Specifications guaranteed 0 〜+40℃Humidity: 20 〜80%RH

with no condensation

(29) Operational

environment

Operation guaranteed -5 〜+45℃Humidity: 20 〜80%RH

with no condensation

(30) Storage environment Temperature : -25 〜+60℃Humidity: 20 〜80%RH with no condensation.

5.2. Camera Input/Output Signals

White clip level: 760mV ±10%

Video Signals

SYNC level: 300mV ±10% (3values sync signals)

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

CN4

CN6

CN5

CN2

CN3

(NO MOUNT)

6. Part Names and Functions

①Power Input and Video Output

With the bundled harness, power input and video output signals are connected to a monitor.

Please refer to Chapter 7, “External connector pin assignment”.

②OSD Operational Switch Connector

With the optional harness, OSD operational switch is connected.

Please refer to Chapter 7, “External connector pin assignment”.

③Remote Control Connector

Optional remote control cable (RE-300) is connected.

With connecting the remote control cable (RE-300) to a PC, serial communication via RS-232C is valid.

Please refer to the other materials for the communication details. (To be prepared)

④Dedicated board camera lens

Lenses are optional.

⑤Camera Mounting Holes

With bundled attachment screws, mount the camera.

⑥Extended Connectors (Not implemented. Can be implemented on request.)

⑦DCIRIS Connectors (Not implemented. Can be implemented on request.)

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

7. External Connector Pin Assignment

7.1. Power Input and Signal Output Connectors

Connectors of camera side Connectors of bundled harness side

53398-1090 (molex) 51021-1000 (molex)

CN4 Signals Component Output RGB Output

1 Pb/B OUT Pb output (3values SYNC) BLUE output (without SYNC)

2 Pr /R OUT Pr output (3values SYNC) RED output (without SYNC)

3 IRIS OUT Video Iris signals ←

4 HD OUT HD output ←

5 GND GND (for video signals) ←

6 VD OUT VD output ←

7 GND GND (for video signals) ←

8 Y/G OUT Y output (3values SYNC) GREEN output (without SYNC)

9 GND GND (Power) ←

10 POWER Power Input (DC+12V) ←

Connection for Component Y/Pb/Pr output

Pb/B_OUT

Pr/R_OUT

HD OUT

GND

IRIS_SIG

DC+12VIN

VD OUT

Y/G_OUT

51021-1000

to MONITOR

DC+12V

GND

+12V

GND

IRIS OUT

to VIDEO IRIS LENS

POWER IN

N.C.

GND

(Component Terminal)

Connection for RGB output

Pb/B_OUT

Pr/R_OUT

HD OUT

GND

IRIS_SIG

DC+12VIN

VD OUT

Y/G_OUT

51021-1000

to MONITOR

DC+12V

GND

+12V

GND

IRIS OUT

to VIDEO IRIS LENS

POWER IN

GND

610

11 15

234

789

12 13 14

HD15PIN

RED

GREEN

BLUE

N.C.

GND

GND(RED)

GND(GREEN)

GND(BLUE)

N.C.

GND

N.C.

SDA

HSYNC

VSYNC

SCL

N.C.

(VGA Terminal)

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

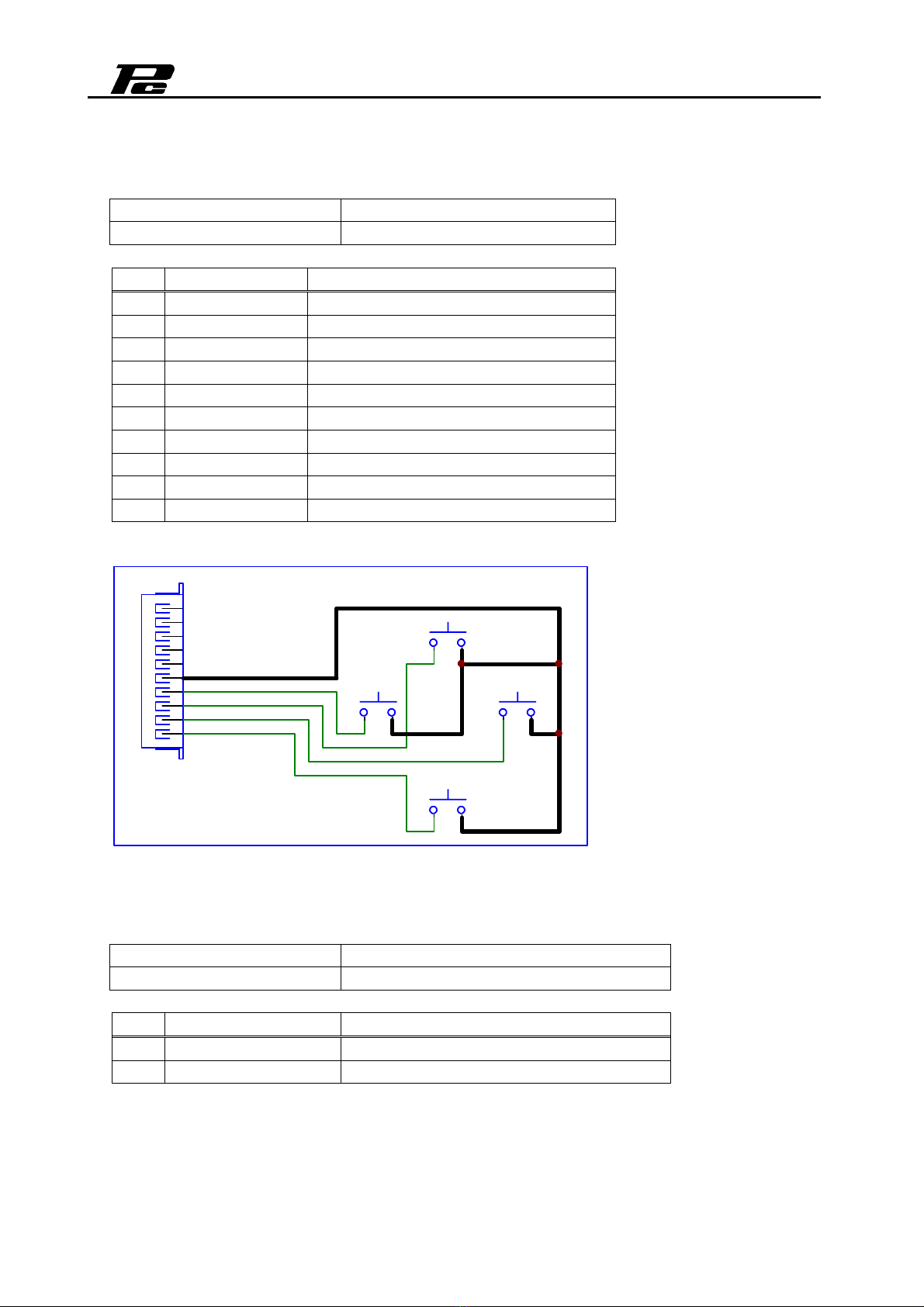

7.2. OSD Switch Connectors ※Optional Connectors

Connectors of camera side Connectors of optional harness side

BM10B-SRSS (NICHIATSU) SHR-10V-S-B (NICHIATSU)

CN6 Signals

1 N.A. (OPEN)

2 N.A. (OPEN)

3 N.A. (OPEN)

4 N.A. (OPEN)

5 N.A. (OPEN)

6 GND GND for switch connection

7 SW_BACK Switch connecting terminal (BACK)

8 SW_UP Switch connecting terminal (UP)

9 SW_ENTER Switch connecting terminal (ENTER)

10 SW_DOWN Switch connecting terminal (DOWN)

SHR-10V-S-R

BACK ENTER

DOWN

GND

SW_BACK

SW_UP

SW_ENTER

SW_DOWN

7.3. Remote Control Cable Connectors

Connectors of camera side Connectors of remote control cable side

53398-0271 (molex) 51021-0200 (molex)

CN6 Signals

1 GND Remote Control GND

2 REMOTE Remote Control Signals (Input/Output)

PACIFIC CORPORATION Tokyo H.Q.

 2-23-3 EBISU-MINAMI SHIBUYA-KU TOKYO 150-0022 JAPAN TEL: +81-3-3760-8881 FAX : +81-3-3760-8882

2010 Pacific Corporation.

8. Camera Operating Instructions

There are 3 different operating methods, operating with OSD menu, operating without OSD menu, and operating

via PC with dedicated remote control cable connected to the remote control terminals. Depending on its

operating methods, selectable camera settings are different. Please refer to the selectable settings by each

operational method as below.

8.1. Switch Operation without OSD Menu

Operational Functions

EZOOM, PAN, TILT, and Video Format Selection

EZOOM Operation

EZOOM can be operated with [UP] KEY and [DOWN] KEY.

With [DOWN] KEY, it goes to TELE side, and with [UP] KEY, it goes to WIDE side.

Except when EZOOM is x1.00, it goes to EZOOM→PAN→TILT→EZOOM every time when

[BACK] KEY is pushed. PAN and TILT values can be set as well.

* When EZOOM is x1.00, PAN and TILT will automatically go back to the center of the image.

Display Format Selection

Video format can be changed as follows, pushing [ENTER] KEY while pushing [BACK] KEY.

720p/60 Y/PbPr →720p/59.94 Y/PbPr →720p/50 Y/Pb/Pr →

720p/60 RGB →720p/59.94 RGB →720p/50 RGB →720p/60 Y/Pb/Pr

* The selected settings with operations explained the above can not be saved as they are.

To save those settings, EXIT→SAVE shall be done by OSD displayed operation.

* Initial setting is 720p/59.94 Y/Pb/Pr.

8.2. PC Operation via RS232C

Camera can be controlled via a PC using camera control software, with dedicated remote control cable (RE-300)

connected to the remote control terminal.

8.3. Switch Operation with OSD Menu

[ENTER] KEY: To enter into the menu with pushing this button for long.

In the menu, this button works to go to the next menu, and works as [→] KEY.

[BACK] KEY: In the menu, this button works to go back to the prior menu, and works as [←] KEY.

[UP] KEY: To select items in the menu.

When operating volume type menu, this button makes the value to ＋direction.

[DOWN] KEY: To select items in the menu.

When operating volume type menu, this button makes the value to −direction.

Table des matières

Autres manuels Pacific Appareil photo numérique

Pacific

Pacific PA-315 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
