PAB FIRE 05 Manuel utilisateur

The LED FIRE 05 torch serves as an integrated

head torch for the PAB Akrapović fire fighter’s

helmet PAB FIRE 05.

Never remove the housing cover of torch LED

FIRE 05 in areas subject to explosion hazards!

Before use, make sure the helmet torch is

working, properly and is undamaged as

described in this User’s Guide and as required

by all applicable regulations.



1SAFETY NOTICE: READ

THESE INSTRUCTIONS

CAREFULLY BEFORE

USING THE TORCH!

For adequate use, this torch must fit or be

adjusted on the helmet. Never open the torch

housing in areas subject to explosion hazards

Inappropriate use, maintenance or servicing can

affect the function of the torch and can seriously

endanger the user’s life. The torch’s operability

must be checked and verified before

each use.

The torch shall not to be used, if the operability

test is unsuccessful, if the torch is damaged, if

proper servicing or maintenance has not been

made, or if PAB Akrapović original spare parts

have not been used.

The length of the useable life of this torch will

be affected by the types of materials used

in its construction and the environments in

which the torch is used and stored.

Replace any damaged parts only with original

PAB Akrapović spare parts, as only these are

authorised for use and ensure the performance

of the torch.

The user’s attention is also drawn to the danger

of modifying or removing any of the original

component parts of the torch, other than as

recommended by PAB Akrapović. The torch

should not be adapted for fitting attachments in

a way not recommended by PAB Akrapović.

Explosion protection class: Ex

II 2G Ex ib IIC T4 Gb Ex II 2D

Ex ib IIIC T135°C Db

7OPERATING THE HELMET

TORCH

8SERVICING AND

MAINTENANCE

Manufactured by:

PAB Akrapović d.o.o.

Most 26, HR-52420,

Buzet, Croatia Fone +385

52 662 662 [email protected]

www.pab.hr

USER MANUAL

LED FIRE 05

OPTIONAL INTEGRATED HEAD

TORCH FOR PAB FIRE 05

HELMET

•Explosion protection class: Ex II 2G Ex ib

IIC T4 Gb, Ex II 2D Ex ib IIIC T135°C Db

•Light source: 3W LED

•Angle of reflected beam: 13°

•Rated voltage: 4.5 V

•Period of operation: 4 hours at the

strongest intensity, 12 hours at medium

intensity

•Max. permissible ambient temperature:

from -20°C to +54°C

•Protection degree according to EN 60529:

IP67

•Weight with batteries: approx. 120 g

•Battery: 3 x LR 03 AAA, according to IEC

60086

•Batteries tested for permissible ambient

temperature: DURACELL AAA (LR03)

MN2400 / VARTA LONGLIFE AAA (LR03)



3INSTRUCTION FOR USE AND

CARE

By pressing the red button on the top of the

torch, the torch lights up, illuminating with the

strongest intensity. When the button is pressed

for the 2nd time, the torch illuminates with

medium intensity (so that the batteries last

longer). When the button is pressed for the 3rd

time, the torch illuminates with dimmed intensity

(for the longest battery life). With a longer press

on the red button the torch shuts off. The torch

has a function to blink three times when it turns

on if the batteries power fall under 70%. In that

case the torch can be operated for eight more

hours at medium intensity. During operation, a

red LED light constantly flashes on the tail of the

torch for a better visibility of the user from the

back.

After using the torch, you should perform a

detailed inspection of the torch and check that all

its components are in place and properly fixed.

Replace any damaged parts only with original PAB

spare parts. Only original PAB spare parts are

permitted for replacement, and only these ensure

the expected performance of the torch. If

significant damage (broken parts, missing

components, cracks on the housing etc.) is

identified during a regular check, the torch should

be replaced. The torch should not be used if it is

evidently damaged, if proper servicing or

maintenance has not been performed, or if PAB

original spare parts have not been used.

Inappropriate use, maintenance, or servicing can

affect the function of the torch and can seriously

endanger the user’s life. The torch operability

must be checked and verified before each use.

9STORAGE AND TRANSPORT

Store the torch in a closed cabinet to prevent

extended exposure to cold, heat, humidity,

light, fumes…To extend the lifetime of the

torch to the maximum clean it after each use

and before storing.

The LED FIRE 05 is very resistant to ageing, with

a long service life, but only if provided that it is

used, stored, maintained and serviced properly.

Exposure to extreme temperatures, strong

impacts, corrosive chemicals, flames or

aggressive environments have a significant

impact on the life of the product. Inspect and

clean carefully the torch after each use and

replace any damaged parts. To ensure a lifetime

as long as possible please follow the

instructions, information and recommendations

stated in this user manual. When the torch or its

parts become obsolete or irreparably damaged,

the torch and its parts shall be treated as

ordinary non-hazardous industrial waste

according to local regulations.

The product warranty period for the LED FIRE 05

produced by PAB Akrapović is two (2) years. PAB

Akrapović guarantees that the PAB products

delivered will conform to their technical

specifications and will be free from defects in

materials and workmanship. This warranty does not

apply to products that are misused, abused or

damaged from installation of accessories not

produced by PAB Akrapović, or not used in

accordance with the user manual. This warranty does

not apply to batteries.

The PAB Akrapović product warranty does not cover

and does not make any warranty for any defect,

failure, deficiency, or error that is:

• Not reported to the producer in a timely manner

• Due to misapplication or modification

• Due to dirt or exposure to extreme conditions

• Due to use, either intentional or otherwise, in an

improper manner.

For more information, please contact PAB Akrapović

at [email protected]

10SERVICE LIFE AND

DISCARD

11WARRANTY

2TECHNICAL

DATA



4INSERTING / CHANGING

THE BATTERIES 

5INSTALLING THE

MOUNTING BRACKET ON

THE PAB FIRE 05 HELMET

SAFETY WARNING: Do not open the

torch housing in a hazardous area! Use

only 1,5 V AAA Alkaline batteries (*).

Improper battery installation can cause

the batteries to explode or leak and

cause severe injuries. Do not mix battery

types or batteries from different

manufacturers.

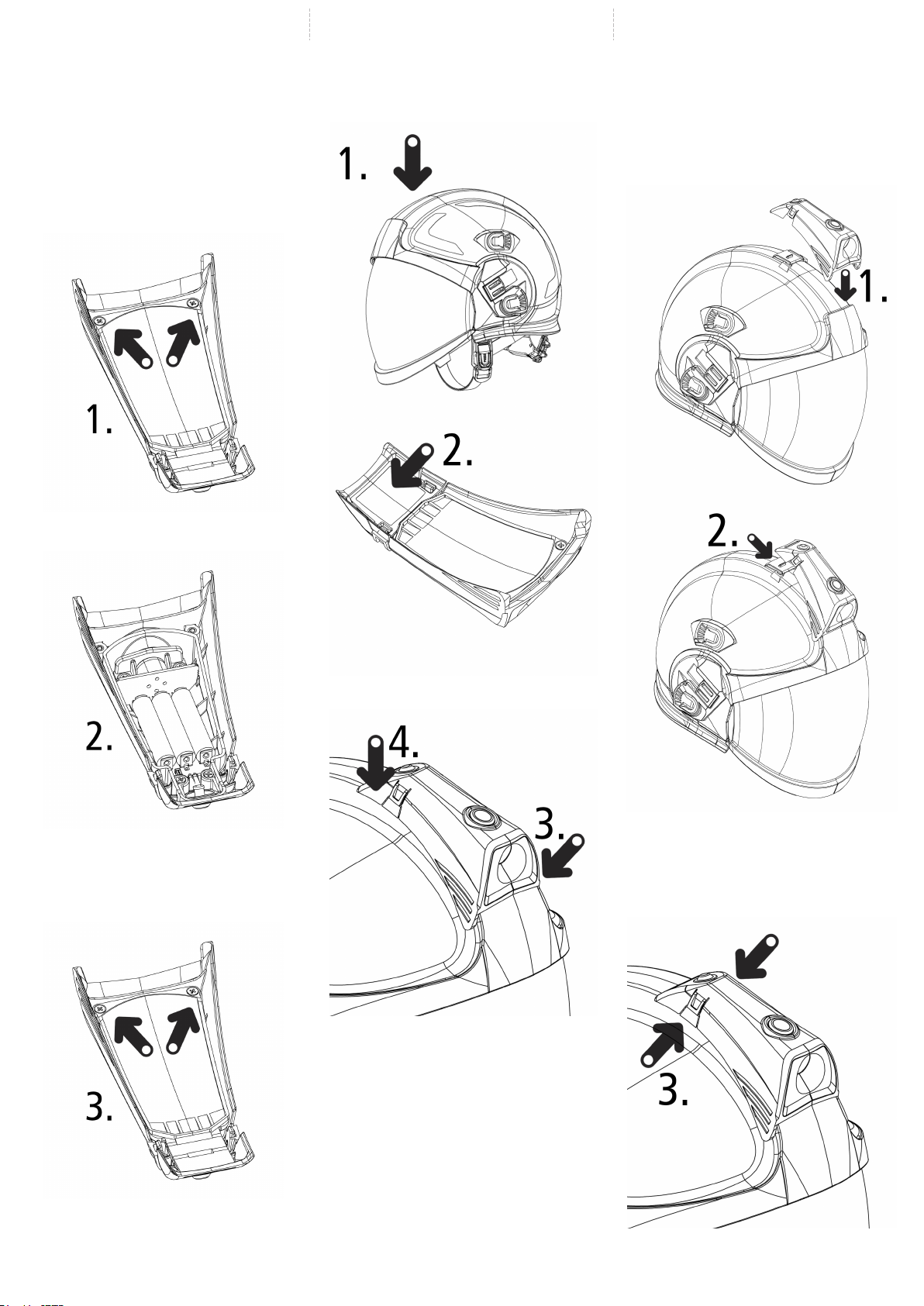

1.Unscrew the screws that hold in place

the housing cover.

2. Remove the old batteries and/or insert

a new set of alkaline batteries. Pay

attention to the orientation of the

batteries and follow the drawing in the

torch.

3. Reassemble the torch and tighten the

screws on the housing. Check that the

housing cover is properly positioned and

that the screws are tightened.

Clean well the helmet surface (1) with 90%

ethanol alcohol and then remove the

adhesive protective tape from the mounting

bracket of the torch (2).

Place first the head of the torch on the

frontal part of the helmet ridge so it fits the

shape of the frontal plate (3). Then bring

down the tail of the torch to the helmet ridge

so the adhesive adheres to the surface (4).

Make sure that you put enough pressure

with your hands on the tail of the torch so

the mounting bracket sticks well on the

helmet surface. Make sure the helmet torch

is fixed in place.

IMPORTANT: The gluing process takes 24

hours to complete. For the best adhesion of

the torch please do not remove the torch or

pull the mounting bracket during these 24

hours. If possible, do not use the helmet

during this time.



6ATTACHING THE TORCH

LED FIRE 05 WITH THE

MOUNTING BRACKET

ALREADY INSTALLED

ON THE PAB FIRE 05

HELMET

Attaching the torch: Allow the helmet torch to

slot into place at the front first (1) and then at

the back to match the mounting bracket on the

helmet (2). Press firmly on the mounting

bracket and make sure that the torch is fixed in

place.

Detaching the torch: Press firmly and

simultaneously on the buttons on the tail of

the torch (3) and remove the torch.
