Oxgard Cube C-01 Guide de démarrage rapide

Operational

manual

www.oxgard.com

[email protected]

Тel. +7(812) 366-15-94

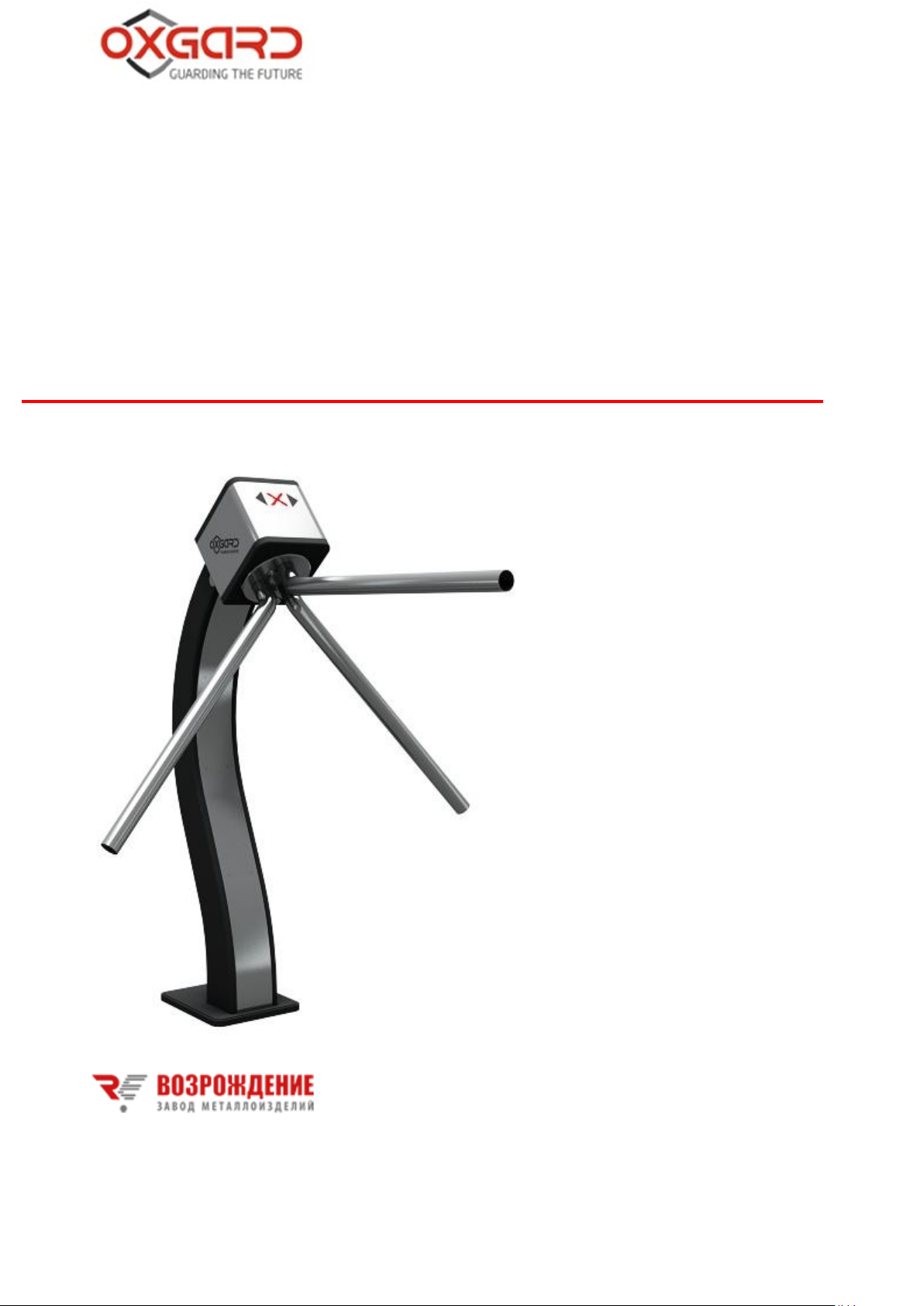

Cube С-01 turnstile

Operating Instructions 3

CONTENTS

List of Abbreviations used ........................................................................... 4

1. Product Designation................................................................................. 5

2. Standard Equipment (Supplied Package of a Product)............................ 5

3. Main Technical Specifications................................................................. 6

4. Product Design......................................................................................... 7

5. Transportation and Storage .................................................................... 11

6. Safety Requirements .............................................................................. 12

7. Turnstile Operation ................................................................................ 13

7.1. Turnstile Switch On.......................................................................... 13

7.2. Turnstile Operating Modes............................................................... 14

7.3. Adjustment of remote control panel................................................. 20

8. Troubleshooting ..................................................................................... 22

Cube С-01 turnstile 4

List of Abbreviations used

PS –Power Supply

SFAS –Security and Fire Alarm System

ACS –Access Control System

Operational manual 5

1. Product purpose

Cube С-01 turnstile is designed for access control and crowd

management. The turnstile can be used at the guard desks of enterprises

and organizations, in the institutions, banks, educational institutions, sport

and recreational facilities, shops, stations etc.

To ensure a convenient and quick passage of persons it is

recommended to install one turnstile for each 500 persons operating at one

shift.

2. Delivery set

Тable 1. Scope of supply

Denomination

Quantity

Cube С-01 turnstile

1 pc

Remote control panel with a cable

1 pc

Base Cover

1 pc

Product Passport

1 pc

Installation Instructions

1 pc

Technical Maintenance

1 pc

Operating Instructions

1 pc

Anchor with a screw of FH 12/10 SK * type

3 pcs

Connecting cable PVA 2x1.5

1 pc

*- optional

Cube С-01 turnstile 6

3. Basic specifications

Тable 2. Basic Specifications

Specification

Turnstile

Panel

Overall dimensions (H хW хD), mm:

-in operating condition

-with fold down arms

1024х800х900

1024х200х361

107х107х25

Weight, kg

0.5

Temperature range, °С:

- in operation

- transportation and storage

+1...+40

Relative humidity, %, no more

Width of the passage formed, mm

500

Capacity, person/min

Lifetime, years

Table 3. Electrical characteristics

Specification

Turnstile

Panel

Power supply voltage, V:

-rated

-working

10.8...13.2

7.5...15.0

Standby average current *, А

0.4

Average current in a pass mode **, А

0.4

Maximum absorbed current

1.5

*- values indicated at rated voltage

**The manufacturer reserves the right for changing configuration, technical specifications and

appearance of the product

Operational manual 7

4. Product design

Turnstile housing

Turnstile housing and arms are made of brushed stainless steel. In the

middle part of the body frame there is a dismountable bent plate made of

stainless steel for quick access to the cross-board for connection of cables

PS, remote control panel and ACS. At the lower part of the turnstile rack

there is a hole for entry of these cables

Basement cover shall be fixed with double-sided adhesive tape or

sealing compound. The cover hides turnstile fixation to the floor (Fig.1).

Fig. 1. General view and overall dimensions of turnstile

Cube С-01 turnstile 8

ATTENTION! To log passages during turnstile operation under ACS

control and to avoid unauthorized passages, it is required to arrange

passage zones as per Fig.2

Ограждение

200 мм min

Не более

50 мм

П л а н к а

ограждения

Recommended installation diagram Not recommended installation

diagram

Fig.2. Arrangement of turnstile passage zone

When installing the turnstile it is necessary to take into account possible

free movement of the arm, in the STOP mode it constitutes 6 grades in

each side, Fig 3

Fence

no more than

50 mm

200 mm

Blocking

arm

Operational manual 9

Ограждение

Турникет

9,5

град.

6 град

Fig. 3. Possible free movement of the arm, in “STOP” mode

Indication panel

Indication panel of the turnstile is located at the upper part of the

turnstile behind the insert made of acryl glass. Operation modes of the

turnstile are displayed on the panel in form of pneumonic signs allowing

and prohibiting a passage (Fig. 4).

6 degrees

Cube С-01 turnstile 10

Fig. 4. Appearance of indication panel

Remote Control Panel

Housing of turnstile and arms are made of brushed stainless steel. In

the front there are located control buttons 1 - 4 and LEDs indicating

operation modes on the panel (Fig.5). Standard cable length, included in

the delivery set, is 5 meters.

Sign permitting

pathway

Sign prohibiting

pathway
