Quick Start Guide

NEOxl 80 6U Expansion Module

This document describes how to add an optional Expansion

Module to a NEOxl 80 6U tape library system.

Step 1

It is essential that you activate your warranty. Technical

and warranty support are not available until the warranty

is active.

The serial number is located at the rear of the module on the

bottom left cover.

Module Registration

For an existing customer:

1. Go to http://support.overlandstorage.com/ support page.

2. Enter your e-mail

address and password

in the appropriate fields,

and then press Enter or

click the right arrow (>).

3. At the Support Home page, click Register New.

4. Enter the requested information and click Submit.

Your warranty certificate will be emailed to you. Follow

the instructions in the email to complete the process.

For a new customer:

1. Go to the New User Registration page and follow the

instructions.

2. You’ll receive a confirmation e-mail from Overland with

instructions on how to complete the process.

*10400898*

10400898

Step 2

WARNING: Due to the weight of the module, it is

recommended that at least two people be used to lift the

module out of the box to prevent injury.

WARNUNG: Um Verletzungen zu vermeiden, empfehlen

wir aufgrund des Gewichts des Moduls, dass mindestens

zwei Personen das Modul aus der Verpackung heben.

AVERTISSEMENT: En raison du poids du module, il est

recommande d'utiliser deux personnes au moins pour

soulever l'module hors de la boîte pour éviter les

blessures.

NOTE: If the temperature in the room where the module will be

installed varies by 15º C (30º F) from the room where the boxed

module was stored, allow it to acclimate to the surrounding

environment for at least 12 hours before unpacking it.

Unpack the Module

1. Using two people, remove the module from its box and

set it on a secure surface.

2. Remove and save the packaging materials and tape

from the Expansion Module.

Tools Needed

You will need a small flat head or Torx screwdriver and a #2

Phillips screwdriver.

Step 3

Power Off Library

If still running, power off the tape library from the Base

Module front panel by pressing and holding down the power

button for three (3) seconds.

NOTE: If the library does not perform a soft shutdown, press

and hold the power button for 10 seconds.

Verify that the Robotic Assembly is in its parked position

and that all host processes are idle.

NEOxl 80 6U Expansion Module Quick Start Guide

Prepare the Modules

Depending on the new Expansion Module’s location, transfer

either the top or bottom module cover from the last module

in that location to the new Expansion Module.

•If you are installing the Expansion Module below the

module stack, move the bottom module’s cover to the

Expansion Module.

•If you are installing the Expansion Module above the

module stack, move the top module’s cover to the

Expansion Module.

IMPORTANT: A NEOxl tape library modular system can

support up to six Expansion Modules, three above and

three below. If you have not yet determined the architecture of

your configuration, refer to Chapter 1, “Supported

Configurations,” in the NEOxl 80 Tape Library Administrator’s

Guide for details.

1. Using the mechanical lifter, remove the existing

module from which you are moving the cover plate.

2. Place the module you removed on a secure work table.

If you are removing the bottom cover, gently turn the

module over so you can access the bottom.

3. Place the new Expansion Module on the work table

next to the module you removed.

If you are adding the bottom cover, gently turn the

module over so you can access the bottom.

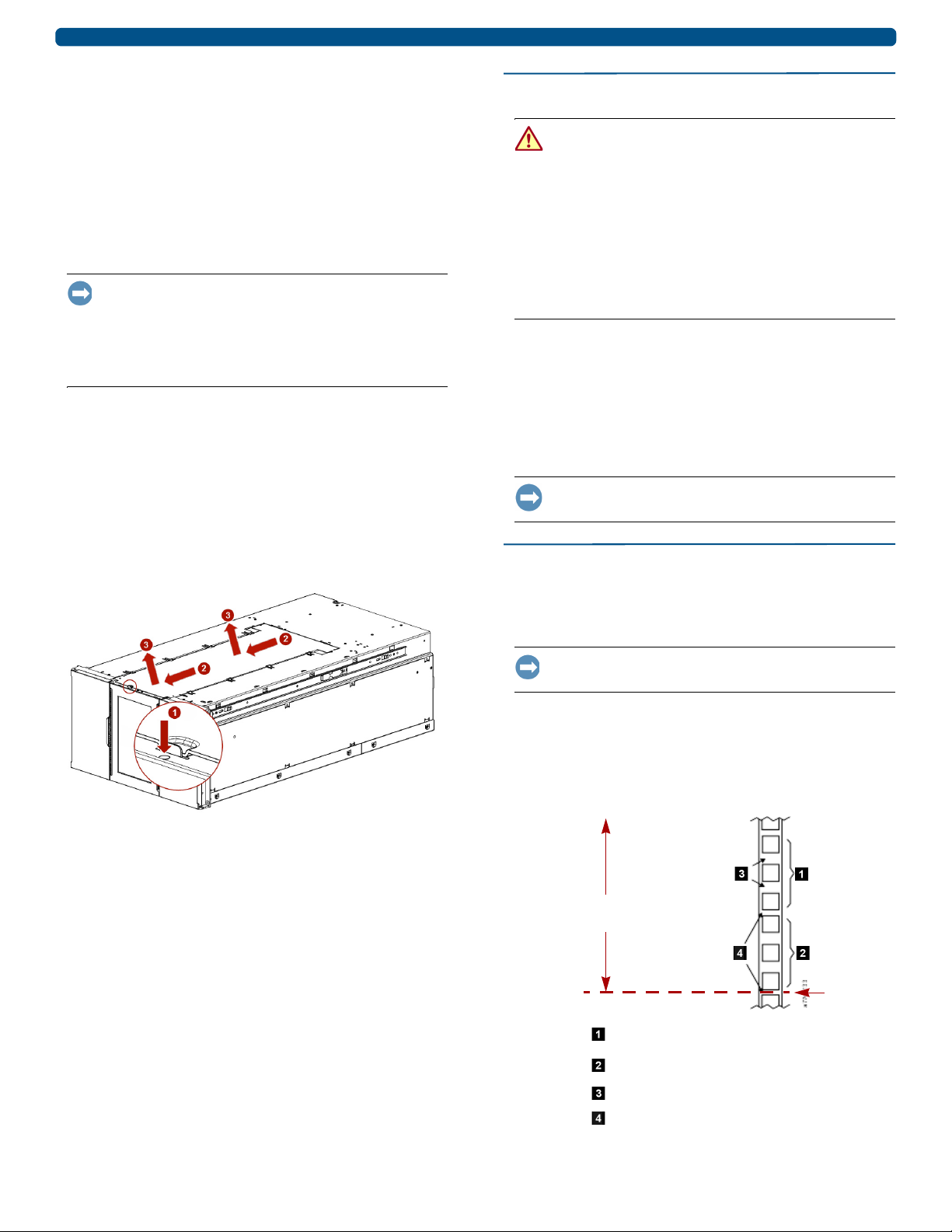

4. Insert a small flathead screwdriver or Torx screwdriver

into the front hole (1) to retract the spring lock, slide

the cover (2) forward until it reaches the tool, remove

the tool, and then continue sliding the cover to the front

of the module until all the tabs are released.

5. Remove the cover (3) from the existing module.

6. At the Expansion Module, install the cover.

Align all cover tabs with the slots, gently push it down,

and then slide the cover towards the rear until the

spring lock engages.

7. If the modules are upside down, gently turn them both

back over.

8. Using the mechanical lifter, reinstall the existing

module back into the rack in its same location.

Step 4

WARNING: To reduce the risk of electric shock or

damage to equipment, always remove any power cords

while working with the unit.

WARNUNG: Um das Risiko eines elektrischen Schlags

oder Schäden am Gerät zu vermeiden, ziehen Sie stets

den Netzstecker, bevor Sie an der Einheit arbeiten.

AVERTISSEMENT: Pour réduire le risque de choc

électrique ou endommagement de l'équipement, retirez

toujours les cordons électriques en travaillant avec

l'appareil.

The NEOxl 80 6U tape libraries are expandable and accept

add-on components to enhance performance:

•The Expansion Module comes without tape drives. Tape

drives are always installed in the module from the

bottom bay up.

•A second Power Supply Unit can be added to Expansion

Module for redundancy.

IMPORTANT: Follow the component instructions included

with each item to be sure they are installed correctly.

Step 5

A NEOxl 80 6U Expansion Module comes with a rack kit for

easy installation and securing of the module into a 19-inch

(EIA-310) rack.

IMPORTANT: Two-post telco-style or other racks less than

29 inches in depth will NOT support these modules.

Install the Rack Rails

1. Determine the location in your rack for your Expansion

Module to be installed and, using a pencil, mark the

location on each vertical rail in your rack.

Reserve 6U (10.5 in.)

Each EIA unit (1U) starts at a

narrow gap and has three holes

and two wide gaps above it

Wide Gaps within the EIA unit

Narrow Gaps between EIA units

Mark

Here

NEOxl 80 6U Expansion Module Quick Start Guide

It is recommended to start at the lowest position of the

rack for stability. The bottom mark should be at the

lowest narrow gap in that position.

NOTE: The library requires 6U (10.5 in.) of rack space.

2. From the front of the rack, insert the rack rails into

the back and then front vertical supports.

a. Position a rail according to the orientation

information stamped on the rail.

b. Rotate the front of the rail up while inserting the

rear rail hanger into the rear vertical support, and

then lower the front of the rail until it is nearly level.

c. Extend the front of the rail until the hangers come

through the holes in the vertical support and the

retention spring snaps into place.

d. Repeat Steps a–c the other rail.

NOTE: The rails must be fastened with the bottom of the

each rail parallel to floor and at the same level.

3. On the front of both rails in a square-hole lock, install a

clip nut above the mounting bracket as shown (1).

4. For increased stability, install the supplied retention

inserts (3).

Insert the Module in the Rack

WARNING: To avoid injury, it is recommended that a

mechanical lifter (or at least two people) be used for rack

installation or removal. Use care during rack installation

or removal to avoid accidentally tilting or tipping the rack,

causing damage or personal injury.

WARNUNG: Um Verletzungen zu vermeiden, empfehlen

wir zur Rack-Installation oder -Deinstallation die Nutzung

einer mechanischen Hebehilfe (oder mindestens zwei

Personen). Seien Sie vorsichtig bei der Rack-Installation

oder -Entnahme, um ein versehentliches Kippen des

Racks zu vermeiden und das Rack nicht zu beschädigen

bzw. sich selbst zu verletzen.

AVERTISSEMENT: Afin d’éviter des blessures pendant

l’installation, il est recommande d’utiliser un monte-

charge (ou au moins deux personnes) pour élever ou

aligner l’module. Faites attention lorsque vous insérez ou

retirez l’module d’un support, pour empêcher le

déversement accidentel de la crémaillère causant des

dommages et des blessures.

1. Extend the middle rails until they lock into place.

2. Move the sliding assembly to the front of the middle

rails.

3. Using the mechanical lifter, position the Expansion

Module in front of the rack, aligned with the extended

rails.

4. Slide the module onto the middle rails (1) and into the

rack until it stops (2).

5. Secure it to the rack with the captive screws on the

front of the module.

Aligning and Connecting Modules

Aligning the modules ensures that the robotics can move

freely between the modules. The library will not operate

unless the alignment mechanisms are in the locked position.

1. From the front of the library, loosen the thumbscrews

on each of the modules two full turns.

2. From the back of the library, starting with the bottom

pair of modules, align each module with the module

below. Repeat for each pair of modules.

NEOxl 80 6U Expansion Module Quick Start Guide

a. Loosen the thumbscrew (1) on the module

alignment mechanism.

b. Lower the alignment mechanism (2).

If you encounter resistance, adjust the position of the

upper module so the pin in the alignment mechanism

moves into the hole in the lower module.

c. With the alignment mechanism in the locked

position, tighten the thumbscrew (3).

3. Verify that the lowest module in the library has its

alignment mechanism secured in the unlocked

position with the thumbscrew.

4. From the front of the library, use your fingers to tighten

the thumbscrews on each of the modules to secure the

modules to the rack.

Step 6

WARNING: To reduce the risk of electric shock or

damage to equipment, always remove any power cords

while working with the unit.

WARNUNG: Um das Risiko eines elektrischen Schlags

oder Schäden am Gerät zu vermeiden, ziehen Sie stets

den Netzstecker, bevor Sie an der Einheit arbeiten.

AVERTISSEMENT: Pour réduire le risque de choc

électrique ou endommagement de l'équipement, retirez

toujours les cordons électriques en travaillant avec

l'appareil.

The Expansion Module comes without tape drives. Tape

drives are always installed in the module from the bottom

bay up.

IMPORTANT: Follow the component instructions included

with the drives to be sure they are installed correctly.

Step 7

All cabling, power connections, and cooling are located on the

rear panel.

Drive Cable Attachment

If tape drives are installed in the Expansion Module:

1. Attach one end of the host interface cable to the

expansion:

•For a Serial Attached SCSI (SAS) connected

expansion, attach one end of the SAS cable to

Port A (left) SAS HBA on the SAS drive.

•For a Fibre Channel (FC) expansion, attach one end

of the fibre cable to Port A (top) connector on the

FC drive, removing the cap if necessary.

SAS Tape Drive

2. Attach the other end of the host interface cable as

follows:

•For a SAS expansion, connect the host interface

cable to the host HBA.

•For a Fibre Channel expansion, connect the fibre

cable to the host or switch.

Expansion Cable Attachment

From the back of the library connect the new Expansion

Module to the existing adjacent module using the expansion

interconnect cable.

•For a new module at the top of the library stack, use

the lower port of the new Expansion Module and

connect to the upper port of the adjacent module.

•For a new module at the bottom of the library stack,

use the upper port of the new Expansion Module and

connect to the lower port of the adjacent module.

Power Cord Attachment

Plug the power cords into the power connectors on the new

Expansion Module and into power outlets.

NOTE: The expansion has dual redundant power supplies. To

increase redundancy, plug each power cord into a different AC

power circuit.

FC Tape Drive

Expansion

Module

Base

Library

Expansion

Module

Expansion

Cables

NEOxl 80 6U Expansion Module Quick Start Guide

http://support.overlandstorage.com

Overland Storage and Tandberg Data are wholly-owned subsidiaries of Sphere 3D Corp. You can get additional technical

support at the Overland Storage Support web page, or by using the information found on the Contact Us page on our web site.

Step 8

Power on the library from the Base Module front panel by

pressing and holding down the power button for three (3)

seconds until the green light on the front panel illuminates

indicating the status is

Ready

Verifying the Installation and Configuration

Check the following:

•From the OCP or RMI, verify that the new Expansion

Module is visible.

•Check the library configuration settings related to the

additional storage slots, mailslots, and tape drives.

Update if necessary.

Step 9

Confirm Your Library Firmware Version

The Expansion Module operates using the existing library

firmware. It is recommended that you always update the

library to the latest firmware version:

1. At the Startup Screen, make a note of the firmware

version.

2. Go to the Overland-Tandberg

Downloads and Resources

site:

http://docs.overlandstorage.com/neo

3. Under Downloads/NEO Series Firmware, click the link

for the library.

4. At the FTP site, if newer firmware is shown, download

the firmware and Release Notes.

5. Update the firmware using the NEOxl 80 Tape Library

Administrator’s Guide.

Confirm Your Tape Drive Firmware

Refer to the installation instructions and warnings that are

packaged with your tape drive to determine if the firmware

is current or needs to be updated.

If you determine that the firmware should be updated, follow

the steps detailed in the included tape drive instructions.

Step 10

For further information regarding your product, check out

the following links.

User Guide

For detailed information on configuring your

NEOxl 80 6U, refer to the NEOxl 80 Tape

Library Administrator’s Guide available

online under Resources at:

http://docs.overlandstorage.com/neo

More information can be accessed from the Overland-

Tandberg Knowledge Base:

https://www.overlandtandberg.com/knowledgebase/

Warranty/Technical Support

For warranty and general technical support

information, see our Contact Us page:

http://www.overlandstorage.com/company/

contact-us/index.aspx

For information on contacting Overland-Tandberg technical

support, go to:

http://docs.overlandstorage.com/support

Table des matières

Autres manuels Overland Tandberg Stockage

Overland Tandberg

Overland Tandberg NEO Series Manuel d'installation et d'exploitation

Overland Tandberg

Overland Tandberg NEOs T24 Manuel utilisateur

Overland Tandberg

Overland Tandberg LTO-9 Manuel utilisateur

Overland Tandberg

Overland Tandberg LTO Manuel utilisateur

Overland Tandberg

Overland Tandberg NEOxl 40 Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 8 Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 4 Manuel utilisateur

Overland Tandberg

Overland Tandberg Important LTO-9 Manuel utilisateur

Overland Tandberg

Overland Tandberg NEOxl 40 Manuel utilisateur

Overland Tandberg

Overland Tandberg NEOxl 40 Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 4 Manuel utilisateur

Overland Tandberg

Overland Tandberg LTO Series Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 8 Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStor Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 4 Manuel utilisateur

Overland Tandberg

Overland Tandberg NEOxl 40 Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStation 4 Manuel utilisateur

Overland Tandberg

Overland Tandberg LTO Manuel utilisateur

Overland Tandberg

Overland Tandberg NEOxl 80 Mode d’emploi

Overland Tandberg

Overland Tandberg NEOs StorageLoader Manuel utilisateur

Overland Tandberg

Overland Tandberg RDX QuikStor Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
