Overland Storage Snap Server 410 Manuel utilisateur

Field Service Documentation 1

Snap Server 410

not represent a commitment on the part of Overland Storage or any of its subsidiaries.

Adding or Replacing a SCSI Card

Caution There are static-sensitive electronics inside the unit. Before you handle any

parts, make sure you are working at a static-controlled workstation and that you are

properly grounded.

Shutting Down the Server

Caution Shut down the server before you make any repairs. Improper shutdown may

lead to physical harm or loss of data.

1To start the shutdown process, push the power

button on the front of the server.

The system LED blinks 3 times per second and

the green power LED remains lit until the

shutdown process is complete. Do not

disconnect the AC power cord while the power

LED remains lit.

2After the power LED is off, disconnect the AC

power cord and all other cables from the back

of the server.

3If the server is rack-mounted, remove it from the rack to a clean surface with

ample room to the front and rear.

Power

Adding or Replacing a SCSI Card Snap Server 410

2Field Service Documentation

not represent a commitment on the part of Overland Storage or any of its subsidiaries.

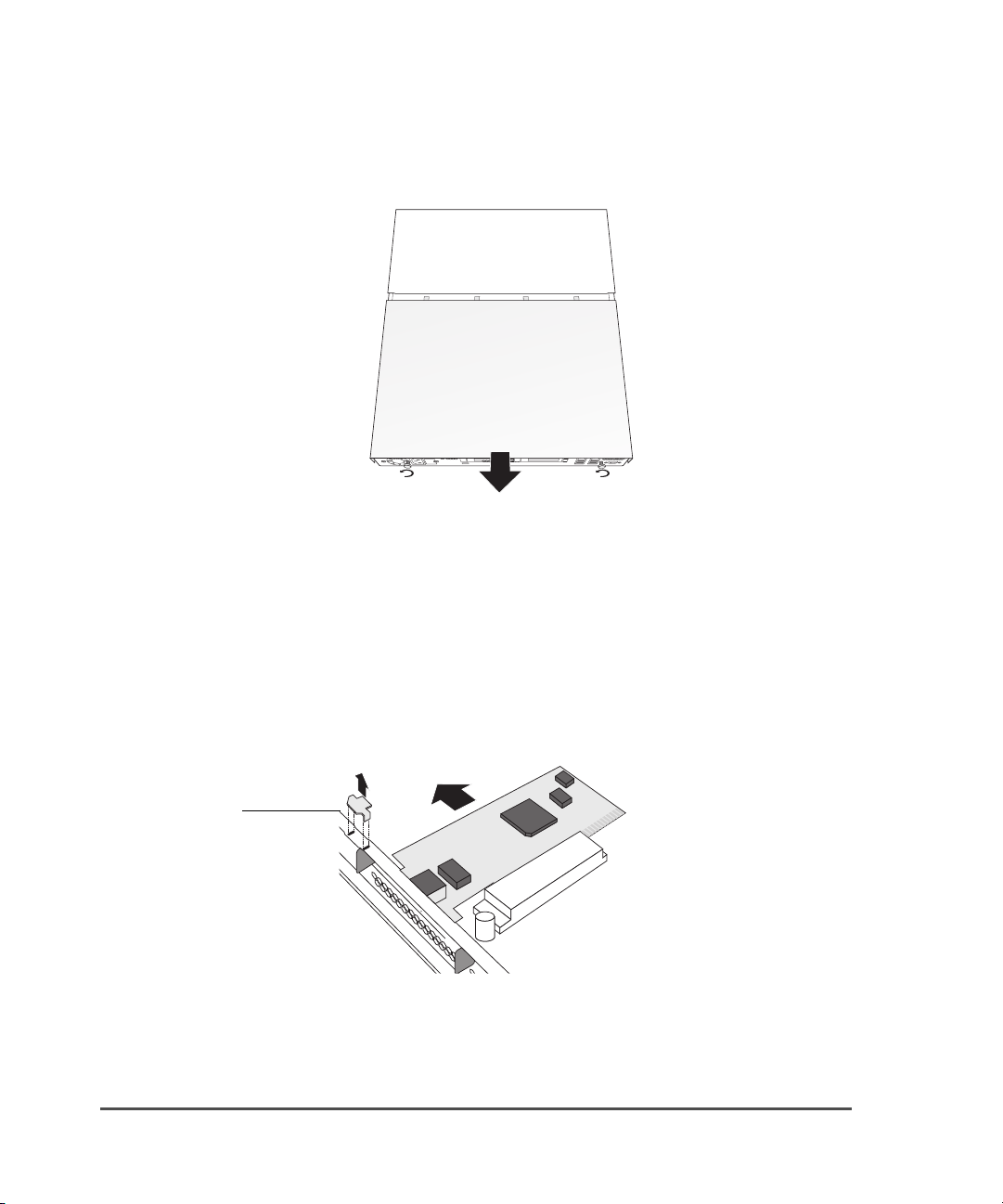

Removing the Top Cover

1To release the cover, loosen the two thumbscrews on the rear of the server.

2Slide the cover back from the rear of the server, lift it off, then set it aside.

Adding or Replacing a SCSI Card

1Remove the PCI retention clip on the rear of the chassis.

2Depending on whether you’re adding or replacing a SCSI card:

aIf you are adding a SCSI card, remove the slot cover on the chassis where the

SCSI card will be located.

bIf you are replacing a SCSI card, remove the old card from the slot.

3Fit the new card into the PCI slot, snapping it securely in place.

4Replace the PCI retention clip.

PCI retention

clip

Field Service Documentation 3

not represent a commitment on the part of Overland Storage or any of its subsidiaries.

Snap Server 410 Adding or Replacing a SCSI Card

Replacing the Top Cover

Be sure to replace the top cover. Do not operate the server if the top cover is not in

place.

1Lower the top cover onto the server.

2From the rear of the server, push the cover forward until it is firmly seated.

3Tighten the thumbscrews.

Restoring Power to the Server

1If you removed the server from the rack, replace it now.

2Reattach all cables to the rear of the server.

3Press the power button on the front of the server.
