Osram LMS134R2 Manuel utilisateur

Wireless Wallstations

Wiring and installation manual

www.osram.us

Light is OSRAM

Overview

Wireless Wallstations with integrated LED indicators are available in a range

of conﬁgurations for customized light level control. The wireless wallstations

obtain their operating power from two AA alkaline batteries and feature several

options for functionality depending on the model installed.

The wireless wallstations obtain their address during the commissioning

process and no actions are required during installation.

Important Safeguards

Note

Tip

STOP

When using electrical equipment, basic safety precautions should always

be followed including the following:

—READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

—Do not mount near gas or electric heaters.

—Equipment should be mounted in locations and at heights where it will not

readily be subjected to tampering by unauthorized personnel.

—The use of accessory equipment is not recommended by OSRAM as it may

cause an unsafe condition.

—Do not use this equipment for other than the intended use.

Note

Tip

STOP

SAVE THESE INSTRUCTIONS

Wireless Works with ENCELIUM®Works with ENCELIUM EDGE™

Wallstation Ordering Code EXTEND Networked LMS Standalone LMS

2-Button EN-WS-2B-ZB-WH X X

3-Scene EN-WS-SC3-ZB-WH X X

5-Scene EN-WS-SC5-ZB-WH X X

3-Zone EN-WS-ZC3-ZB-WH X

6-Zone EN-WS-ZC6-ZB-WH X

Battery Installation

Two AA alkaline batteries are provided with each wireless wallstation. When

replacing these batteries, use only alkaline-type batteries. Install the batteries

according to the battery compartment markings.

Dispose of used battery promptly. Keep away from children. Do not disassemble

and do not dispose in ﬁre.

Battery slots

Wallstation - Rear view

Mounting bracket J-Box

Electrical Metal Device Box:

Install the mounting bracket using the supplied screws. Ensure that the OSRAM

logo and SINGLE GANG labels are facing up.

Wallstation Installation

Mounting bracket Old Work Low Voltage

Mounting Bracket

Low Voltage Device Box:

Wallstation Installation (continued)

Place the wallstation assembly into the mounting plate and push gently until

‘clicks’ are heard. This conﬁrms that the pieces are secured.

Decorator Plate Installation

The wireless wallstation can also be installed with an off-the-shelf decorator-

style wall plate. Multi-gang WS installations require multi-gang decorator wall

plates.

Remove the button assembly from the OSRAM wall plate. This can be achieved

by pressing the wall plate with your thumbs near the button assembly while

grasping the OSRAM Wall Plate.

Install the supplied wall strips to the wireless wallstation until they snap in.

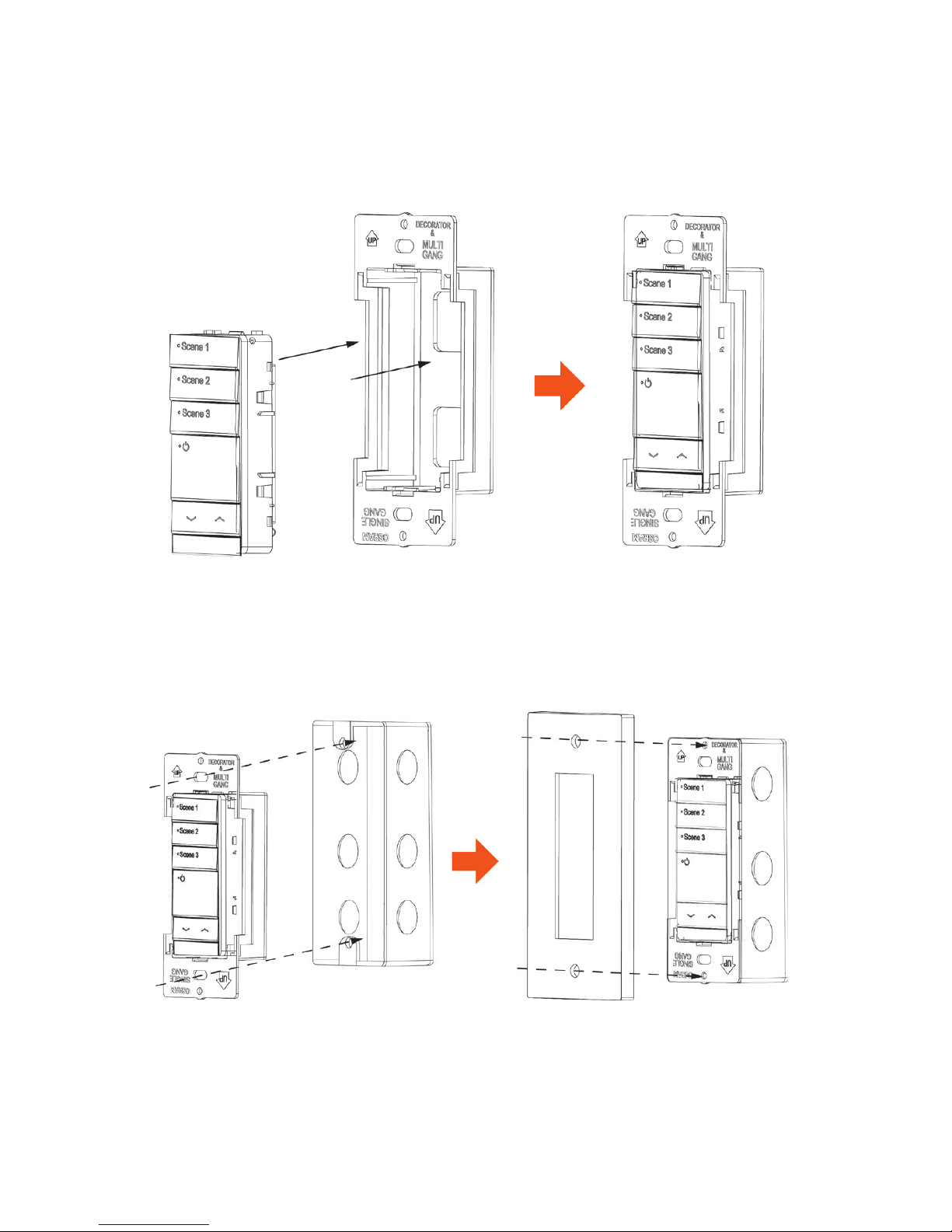

Decorator Plate Installation (continued)

Orient the mounting bracket such that the DECORATOR and MULTI GANG

labels are facing up. Insert the wallstation button assembly into the mounting

plate until ‘clicks’ are heard. Clicks conﬁrm that the pieces are secured.

Install the mounting bracket using the supplied screws. Install the decorator

plate using screws supplied with the decorator plate.

Installation Notes

Consult the OSRAM website for the most up-to-date version of the wireless

system design guide and install this product according to the guidelines.

The Wireless Wallstation is to be installed in dry, indoor locations ONLY. Do not

install the Wireless Wallstation in damp locations. Damp locations are deﬁned

as: interior locations subject to moderate degrees of moisture, such as base-

ments, barns, cold-storage warehouses, as well as partially protected locations

under canopies, marquees and open roofed porches.

Troubleshooting

There are no user-serviceable parts inside the Wallstation. Please return the

device to OSRAM if service is required.

Regulatory Approvals

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Modiﬁcations not expressly approved by the manufacturer could void the user’s

authority to operate the equipment under FCC rules.

This equipment has been tested and found to comply with Industry Canada

ICES-003 Issue 5 (CAN ICES-3 (A)/NMB-3(A)).

Contains FCC ID: H79DFZM-E7220

Contains IC ID: 4259B-DFZM7220

LMS134R2 4-18

OSRAM is a registered trademarks of OSRAM GmbH.

ENCELIUM EXTEND is a registered trademark of OSRAM SYLVANIA Inc.

ENCELIUM EDGE is a trademark of OSRAM SYLVANIA Inc.

Speciﬁcations subject to change without notice..

OSRAM SYLVANIA Inc.

200 Ballardvale Street

Wilmington, MA 01887 USA

888-531-7573

www.osram.us/ds
