OSI Security Devices OM100 Manuel utilisateur

OMNILOCK®

ACCESS CONTROL SYSTEMS

SERIES OM100, OM300 & OM500

(Firmware Version 2.xx)

USER GUIDE

SECURITY

DEVICES

The information contained in this document is subject to change without notice.

OSI Security Devices makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of merchantability

and fitness for a particular purpose.

OSI Security Devices shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the furnishing,

performance, or use of this material.

The programs that control OMNILOCKproducts (“Firmware”) are

copyrighted and all rights are reserved. Reproduction, adaptation, or translation

of those programs is strictly prohibited.

OMNILOCK is a Registered Trademark of OSI Security Devices, Inc.

SCHLAGE is a Registered Trademark of Schlage Lock Company.

ARROW is a Trademark of Assa Abloy

10957 Rev D

CAUTION

Use electrostatic discharge protection

procedures when the printed circuit board

is exposed.

OMNILOCK

ACCESS CONTROL SYSTEMS

SERIES OM100, OM300 & OM500

(Firmware Version 2.xx)

iii

Initial Setup Checklist

Complete and mail the Product Registration Form.

Read the User Guide!

Verify operation. Enter the Default Master Code 5011234.

The System will flash the Green Light and Unlock. Then after

approximately 5 seconds the Red Light will flash and the

System will Lock. If the System fails, reset the system. (See

Resetting The System page 118), then verify operation.

Enter the Menu Mode (see Programming in Menu Mode, page

31).

Determine the code length that you want to use and set the

Master code (see Changing the Master Code , page 73).

Add any Submaster codes that you plan to use (see Adding

Submaster Codes, page 67).

Set the clock (see Setting the Clock, page 95).

Set Daylight Savings if different from the default Northern

setting. (see Setting Daylight Savings, page 98).

Set the Open Delay Time if different from the default of 2

seconds (see Setting the Open Delay Time, page 96).

Program the Location number (see Setting the Location

Number, page 101).

If you are going to use the Autocode feature, program the

Facility Autocode numbers (see Setting the Facility

Autocodes, page 102).

If you are going to control access to User codes by groups,

adjust the group boundaries as needed (see Setting Group

Boundaries, page 99).

Add User codes (see Adding User Codes, page 36).

Assign group membership if needed (see Assigning Extended

Group Membership, page 43).

Assign Supervisor codes if needed (see Assigning Supervisor

Codes, page 48).

Assign Manager codes if needed (see Assigning Manager

Codes, page 50).

Program the Time Schedule and Holiday List if needed (see

Adding a Schedule Event, page 80).

End the Menu Mode (see End Command, page 33).

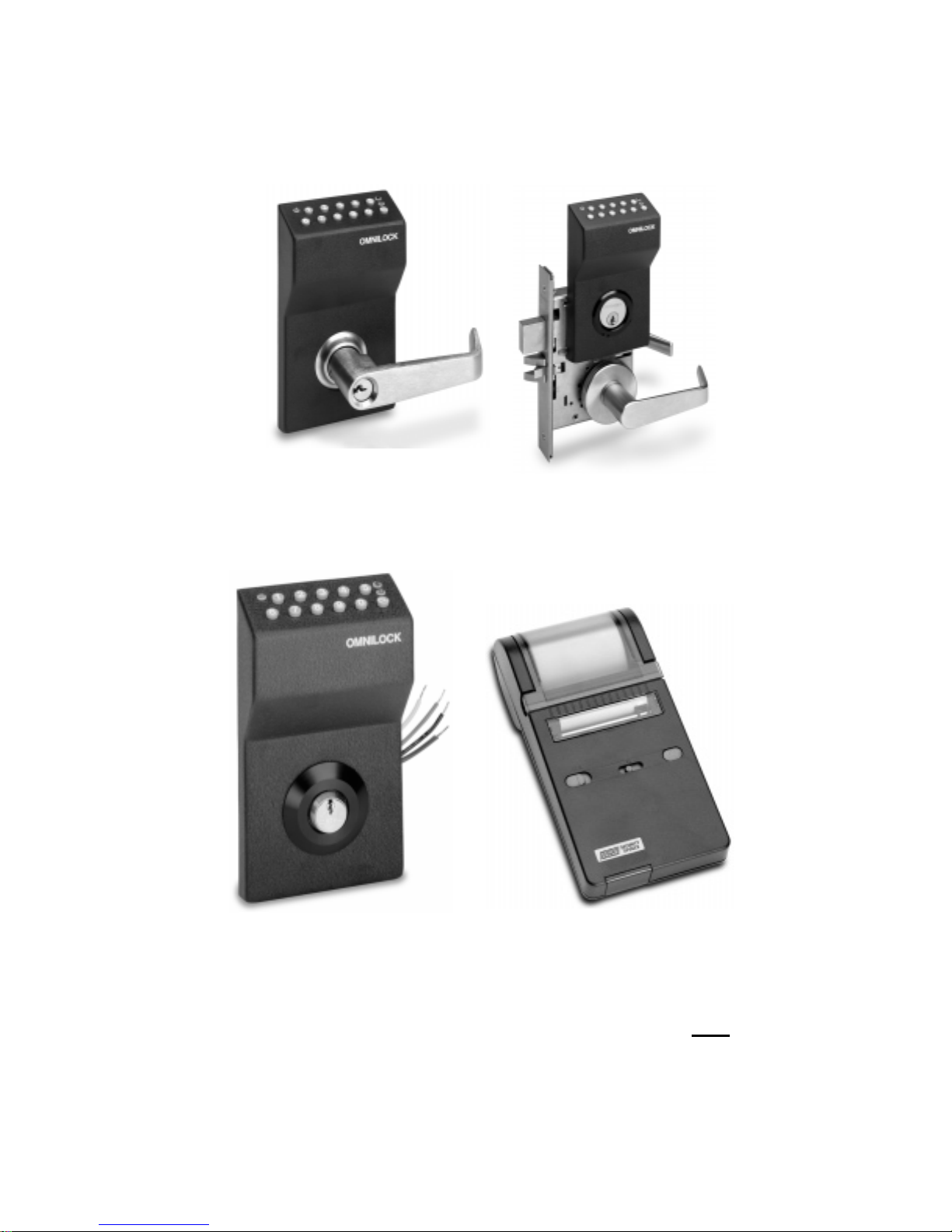

CYLINDRICAL

LOCK SYSTEM MORTISE

LOCK SYSTEM

WALL MOUNT

LOCK SYSTEM SYSTEM

PRINTER

(BLANK)

Table of Contents

vii

Overview 1

New Features in Firmware Version 2.xx................................. 1

General.................................................................................... 1

Access Levels and Codes 3

Access Levels.......................................................................... 3

Codes....................................................................................... 4

Master Code............................................................................ 5

Submaster Codes..................................................................... 6

Manager Codes........................................................................ 6

Supervisor Codes..................................................................... 6

General User Codes................................................................. 7

Service Code ........................................................................... 7

Audit Code .............................................................................. 7

Code Groups............................................................................ 8

Time Schedule and Holiday List 11

Time Schedule....................................................................... 11

Holiday List........................................................................... 12

Operation and Indicators 13

Basic Operation..................................................................... 13

The Green Light .................................................................... 13

The Red Light........................................................................ 13

Manager Operation................................................................ 14

Supervisor Operation............................................................. 15

Anti-Tamper.......................................................................... 16

Programming Overview 17

Syntax Conventions............................................................... 18

General Programming Operation........................................... 18

Table of Contents

viii

Programming in Command Mode 21

Indicator Lights .....................................................................22

Adding/Changing User Codes...............................................22

Placing Codes on Hold.......................................................... 23

Restoring Codes..................................................................... 24

Assigning Supervisor Privileges............................................ 24

Assigning Manager Privileges............................................... 25

Access Level..........................................................................26

Enable Groups....................................................................... 26

Disable Groups...................................................................... 28

Setting the Service Code Time .............................................. 28

ID Status Inquiry ...................................................................29

Enter Menu Mode..................................................................30

End Programming Session..................................................... 30

Programming in Menu Mode 31

Holding the Printer ................................................................ 31

Entering the Menu Mode....................................................... 32

Operational Control Features................................................. 33

Printing an Audit Log............................................................ 34

User Codes ............................................................................36

Adding User Codes.......................................................... 36

Removing User Codes ..................................................... 39

Verifying User Codes ......................................................40

Assigning Extended Group Membership......................... 43

Placing User Codes On Hold...........................................46

Restoring User Codes ...................................................... 47

Assigning Supervisor Codes............................................ 48

Assigning Manager Codes............................................... 50

Service Code..........................................................................52

Adding the Service Code................................................. 52

Removing the Service Code............................................. 53

Verifying the Service Code.............................................. 55

Placing The Service Code On Hold................................. 56

Table of Contents

Restoring The Service Code............................................ 57

Setting the Service Code Time Limit............................... 59

Audit Code ............................................................................ 60

Adding the Audit Code.................................................... 60

Removing the Audit Code ............................................... 62

Verifying the Audit Code................................................. 64

Placing the Audit Code on Hold...................................... 65

Restoring the Audit Code ................................................ 66

Submaster Codes................................................................... 67

Adding Submaster Codes................................................. 67

Removing Submaster Codes............................................ 69

Verifying Submaster Codes............................................. 70

Placing Submaster Codes On Hold.................................. 71

Restoring the Submaster Codes ....................................... 72

Changing the Master Code............................................... 73

Setting the Access Level........................................................ 76

Unlocked.......................................................................... 77

Code Required................................................................. 78

Lockout............................................................................ 79

Shutdown......................................................................... 79

Schedule................................................................................ 80

Adding a Schedule Event................................................. 80

Removing a Schedule Event Time................................... 84

Verifying Schedules Time ............................................... 86

Copying a Schedule Time................................................ 87

Clearing a Schedule Time................................................ 88

Adding Holidays.............................................................. 89

Removing Holidays ......................................................... 91

Verifying Holidays .......................................................... 92

Clearing the Holiday List................................................. 93

Setup...................................................................................... 94

Printing the Status Report................................................ 94

Setting the Clock.............................................................. 95

Setting the Open Delay Time........................................... 96

Setting Daylight Savings.................................................. 98

Table of Contents

Setting Group Boundaries................................................ 99

Setting the Location Number......................................... 101

Setting the Facility Autocodes.......................................102

Running Diagnostics............................................................104

Batteries 105

Low Battery Indicator.......................................................... 105

Battery Replacement Instructions........................................ 106

Cylindrical Models (Non-Weatherized)......................... 106

Mortise Models (Non-Weatherized).............................. 110

Wall Mount System (Non-Weatherized)........................ 112

Weatherized Models......................................................114

Wall Mount System (Weatherized)................................ 116

Resetting The System.....................................................118

The WP4000 Printer 121

Installing Batteries............................................................... 122

Installing Paper.................................................................... 122

Self Test/Battery Test..........................................................123

Operating Information.........................................................123

Help!! 125

Customer Service / Technical Support ................................ 125

Warranty Service.................................................................125

Out-of-Warranty Service ..................................................... 125

Return Material Authorization.............................................126

Limited Warranty ................................................................ 126

Menu Tree 129

Autres manuels pour OM100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels OSI Security Devices Contrôleurs d'accès IP

OSI Security Devices

OSI Security Devices OMNILOCK PG-B Series Manuel utilisateur

Manuels Contrôleurs d'accès IP populaires d'autres marques

ZKTeco

ZKTeco SpeedFace-V5L Manuel utilisateur

Jantar

Jantar REX A-1-9 Manuel utilisateur

2N Access Unit Feuille d'instructions

Kedacom

Kedacom KSCA120 Series Manuel utilisateur

H3C

H3C WX2880X Manuel utilisateur

G4S

G4S S870-EX Mode d’emploi

PRASTEL

PRASTEL M2000PE Manuel utilisateur

Allegion

Allegion interflex IF-281 Cylinder Manuel utilisateur

TECOM

TECOM TS1067E Manuel utilisateur

Fermax

Fermax Memokey 100C Guide de l'utilisateur

Fermax

Fermax CITYLINE MEMOKEY Mode d’emploi

Software House

Software House iSTAR Pro 2U RM Mode d’emploi

AKCP

AKCP SP+ Manuel utilisateur

Bpt

Bpt HNA/102 Manuel utilisateur

Civintec

Civintec CV9601T-T-1F Manuel utilisateur

BioMax

BioMax N-X90W Manuel utilisateur

ZKTeco

ZKTeco OP-200 Manuel utilisateur

FingerTec

FingerTec s-Kadex Manuel utilisateur
