NERO MAX 12 Information
1. NERO MAX Expansion Points
2. Hard-Wired Network Lan Connection
3. Wi-Fi Connection Option
4. RS232 Controls
5. RS-232 Control Codes
6. OSD Control App Quick Start
7. App Quick Start: Function Instructions
8. App Quick Start: Settings and Connections
9. Optional Control Keypads and IR Remote
Control
App
Note: You only need to hard wire to the Master Lan Input. The expansion
modules should automatically connect when `
Router
CASCADING SOURCES INTO ADDITIONAL ZONES
Set the switch to Ethernet . Connect the Cat5e/6 cable to Ethernet port and Lan
port of the Router. Two ways to find the address of the NERO MAX12
1. Open the IE web browser of the PC, log in to the WEB configuration page oj the
local Router to find the IP address of the NERO MAX 12 (shown as below)
2. Using “Advance IP Scanner” software to find the IP address Please visit
www.advanced-ip-scanner.com for free download
Then enter the IP address of the NERO MAX 12 to the IE browser (shown as
below), ensure the Serial Configure is 9600, n, 8,1.After finishing this step, NERO
MAX12 could be controlled through the local Network.
Key in the command code to control NERO MAX 12.
For the detail of command codes, please find the RS-232 command
codes in this instruction manual
RS-232 CONTROL
The NERO MAX 12 provides an RS-232 serial port connection located on the back panel
and uses a USB-to-Serial Comm cable connection. The NERO MAX 12 supports bi-
directional RS-232 communication with third party automation system. All keypads and
remote-control operations can be controlled via RS-232 in addition to system expansion
up to 18 zones or 3 NERO MAX 12 units linked together using the included 18 pin
expansion cable.
Note: Set the switch to RS-232 position
Baud Rate 9600, 8, N, 1 DB9 Connector Pin out, TX, RX GND

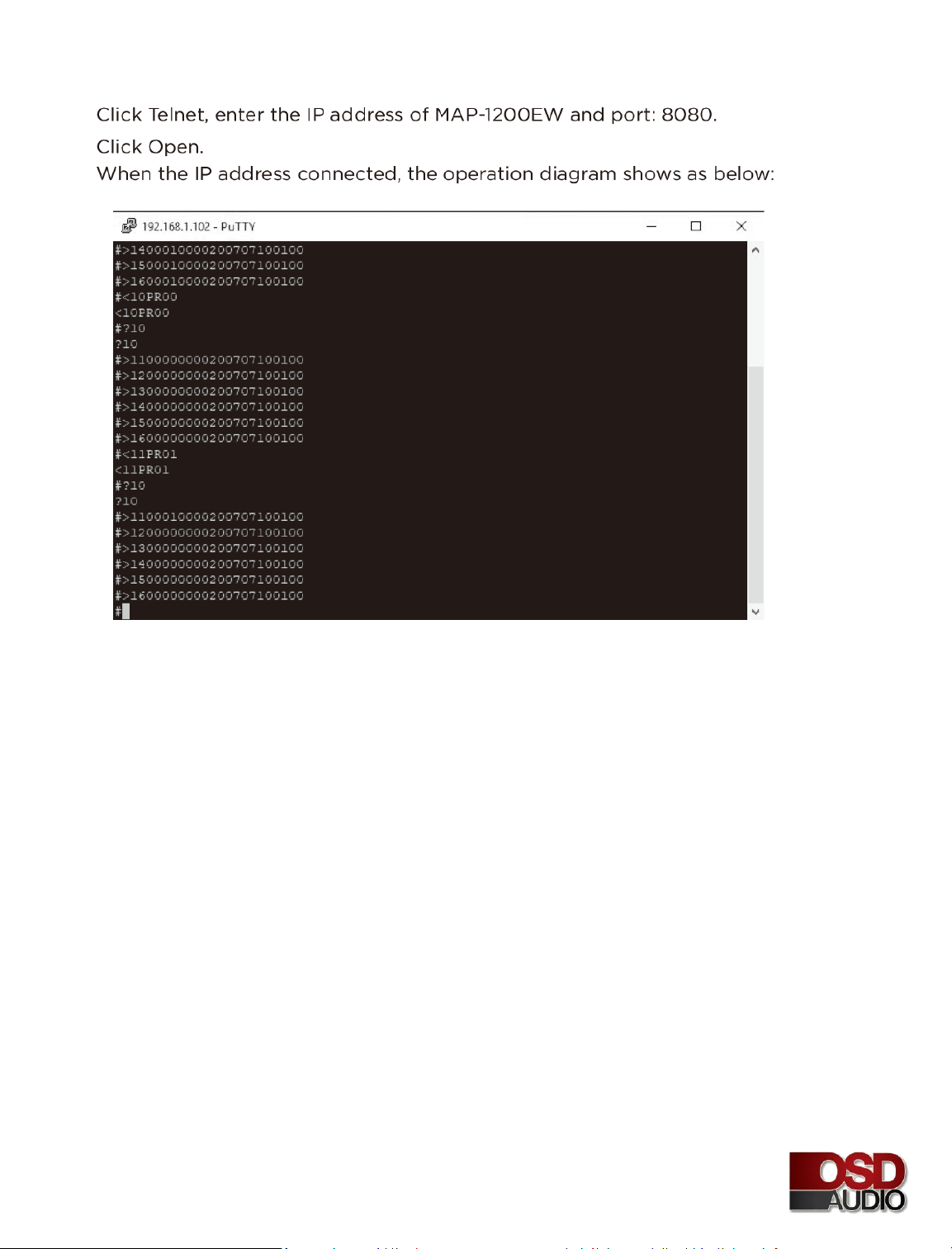

Using free software “PuTTY” Tool to controlthe device. Operation diagram below
Key in the command code to control the NERO MAX 12
