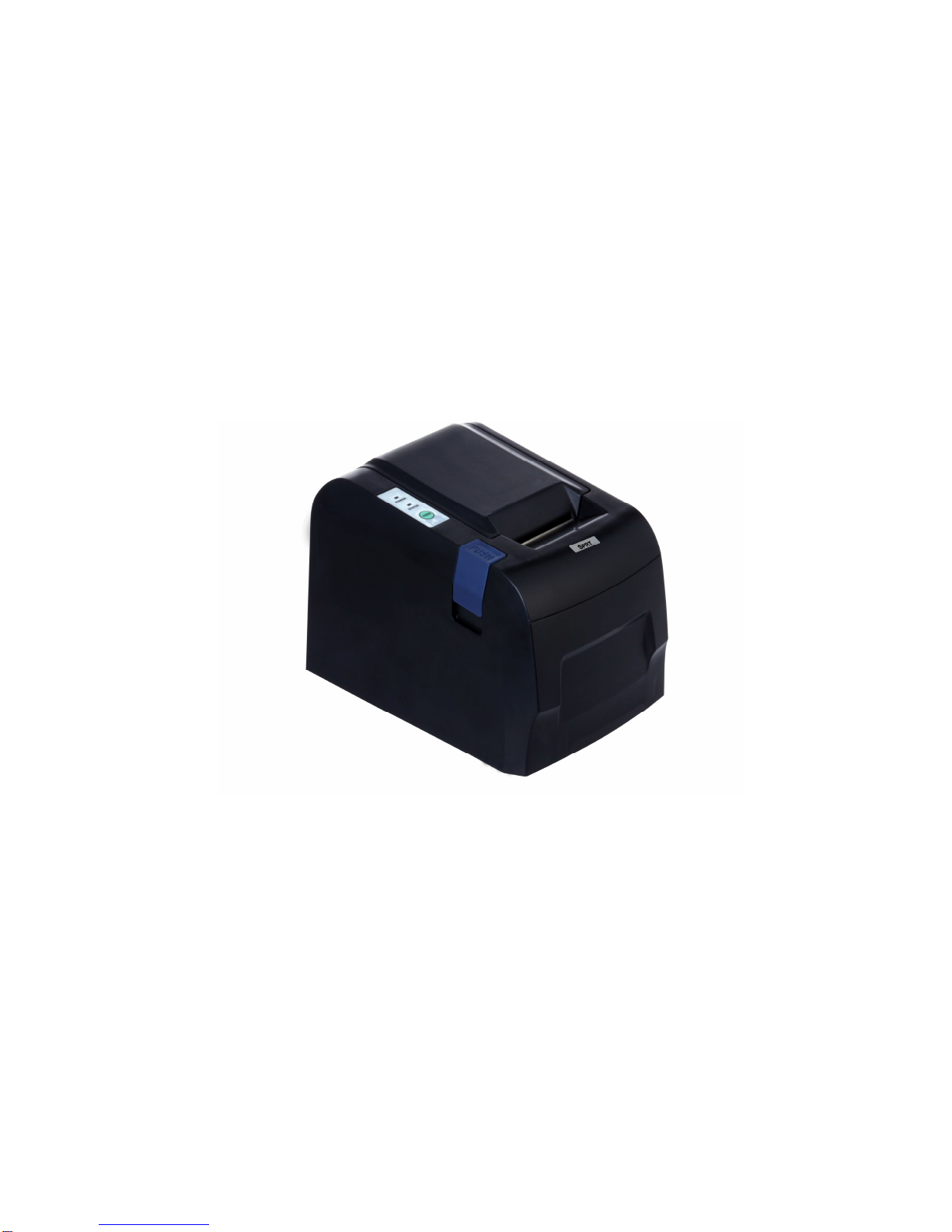

OSCAR POS58 Manuel utilisateur

OSCAR

POS58

Line Thermal Printer

User’s Manual

（

（（

（VER1.03）

））

）

SPRT

１

Content

Introduction.....................................................................................................２

Chapter 1 Characteristic and Specification...............................................３

1.1 Printing specification..............................................................................３

1.2 Printing Paper..........................................................................................３

1.3 Printing Font.............................................................................................３

1.4 Interface....................................................................................................３

1.5 Printing Control Command....................................................................４

1.6 Power Supply...........................................................................................４

1.7 Operation Environment..........................................................................４

1.8 Outline Dimension ..................................................................................４

Chapter 2 Installation and Operation .........................................................５

2.1 Printer Appearance.................................................................................５

2.2 Paper Installation....................................................................................６

2.3 Interface Connection..............................................................................６

2.3.1 Parallel Interface Connection............................................................６

2.3.2 RS232 Interface Connection .............................................................７

2.3.3 USB Interface.......................................................................................９

2.3.4 Bluetooth Interface..............................................................................９

2.3.5 Cash Drawer Interface........................................................................９

2.3.6 Power Connection...........................................................................１０

2.4 Buttons and Indicators.......................................................................１０

2.4.1 Power switch....................................................................................１０

2.4.2 Feed Button......................................................................................１０

2.4.3 Opening Upper Cover Button........................................................１０

2.4.4 Power indicator light (green)..........................................................１０

2.4.5 Status Indicator light and Buzzer..................................................１０

2.5 Self-test.................................................................................................１１

2.6 Hexadecimal Dump............................................................................１１

2.7 Upgrade Mode.....................................................................................１１

Chapter 3 Printing Driver Installation .....................................................１２

Appendix 1 Performance Index...............................................................１２

SPRT

２

Introduction

POS58 printer is a new type line thermal printer, it features in fast

speed print, low print noise, high reliability, perfect print quality and

ribbon needless avoiding the vexation of regular maintenance.

POS58 printer: small in outline dimension, simple operation, and

extensive application, especially suitable for commercial cash register,

PC-POS, bank POS and all kinds of receipts print.

SPRT

３

Chapter 1 Characteristic and Specification

1.1 Printing specification

●Printing method: direct thermal

●Printing paper width: 57.5±0.5mm

●Printing density: 8 dots/mm, 384 dots/line

●Printing speed: approx. 75mm/s (valid content of each line isn’t over

25%)

●Reliability:

Printing head life: 100km

MCBF: 5 million lines

Using condition:

＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent

print repeatedly

＊Each dot-line printing at the same time should not exceed 25%,

each character-line and one dot vertically printing repeatedly

should not exceed 11 times

＊Use specified thermal paper

●Valid printing width: 48mm

1.2 Printing Paper

●Thermal paper model: TF50KS－E（Japan paper co.ltd）

AF50KS-E(JUJO THERMAL)

●Thermal paper: Width－－－－－－－－ 57.5±0.5mm

Outer Diameter －－－ 80mm（max.）

Inner Diameter －－－ 13mm（min.）

Thickness －－－－－－ 0.06-0.08mm

1.3 Printing Font

●ANK Character set:

12×24 dots，1.5（W）×3.00（H）mm;

●GB2312-80(Chinese):

24×24 dots，3.00（W）×3.00（H）mm.

1.4 Interface

●RS232 interface:

DB25 socket (female), supports XON/XOFF and RTS/CTS protocol

Baud rate: 1200-115200bps adjustable.

Data structure: one start bit + 7 or 8 data bits + one stop bit

●Parallel interface:

DB25 socket (male), 8-bit parallel interface, supports BUSY/ACK

handshaking protocol, TTL.

SPRT

４

●USB interface：

Standard B type USB interface.

●Bluetooth interface:

Support Bluetooth2.0/Bluetooth4.0 (Single mode BLE)

●Cash drawer control

DC12V，1A，6-pin RJ-11 socket.

1.5 Printing Control Command

●Character print command: supports double width and double height

printing of ANK characters, user-defined characters and Chinese

characters, the character line spacing is adjustable.

●Graphics print command: supports the printing of bit map graphics with

different density

●GS bar code print command: supports UPC-A、UPC-E、EAN-13、EAN-8、

CODE39、ITF25、CODABAR、CODE93、CODE128 bar code print.

1.6 Power Supply

●DC12V±10％，2A(one core)，2A

1.7 Operation Environment

●Operation environment temperature: 0～50℃

Relative humidity: 10～80％

●Storage temperature: -20～60℃

Relative humidity: 10～90%

1.8 Outline Dimension

●138（W）×200×(L)×120(H) mm

SPRT

５

Chapter 2 Installation and Operation

2.1 Printer Appearance

SPRT

６

2.2 Paper Installation

POS58 adopts 57.5±0.5mm width thermal paper.

The steps of thermal paper installation are as the following:

1. When there is no paper in the print head, pls don’t press【FEED】button

to avoid affecting the life of printing head. Opening open button to open

the case cover and change paper.

2. After paper case cover is closed, pls do not draw the paper forwards or

backwards with hands.

2.3 Interface Connection

2.3.1 Parallel Interface Connection

The Parallel interface of POS58 printer is compatible with CENTRONICS,

supports BUSY and /ACK handshaking protocol, it uses DB25 socket

(male), the pin order of parallel port is as below shows:

Pin Order of Parallel Port

The pin assignment of parallel interface is shown as below:

Pin No. Signal Direction Description

1 /STB In Strobe pulse to latch data,

reading occurs at raising edge.

Cas

h drawer

interface

Communication

interface

Power switch

Power socket

SPRT

７

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

DATA8

These signals represent the 1st

bit to 8th bit of the parallel

interface data, each signal is at

HIGHT level when data is logic

1, and LOW when data is logic

10 /ACK Out

Answer pulse, LOW level

signal indicates that data have

already been received and the

printer gets ready to receive

the next data.

11 BUSY Out HIGH level signal indicates

that the printer is BUSY and

can not receive data.

12 PE Out HIGH level signal indicates

that paper is end.

13 SEL Out Pulling up to HIGH level signal

by a resistor indicates the

printer is online.

15 /ERR Out Pulling up to HIGH level signal

by a resistor indicates there is

no error.

14,16,17,19

NC --- No connection

18、20-25 GND --- Grounding logical 0 level

Note:（1）“In” denotes inputting to the printer，“Out” denotes outputting from

the printer.

（2）Signal level is TTL standard.

Fig. Pin Assignment of Parallel Interface

2.3.2 RS232 Interface Connection

The RS232 interface of POS58 printer is compatible with RS232C standard,

SPRT

８

supports RTS/CTS and XON/XOFF handshaking protocol, it uses DB25

socket (female), the pin order of the RS232 port is as below:

Fig. Pin Order of the Serial Port

The pin assignment of RS232 interface is shown as below:

Pin No. Signal Source Description

2 RXD Host Printer receives data from

host

3 TXD Printer Printer transmits control code

X-ON/X-OFF and

data to host

5 RTS Printer Signal “MARK” indicates that

the printer is “BUSY” and

unable to receive data;

“SPACE” indicates that the

printer is “READY” for

receiving data.

6 DSR printer When this signal is “SPACE”,

it means the printer “online”.

7 GND — Signal Ground

8 DCD printer Same with signal “CTS”

Fig. Pin Assignment of Serial Interface

Note: ①“Source” denotes the source that signal comes from;

②Logical signal level is EIA.

The baud rate and data structure in RS232 interface mode are set to

9600bps, 8 data bits, no parity bit and 1 stop bit.

The serial interface of POS58 can be connected with standard RS-232C

interface. When connected to IBM PC or compatible machine, connection

can accord to the below.

SPRT

９

Fig. Connection between POS58S and IBM PC Serial Interface

2.3.3 USB Interface

Standard B type USB interface

2.3.4 Bluetooth Interface

The handheld terminal, notebook or other terminals with Bluetooth can

drive the printer through Bluetooth interface. POS58 printer can support

Bluetooth2.0/Bluetooth4.0 (Single mode BLE) principles. Power rate is

CLASS2, Valid distance is 10m. Device name is POS58IV, initial password

is “1234”. Device name and password can also be set and changed by

“Setting Tool”.

Before printing, POS58 printer needs to pair with the host firstly. The

pairing process is as below,

1. Turn on the printer

2. The host searches the Bluetooth devices

3. If several Bluetooth devices are found, pls choose POS58IV printer.

4. Input password “1234”.

5. Complete pairing.

During pairing, the printer must be on.

Note: If the device name is not changed, during pairing, pls do not turn on

several printers at the same time. Otherwise, it will be difficult to identify the

one printer paired.

2.3.5 Cash Drawer Interface

The cash drawer interface of POS58 is RJ-11, 6pin socket, as below,
