Orion SC338HA Manuel utilisateur

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

AUTOMATICALLY

DETECTS &

TRACKS MOTION

SEE & RECORD EVERYTHING

THAT HAPPENS USING YOUR

SMARTPHONE

QUICK

START GUIDE

IMPORTANT! PLEASE READ THESE

INSTRUCTIONS CAREFULLY

SMART PAN & TILT

SECURITY CAMERA

SC338HA

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

This SMART wireless pan & tilt security camera is designed for use in homes,

apartments, ofces, garages and sheds. It has been developed to be easily

set up and operated, giving you and your family the security and peace of

mind that you deserve.

Install the Grid Connect mobile app, available for both iPhone and Android

devices, to monitor your camera remotely.

The Grid Connect app is free to download and is available from the Apple App

Store and Google Play.

1 x Smart Pan & Tilt Security Camera

1 x Power Adaptor

1 x USB Cable

1 x Mounting Bracket

2 x Mounting Screws and Wall Plug

1 x Knob Screw

1 x L Shape Screw Driver

Micro SD Card 16GB

Class 10 required

(Max. 64GB card supported)

1INTRODUCTION

2CONTENTS

DOWNLOAD PAIR USE

Download from:

MONITOR FROM ANYWHERE

3IDENTIFICATION

Light Sensor

Detects low light and

turns on the infrared

lights for night vision

Micro SD Card Slot

Use a micro SD memory

card to record video 24/7.

(Tilt camera lens up to

access SD card slot).

Power Port

5V Power inlet

Reset Button

Hold for 5 seconds to

reboot and clear all

settings to factory defaults.

This will allow you to

connect with different

Wi-Fi network if required.

Camera Lens

1080p HD, with

80° eld of view

Infrared LEDs

Allows the camera to

capture both day and

night images

Microphone/Speaker

355°

Pan

65°

Tilt

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

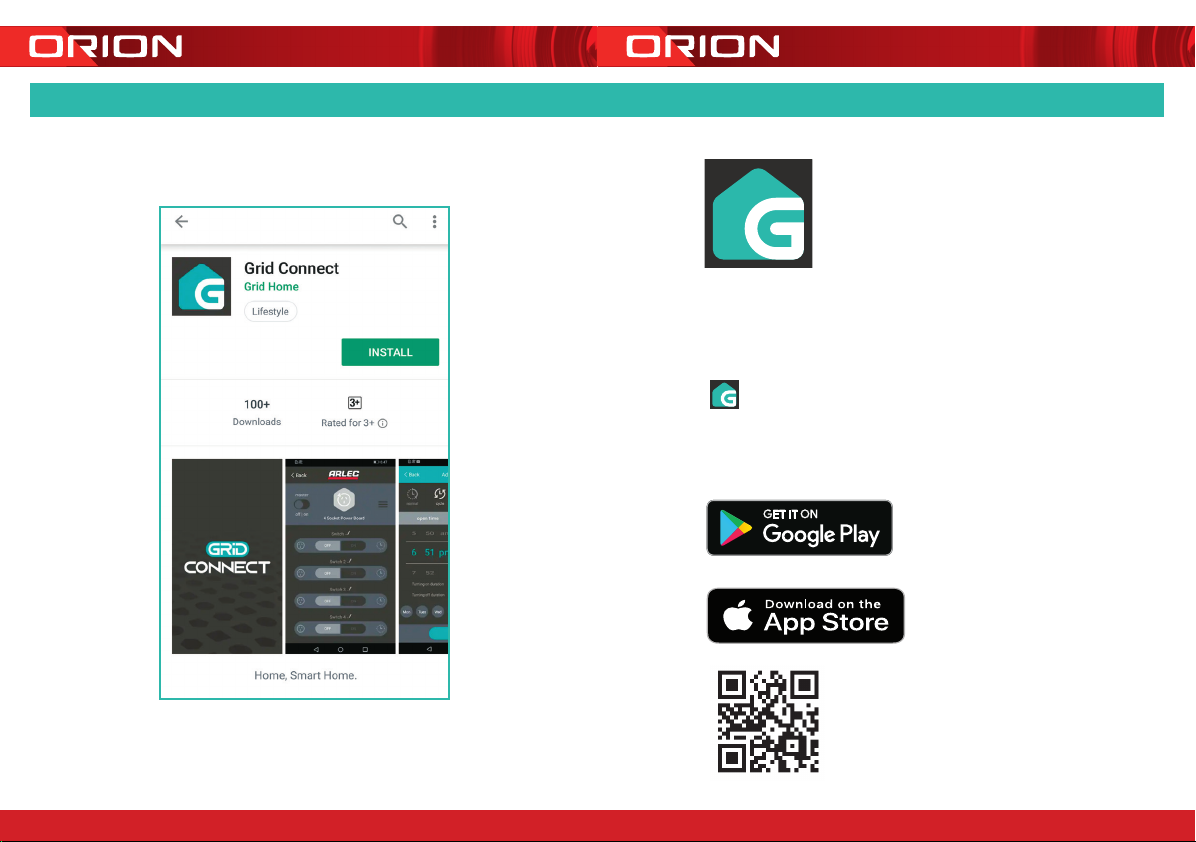

4DOWNLOAD THE APP

Scan & download

the GRID Connect

App for free

NEW ACCOUNT

Download and install

GRID CONNECT App

from Play store (Android)

or App store (iOS).

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

5INSTALL THE APP

create new account

Open the GRID CONNECT App.

If you are a new user, tap create new

account and follow the prompts to

complete account setup.

Note: You must agree with the Privacy

Policy to be able to use the App.

If you already have an existing account,

just tap login to account and enter your

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

6ADDING A LOCATION

On the

Add location

setup page,

you can edit

Home name

, set up

Home location

and

Select rooms

Add room

This will help you manage your

GRID devices and assist you in

customising and scheduling the

time and order of one or multiple

devices, depending on your home

living needs.

Tap Done when you ﬁnish.

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

7. 0 PAIRING YOUR DEVICE

Power on your smart camera by using the

supplied adapter and USB cable.

It should take approximately 20 seconds

to startup.

You will hear a welcome sound and double beep

sound (every 15 seconds). The camera is now

ready for pairing.

Once your camera is in pairing mode, open

the GRID CONNECT App, Tap , then select

security

add device

page.

Conﬁrm you hear double beep sound every 15

seconds from camera before tapping

next step

to proceed.

1110

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

7.1 PAIRING YOUR DEVICE

Enter the Wi-Fi password and tap

conﬁrm

to proceed.

If needed, you can tap

change network

to switch to another suitable Wi-Fi

network for your camera.

conﬁrm

1312

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

7. 2 PAIRING YOUR DEVICE

Press

continue

to scan QR code

using your camera. Hold 15cm

away from your mobile screen.

Press

heard the beep

after you

hear a sharp beep sound from

your camera (refer to trouble

shooting guide on page 22 if you

don’t hear the prescribed beep).

The GRID CONNECT App will

start to connect to the camera

automatically.

scan

code

on screen

1514

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

7. 3 PAIRING YOUR DEVICE

Once the pairing process is complete

a page showing

device added successfully

will appear.

You may choose to edit the device name

or assign the device to a dedicated room

before tapping

done

to ﬁnish the pairing

process.

Once your camera is paired to your

Wi-Fi network, your camera is available

to view at anytime from your smartphone

as long as there is internet access.

If no device is found and the pairing process

is not successful, check below and repeat

from Step 7

Wi-Fi network is 2.4GHz.

Wi-Fi password entered is correct and

the same Wi-Fi network is used on the

mobile device.

GRID device is in pairing mode.

Check your Wi-Fi for network activity.

1716

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN004617/2

Once your camera is paired to your Wi-Fi network, you can view your camera

at anytime from your smartphone as long as there is internet access.

Back to Device

Screen

Switch video quality

between Standard

denition (smoother

movement with

smaller le size)

and High denition

(clearer images but

larger le size)

Tap to capture a photo/

video during live view.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to capture a photo/

video during playback.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to enable the

talk function

Access live screen

Select a date to

review your playback

from SD card

For more advanced features/functions, refer to

grid-connect.com.au for more details

Scroll forward/

back playback

video on time

slider

Pause playback

video

Access to Settings

including share

device, motion

detection

setting, rmware

information,

remove device etc.

Switch to full

screen display

for live view

Access playback

screen

Access to SD

card setting

Enable motion

detection alerts

and adjust

sensitivity of

motion detection

Tap to mute or

hear the sound

Tap to mute or

hear the sound

8OPERATING YOUR CAMERA

Live Screen Playback Screen

Feature Controls Feature Controls

Tap to enable pan

& tilt controls,

activate Tracking

function and ip

screen

1918
