Orion Grid Connect SMART Manuel utilisateur

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

SEE & RECORD

ACTIVITY AROUND

YOUR HOME USING

YOUR SMARTPHONE

QUICK

START GUIDE

IMPORTANT!

PLEASE READ THESE

INSTRUCTIONS CAREFULLY

SMART

WIRELESS OUTDOOR

SECURITY CAMERA

SC077HA

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

This SMART wireless outdoor security camera is designed for use in homes, apartments,

ofﬁces, garages and sheds. It has been developed to be easily set up and operated,

giving you and your family the security and peace of mind that you deserve.

Install the Grid Connect mobile app, available for both iPhone and Android

devices, to monitor your camera remotely.

The Grid Connect app is free to download and is available from the Apple App

Store and Google Play.

1 x Smart Outdoor Security Camera

2 x Weatherproof Silicone Covers*

1 x DC Power Adaptor

1 x Mounting Stand

3 x Mounting Screws & Wall Plugs

1 x Reset Pin

1 x L Shape Screw Driver

2 x Deterrent Stickers

1 x Drill Template

Micro SD Card 16GB Class 10 (Not Included)

* Weatherproof covers must be on to achieve IP65 rating

1INTRODUCTION

2CONTENTS

DOWNLOAD PAIR USE

Download from:

MONITOR FROM ANYWHERE

3IDENTIFICATION

USB Charging Port

Low voltage 5V

Power Button

Press and hold for 5

seconds to turn on/off

the camera

Motion Sensor

PIR motion detection

sensor, detection

range up to 8 meters

Locking Dial

Micro SD Card Slot

Rolling storage micro

SD card (not included,

Max.128GB card

supported)

Camera Lens

1080p HD, with

120° ﬁeld of view

Speaker/Microphone

Two-way audio

Microphone

Status Light

Reset Button

Press and hold for

5 seconds to reboot

and clear all settings to

factory defaults. This will

allow you to connect with

different Wi-Fi network

if required

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

4DOWNLOAD THE APP

Scan & download

the GRID Connect

App for free

NEW ACCOUNT

Download and install

GRID CONNECT App

from Play store (Android)

or App store (iOS).

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

5INSTALL THE APP

create new account

Open the GRID CONNECT App.

If you are a new user, tap create new

account and follow the prompts to

complete account setup.

Note: You must agree with the Privacy

Policy to be able to use the App.

If you already have an existing account,

just tap login to account and enter your

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

6.0 PAIRING YOUR DEVICE

Remove the rubber back cover

and insert a 16GB Micro SD card

(not included) into the SD card slot.

(Max. 128GB card support).

Press the power button for 5 seconds

to turn on the camera

. You will hear a

welcome sound. Conﬁrm the working

status indicator is red and blinking

(once per second). The camera is

successfully powered on and ready

for pairing.

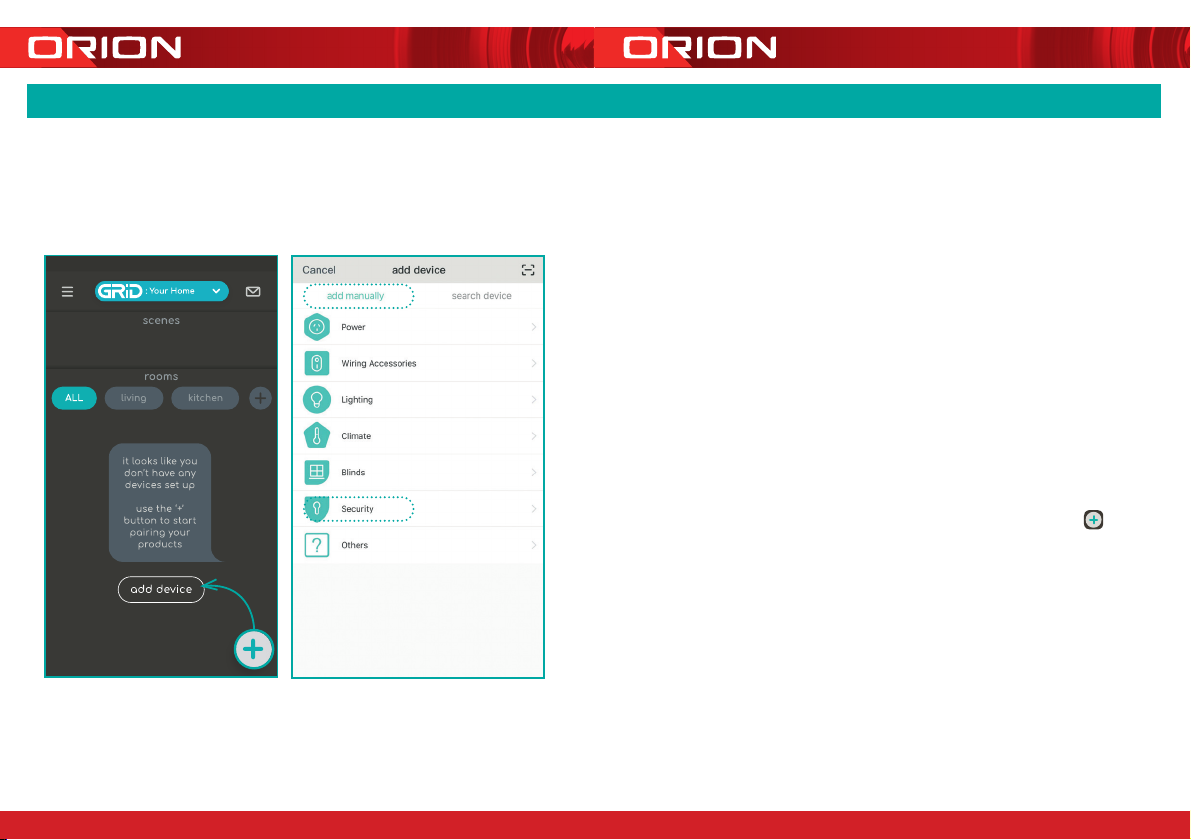

Once your camera is in pairing mode,

open the GRID CONNECT App, Tap ,

then select

security

add device

page.

Conﬁrm the status light is red and blinking

(once per second) before tapping

ready

to pair

to proceed.

*It is recommended to fully charge your battery

before installation. By doing this, plug provided

USB cable into charging port and connect it

with provided adaptor. You will be able to check

battery status after successfully pairing your

camera with Grid Connect App (pg.16).

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

6.1 PAIRING YOUR DEVICE

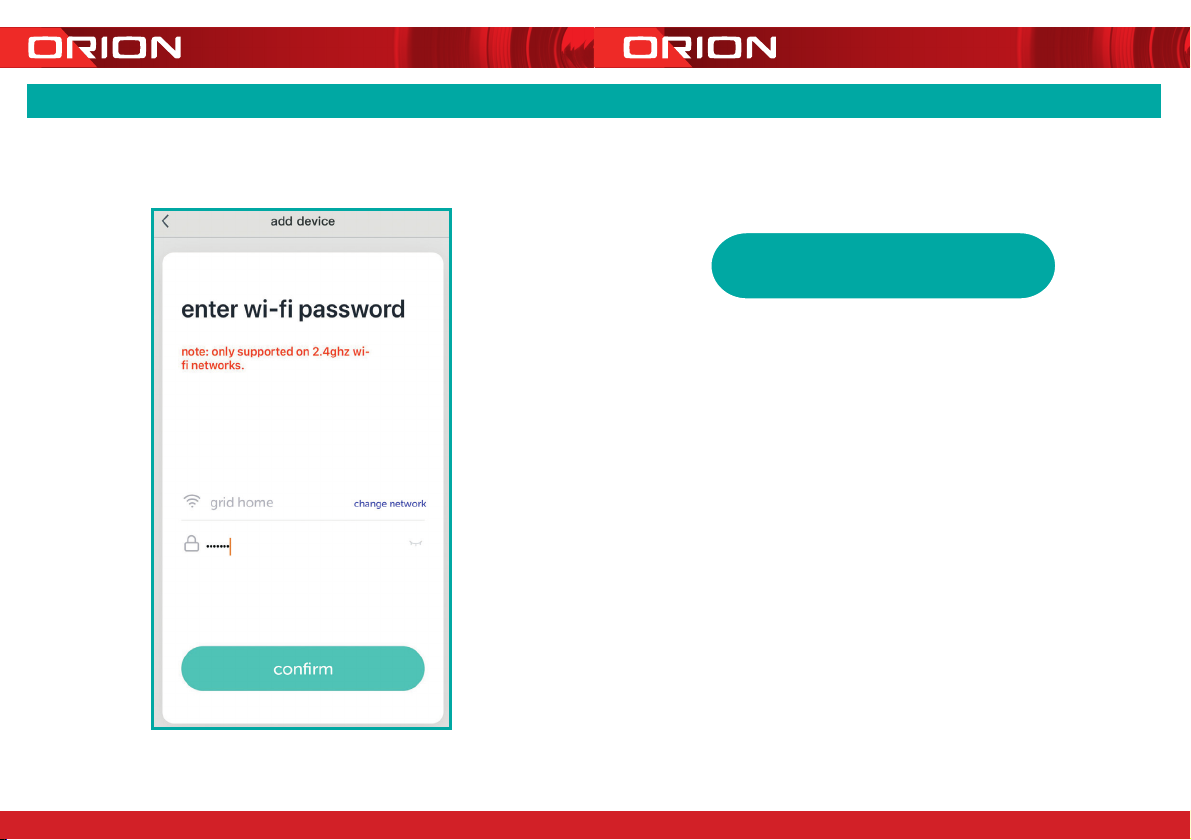

Enter the Wi-Fi password and tap

conﬁrm

to proceed.

If needed, you can tap

change network

to switch to another suitable Wi-Fi

network for your camera.

conﬁrm

1110

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

6.2 PAIRING YOUR DEVICE

Press

continue

to scan QR code

using your camera. Hold 15cm

away from your mobile screen.

Press

heard the beep

after you

hear a sound from your camera

(refer to trouble shooting guide

on page 21 if you don’t hear the

prescribed beep).

The GRID CONNECT App will

start to connect to the camera

automatically as indicated by

the status indicator light blinking

rapidly and then staying solid blue.

scan

code

on screen

1312

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

6.3 PAIRING YOUR DEVICE

Once the pairing process is

complete a page showing

device

added successfully

will appear.

You may choose to edit the device

name or assign the device to a

dedicated room before tapping

done

to ﬁnish the pairing process.

Once your camera is paired to your

Wi-Fi network, your camera can

be viewed at anytime from your

smartphone as long as there is

internet access.

If no device is found and the pairing process

is not successful, check below and repeat

from Step 6

Wi-Fi network is 2.4GHz.

Wi-Fi password entered is correct and

the same Wi-Fi network is used on the

mobile device.

GRID device is in pairing mode.

Check your Wi-Fi for network activity.

1514

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

Once your camera is paired to your Wi-Fi network, you can view your camera

at anytime from your smartphone as long as there is internet access.

Tap to capture a photo/

video during live view.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to capture a photo/

video during playback.

Note: the photo and

video are saved to the

internal memory of your

smartphone

Tap to enable the

talk function

Access live screen

Select a date to

review your playback

from SD card

For more advanced features/functions, refer to

grid-connect.com.au for more details

Access playback

screen

Access to SD

card setting

Enable detection

alerts and adjust

sensitivity of motion

detection

Tap to mute or

hear the sound

Tap to mute or

hear the sound

7OPERATING YOUR CAMERA

Live Screen Playback Screen

Feature Controls Feature Controls

Back to Device

Screen

Switch video quality

between Standard

deﬁnition (smoother

movement with

smaller ﬁle size)

and High deﬁnition

(clearer images but

larger ﬁle size)

Access Settings

including share

device, motion

detection

setting, ﬁrmware

information,

remove device etc.

Switch to full

screen display

for live view

Check battery

status

Slide forward/back

video playback on

time slider

Pause video

playback

1716

24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN005105

1918

8INSTALLATION

PREPARATION

Pair your camera inside the house before installation. Before choosing your preferred

location, check the Wi-Fi strength/coverage to ensure the camera is fully functional.

Note: For ceiling/under eave, ensure you navigate to settings > basic function

settings > ﬂip screen to obtain correct orientation.

CHARGING DEVICE

1. After pairing the camera, fully charge the battery before ﬁrst use. Plug DC power

adaptor into a power source and connect it with camera using provided USB cable.

2. Check battery status through the APP. When it reaches 100% remove the charging cable.

UNDER EAVE MOUNT

The camera can be mounted using the screws and wall plugs provided.

1. Use the mounting base or provided drill template to mark the screw positions

under your eave. Take into consideration where you’ll have the best view.

Drill holes into the eave and push wall plugs into the holes.

2. Simply put the weatherproof silicone cover onto the camera body.

3. Use the screws to secure the camera in place.

Wall Plugs

Mounting Base

Mounting Screws

Collar Lock
