Orion FDR1000300 Manuel utilisateur
Page - 1 MSC00510
Stand and Fill Feeder Adder Bin Assembly Manual
Thank you for purchasing a new Orion Hunting Products Stand
and Fill Feeder.
It is our Overwhelming desire to ensure that you are satisfied with
this product.
We have taken great pride in every aspect of its design and
manufacturing right here in the U.S.A. and it is our hope that you
can take pride in owning it.
If it does not meet your expectations for any reason please give us
a call or text at (906)-767-0270 and may it truly Elevate your
Pursuit.
Hunt safely without limits. Hunt Orion!
Tools Required
1) 9/16” Open End/Box End Combination Wrench
2) 9/16” Socket with Ratchet or Cordless Impact
drill preferred
Page - 2 MSC00510

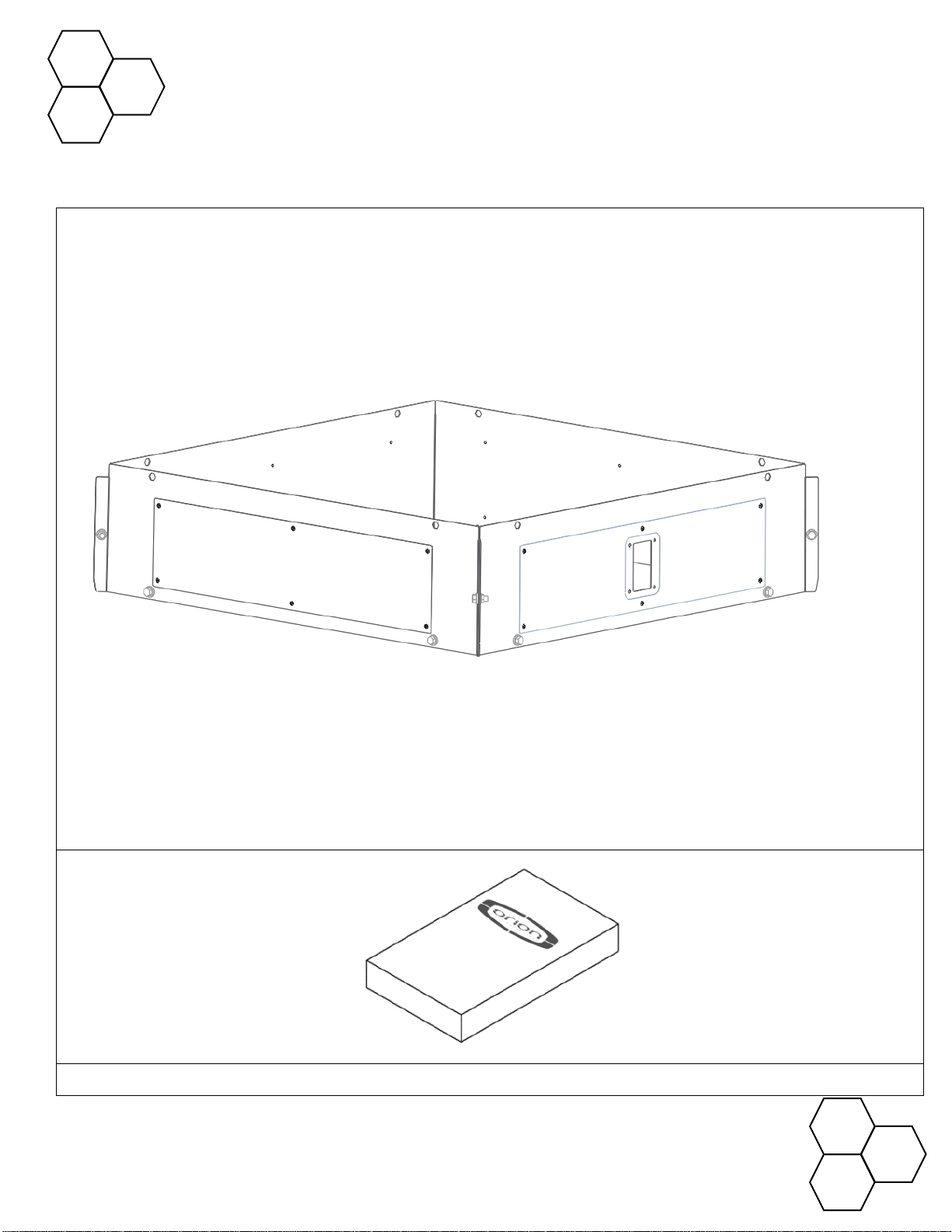

300lb Stand and Fill Feeder Adder Bin Overview
Feeder Adder Bin–FDR1000300
Please read through entire assembly instructions before beginning
⬣Feeder Adder [FDR1000300]
Page - 3 MSC00510

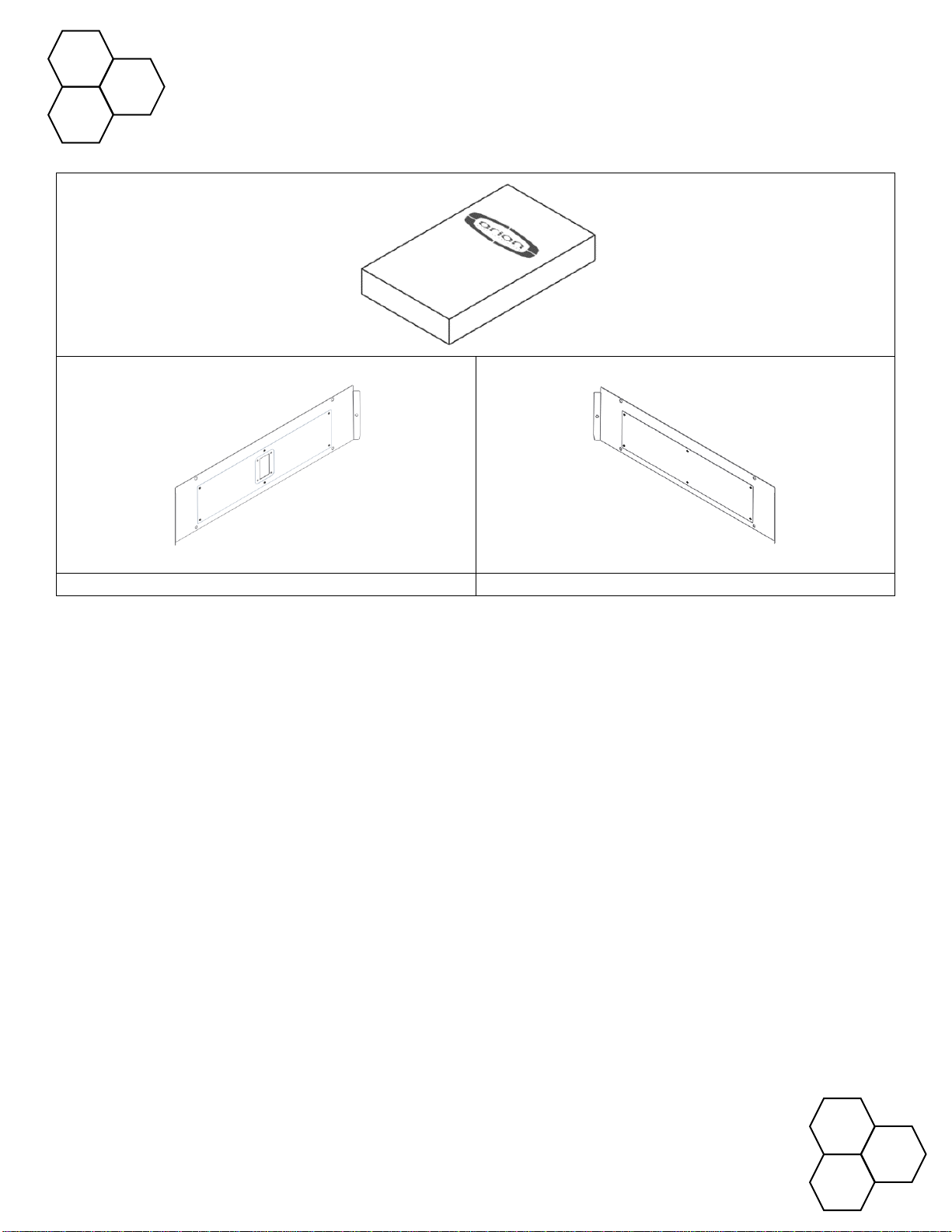

Contents
Feeder Adder
FDR1000300
⬣[1X] Bin with Window –FDR1000110
⬣[3X] Feeder Side –FDR1000102
Page - 4 MSC00510

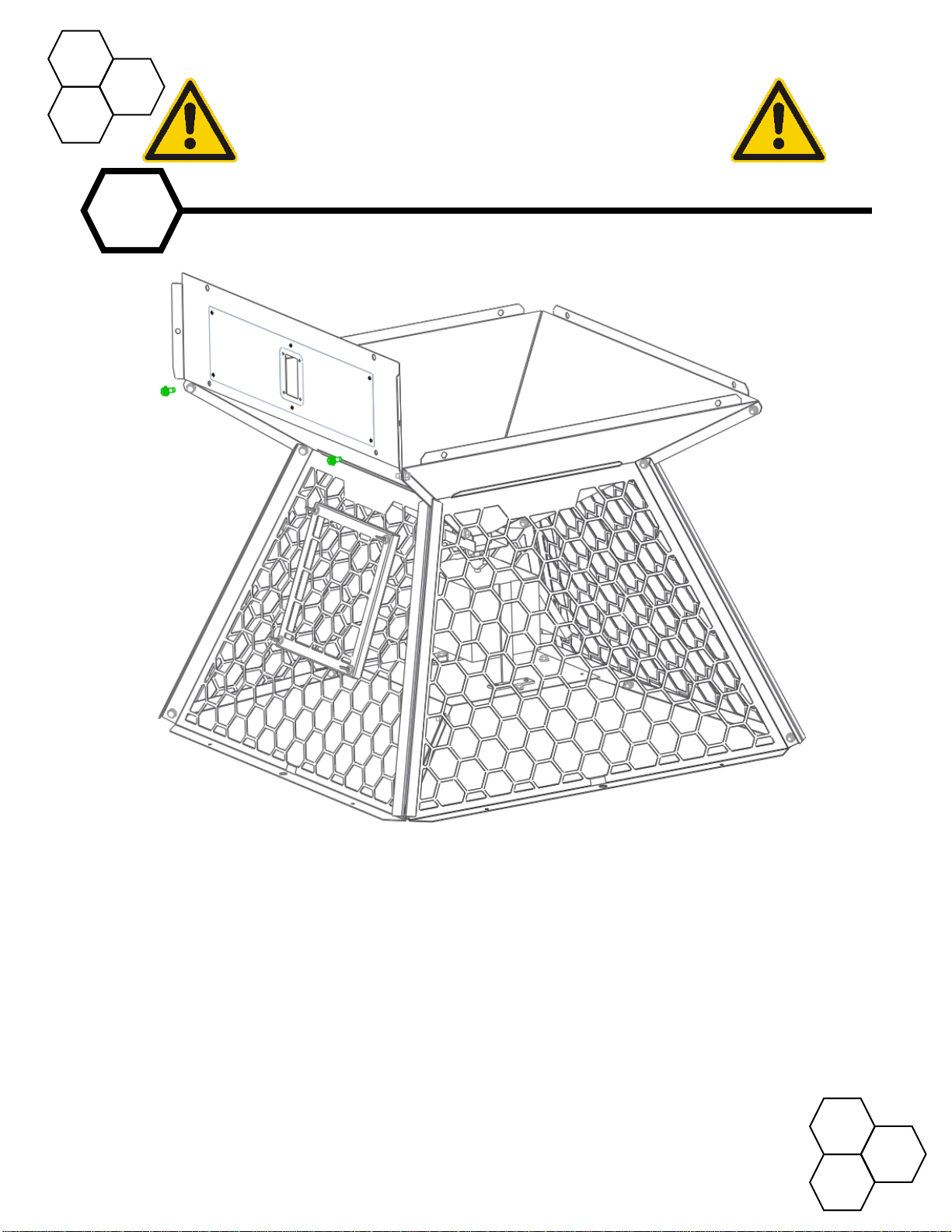

Elevated Hunting Stand Assembly
**Finger tighten hardware initially**
Parts
1x 150lb Feeder Base
1x Adder Bin with window
2x 3/8-16 x ¾ Flange Bolts
Process
Align the holes on the feeder base and adder bin and attach using the bolts
1
Page - 5 MSC00510

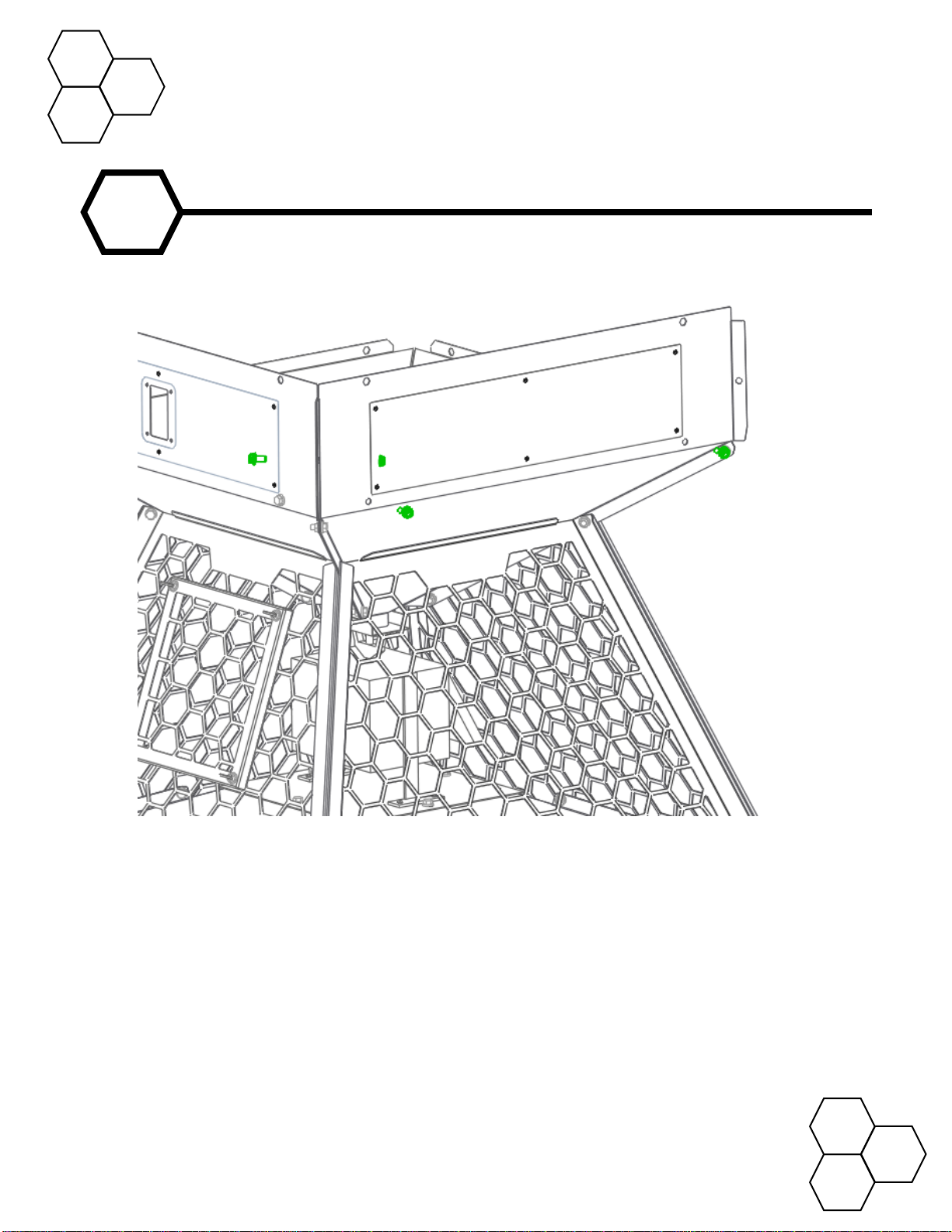

Parts
1x Adder Bin
3x 3/8-16 x ¾ Flange head bolts
1x 3/8-16 Flange head nuts
Process
Align the next adder bin with the base and attach using 2 bolts. Use the bolt
and nut to attach the bin sections together
2
Page - 6 MSC00510

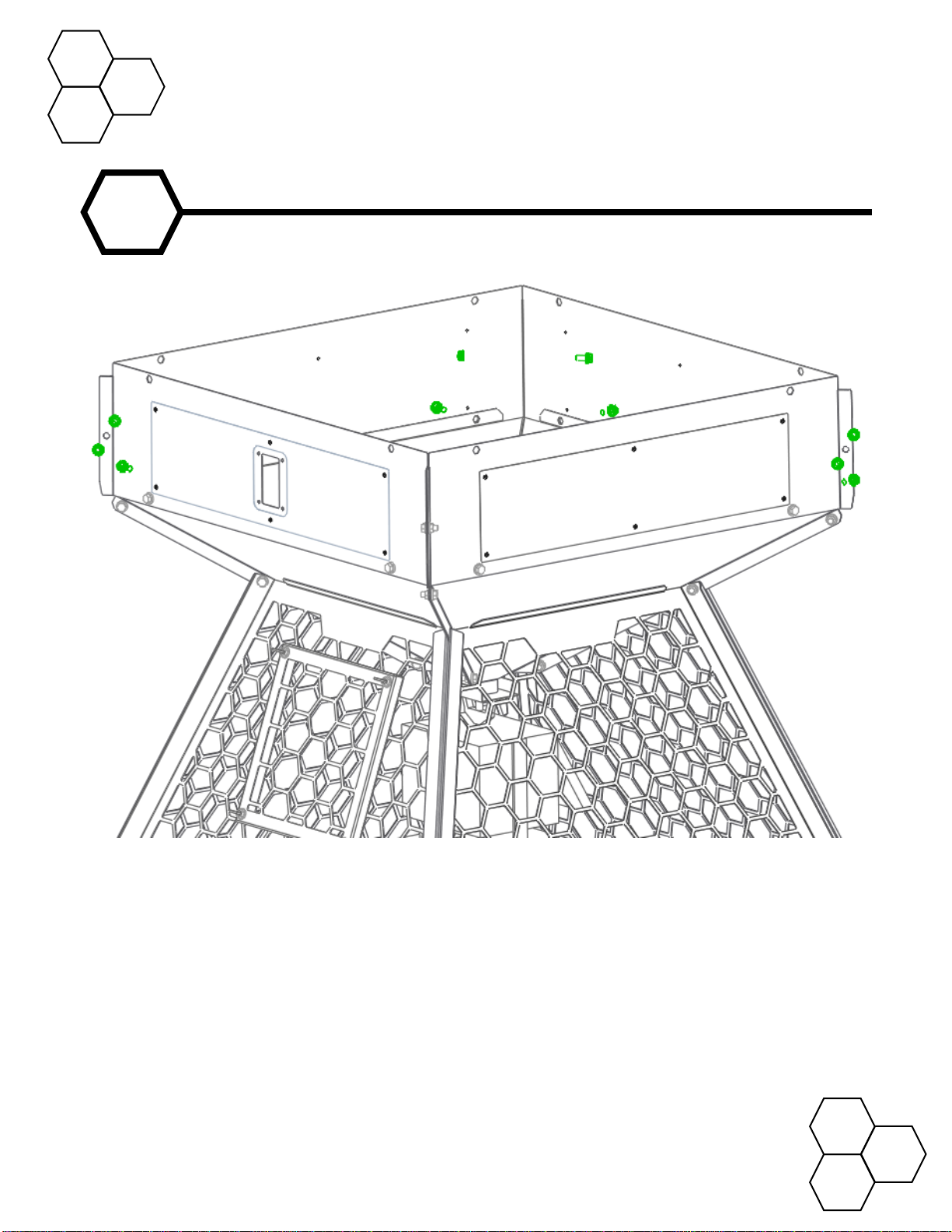

Parts
2x Base Plate Assm
7x 3/8-16 x ¾ Flange head bolts
3x 3/8-16 Flange head nuts
Process
Repeat step 2 with the remaining bins
3
Page - 7 MSC00510

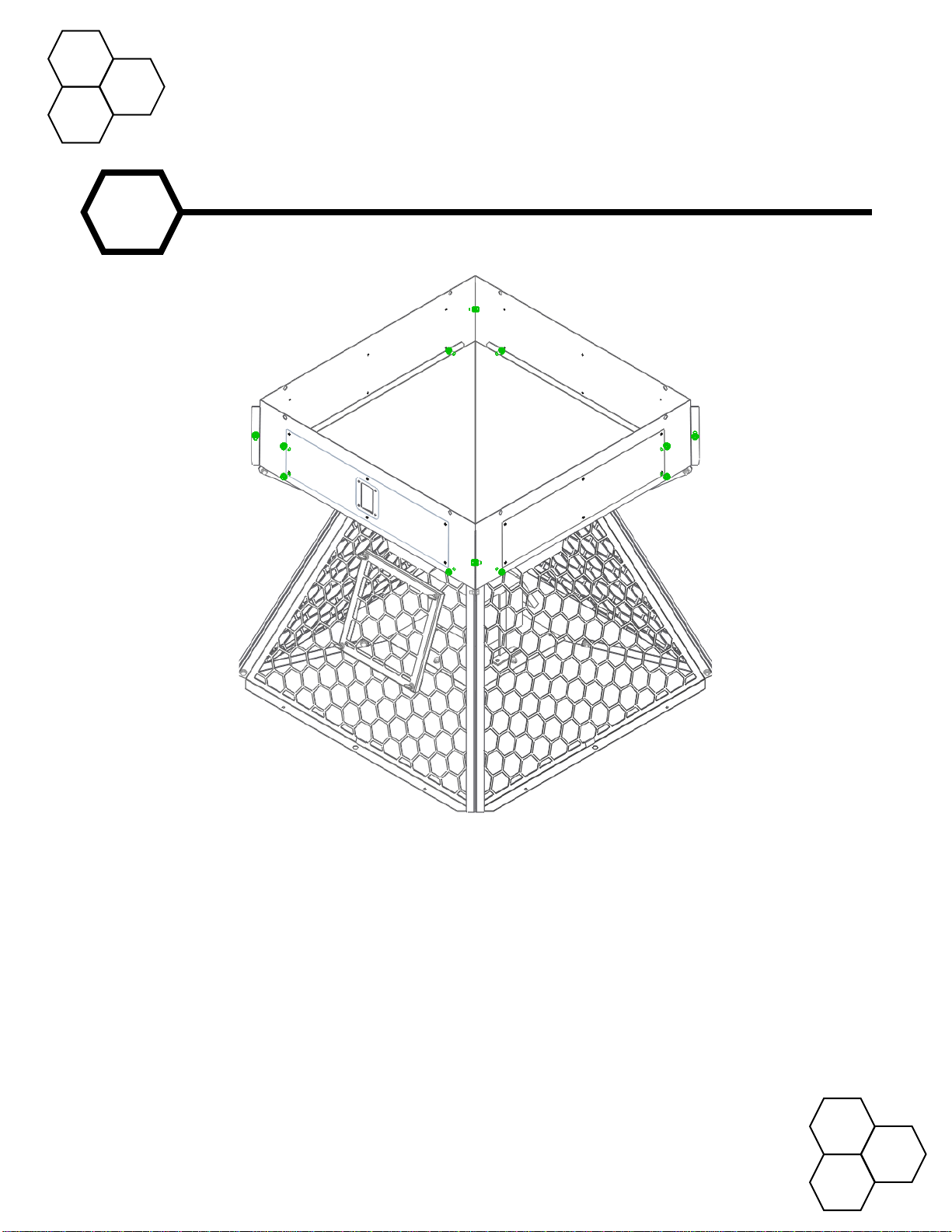

Parts
1x Feeder Assm with Bins
Process
Ensure all parts line up and tighten all hardware
4
Page - 8 MSC00510

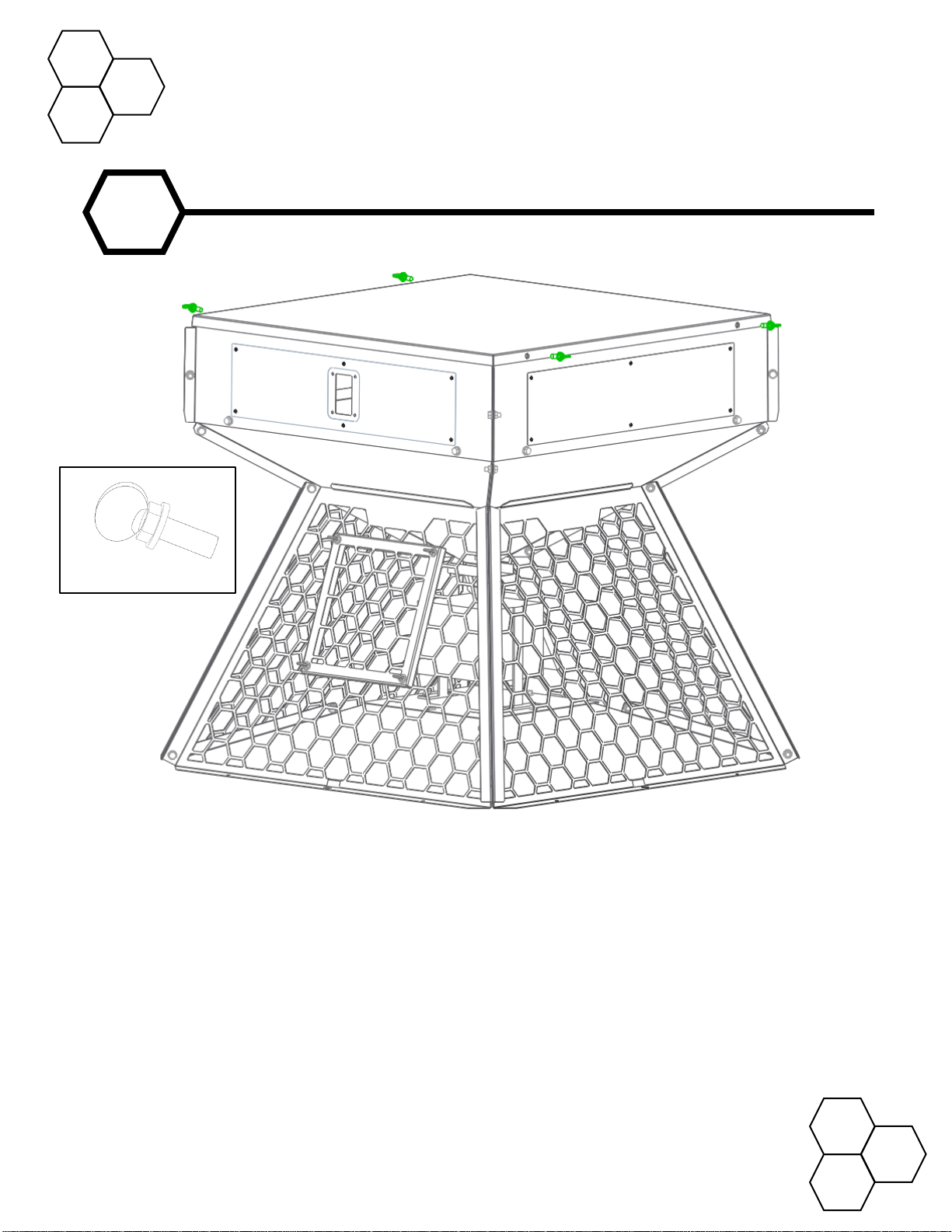

Parts
1x Feeder Top
4x 3/8-16 Flange nuts
4x 3/8-16 x 1-1/4 Thumb Screw
Process
Place the bin top on top of the feeder base assembly and line up the holes.
Use the thumb screws and nuts to attach the top
5
