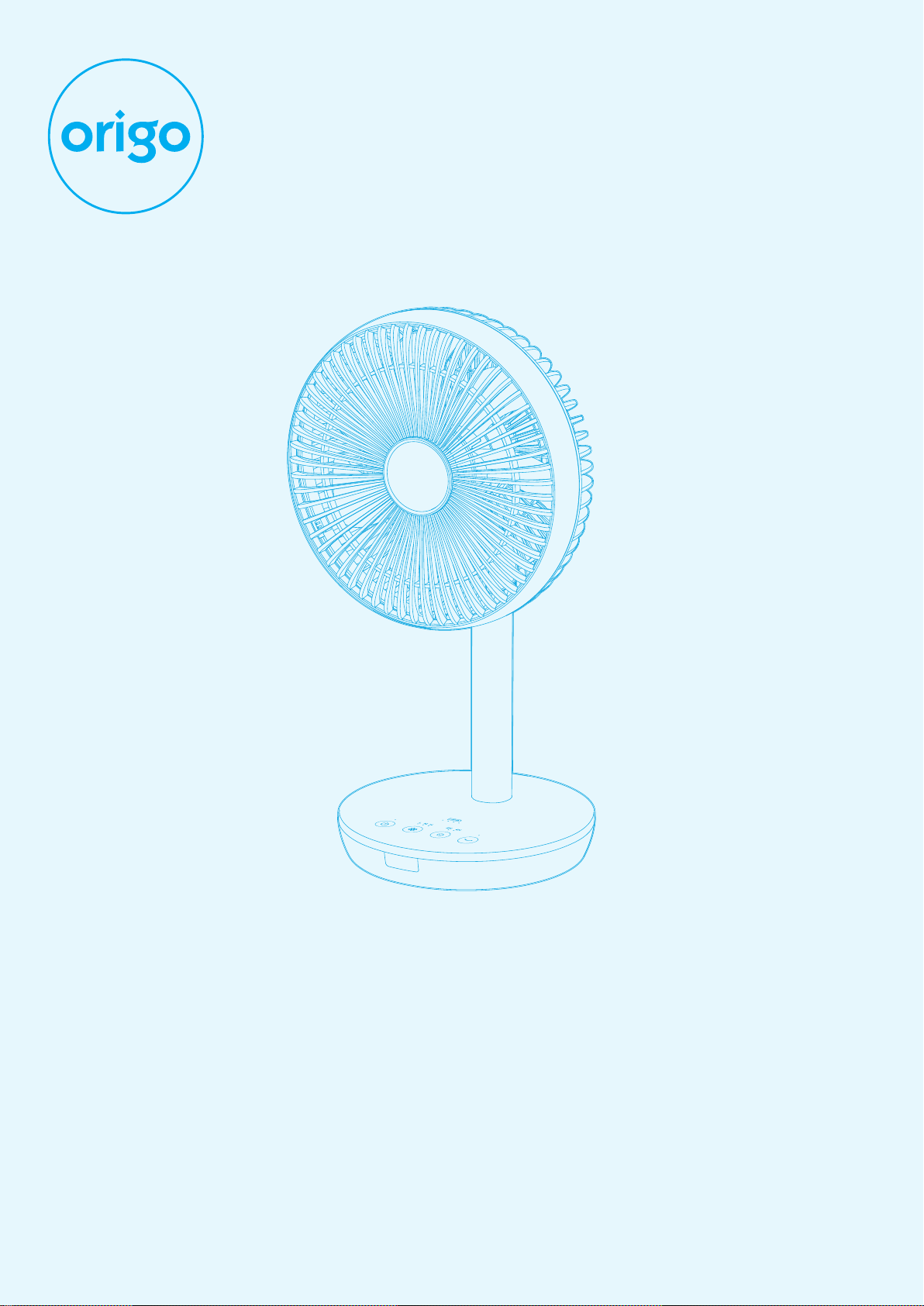

ORIGO SF1535 Manuel utilisateur

使用說明書

Instruction Manual

SF1535

使用風扇前，請先細閱使用說明，並請妥善保存以便將來翻閱。

本說明書可於本公司網站下載 www.origin.hk。

Read all instructions carefully before using the FAN, and keep this

instruction for furture reference when necessary.

This instruction manual can be acquired at www.origin.hk.

USB充電風扇

USB Rechargeable Fan

Important Safety Information

重要安全提示 USB充電風扇

USB Rechargeable Fan

包裝物料並非玩具，不可讓小孩玩耍。

Do not let children play parts

of package.

打開包裝，檢查風扇。如發現產品有

損壞，請勿使用及即時聯絡供應商。

Open the package and ensure

that the Fan is undamaged. In

case of doubt, do not use the

FAN and contact your supplier.

必須按照使用說明指示操作本風扇，

否則可能引致產品損壞、短路、火警

或人命損傷。

Use this Fan only as described

in this manual. Any other use

not recommended by the

manufacturer may casue fire,

electrical shock or injury to

persons.

使用本風扇前，請先細閱使用說明。

Read all instructions carefully

before using the Fan.

本機不是為體質、感覺或智力有障礙人

士(包括小孩)或缺乏經驗及知識者使用，

除非他們曾經接受負責安全人士的監督

或指示，大人應指導小孩不可把玩電器。

This appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and

knowledge, unless they have

been given supervision or

instruction concerning use of

the appliance by a person

responsible for their safety.

Children should be supervised

to ensure that they do not play

with the appliance.

本風扇不適用於室外及作工業用途。

This Fan is intended for

household use ONLY and not

for industrial or outdoor use.

本產品內置充電池，請使用本產品提

供的USB電源線替產品進行完全充電。

This Fan is driven by batteries.

Please use the USB cable

provided to fully charge the

product before use.

本產品內有鋰電池，禁止拆解、撞擊、

擠壓或投入火中。若出現嚴重鼓脹，

請勿繼續使用。請勿置於高溫環境。

This product contains a lithium

battery, and it is forhidden to

disassemble, hit, squeeze or

throw it into fire. Do not use if

severe swelling occurs. Do not

place in a high temperature

environment.

不可擅自拆卸、修理、改造本產品，

如有任何問題請先致電客戶服務中心。

Do not take this Fan apart

exposing electrical parts. Call

customer service for assistance

and guarantee information.

每存放三個月充電一次

，

避免電池損壞。

Make a charging when not use

the Fan for three months to

avoid damage of battery.

Important Safety Information

重要安全提示 USB充電風扇

USB Rechargeable Fan

不可在潮濕或有積水的環境使用，不

可將風扇擺放於浴缸或大型容器上面。

The Fan is not intended for

use in wet or damp locations.

Never locate the Fan where it

may fall into a bathtub or

other water container.

請保持清潔以維持風扇處於良好狀

態 (詳細請參閱清理及維護部份)。

Keep the Fan clean to maintain

in good condition (refer to

maintenance section).

切勿將

風扇

擺放在發熱源頭或火源附

近。

Do not place the

Fan

near a

source of heat or fire.

警告；清理前必須先拔除USB線及關

掉風扇。若風扇損壞，必須交由製造

商或其代理指定維修服務中心檢查及

修理。

WARNING: To avoid danger of

electric shock, unplug the USB

cable and switched off the

Fan when not in use and

before cleaning. If the Fan is

damaged, it must be replaced

by the manufacturer, its

service agent or similarly

qualified persons in order to

avoid hazard.

非使用風扇時請關掉風扇。

Do not leave the Fan

unattended. Always switched

off the Fan when not in use.

切勿將任何異物放入風扇內；或阻擋

風扇出風口及入風口，皆因以上一切

行為均可能導致風扇損壞。

Do not insert any objects into

the Fan as it may cause an

electric shock or damage.

Do not block or tamper with

the Fan in any manner while it

is in operation.

警告：開/關鍵不應作為切斷電源的用

途。

WARNING: The On/Off key

should not be used as the sole

means of disconnecting power.

Always unplug the USB cable

before servicing or moving the

unit.

如須移動風扇，請先拔除USB線及關

掉風扇。

Always switched off the Fan

and unplug the USB cable when

moving it from one location to

another.

本產品含有可回收材料，不可把

本產品作為未分類廢物。請聯繫

當地就近指定回收點。

This product contains

recyclable materials. Do

not dispose this product

as unsorted municipal

waste. Please contact your

local municipality for the

nearest collection.

移除網罩前

，必須確保風扇已關掉。

Ensure that the Fan is switched

off before removing the guard.

Main Parts

各部名稱

圖片只供參考

，

一切以實物為準

The picture is for reference only,

everything in kind shall prevail.

Control Panel

控制面板

Rear Grille

後網

Front Grille

前網

Air Oulet

出風口

Air Inlet

入風口

Power Input Port

電源輸入端口

USB Cable

USB線

USB充電風扇

USB Rechargeable Fan

Extension Knob

升降旋鈕

Function Setting

功能設定

1. 將風扇擺放於穩固的平面上，將USB線接駁到風扇底座電源輸入端口，再把USB線連接

到設備或充電使用。按下總電源開/關鍵" "，風扇會"嗶"聲響起，" "鍵指示燈亮

起，風扇已可使用。

1. Place the Fan on a stable and flat surface. Plug the USB cable into the power

input port of the Fan then plug the USB cable into a source of power or

charging use. Press the Main Power Switch Button" ", the Fan will have a

"beep" sound, " " key indicator light on, the Fan is ready to use.

4. 左右送風: 按左右送風鍵" "，風扇以自動左右搖擺模式送風。如欲停止自動左右搖

4. OSC(LEFT/RIGHT): Press the" " key to allow the Fan to LEFT/RIGHT oscillate

the wind direction. To stop the oscillation, press the key again.

擺送風，再按此鍵一次。

風扇可使用控制面板按鍵操控(如圖1)。

2.開/關:按開/關鍵" "，風扇以低檔啟動。

2. POWER: Turn the Fan ON by pressing the" " key, the Fan start at low speed.

6. 定時設置: 按定時設置鍵" "，選定3個不同的自動關機時間，分別為2、4、6小時，

LED顯示燈將會亮起。

6. TIMER: Press the" " key to set desired auto power off time. There are 3

time intervals, from 2,4,6-hour, LED indicator light will light on.

The Fan may be operated by the control panel (as shown in Figure 1).

圖1

Figure 1

開/關定時風速左右送風

TIMER

ON/OFF SPEED L/R OSC

圖片只供參考

，

一切以實物為準

。

The picture is for reference

only, everything in kind shall

prevail.

3. 風速: 按風速設定鍵" "，設定所需風速：低、中、高。LED顯示燈將會顯示風速。

3. SPEED: Adjust the Fan speed to the desired level: Low, Medium, High by

pressing" "key. The speed setting is displayed on the LED light.

USB充電風扇

USB Rechargeable Fan

5.上下角度調校：風扇可以手動方式調整上下送風方向 (上45 /下15 )。

5. UP/DOWN ANGLE ADJUSTMENT : Fan can be manually adjusted the up/down

wind direction (U45 / D15 ).

電源顯示燈

Power Indicator Light

總電源開/關鍵

Main Power

Switch Button

7. 關機：如需關機，按" "鍵，再按下總電源開/關鍵" "2次。

7. OFF: To turn off the Fan, press the " " key, then press the Main Power

Switch Button" " twice.

LL MM HH 2H2H 4H4H OSC

POWERPOWER

。。

Function Setting

功能設定

USB充電風扇

USB Rechargeable Fan

9. 充電 : 當低電量時，將USB線連接到設備(例如:電源適配器，充電器)，另一端連接到

風扇的電源輸入端口，為其供電及電池充電。

- 首次充電時間: 最少充電5小時30分鐘。

- 充電時電源顯示燈會不斷閃爍，充電完成時會長亮。

- 如本產品長期不使用時，建議每三個月充電一次，避免電池損壞導致產品不能使用。

(提示:只可使用DC5V 2A電源充電，否則會使充電池的壽命縮短。)

9. CHARGING: On low power, connect the USB cable to a device(e.g. Power

Adaptor, Power Bank), and the power input port of the Fan to provide

power for it and charge the battery inside.

- First charging time: At least 5 Hours 30 Mins.

- The power indicator light will be flash on when charging and light on

continuously when fully charged.

- It is recommended to charge it every 3 months to avoid battery damage

and affect product functions if the product is not working for a longtime.

(Reminder : Use power source only with DC5V 2A to charge, otherwise,

the life of rechargeable battery inside will be shortened.)

充電中

Charging

8. 充電/使用時間 :

充電時間: 約5小時30分鐘。

使用時間: 最長約9小時。

提示:根據電池壽命，充電池的使用時間會持續縮短。

8. CHARGING/USING TIME:

Charging Time: Approx. 5 Hours 30 Mins.

Using Time: Approx. 9 Hours (Max.).

Reminder : According to the battery life, the using time of the rechargeable

battery will be shortened continuously.

或/OR

充電完成

Fully Charged

圖片只供參考

，

一切以實物為準

The picture is for reference only, everything in kind shall prevail.

Specification

技術規格

Maintenance

清理及維護

輸入 Input

型號 Model Number

產品尺寸 Product Dimension

SF1535

193 x 169 x 370 mm (約/Approx.)

電池 Battery 3.7V Li-ion 4000mAh

警告：不使用風扇時，經常保持拔除電源，及切勿將風扇浸於水或其他液體中。在

清潔本風扇前，先將風扇關掉及把電源線從插座拔出。

House: Clean the outside of the Fan with a soft cloth, to remove presistent dirt

or grime wipe down with a cloth that has been dampened with warm soapy

water.

注意：切勿使用含有腐蝕性的清潔劑或溶液清理風扇。

儲存：連同使用說明，把風扇存放於清涼及乾爽的地方。

WARNING: ALWAYS UNPLUG THE POWER CORD BEFORE MOVING OR SERVICING.

DO NOT IMMERSE THE FAN IN WATER! BEFORE CLEANING, MAKE SURE THAT

THE UNIT HAS BEEN SWITCHED OFF AND IT IS UNPLUGGED FROM THE MAIN OUTLET.

外殼：清理時切勿將風扇浸於水或其他液體中。使用濕潤軟布抹擦清潔，頑固污垢可用

軟布沾上含肥皂的溫水抹擦。

CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc., as they

will damage the Fan. NEVER use ALCOHOL or any other SOLVENTS.

STORAGE: Store the Fan with these instructions in the original box in a cool and

dry place.

USB充電風扇

USB RechargeableFan

5V 2A

Origin Map

源澤地圖

辦公時間

10:30am - 12:30pm (星期一至五)

02:30pm - 05:30pm (星期一至五)

10:30am - 12:30pm (星期六)

(星期日及公眾假期休息)

OFFICE HOURS

10:30am - 12:30pm (Mon to Fri)

02:30pm - 05:30pm (Mon to Fri)

10:30am - 12:30pm (Saturday)

(Closed on Sunday and Holiday)

USB充電風扇

USB RechargeableFan

產品保用証(一年自攜服務)

產品: USB充電風扇

型號: SF1535

www.origo.hk

Item : USB Rechargeable Fan

Model : SF1535

www.origo.hk

Warranty Card(1 year carry-in)

此產品由購買日期起計算，本公司將根據下列條款及細則，提供一年保養服務(商業用享為3個月):

1. 於購買後一年內，經本公司技術員判斷為正常運作下損壞之產品，可獲免費維修和/或零件更換。

2. 以下情況不被包括在保養範圍內：

- 若產品是因為濫用、錯誤使用、疏忽及/或意外而遭致損壞；

- 未經授權之自行處理、維修及/或改裝；

- 任何機殼、前網、扇葉、USB線，以及配件之損毀或括花。

3. 需要檢查或維修時，請將產品送往本公司服務中心，並於修理妥當後自行取回。

4. 更換後之任何損壞零件，均屬本公司所有。

5. 本保養服務只適用於香港特別行政區。

6. 顧客必須同時出示零售商之正式發票，方可得到免費維修服務。

*** 額外3個月保用: 凡於購買產品後10天內完成網上登記，即可免費延長保用期3個月，即15個月免費保用

(商業用途除外)。請即登入網站: www.origo.hk

服務中心

源澤市務有限公司

香港新界葵涌青山公路403號(近華星街12號)匯城集團大廈21樓H室

電話: 2156 8238

www.origo.hk

This product is warranted for 1 year (commercial use for 3 months) from the date of purchase

under the following conditions:

1. For any defect, in the judgment of our technician, if it is caused under normal use, we are

responsible for repairing the product, and/or replacing parts at free of charge.

2. This warranty DOES NOT apply to:

- If the product has been damaged through abuse, misuse, negligence or accidents;

- Unauthorized repair, alteration/modification;

- Any damage or scratch on the housing, front guard, blade, USB cable or accessories.

3. The customer is requested to bring the unit to and from our Service Centre whenever

service is needed.

4. Any defective parts, which had been replaced, shall be of our property.

5. This warranty is valid in H.K.S.A.R. only.

6. Please show the Invoice to get free service.

***Extra 3 months warranty: just complete Online Warranty Registration within 10 days from

the date of receipt, free warranty will be extended to 15 months (not applicable to commercial

use). Plaese enter our website: www.origo.hk

Service Centre

ORIGIN MARKETING LIMITED

Unit H, 21/F., Reason Group Tower (nearby 12 Wah Sing Street),

403 Castle Peak Road, Kwai Chung, N.T., Hong Kong.

Tel: 2156 8238

USB充電風扇

USB Rechargeable Fan

Table des matières

Autres manuels ORIGO Ventilateur

ORIGO

ORIGO Crudus TF-29T Manuel utilisateur

ORIGO

ORIGO Crudus TF301 Manuel utilisateur

ORIGO

ORIGO DF1520 Manuel utilisateur

ORIGO

ORIGO CF-1601 Manuel utilisateur

ORIGO

ORIGO TF-B35 Manuel utilisateur

ORIGO

ORIGO CF-1311 Manuel utilisateur

ORIGO

ORIGO TF-146L Manuel utilisateur

ORIGO

ORIGO CF1510 Manuel utilisateur

ORIGO

ORIGO CF-30M Manuel utilisateur

ORIGO

ORIGO FTF36-LED Manuel utilisateur

ORIGO

ORIGO Carbi CF-S609 Manuel utilisateur

ORIGO

ORIGO CF1731 Manuel utilisateur

ORIGO

ORIGO CF1618 Manuel utilisateur

ORIGO

ORIGO CF-1721 Manuel utilisateur

ORIGO

ORIGO SF1622 Manuel utilisateur

ORIGO

ORIGO TF-292RC Manuel utilisateur

ORIGO

ORIGO Brevis TF-M15 Manuel utilisateur

ORIGO

ORIGO DF1525 Manuel utilisateur

ORIGO

ORIGO DF-M05 Manuel utilisateur

ORIGO

ORIGO CF-618M Manuel utilisateur

ORIGO

ORIGO CF-1403 Manuel utilisateur

ORIGO

ORIGO CF1532 Manuel utilisateur

ORIGO

ORIGO SF1620 Manuel utilisateur

ORIGO

ORIGO BF-C01 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
