Data Setter OPX-2A

BXⅡ Series

OPERATING MANUAL

Thank you for purchasing an Oriental Motor product.

This Operating Manual describes product handling procedures and safety precautions.

Please read it thoroughly to ensure safe operation.

Always keep the manual where it is readily available.

Table of contents

1 Safety precautions ...............................2

2 Introduction ..........................................3

3 Preparation ..........................................4

3.1 Checking the product ............................ 4

3.2 Names and functions of parts ............... 4

3.3 How to read the display ......................... 5

3.4 How to read the LED indicators ............ 5

3.5 Types of operation modes ..................... 5

3.6 Basic operations of the OPX-2A ........... 6

3.7 Edit lock function ................................... 7

3.8 Rewriting the driver’s non-volatile

memory ................................................. 7

4 Installation and connection of the

OPX-2A ...............................................8

4.1 Location for installation ......................... 8

4.2 Installation method ................................ 8

4.3 Connecting to the driver ........................ 9

4.4 Error display on OPX-2A screen ........... 9

5 When using the product with the

speed control mode ...........................10

5.1 Screen transitions ............................... 10

5.2 Monitor mode ...................................... 14

5.3 Data mode ........................................... 18

5.4 Parameter mode ................................. 20

5.5 Test mode ............................................ 22

5.6 Copy mode .......................................... 25

6 When using the product with the

position control mode ........................28

6.1 Screen transitions ............................... 28

6.2 Monitor mode ...................................... 32

6.3 Data mode ........................................... 37

6.4 Parameter mode ................................. 38

6.5 Test mode ............................................ 39

6.6 Copy mode .......................................... 42

7 Parameter ..........................................43

Safety precautions

−2−

1 Safetyprecautions

The precautions described below are intended to prevent danger or injury to the user and other personnel through safe,

correct use of the product. Use the product only after carefully reading and fully understanding these instructions.

Also read the "Safety precautions" sections in the USER MANUAL that came with the product you are combining

with the OPX-2A.

Handling the product without observing the instructions that accompany a "Warning"

symbol may result in serious injury or death.

Handling the product without observing the instructions that accompany a "Caution"

symbol may result in injury or property damage.

Note

The items under this heading contain important handling instructions that the user should

observe to ensure safe use of the product.

General

Do not use the product in explosive or corrosive environments, in the presence of ammable gases, locations

subjected to splashing water, or near combustibles. Doing so may result in re, electric shock or injury.

Assign qualied personnel the task of installing, wiring, operating/controlling, inspecting and troubleshooting the

product. Failure to do so may result in re, electric shock or injury.

When the driver’s protective function is triggered, rst remove the cause and then clear the protective function.

Continuing the operation without removing the cause of the problem may cause malfunction of the motor and

driver, leading to injury or damage to equipment.

Repair, disassembly and modication

Do not disassemble or modify the data setter. This may cause electric shock or injury. Refer all such internal

inspections and repairs to the branch or sales ofce from which you purchased the product.

General

Do not use the motor, gearhead and driver in conditions exceeding the specications. Doing so may result in

electric shock, injury or damage to equipment.

Operation

Provide an emergency stop device or emergency stop circuit so that the entire equipment will operate safely in the

event of a system failure or malfunction. Failure to do so may result in injury.

Disposal

Dispose the product correctly in accordance with laws and regulations, or instructions of local governments.

Introduction

−3−

2 Introduction

Only qualied personnel should work with the product.

Use the product correctly after thoroughly reading the section "1 Safety precautions" on page.2.

The product described in this manual has been designed and manufactured to be incorporated in general industrial

equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused

through failure to observe this warning.

 Overviewoftheproduct

The OPX-2A is a data setter that lets you set operation data and parameters, perform monitoring, etc.

Use the OPX-2A properly and safely after thoroughly reading the "BXⅡ Series USER MANUAL" and understanding

the basic operating procedures and other details.

 FeaturesofOPX-2A

The OPX-2A can be used to save data in addition to setting of operation data and parameters.

There are four destinations (data banks) to save data.

OPX-2A

Data bank 1

Data bank 0

Data bank 2

Data bank 3

Driver

Set operation data and parameters.

Up to 4 sets of operation data and

parameters can be saved.

Copy any one of the four

sets to the driver.

The OPX-2A can be used for the following purposes:

Operation data and parameters of the driver can be set.

The operating status of the motor can be monitored.

Operation data and parameters set in the driver can be saved to the OPX-2A.

Operation data and parameters saved in the OPX-2A can be copied to other drivers.

 Specications

Connection Mini DIN, 8 pins

External dimensions 96 (W)×72 (H)×21.5 (D) mm

[3.78 (W)×2.83 (H)×0.85 (D) in.]

Cable length 5 m (16.4 ft.)

Mass 0.25 kg (8.8 oz)

 RoHSDirective

The products do not contain the substances exceeding the restriction values of RoHS Directive (2011/65/EU).

Preparation

−4−

3 Preparation

This chapter explains the items you should know before using the OPX-2A.

3.1 Checkingtheproduct

Verify that the items listed below are included. Report any missing or damaged items to the branch or sales ofce

from which you purchased the product.

Data setter OPX-2A...................................... 1 unit

Information ................................................... 1 copy

3.2 Namesandfunctionsofparts

Display

This area shows the motor position,

operation data, parameters, alarms, etc.

LED indicators

These LED indicators are used to indicate

the operation mode of the OPX-2A and

the driver status.

Use this button to select data or change

the displayed item or move to the lower

level.

Use this button to change the operation

mode or move to the upper level.

Use these buttons to change the selected item or set data and parameters.

Use these buttons to increase or decrease the value or change the selected item.

Use these buttons to navigate through each data or parameter to a desired digit.

 Notation

In this manual, keys are denoted by symbols, such as .

In gures, a simplied illustration of the display and LED indicators is used, as shown below.

Preparation

−5−

3.3 Howtoreadthedisplay

The display consists of 7-segment LEDs. (The number "5" and alphabet "S" are the same.)

1234567890

• Numbers

• Signes

• Alphabets

B C D E F G H I J K L

M N O P Q R S T U V W Y

3.4 HowtoreadtheLEDindicators

When the operation mode is changed or an alarm or warning generates, a corresponding LED will be lit.

While the motor is operating or the edit lock function is enabled, the condition is also indicated by the illumination of

a corresponding LED.

Lit in the copy mode

Lit in the test modeLit in the parameter mode

Lit in the data mode

Lit in the monitor mode

Lit while an alarm is present

Lit while a warning is present

Lit while the motor is operating Not used

Lit while the edit lock function is enabled

Not used

3.5 Typesofoperationmodes

The OPX-2A has multiple operation modes. The operation

mode will change every time the key is pressed.

The display starts in the monitor mode when the power is

turned on.

When the operation mode is changed, the LED indicator

corresponding to the previous mode will turn off and the one

corresponding to the new mode will be lit. Identify the present

operation mode based on the LED indicator currently lit.

Monitor mode

(MON)

Copy mode

(COPY)

Test mode

(TEST)

Parameter mode

(PAR)

Data mode

(DATA)

The mode changes

every time the key

is pressed.

Preparation

−6−

3.6 BasicoperationsoftheOPX-2A

Use the six keys to set data and operate the motor.

 Operationow

The OPX-2A is operated according to the ow shown below.

Level 2: Item selection screen Level 3Level 1: Top screen in each mode

Use the

key to navigate

through the

modes.

Use the

key to move

to the lower level.

toUse

move to the

previous item.

toUse

move to the

next item.

Use the

key to move

to the upper level.

1. Use the key to select a desired operation mode appropriate for your intended operation.

Example: If you want to use a function in the test mode, press the key to select the test mode (indicated by

a lit "TEST" LED).

The top screen of the test mode is displayed.

2. Press the key to move to the lower level.

3. Use the keys to select a desired item.

4. To move to the lower level, press the key. To return to the previous level, press the key.

As explained above, use the key to navigate through the levels and use the keys to select a desired

item. This is the basic operation ow.

Note If the key is pressed while the driver performs the internal processing, the screen cannot

change to any lower level from the top screen, and "mEm-bUSY" is displayed.

Be sure to wait until all internal processing is completed, before pressing the key.

Preparation

−7−

 Howtoinputvalues

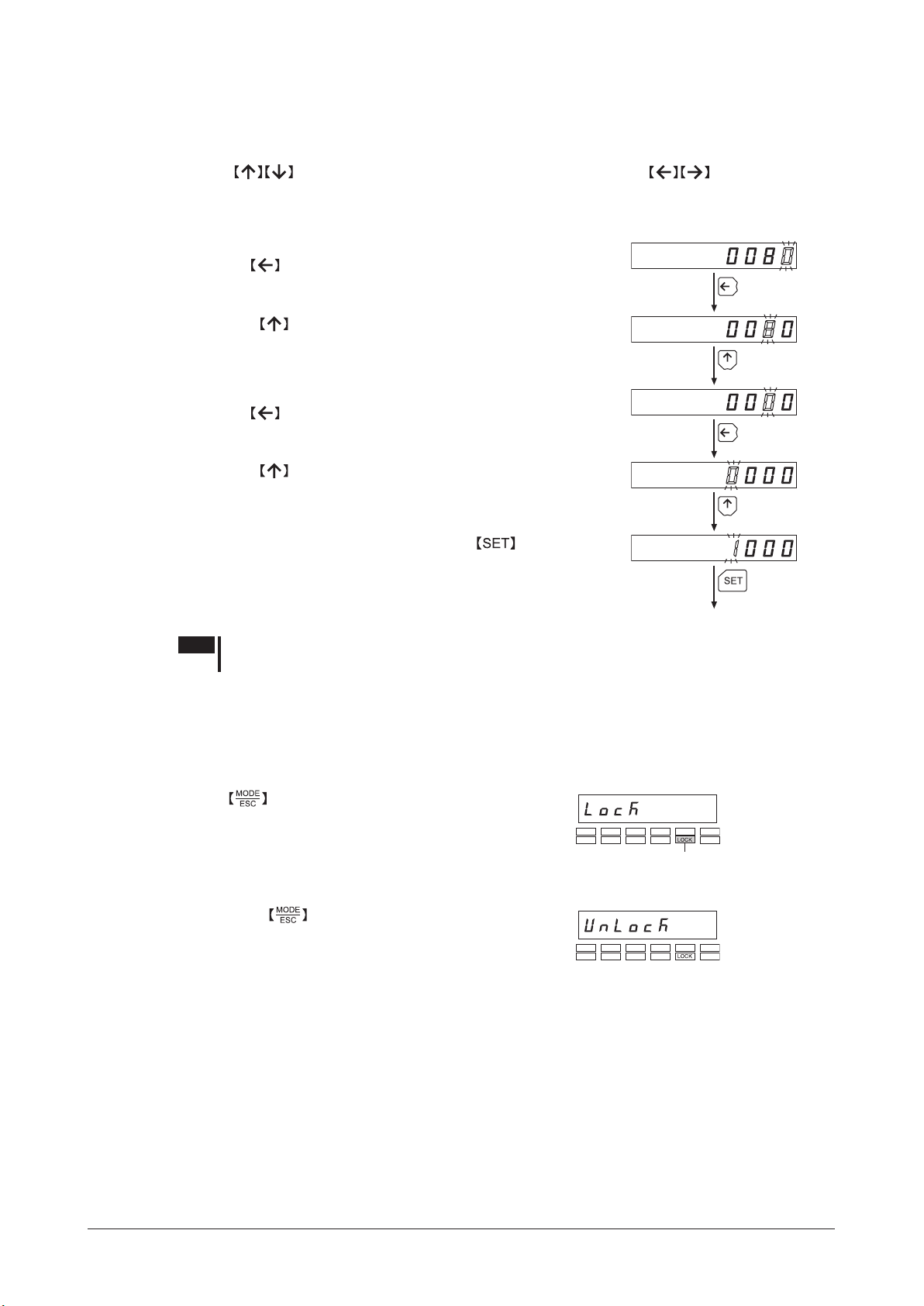

As an example, how to change the rotation speed from "80" r/min to "1000" r/min is explained.

Basic operations

Use the keys to increase/decrease the value or change the sign. Use the keys to move to the

digit you want to edit.

If positive and negative values are differentiated, each value is preceded by a sign.

The digit currently blinking can be edited.

1. First, change the 10’s place from "8" to "0."

Press the key once to move to the 10’s digit you want to edit.

Determined

Once

Twice

Once

2. Press the key twice to change the value to "0."

3. Next, change the 1000’s place from "0" to "1."

Press the key twice to move to the 1000’s digit you want to edit.

4. Press the key once to change the value to "1."

5. After all digits have been changed, press the key to

determine the value.

All digits comprising the value blink for approximately 2 seconds.

Note If the value you have input is outside the setting range, "Error" will be displayed for 1 second. If this error

display appears, input a different value that falls within the setting range.

3.7 Editlockfunction

Enable the edit lock function if you want to prevent operation data and parameters from being edited or cleared.

Operation data and parameters cannot be changed or deleted while the edit lock function is enabled.

 Setting the edit lock function

Press the key for at least 5 seconds on the top screen in each

mode.

The display will show "LocK" and the edit lock function will be

enabled.

The "LOCK" LED in the LED indicator area will also be lit.

"LOCK" lit

 Canceling the edit lock function

Again, press the key for at least 5 seconds on the top screen in

each mode.

The display will show "UnLocK" and the edit lock function will be

cancelled.

The "LOCK" LED in the LED indicator area will turn off.

3.8 Rewritingthedriver’snon-volatilememory

Operation data and parameters are saved to the driver’s non-volatile memory. The non-volatile memory can be

rewritten approximately 100,000 times. The non-volatile memory will be rewritten after one of the following

operations is performed:

Edit any operation data or parameter

Download data from the OPX-2A to the driver

Initialize driver operation data and parameters

Installation and connection of the OPX-2A

−8−

4 Installationandconnectionofthe

OPX-2A

4.1 Locationforinstallation

The OPX-2A is designed and manufactured to be incorporated in equipment.

Install it in a well-ventilated location that provides easy access for inspection. The location must also satisfy the

following conditions:

Inside an enclosure that is installed indoors (provide vent holes)

Operating ambient temperature 0 to +40 °C (+32 to +104 °F) (non-freezing)

Operating ambient humidity 85% or less (non-condensing)

Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid

Area not exposed to direct sun

Area free of excessive amount of dust, iron particles or the like

Area not subject to splashing water (rain, water droplets), oil (oil droplets) or other liquids

Area free of excessive salt

Area not subject to continuous vibration or excessive shocks

Area free of excessive electromagnetic noise (from welders, power machinery, etc.)

Area free of radioactive materials, magnetic elds or vacuum

1000 m (3300 ft.) or less above sea level

4.2 Installationmethod

Using a metal plate of 1 to 3 mm (0.04 to 0.12 in.) in thickness, insert the OPX-2A into the mounting hole from the

front side and securely attach it.

92 +0.8

0 (3.62 )

+0.031

68 +0.7

(2.68 )

+0.028

• Dimension of mounting hole [mm (in.)]

Removing method

Press all of the four hooks provided on top and bottom of the OPX-2A.

In this condition, press the OPX-2A forward to release.

Hook

Installation and connection of the OPX-2A

−9−

4.3 Connectingtothedriver

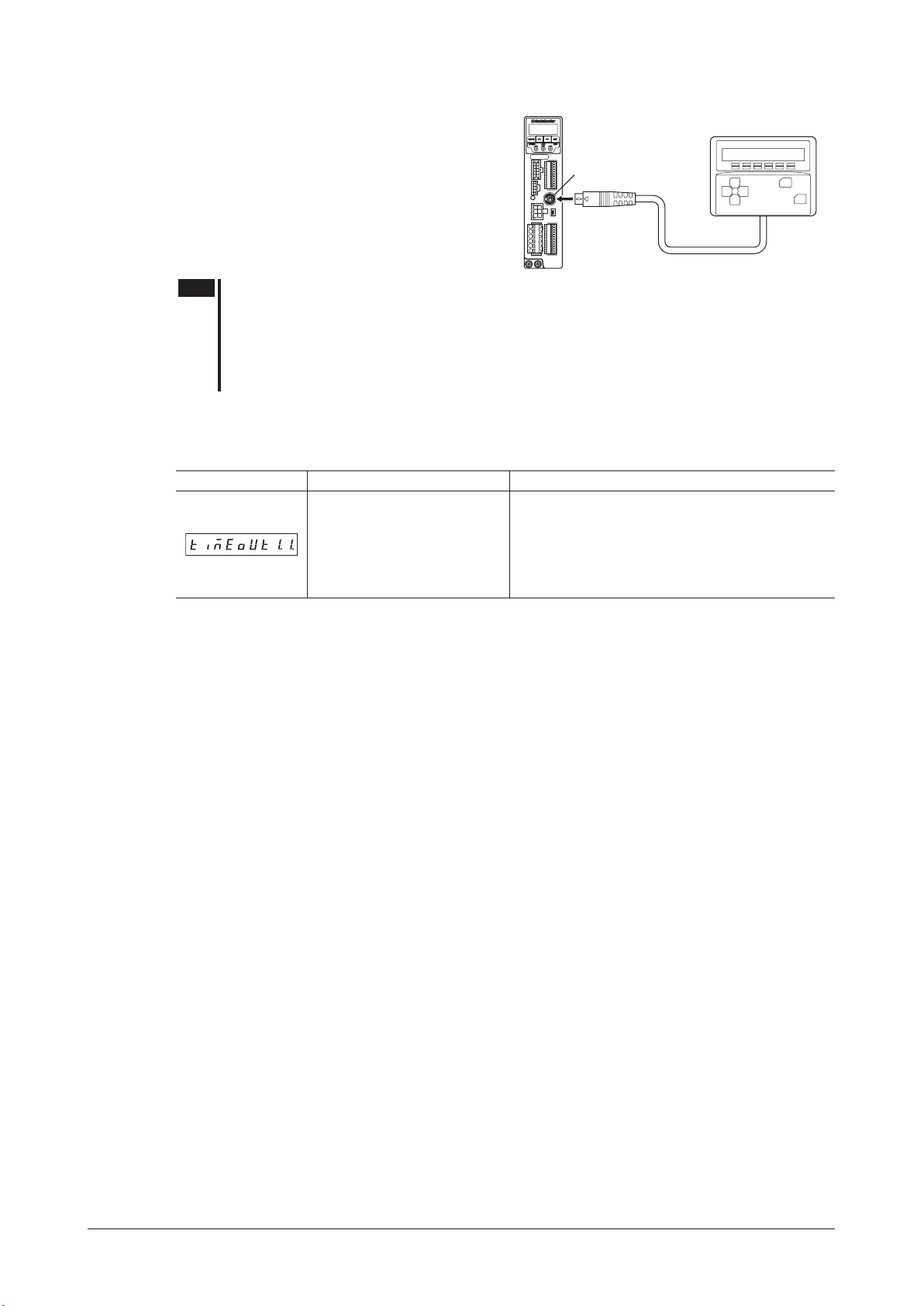

Plug the connector attached to the end of the OPX-2A

cable into the data edit connector (CN6) on the driver, and

then turn on the power to the driver. Data edit connector

(CN6)

Note

When operation data and parameters are set on the OPX-2A, they will be stored in the driver.

Once stored in the driver, the data will not be cleared even after the OPX-2A is disconnected

from the driver.

Turning on the power to the driver will also turn on the power to the OPX-2A. Turning off the

driver power will turn off the OPX-2A power.

Turn off the driver power before connecting or disconnecting the OPX-2A cable.

4.4 ErrordisplayonOPX-2Ascreen

The following error message is displayed on the OPX-2A screen.

Error display Description Remedial action

A communication error occurred

between the OPX-2A and driver.

Check if the OPX-2A is connected securely.

Check if the OPX-2A cable is disconnected or

damaged.

The OPX-2A or the communication part of the driver

may have damaged. Contact your nearest Oriental

Motor sales ofce.

When using the product with the speed control mode

−10−

5 Whenusingtheproductwiththe

speedcontrolmode

5.1 Screentransitions

Speed

Load factor

Operation data number

Warning

I/O monitor

Monitor mode

Top screen

Input monitor

Output monitor

External voltage monitor

Warning record 1 (latest)

Warning record 10 (oldest)

Clear warning records

Alarm

Alarm record 1 (latest)

Alarm record 10 (oldest)

Alarm reset

Clear alarm records

Execute

(blinking)

Execute

(blinking)

Execute

(blinking)

Control mode

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Oriental motor Contrôleurs

Oriental motor

Oriental motor EZ limo ESMC-K Manuel utilisateur

Oriental motor

Oriental motor EMP400 Series Manuel utilisateur

Oriental motor

Oriental motor DRL Series Manuel utilisateur

Oriental motor

Oriental motor DR Series Manuel utilisateur

Oriental motor

Oriental motor alphaSTEP ARL Series Manuel

Oriental motor

Oriental motor Astep AZ Series Manuel utilisateur

Oriental motor

Oriental motor FSC-24 Manuel utilisateur

Oriental motor

Oriental motor SCX11 Manuel d'installation et d'exploitation

Oriental motor

Oriental motor DSC Series Manuel utilisateur

Oriental motor

Oriental motor DG Series Manuel utilisateur

Oriental motor

Oriental motor FLEX RK II Series Manuel utilisateur

Oriental motor

Oriental motor EZ limo EZHS Series Manuel utilisateur

Oriental motor

Oriental motor DG Series Manuel utilisateur

Oriental motor

Oriental motor AZ Series Manuel utilisateur

Oriental motor

Oriental motor ASTEP AZ Series Manuel utilisateur

Oriental motor

Oriental motor CRD514-KD Manuel du propriétaire

Oriental motor

Oriental motor OPX-2A Manuel utilisateur

Oriental motor

Oriental motor LIMO EZS Series Manuel utilisateur

Oriental motor

Oriental motor CRK Series Manuel du propriétaire

Oriental motor

Oriental motor EAS Series Manuel utilisateur

Oriental motor

Oriental motor Astep AZ Series Manuel utilisateur

Oriental motor

Oriental motor EAS Series Manuel utilisateur

Oriental motor

Oriental motor DGII Series Manuel utilisateur

Oriental motor

Oriental motor AZ Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
