Oregon Scientific BAR623PU Manuel utilisateur

Easy Barometer Projection Clock

Model: BAR623P / BAR623PU

User Manual

BAR623P_EN_R4.p65 8/7/04, 2:28 PM19

P/N:086L003564-068 REV1

1/146

Alarm ...................................................................... 11

View Alarm Settings .......................................... 11

Set Alarm ........................................................... 11

Activate Alarm ................................................... 11

Silence Alarm .................................................... 12

Weather Forecast .................................................. 12

Temperature .......................................................... 13

Select Temperature Unit .................................... 13

Minimum / Maximum Records ........................... 13

Moon Phase ........................................................... 13

Backlight ................................................................ 13

Reset System ........................................................ 14

Projection Unit ...................................................... 14

Safety and Care ..................................................... 14

Warnings ................................................................ 14

Troubleshooting .................................................... 15

Specifications ........................................................ 16

Main Unit Dimensions ....................................... 16

Remote Sensor Dimensions ............................. 16

Temperature ...................................................... 16

Remote Sensor (THN122N) .............................. 16

Clock / Projector ................................................ 16

Power ................................................................ 17

About Oregon Scientific ....................................... 17

EC-Declaration of Conformity .............................. 18

CONTENTS

Contents ................................................................ 1

Introduction ........................................................... 2

Product Overview ................................................. 2

Front View ......................................................... 2

Back View ......................................................... 3

LCD Display ...................................................... 4

Remote Sensor (THN122N) .............................. 5

Getting Started ...................................................... 6

Batteries ............................................................ 6

AC Adaptor ........................................................ 7

Change Settings ................................................ 7

Remote Sensor (THN122N) .................................. 8

Setup Sensor .................................................... 8

Data Transmission ............................................ 9

Search for Sensor ............................................. 10

Clock ...................................................................... 10

Turn Clock ON / OFF ........................................ 10

Set Clock / Calendar ......................................... 11

Switch Clock Display ......................................... 11

Barometer Projection Clock

Model: BAR623P / BAR623PU

User Manual

BAR623P_EN_R4.p65 8/7/04, 2:28 PM1

P/N:086L003564-068 REV1

2/146

INTRODUCTION

Thank you for selecting the Oregon Scientific™

Barometer Projection Clock (BAR623P / BAR623PU).

This device bundles precise time keeping with a

projection clock, weather forecast, and indoor and

outdoor temperature monitoring features into a single

tool you can use from the convenience of your home.

In this box, you will find:

• Main unit with projection clock

• Main unit batteries, 3 x UM-3 (AA) 1.5V

• Main unit 4.5V AC / DC adaptor with jack

• Remote sensor (THN122N)

• Remote sensor batteries, 2 x UM-4 (AAA) 1.5V

Keep this manual handy as you use your new product.

It contains practical step-by-step instructions, as well as

technical specifications and warnings you should know.

PRODUCT OVERVIEW

FRONT VIEW

1. SNOOZE / LIGHT button

2. and : Increase or decrease setting / activate

or deactivate RF Clock

3. MODE: Change display / settings

4. : View alarm status; set alarm

5. : Press to activate or deactivate alarm

6. Clock and outdoor temperature projector unit

7. LCD display

BAR623P_EN_R4.p65 8/7/04, 2:28 PM2

P/N:086L003564-068 REV1

3/146

BACK VIEW

1. Projector FOCUS knob

2. Projector IMAGE ROTATION knob

3. PROJECTION ON / OFF switch

4. AC / DC adaptor plug cover

5. Battery compartment (cover off)

6. SEARCH button to locate the remote sensor

7. MEM: View current, maximum, and minimum

temperature readings

8. switch

9. RESET hole

10. Battery compartment (cover on)

11. Fixed table stand

BAR623P_EN_R4.p65 8/7/04, 2:28 PM3

°C / °F

P/N:086L003564-068 REV1

4/146

LCD DISPLAY

1. Weather display

2. Radio Frequency (RF) reception icon

3. Alarm activated

4. Alarm setting

5. Time

6. Indoor temperature

7. Low battery icon for main unit

8. °C / °F (Outdoor temperature)

9. Sensor signal

10. Low battery icon for sensor

11. Outdoor temperature

12. Calendar

13. Moon Phase

BAR623P_EN_R4.p65 8/7/04, 2:28 PM4

P/N:086L003564-068 REV1

5/146

REMOTE SENSOR (THN122N)

1. Wall mount hole

2. RESET hole

3. CHANNEL number (1-3)

4. Battery compartment

(Battery compartment cover not shown)

1. LED status indicator

BAR623P_EN_R4.p65 8/7/04, 2:28 PM5

P/N:086L003564-068 REV1

6/146

UNIT LOCATION

Main Indoor Temperature Area

Remote Outdoor Temperature Area

Installing the batteries:GETTING STARTED

BATTERIES

Batteries are supplied with this product:

Main unit 3 x UM-3 (AA) 1.5V batteries

Remote unit 2 x UM-4 (AAA) 1.5V batteries

Insert batteries before first use, matching the polarity

(+ and -) as shown in the battery compartment. For best

results, install batteries in the remote sensor before the

main unit. Press RESET after each battery change.

NOTE Do not use rechargeable batteries.

shows when batteries are low.

NOTE It is recommended that you use alkaline batteries

with this product for longer performance.

BAR623P_EN_R4.p65 8/7/04, 2:28 PM6

P/N:086L003564-068 REV1

7/146

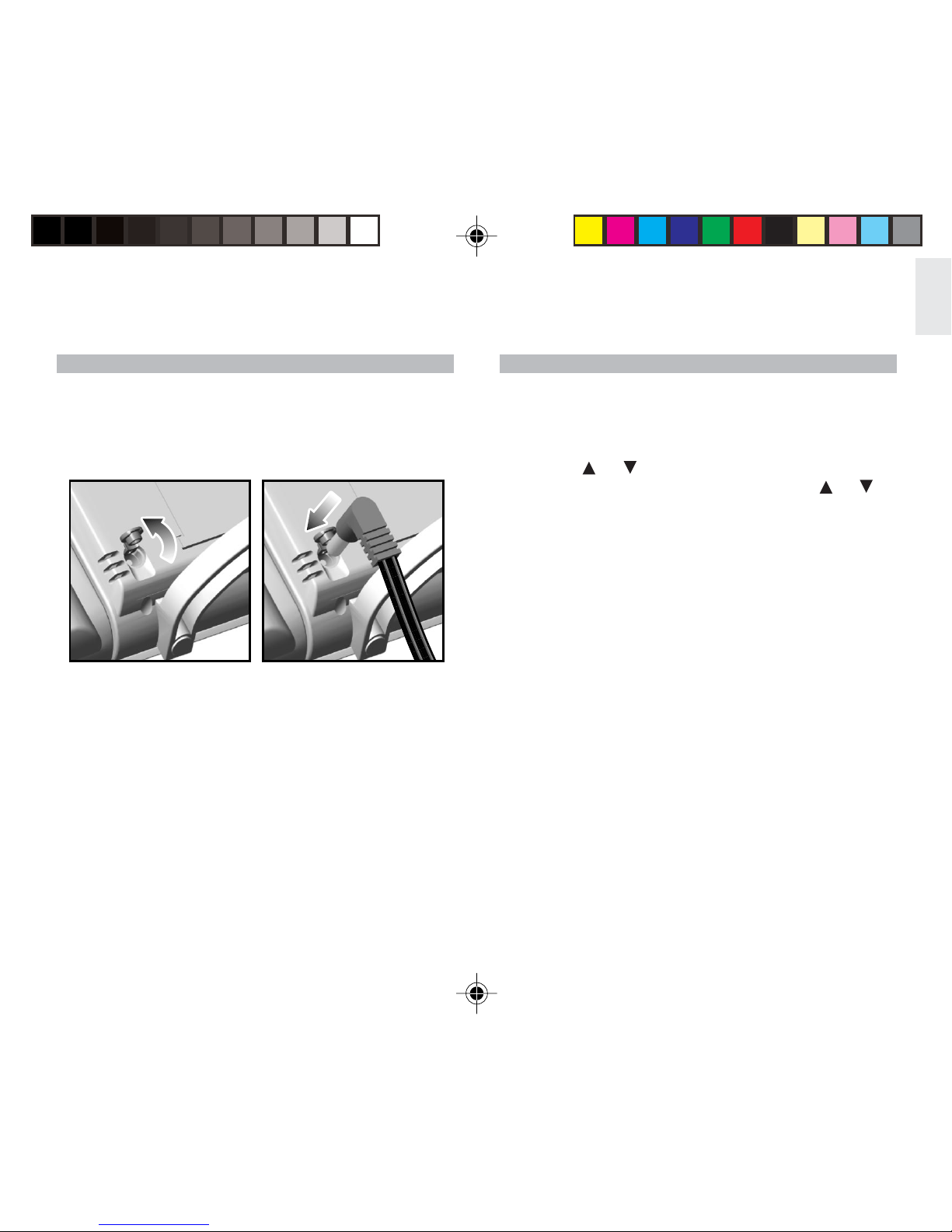

AC ADAPTOR

The main unit has a 4.5V AC / DC adaptor with jack,

which provides continuous clock / temperature projection.

Inserting the adaptor:

CHANGE SETTINGS

To change, time, calendar and language settings:

1. Press and hold MODE for 2 seconds to enter setting

mode.

2. Press or to change settings. (To reach the

setting you want quickly, press and hold or .)

3. Press MODE to confirm.

BAR623P_EN_R4.p65 8/7/04, 2:28 PM7

P/N:086L003564-068 REV1

8/146

Installing the batteries:

REMOTE SENSOR (THN122N)

This product is shipped with a THN122N Thermometer

Sensor that collects Temperature data. The main unit

can be connected to only 1 remote sensor.

SETUP SENSOR

1. Open the remote sensor battery compartment with

a small Phillips screwdriver.

2. Insert the batteries, matching the polarity (+ and -)

as shown in the battery compartment.

3. Set the channel switch to any channel. The switch is

located in the battery compartment.

4. Place the sensor near the main unit. Press RESET

on the sensor. Then, press and hold SEARCH on

the main unit to initiate signal sending between the

sensor and the main unit. The reception icon on the

main unit will blink for approximately 3 minutes while

it is searching for the sensor. (Refer to the Sensor

Data Transmission section for more information.)

5. Close the remote sensor battery compartment.

6. Secure the sensor in the desired location using the

wall mount or table stand.

Using the stand or wall mount:

BAR623P_EN_R4.p65 8/7/04, 2:28 PM8

P/N:086L003564-068 REV1

9/146

For best results:

• Insert the batteries and select the channel before

you mount the sensor.

• Place the sensor out of direct sunlight and

moisture.

• Do not place the sensor more than 30 metres

(98 feet) from the main (indoor) unit.

• Position the sensor so that it faces the main

(indoor) unit, minimizing obstructions such as

doors, walls, and furniture.

• Place the sensor in a location with a clear view

to the sky, away from metallic or electronic

objects.

• Position the sensor close to the main unit during

cold winter months as below-freezing

temperatures may affect battery performance and

signal transmission.

You may need to experiment with various locations to

get the best results.

DATA TRANSMISSION

Data is sent from the sensor every 40 seconds. The

reception icon shown in the Temperature Area shows

the status.

ICON

The sensor cannot be

found. Search for the

sensor or check batteries

--- show in Outdoor

Temp Area

DESCRIPTION

Main unit is searching

for the sensor

A Channel has been

found

BAR623P_EN_R4.p65 8/7/04, 2:28 PM9

P/N:086L003564-068 REV1

10/146
