Oreck ProShield® Plus Air Purier
Other Oreck accessories available at:
Other Oreck accessories available at:
Congratulations on your purchase of the Oreck ProShield
series air purier. This user’s guide describes the features of
the Oreck ProShield®Plus Air Purifier.
Welcome to our Call. Click. customer service program. To
speak with an Oreck representative call:
Enjoy
Click
Call
USA: 1•800•989•3535
Canada: 1•888•676•7325
On the web, point and click at: www.oreck.com
or visit www.oreck.com and click locate a store on
the top right.
Canada: www.oreckcanada.com
1
Safety
IMPORTANT SAFETY
INSTRUCTIONS
!
General Warnings
CAUTION!
• Only use the air purier as described in this user’s guide.
Failure to do so may result in serious injury or death.
• Do not use the air purier with a damaged cord or plug.
Doing so may result in electric shock, serious injury or
death. Have a qualied service technician replace any
damaged cords or plugs.
• Do not handle the unit with wet hands. Doing so may result
in electrical shock, serious injury or death. Thoroughly dry
your hands before handling any part of the air purier.
• Hair, loose clothing and body parts may get caught in the
machine resulting in injury. Keep hair, loose clothing and
body parts away from openings and moving parts.
• Do not unplug by pulling on the cord. Doing so may result
in electrical sparks and re. Unplug the unit by grasping,
and pulling the plug.
• The Oreck ProShield Series is equipped with an ALCI
(Appliance Leakage Current Interrupter). The ALCI shuts
off the unit in potentially hazardous situations.
Note: The ALCI has a Test and Reset button which should
be tested each time the unit is plugged in.
Do not remove the tag which provides test instructions from
around the cord at the ALCI.
Note: A polarized plug has one
rounded prong and one straight prong.
The rounded end goes into the
longest socket slot.
RESET
(Red)
TEST
(Gray)
2
DANGER: Improper installation of ALCI can result in
electric shock.
Do not modify or bypass the ALCI. Do not replace any
electrical component in this product with anything other
than an authorized ORECK replacement part. The risk of
electric shock can result if used in the vicinity of improperly
grounded stationary appliances (stove, refrigerator, washer,
etc.).
• Do not use an extension cord.
• Do not place the air purier near sources of heat, such as
stove tops, ovens, radiators or computers.
WARNING!
!
• Do not use the air purier outdoors or on wet surfaces.
Doing so may result in electric shock, serious injury or
death. Use only indoors and under dry conditions.
• Do not use the air purier in an enclosed space where
ammable, combustible or explosive gases are present.
• Do not use in an area where toxic vapors, ammable dust
or oxygen tanks are present. Doing so may result in serious
injury or death. Check the location and make sure these
elements are not present.
Placement Warnings
SAVE THESE
INSTRUCTIONS
CAUTION!
• Do not place open ames, including candles, directly in
front of the air purier.
• Keep objects away from the air intake grille.
It is important to consider the following when deciding on
where to locate the air purier:
• Position the air purier on a at, solid, stable surface.
Never place the unit on soft surfaces such as a bed or sofa.
• Position the air purier where the dirty air is not drawn
across your head or body while sitting or sleeping.
• Position the air purier so the plug on the power cord easily
reaches a standard electrical outlet for a polarized plug.
3
Features
1. Pre-Filter: Filter large particles such as dust, hair and lint.
2. Cleaning brush: Use to clean the front and back grilles.
Stores snuggly in the compartment under the cover.
3. Helios Shield®& Catalytic Oxygenator: This component
combines technologies to reduce ozone and odors from the
air that passes through its lter. It cannot be removed.
4. Truman Cell®: Electrostatically charges and collects
small particles such as dust, smoke, pollen, molds, and
other allergens from the air that passes through the ter.
5. Exhaust Grille: Directs the ow of air as it exits the unit.
6. Power Cord: Plug into the outlet to begin use.
7. Removable Base: Allows the air purier to stand vertically.
Simply stand the unit on its base with the Oreck logo facing
front and the control panel buttons at the top.
8. Night Light: The right end will softly glow when the night
light is activated. The logo will illuminate when the unit
is sitting on its base, or serve as a night light on the front of
the unit.
9. Cover Release Button: Press in to release the cover for
maintenance access.
10. Truman Cell®Light: A solid red light is included as a
handy reminder to clean the Truman Cell® after 30 days. A
blinking light indicates a malfunction that has caused the
Truman Cell® to shut down and requires attention.
11. Speed Indicator Light: Lighting starts from the center
for the lowest motor speed to all ve lights for full motor
speed.
12. Odor Control: This button turns the Helios Shield® on or
off as desired. If turned off, the unit will continue to lter
particles from the air that passes through the lter, though
the odor-reducing capability will be turned off.
13. Motor Speed/Power Button: Press the power button
repeatedly for the desired speed.
• Low for Silence Technology®. It’s the quietest
operation.
• Medium for normal use
• High for maximum cleaning
14. Night Light Button: Repeatedly press this button to change
the lighting scheme to best suit your preference.
4
5
9
7
3
14
15
1
2
6
13
15. Front Grille: Air enters here for the rst stage of cleaning.
16. Remote Control: Remotely turns the Power ON/OFF,
adjusts the Odor Control feature, Motor Speed and Night
Light. Use these buttons in the same procedure as the unit.
4
8
10
11
12
16
5
Position
so that the air is not
drawn across the
head or body.
3
1
2
Operation
1. Place. Locate the air purier on a hard surface such as
a table or desk. The unit can be placed horizontally or
vertically depending on your space. Be sure the grille is not
blocked by other objects and there are no candles or ames
near the unit.
2. Plug In. Plug into nearest standard electrical outlet that
accepts a polarized plug.
3. Select the air cleaning speed. Press the motor speed/power
button until you reach the desired speed.
6
WARNING!
!
Cleaning
Cleaning the unit while it is plugged in may result
in electric shock, electric spark and serious injury.
Unplug the unit before cleaning or maintenance.
Cleaning Intervals
Proper care and cleaning of the air purier is critical to
performance. The following chart shows the cleaning intervals
and method.
Part Cleaning
Time
Method
Cabinet As needed Wipe with damp cloth rst.
If required, follow with mild,
non-abrasive cleaner.
Truman Cell®2 to 4
weeks
Spray Oreck Assail-A-Cell®
cleaner or soak in warm water
or warm water with mild liquid
detergent. Rinse.
Pre-Filter 2 to 4
weeks
Rinse thoroughly in warm
water or as needed.
Air Direction
Grille
As needed Use the brush provided with the
air purier to brush away debris
in between the slots.
Catalytic
Ozone
Converter
As needed Vacuum the front surface gently
with a soft brush attachment.
Do not use any liquids for
cleaning.
7

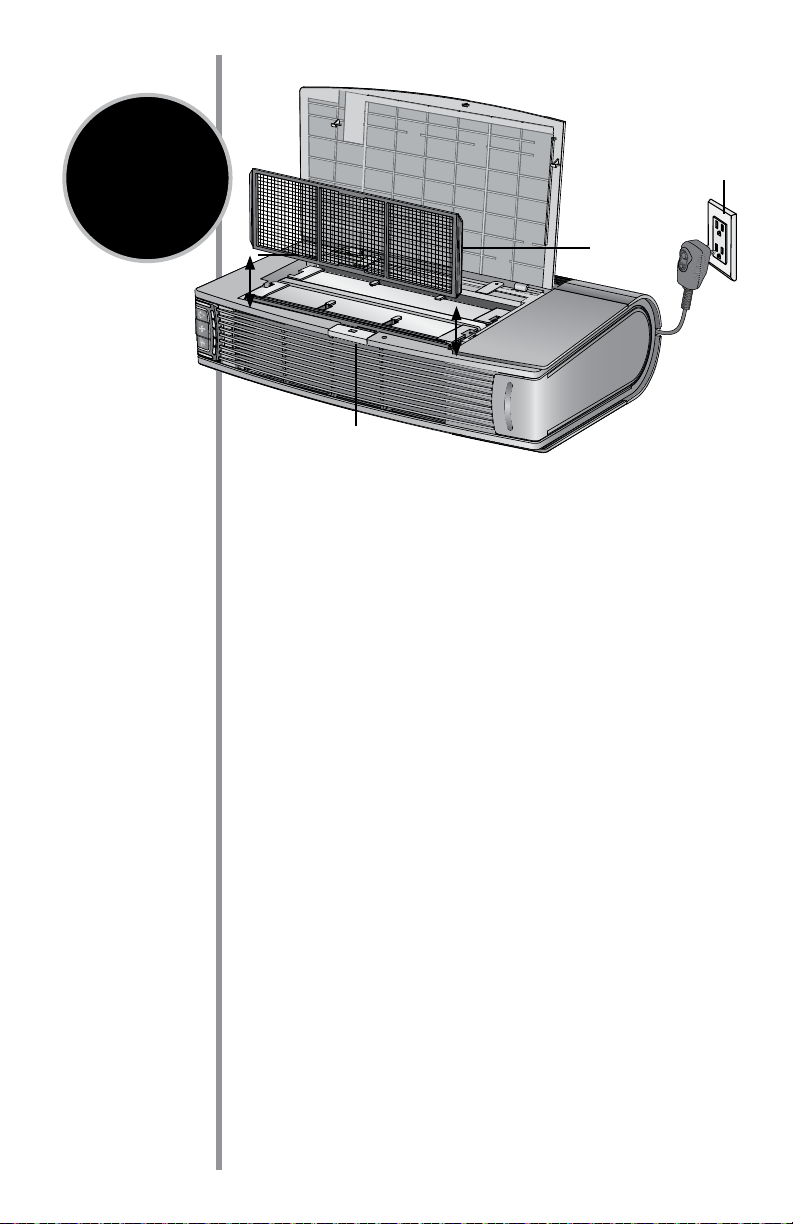

Cleaning the Pre-Filter
1. Unplug the air purier and lay it on its side with the hinged
cover on top.
2. Open the Top Cover by pressing the Cover Release button.
3. Pull the Pre-Filter straight up and out of the Cabinet.
4. Thoroughly rinse the Pre-Filter and let it air dry before
placing it back in the Cabinet. Do not use heated or com-
pressed air as part of the drying process.
5. Slide the Pre-Filter back into the unit.
6. Close the Top Cover securely.
The
air purier
will not run if the
Top Cover is not
closed securely.
2
1
3
5
Cleaning the Truman Cell®
Note: The Truman Cell may require more frequent cleaning if
“arcing” occurs. Arcing is a sharp snapping sound that occurs
when large particles are collected in the Truman Cell®. If pro-
longed or continuous arcing occurs the Truman Cell® should be
cleaned.
1. Unplug the air purier and lay it on its side with the hinged
cover on top.
2. Open the Top Cover by pressing the Cover Release button.
3. Remove the Truman Cell® by pulling up on the handle
(located across the top), lifting it straight up and out.
4. Place in sink, bathtub or other location where cleaner can
cover every surface.
8
5. Spray Oreck Assail-a-Cell® cleaner between each Cell Plate
and cover each surface. Allow the cleaner to soak for a few
minutes but do not let it dry. Thoroughly rinse the Truman
Cell® with clean water.
An alternative method to clean the Truman Cell® is to rinse
or soak it in warm water for loose debris. Mild liquid dish
detergent in water may also be used to help break down
tough dirt and residue. Thoroughly rinse the Truman Cell®
with clean water.
Note: To prevent damage to the components of the Truman
Cell®, do not put in dishwasher or use a cotton swab.
Tough residue such as tar from tobacco smoke may need
additional cleaning or longer soaking.
6. Shake excess water from the Truman Cell® to speed up
drying time. Do not use heated or compressed air to dry.
7. Place the Truman Cell® back into the unit by sliding it
straight down into the slots. The Truman Cell® is specially
designed so that it can only be inserted in one direction.
8. Close the Top Cover securely.
Oreck’s
Assail-a-Cell®
cleaner is an
excellent way to
clean the
Truman Cell®.
1
3
5
7
2
