Orbit 58322 Manuel utilisateur

Assembly And operAting

instructions for your

orbit®HeAvy-duty

trAveling sprinkler

Model 58322

1. Sprinkler assembly

Begin by inserting the black plastic T into the top

of the sprinkler. Twist the long silver spray arms

into the T, tightening the black rings until the

spray arms are held securely in place.

Correct–sprinkler will move forward

Wrong–sprinkler will move backwards

Wrong–sprinkler will not move

Arm Position Path

15’ Wide

30’ Wide

45’ Wide

55’ Wide

2/3”

1”

1/3”

3/4”

1/4”

1/2”

3/16”

1/4”

High

Low

High

Low

High

Low

High

Low

Inches of Water Speed

Chart calculated using 5/8” hose up to 200’ long with average water pressure of 40 psi.

5/8” Hose

Diameter

Max.

Travel

Length

Average Travel Speed

(feet per hour)

High

Gear Max.

Low

Gear Min.

High

Gear

Low

Gear

Approximate

Water Application

Area

Coverage

Distance may vary depending on hose weight.

Standard

Traveler 200’ 37’ 21’ 1/4” 1/2” 55’ 13,500 54’ 11,900

Max.

Width

Max.

sq.ft.

Effective

Width

Effective

sq.ft.

2. Positioning the arms

Positioning the spray arms correctly will ensure

proper operation of your sprinkler. Move each

spray arm individually to adjust watering diam-

eter from a minimum of 15 feet to 55 feet.

Wrong–sprinkler will not move

For narrow spray coverage, move the arms so

they are pointing slightly downward.

For wide spray coverage, move the arms so they

are pointing upward approximately 30 degrees.

For windy conditions, move the arms to a hori-

zontal position.

Pointing the arms too far downward will cause

the arms to become stuck and immobilize the

sprinkler.

3. Setting up the hose

Lay up to 200 feet of 5/8” hose in any pattern you

select on lawn that is fully grown–the sprinkler

may not work on new or recently seeded lawns.

Begin by creating at least a three-foot loop with

the end of the hose to prevent pinching when

connecting to the sprinkler. Do not create sharp

turns in the hose pattern.

4. Positioning the shut-off ramp

The shut-off ramp may be used at any point

along the hose pattern to stop the sprinkler.

Place the automatic shut-off ramp over the hose

where you want the sprinkler to stop, ensuring a

minimum of 5 feet of straight hose on either end

of the ramp.

5. Hooking up the sprinkler

Set the sprinkler on the hose so that the front tire

is on the hose and the back wheels are on either

side. Make sure the sprinkler is facing the direc-

tion you would like it to go. Hook up the hose to

the rear of the sprinkler.

6. Setting the sprinkler’s speed

Select a traveling speed by pulling up on and

rotating the dial on the top of the sprinkler. The

sprinkler will travel from 0 to 37 feet per hour

based on setting.

High: Select this speed for faster movement

and light watering

Low: Select this speed for slower movement

and heavier watering

Neutral: Select this speed for no movement;

the sprinkler will remain stationary

and water a designated area.

7. Running the sprinkler

Pull out the stopper underneath the sprinkler

between the back wheels and turn on the water

supply. The sprinkler will move at the speed

indicated along the hose track, stopping when

its shut-off plunger contacts the ramp stop.

Direction of Travel

8. Stopping the sprinkler

When the sprinkler comes in contact with the

shut-off ramp, the incline causes the stopper to

be pushed up, stopping the sprinkler.

9. Moving the sprinkler

Before repositioning the hose and moving the

sprinkler to another part of the lawn, be sure to

turn off the water ﬁrst. Eliminate excess pressure

from the hose and pull the sprinkler’s stopper

back out before beginning again in a new area.

It will be very difﬁcult to move the stopper back

down if water pressure remains in the hose.

10. Cleaning up

To keep the Orbit®Heavy-Duty Traveling

Sprinkler operating within peak parameters,

be sure that the ﬁlter washer at the hose

coupling and the spray arms remain clean and

unblocked. Consistently drain the sprinkler after

each use by standing it on end for at least ﬁve

minutes to ensure all water is eliminated from

the sprinkler’s interior.

11. Preventing sprinkler damage

Use caution when picking up and moving the

sprinkler–dropping it could potentially result

in damage to the sprinkler or its parts. Do not

force the sprinkler to move faster or slower

along the track while it is in operation. Do not

let the sprinkler become mired in thick grass or

mud. Be sure there are no objects blocking the

path of the sprinkler. The sprinkler is designed

to move across grass only–never attempt to use

the sprinkler on concrete driveways, sidewalks,

or other hard surfaces. Doing so may result in

severe damage to the motor assembly.

NOTICE: This .pdf file should not

be used as the source to create

final, printed pieces of the file it

represents. Rather, it is a low

resolution visual reference only

containing relevant information

regarding the file (e.g., color, text

and image placement, etc.)

Check out the collection of outdoor tools and equipment we offer.

Autres manuels Orbit Système d'irrigation

Orbit

Orbit Behlman INV-1200 Series Manuel d'utilisation et d'entretien

Orbit

Orbit ST2-RF Manuel utilisateur

Orbit

Orbit 56448 Manuel utilisateur

Orbit

Orbit WaterMaster 57674 Manuel utilisateur

Orbit

Orbit DripMaster Manuel utilisateur

Orbit

Orbit 20050 Manuel utilisateur

Orbit

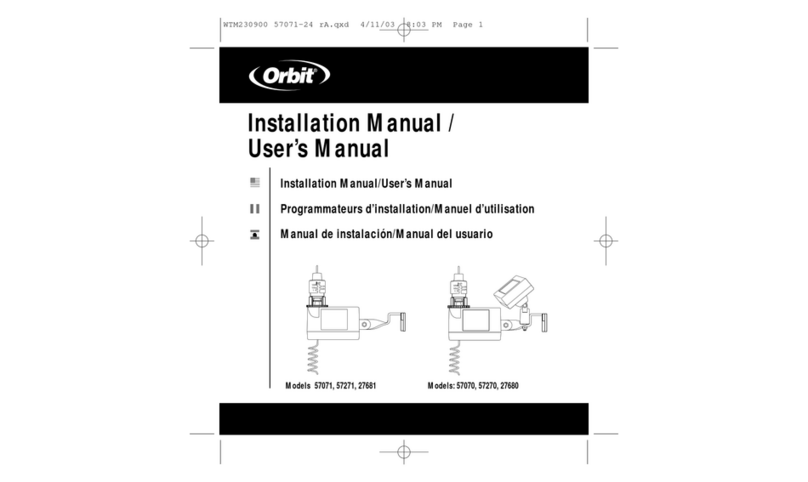

Orbit 57071 Mode d’emploi
