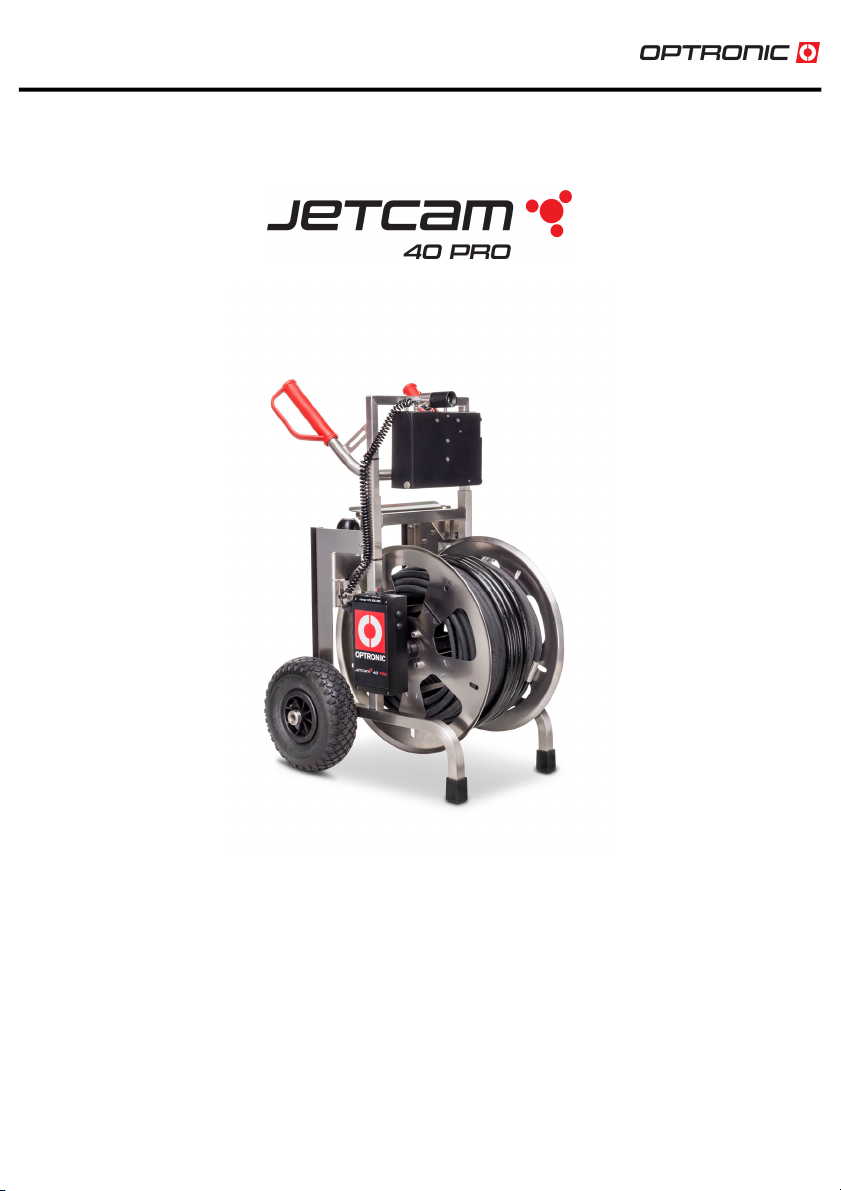

OPTRONIC JetCam 40 Pro Manuel utilisateur
Operating instructions
www.optronic.de
Page 2
Contents:
Preface:
Page 3
Warnings
Page 4
Quality characteristic
Page 4
Component description
Page 5- 6
Data sheet
Page 7- 10
Instructions for use
Page 11
Preparation
Page 12
Preparatory measures before starting work
Page 13- 14
Commissioning
Page 15
Inspection using the JetCam
Page 16 / 17
Straight sections
Page 16
Elbows
Page 17
Branches, T-pieces
Page 17
Moving over soiling / obstacles
Page 17
Pipe cleaning
Page 17
Maintenance, cleaning the nozzle inserts
Page 18
Working with accessories / options
Mechanical
Front jet Page 19
Electronic
Locating transmitter
Page 20
WIFI
Page 20
Digital recorder
Page 20 / 21
Remote control
Page 20
Recording
button
Page 21
Main menu
Page 22
Page 3
Preface:
Please read through these instructions for use carefully.
It contains valuable instructions on correct use of the JetCam, but also tips for
effective operation.
We wish you all the best when using it.
Team OPTRONIC
Page 4
Warnings:
·
For cleaning, do not use any high-
pressure cleaners
·
Do not place any heavy objects on the
device
·
Do not perform repair work by yourself,
consult an authorised customer service
otherwise the
manufacturer guaranteed shall be
invalidated!
·
Do not use if the hydraulic hose is
damaged.
·
This system must be disposed of in a
professional manner and must not be
disposed of with domestic waste.
Quality characteristic:
Components of the JetCam such as camera head, impact guard, steering part,
high-pressure hose may have minimal scratch marks when delivering the JetCam,
this can be noticed in particular with stainless steel parts such as the nozzle.
These marks are the result of our end test.
Page 5

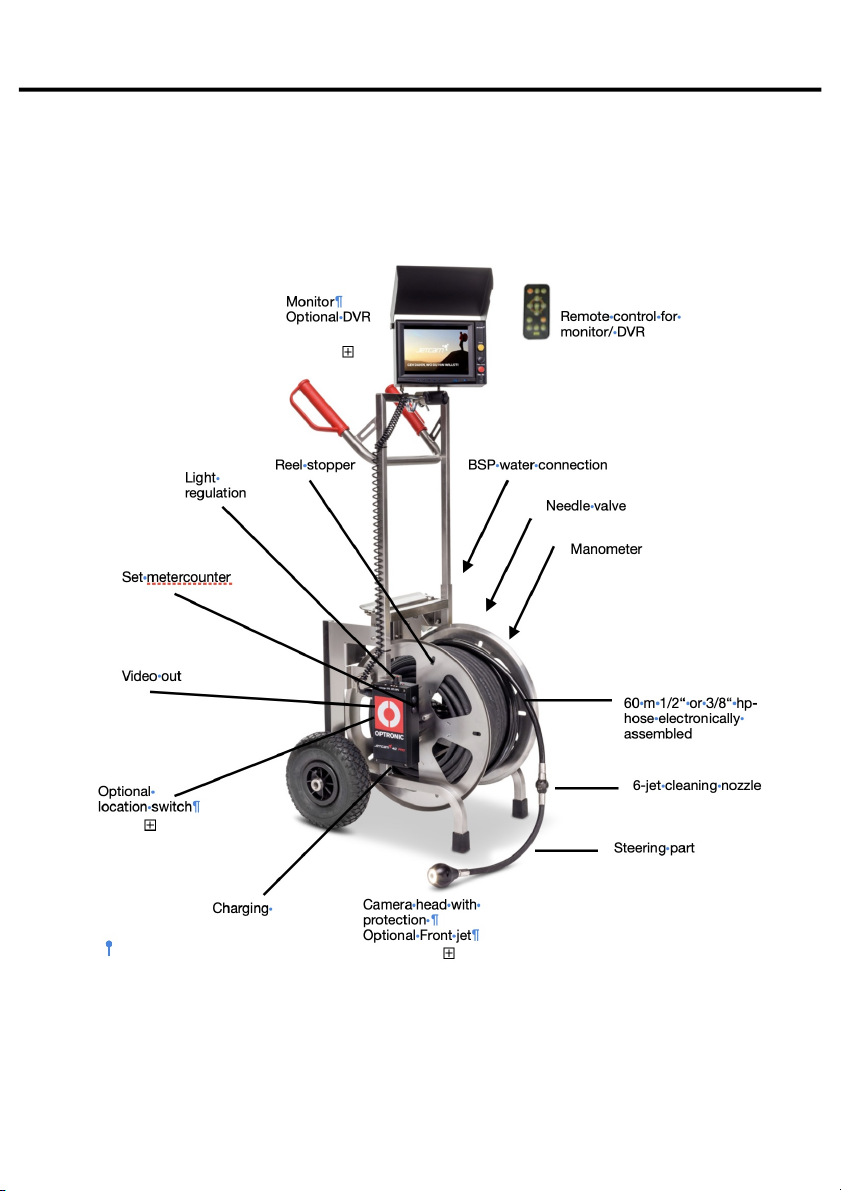

Component description:
Page 7
Data sheet
Reel with:
1/2“ connection with BSP female thread
Needle valve for water regulation
Reel brake with guide holes
Hand crank for winding the hose
Pneumatic tyres for easy transport
Slide rails for easy loading and unloading
Control unit with:
Protection class IP64
Light control
Battery display
Standart meter counter
Accessory bag with:
2 m power supply cable (230 V AC—15 V DC)
BNC cable 20 50 Ohm RG58C/U
2x socket key set
Weight
Dimensions, out
Dimensions, in
approx. 45 kg
L/W/H 59x59x114cm
L/W/H 59x59x62cm
Page 8
Rechargeable
battery
Voltage: 11.1 V DC
Charging voltage: 15 V DC
Output: 5200 mAh (for approx. 4-5 operating hours)
Charging time: min. 5 hours
Possible hazards
Lithium-Ion batteries are sealed gas tight and are harmless as long as
they are used and handled in line with the manufacturer regulations.
Warning
Never use battery chargers that are not intended for the battery type!
Do not short-circuit. Do not damage mechanically (puncture, deform, dismantle,
etc.) Do not heat above the permissible temperature or burn. Keep batteries away
from smaller children. Always store batteries dry and cool.
Observe the safety information!
JetCam colour CCD camera
For nominal widths:
Elbow sizes from:
Enclosure:
Image sensor:
Resolution:
Optic:
Light sensitivity:
Lighting:
Focus:
Ambient temperature:
Storage temperature:
TV system:
DN 40 - 300
DN 50
Stainless steel d=32 mm, l=50 mm
1/4“ colour C-Mos
400 TV lines
Wide angle 145°
0.1 Lux at F1.2
9 high-performance LEDs
From approx. 25 mm to œ
Approx. –10 to + 45°C
Approx. –30 to + 60°C
PAL
Page 9
Steering part
High-pressure hose
Surface hardened highly abrasion-resistant high-pressure hose, pre-
assembled electrical equipment
NW 10 (3/8“) 60 m
NW 12 (1/2“) 60 m
Screen and recording
6-jet cleaning
nozzle
6 jets (6 x 1,1 mm for 3/8" or 6 x 1.2 mm for
1/2" hose)
(all) comprising:
Lateral steering nozzle 1.2 mm M4
Length approx. 35 mm
Throughput approx. 40-60 l/min at 100-150 bar
Completely pre-assembled
Plug-in system on the camera head side
Without camera head
High resolution:
Colour system:
Viewing angle, min.:
800 x 600 pix
PAL
130° / 110° (H/V)
Page 10
Digital video recorder, integrated
Menu navigation via remote control
integrated in the monitor housing
The recorder generates it own folder on the SD card inserted
Films / photos are saved in a separate sub-folder according to date and time
Data writing, PAL
Recording of videos:
Recording of individual images:
Images per second:
Video bit rate:
Storage media:
800 x 600 pix as ideal presetting,
possible: 1280 x 720 pix
800 x 600 pix
25 images
4 MB
Up to 32 GB SD card (2 GB standard)
Lines / screen:
Characters / line:
Storage option:
12
23
5 fixed characters (e.g. Formula)
64 fixed words
Date
Time
Status line, movable:
Page 11
Instructions for use:
Instructions for use
The JetCam has been optimally designed for your tasks in
diameters from: 50 to max. 300 mm.
