Optoma SI01 Manuel utilisateur
Pluggable WIFI Module
User Manual
1
Copyright ownership of hardware and software design belongs to Guangzhou
Shirui Electronics Co., Ltd., shall not be reproduced, copied, or used in other
ways without permission. Otherwise Guangzhou Shirui Electronics Co., Ltd.
will have the right to pursue legal responsibilities.
The image shown in this manual is indicative only. If there is inconsistency
between the image and the actual product, the actual product shall govern.
Statement
Safety Warning
Before using and operating this device, please read thoroughly and comply
with the following precautions in order to prevent accidents or mal-operations.
Do not charge or use the device in dusty or wet conditions, to prevent internal
circuit failure.
Keep the device away from heat sources such as an electric heater.
This device and its parts may contain some small components, so keep the
product out of reach of children to prevent accidents.
This device is not water-resistant, please keep it dry.
The normal working temperature for the product is 0°C~40°C, and the normal
working humidity is 10%~90%.
Please contact professional service personnel for maintenance services.
Do not insert any sharp or pointed object into the device.
Prevent the device from falls and collisions with other objects, which may cause
damages.
There are heating hole on back cover, do not spray water to it or use damp
cloth for cleaning;
Please call professional personnel for maintenance service.
2
Warning: Please make sure the power cord of the Interactive Flat Panel
(IFP) is disconnected before installation.
1. Installation Procedure

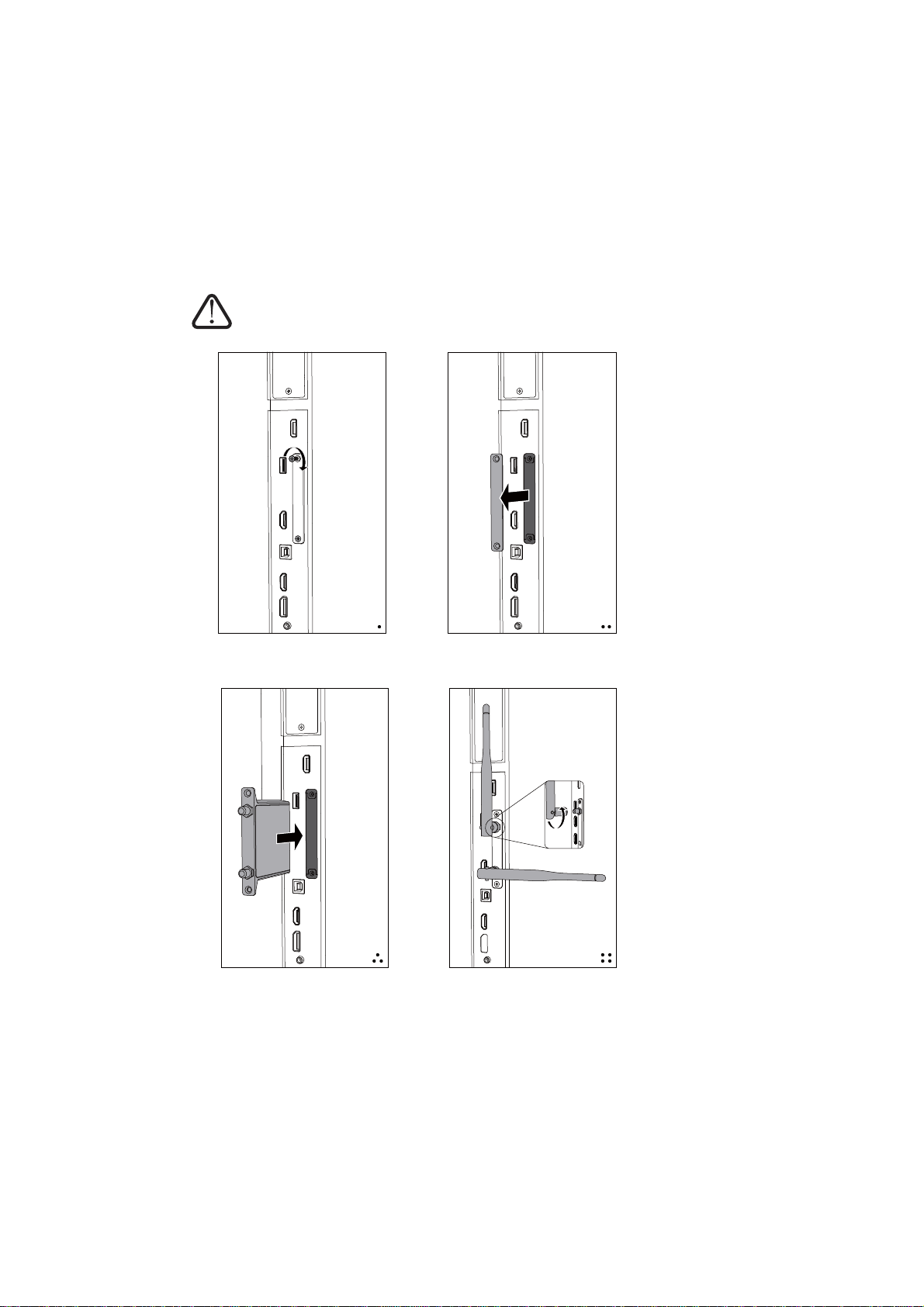

a. Undo the screws b. Remove the cover
c. Plug the WiFi module
into the slot d. Lock the screws, tighten
the antennas
Note: This wifi module only works for the IFP by plugging it into the above slot.
2. Function
After completing the installation, turn on the IFP, and the WIFI module will run
automatically.
Click "Settings" on the screen, you can see the following interface.
Click “Wi-Fi”, enter the following WIFI setting interface.
Click the icon “ ”, you can turn on/off the wifi function.
3
3. Key Specifications
Wifi-Standard：Support 802.11 a/b/g/n/ac
Bluetooth：Support BT 2.1/3.0/4.0
Operating Frequency：2.4G & 5G(5150MHz-5250MHz&5725MHz-5825MHz)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device for operation in the 5180 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
4. FCC Statement
FCC RF Radiation Exposure and SAR Statements SAR Statement The Wireless
Screen Mirroring has been tested for body-worn Specific Absorption Rate (SAR)
compliance. The FCC has established detailed SAR requirements and has
established that these requirements. RF Exposure Information The radio module
has been evaluated under FCC Bulletin OET 65C (01-01) and found to be
compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and
15.247 (b) (4) addressing RF Exposure from radio frequency devices. This
model meets the applicable government requirements for exposure to radio
frequency waves. The highest SAR level measured for this device was 0.085
W/kg.
5. RF Exposure Statement
4
6. FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment and it also complies with Part 15 of the FCC RF Rules.
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation instructions
and consider removing the no-collocation statement.
7. Canada Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5
of RSS 102 and compliance with RSS-102 RF exposure, users can obtain
Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la
section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs
peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps
qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et
actionné avec une distance minimum de 20 centimètres entre le radiateur et
votre corps.
