Optoma S300 Manuel utilisateur

S300 Big Screen Viewing

Bright projection – 2800 ANSI Lumens

SVGA resolution, 15,000:1 contrast ratio

Low ownership costs - up to 6500 hrs lamp life

Lightweight and portable, carry bag included

S300

Ideal for use in a meeting room or classroom, the small and stylish S300 has a bright 2800L which allows you to project bright, crystal clear images

in ambient light. Incorporating a built-in speaker and the latest DLP® and BrilliantColor™ technology the S300 produces a 15,000:1 contrast

allowing you to present picture presentations and videos with superb colours. An incredible lamp life of up to 6500 hours combined with Eco+

technology provides energy and money saving features for hassle-free, long lasting projection.

Installed or on the move, the versatile S300 comes with a convenient carry bag allowing you to take it with you.

Eco+ technology from Optoma increases our

commitment to reducing the impact we all

make on the environment

Bright scene

~ 100% power consumption

Dark scene

~ 30% power consumption

Green Solutions

Eco+ Mode

Saving energy saves money! Eco+ technology reduces the power

consumption to as little as 30%. This intelligent feature also has a

positive effect on the lamp life, increasing it up to 70% while lowering

the total cost of ownership and reducing maintenance.

Dynamically adjusts the brightness and power consumption

Auto Power Off

There may be instances when the projector is left running when not in

use. To help save energy if the projector is left running and no source

is detected, the “Auto Power Off” feature automatically turns off the

projector after a set period of time.

Power Consumption

100% Bright mode

80%

Dynamic mode

Eco+ mode

30%

Eco AV mute off

100% power consumption

Eco AV mute on

30% power consumption

We know that improving our products is

the best way to reduce our impact on the

environment. That's why at Optoma we

design our products to have a long usable

life, use fewer materials, ship with the

minimum packaging and be free of all

possible toxic substances. Naturally,

energy efficiency and being recyclable are

built in at the design stage. With each new

product, we strive towards minimising our

environmental impact.

Eco AV Mute

Stay in control of your presentation with the Eco AV mute feature.

Direct your audience's attention away from the screen by blanking the

image when no longer needed. This also instantly reduces the power

consumption to 30%, further prolonging the life of your lamp.

Environmentally Friendly

To achieve the maximum 6500hrs[2] lamp life, the projector should

be operating in Eco+ mode and the auto power off feature should be

enabled to automatically switch off the projector if it is accidentally left

on. Enabling the <0.5W standby mode ensures the minimum energy

consumption when the projector is not switched on.

Rapid Off

It takes less than 10 seconds for the projector to power up and

shutdown, saving both time and energy.

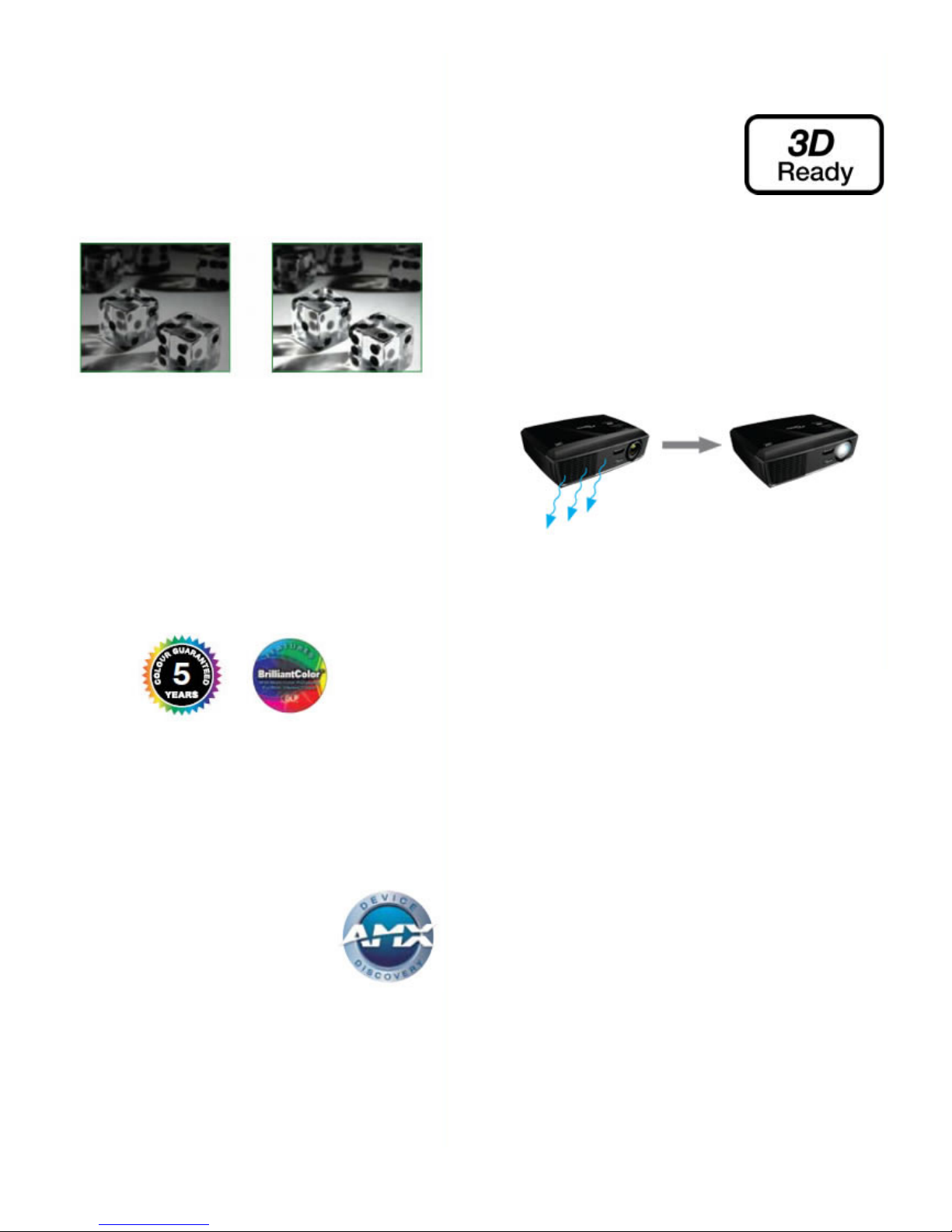

2000:1 Contrast Ratio 15,000:1 Contrast Ratio

The extensive RS232 command set makes it

simple and easy to control the S300 with any

control system.

AMX Compatibility - Dynamic Discovery

Protocol is incorporated into the S300. This

feature allows for easy installation with AMX

control systems.

Bright, Clear, Focused Images

Bright 2800 ANSI Lumens, Perfect for projecting in lights on

environments. And with DarkChip3™ technology from Texas

Instruments combined with Eco+ technology produces a stunning

15,000:1 contrast ratio for pin sharp graphics and crystal clear text.

Crisper whites, ultra-rich blacks make images come alive and text

easier to read - ideal for business and education presentations.

Brightness Where It Matters

You can project even if there is ambient light in the room. The SVGA

resolution S300 delivers an impressive 2800L ensuring that even

during the day everyone can clearly see the projected image.

Colour Guarantee

We are so confident that the S300 image colour quality will remain as

good as the day you bought it that Optoma will guarantee it for five

years.

Amazing Colours

The S300 incorporates BrilliantColor™ technology to produce

stunningly bright images with perfectly balanced life-like colours.

Control

Future Proof Technology

Using the inherent speed of DLP® technology, Optoma 3D Ready

projectors can output video and images at an astonishing rate of

120Hz, allowing you to show full screen, full colour, stereoscopic 3D

from a compatible computer.

Using the inherent speed of DLP

technology, The Optoma S300 can

output video and images at an

astonishing rate of 120Hz, allowing you

to show full screen, full colour,

stereoscopic 3D.

Cooling On

3D Technology

Quick Resume

Save time by not waiting for the projector to cool down before it can

power up again. If the projector is accidentally turned off, this feature

allows the projector to be instantly powered on again, if selected

within a period of 100 seconds.

Wireless Presenting (optional extra)

Making presentations couldn't be easier using the optional wireless

features of the S300. Using the Wireless Adapter you can connect

and display presentations and video material wirelessly from a laptop,

PC or mobile device. (Additional power required)

instant on (within

100ms)

S300 Specification

Display Technology Single 0.55” SVGA DC3 DMD chip DLP® Technology by Texas Instruments

Native Resolution SVGA 800 x 600

Brightness1 (Bright Mode) 2800 ANSI Lumens

Contrast 15,000:1

Noise Level (Eco mode) 28dB

Weight (kg) 2.13

I/O Connectors VGA (YPbPr/RGB), S-Video, Composite, RS232

Preset Mode PC: For computer or notebook (Brightest image)

Movie: Maximum contrast and Colour accuracy

Game: Bright vivid colour

sRGB: For Standard PC Colour (Best Colour Reproductiion)

User: Memorises user's settings

Maximum Resolution UXGA 1600 x 1200

Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, Mac

Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)

Displayable Colours 1.07 Billion

Projection Lens F/2.41~2.55; f=21.8~24mm, 1.1x Manual Zoom

Throw Ratio 1.95 - 2.15:1

Projection Screen Size 0.70 – 7.70m (27.49” - 303.12”) Diagonal 4:3

Projection Distance 1.2 - 12 metres

Zoom Type 1.1x Manual

Aspect Ratio 4:3 Native, 16:9 Compatible

Offset 115%

Horizontal Scan Rate 15.3 - 91.1kHz

Vertical Scan Rate 24 - 85Hz

Lamp Type 190W

Lamp Life2 (hrs) (Eco mode) 6500

Keystone Correction ± 40° Vertical

Dimensions (W x D x H) 286 x 192 x 84

Remote Control Full function remote with direct source selecting

Power Supply 100-240V, 50-60Hz

Power Consumption 233W BRIGHT mode < 0.5W Standby mode, 207W ECO mode < 0.5W Standby mode

Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m

Uniformity 80%

Security Kensington Lock, Password Protection

Standard Accessories Carry Bag, AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, CD User Manual, Warranty

Card

Optional Accessories Ceiling Mount Kit

RoHS Compliant

3D Support The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D

educational or 3D design and modelling systems.

3D Viewing Requires the Optoma DLP-Link shutterglasses - available separately.

3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60

Over-Under: 1080p24, 720p50 / 60

On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek,

Norwegian/Danish, Hungarian, Czech

Optional Wireless Yes

Features Eco+

S300 Remote Control

1. Power

2. Vertical Keystone

Correction

3. Volume Control

4. Brightness Adjustment

5. Digital Zoom

6. Contrast Adjustment

7. AV Mute

8. Freeze

9. Direct Input Source

Selection

Easy To Use Remote Control

S300 Connections

10. RS232 - 3 Pin

11. VGA

12. S-Video

13. Video

14. Kensington™ Lock

S300 distance Table aspect ratio 4:3

Projection

Distance (m)

Max. Horizontal Image

Size (m)

Min. Horizontal Image

Size (m)

Max. Vertical Image

Size (m)

Min. Vertical Image

Size (m)

Max Diagonal Image

Size (m)

Max Diagonal Image

Size (inch)

Max. Image

Offset (m)

1.20 0.62 0.56 0.46 0.42 0.77 30.31 0.07

2.00 1.03 0.93 0.77 0.70 1.28 50.52 0.12

2.50 1.28 1.16 0.96 0.87 1.60 63.15 0.14

3.00 1.54 1.40 1.16 1.05 1.92 75.78 0.17

4.00 2.05 1.86 1.54 1.40 2.57 101.04 0.23

5.00 2.56 2.33 1.93 1.75 3.21 126.30 0.29

6.00 3.08 2.79 2.31 2.10 3.85 151.56 0.35

7.00 3.59 3.26 2.70 2.45 4.49 176.82 0.40

8.00 4.10 3.72 3.08 2.80 5.13 202.08 0.46

9.00 4.62 4.19 3.47 3.15 5.77 227.34 0.52

10.00 5.13 4.65 3.86 3.50 6.42 252.60 0.58

11.00 5.64 5.12 4.24 3.85 7.06 277.86 0.64

12.00 6.15 5.58 4.63 4.20 7.70 303.12 0.69

Optoma Europe Ltd.

42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ

www.optoma.co.uk

1Brightness will vary depending on the selected projector mode, environmental conditions and usage. As is common with all lamp

based projectors, brightness will decrease over the lamp lifetime. 2Typical lamp life achieved through testing and will vary according to

used herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners. Errors and

omissions excepted, all specifications are subject to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered

trademarks of Texas Instruments. All images of products are for representation purposes only. Whilst every care is taken to provide

accurate images of our products, actual products may differ slightly. Some product images may have been digitally altered by us to add

an Optoma logo to the front panel. Optoma reserves the right to amend or alter actual product, product specifications or product images

without notice. Some images may be simulated.
