DS330 Big projection

Bright projection – 2800 ANSI Lumens

SVGA resolution, 13,000:1 contrast ratio, HDMI input

Low ownership costs - up to 10,000 hours² lamp life

Lightweight and portable

DS330

Ideal for use in a meeting room or classroom, the DS330 has a bright 2800L and 13,000:1 contrast allowing you to project bright, crystal clear

images with superb colours using DLP® and BrilliantColor™ technologies. Incredible lamp life of up to 10,000 hours combined with Eco+

technology provides energy and money saving features. Installed or on the move, the versatile DS330 incorporates HDMI, built in speaker, Full 3D

technology and optional wireless capabilities that are easy to use.

Eco+ technology from Optoma increases our

commitment to reducing the impact we all

make on the environment

Bright Images

Project in ambient light conditions with the ultra bright 2800 ANSI

Lumens. Ideal for meeting rooms and classrooms.

Cost Saving – Long Lamp Life

Reduce the number of lamp changes with lamp life of up to 10,000

hours² using the Education Cycle.

Clear, Focused Images

Produce a stunning 13,000:1 contrast ratio for pin sharp graphics and

crystal clear text using the unique Dynamic mode feature.

Combined with DarkChip3 technology for Texas Instruments,

Dynamic mode automatically adjusts the lamp output, based on the

brightness information of each frame; to create a stunning high

contrast ratio. Bright scenes are crisp and clear, while dark scenes

remain detailed with deep blacks which gives exceptional light and

shade detail.

Green Solutions

Eco+ Mode

Saving energy saves money! Eco+ technology reduces the power

consumption to as little as 30%. This intelligent feature can more than

double your expected lamp life, lowering the total cost of ownership

and reducing maintenance.

Lamp

Mode

Bright

Dynamic

Eco+

Education Cycle

Lamp Life (Hours)

Eco AV mute off

100% power consumption

Eco AV mute on

25% power consumption

We know that improving our products is

the best way to reduce our impact on the

environment. That's why at Optoma we

design our products to have a long usable

life, use fewer materials, ship with the

minimum packaging and be free of all

possible toxic substances. Naturally,

energy efficiency and being recyclable are

built in at the design stage. With each new

product, we strive towards minimising our

environmental impact.

Auto Power Off

There may be instances when the projector is left running when not in

use. To help save energy if the projector is left running and no source

is detected, the "Auto Power Off" feature automatically turns off the

projector after a set period of time.

Eco AV Mute

Stay in control of your presentation with the Eco AV mute feature.

Direct your audience's attention away from the screen by blanking the

image when no longer needed. This also instantly reduces the power

consumption to 25%, further prolonging the life of your lamp.

Power Consumption

100% Bright mode

80%

Dynamic mode

Eco+ mode

30%

RS232 Compatibility - The DS330 comes with

an extensive RS232 command set making it

simple and easy to control with any control

system. AMX Compatibility - Dynamic

Discovery Protocol is incorporated into the

DS330. This feature allows for easy installation

with AMX control systems.

We are so confident that the DS330 image colour

quality will remain as good as the day you bought it

that we will guarantee it for five years.

The DS330 incorporates BrilliantColor™ multi-colour

processing technology to bring stunning, vibrant

colour to your screen. Using six separate primary

and secondary colours to produce a new level of

colour performance and control; BrilliantColor™

increases colour brightness by up to 50% over other

technologies to create accurate true to life images.

Cooling On

Audio Capability

Built-in 2W speaker offers excellent audio support. The DS330 is

easy to set up without the need for costly external speakers.

Control

Amazing Colours

The DS330 incorporates BrilliantColor™ technology to produce

stunningly bright images with perfectly balanced life-like colours.

Colour Guarantee

BrilliantColor™

Rapid Off

It takes less than 10 seconds for the projector to power up and

shutdown, saving both time and energy.

Quick Resume

Save time by not waiting for the projector to cool down before it can

power up again. If the projector is accidentally turned off, this feature

allows the projector to be instantly powered on again, if selected

within a period of 100 seconds.

instant on (within

100ms)

Using the inherent speed of DLP technology,

The Optoma DS330. Full 3D projector can

display true 3D content form any 3D display

device, such as 3D Blu-ray, PS3, Xbox and

Sky3D.

Easy Lamp Replacement

Top loading lamp cover allows easy access to replace lamps without

having to remove the projector from the mount.

Full 3D Ready

Remote Mouse

Keep your audience’s attention focussed on the right things using the

simple, yet powerful remote with USB mouse control.

Wireless Presenting (optional extra)

Making presentations couldn't be easier using the optional wireless

features of the DS330. Using the Wireless Adapter (sold separately)

you can connect and display presentations and video material

wirelessly from a laptop, PC or mobile device. (Additional power

required)

Specification Table

Display Technology Single 0.55” SVGA DC3 DMD chip DLP® Technology by Texas Instruments

Native Resolution SVGA 800 x 600

Brightness - BRIGHT mode12800 ANSI Lumens

Contrast 13,000:1

Noise Level 26dB (min)

Weight 2.21 kg

I/O Connectors Inputs: HDMI (v1.4a 3D), 2 x 15 Pin D-sub (RGB/YPbPr), S-Video, Composite, Audio In, USB (remote mouse)

Outputs: 15 Pin D-sub, Audio Out

Control: RS232 - 9 Pin

Preset Mode PC: For computer or notebook (Brightest image)

Movie: Maximum contrast and Colour accuracy

Game: Bright vivid colour

sRGB: For Standard PC Colour (Best Colour Reproductiion)

User: Memorises user's settings

Maximum Resolution UXGA 1600 x 1200

Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, Mac

Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)

Displayable Colours 1073.4 Million

Projection Lens F/2.51~2.69; f=21.95~24.18mm, 1.1x Manual Zoom

Throw Ratio 1.97 - 2.17:1

Projection Screen Size 0.69m – 7.62m (27.24” - 300.04”) Diagonal 4:3

Projection Distance 1.2 - 12 metres

Horizontal Scan Rate 15.3 - 91.1kHz

Vertical Scan Rate 24 - 85Hz

Lamp Type/Lamp Life2190W, 10,000 hours² (Education Cycle) 6500/6000/4500 hours (Eco+/Dynamic/BRIGHT mode)

Keystone Correction ± 40° Vertical

Audio 2W

Dimensions (W x D x H) 316 x 224 x 124mm

Remote Control Full function remote with remote mouse and direct source selecting

Power Supply 100-240V, 50-60Hz

Power Consumption 234W BRIGHT mode < 0.5W Standby mode, 202W Eco+ mode < 0.5W Standby mode

Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m

Uniformity 85%

Security Security Bar, Kensington Lock, Password Protection

Standard Accessories AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, CD User Manual, Warranty Card

Optional Accessories Ceiling Mount Kit

RoHS Compliant

3D Support The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D

educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games

from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.

3D Viewing Requires the Optoma DLP-Link shutterglasses - available separately.

3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60

Frame-pack: 1080p24, 720p50 / 60

Over-Under: 1080p24, 720p50 / 60

Offset 115%

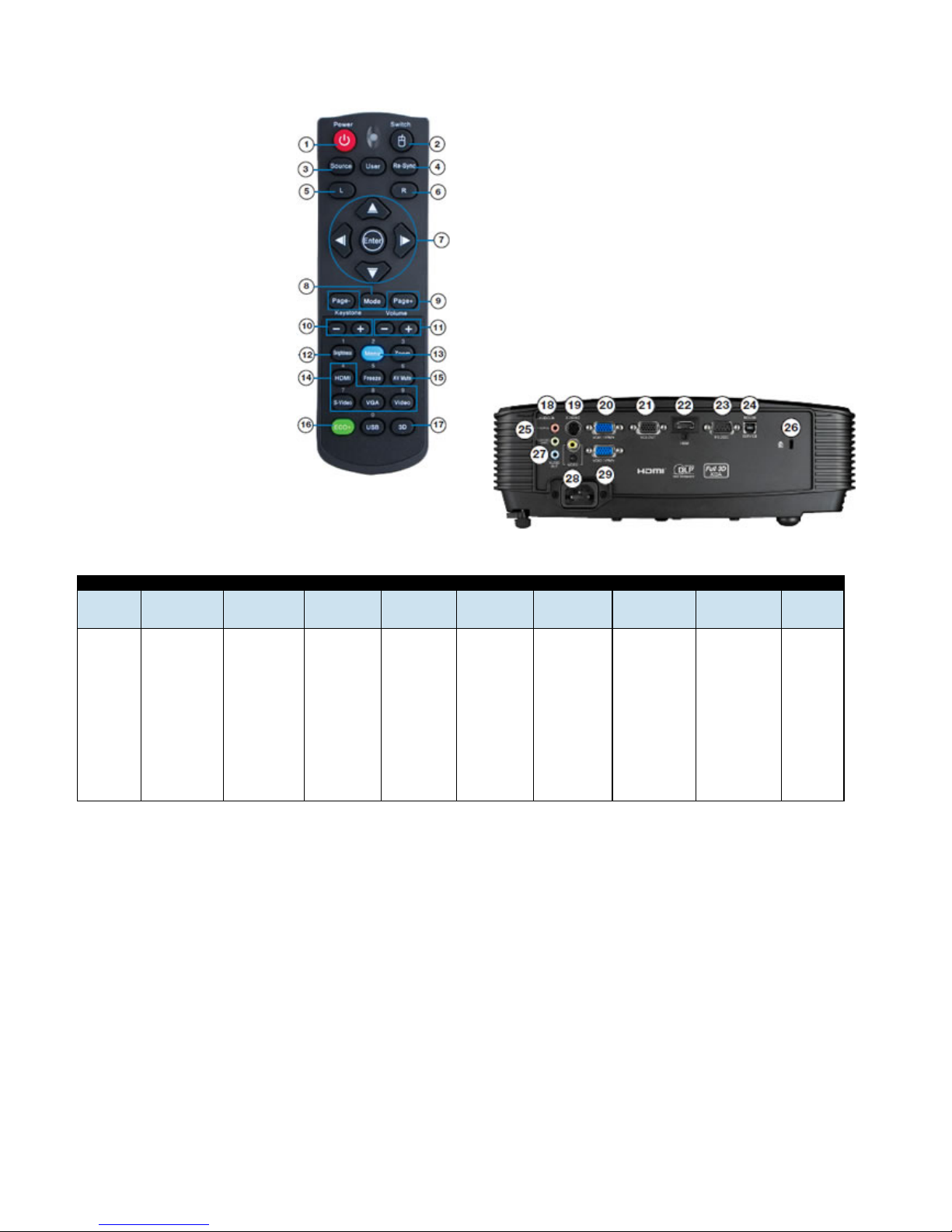

DS330 Remote Control

1. Power

2. Mouse select

3. Source

4. Re-sync

5. Left mouse click

6. Right mouse click

7. Mouse control

8. Display mode

9. Page up/down control

10. Vertical keystone

correction

11. Volume control

12. Brightness

13. Menu

14. Direct input source select

15. Eco AV mute

16. Eco+

17. 3D control

Easy To Use Remote

DS330 Connections

18. Audio In (VGA)

19. S-Video

20. VGA 1

21. VGA Out

22. HDMI

23. RS232

24. USB (Remote Mouse)

25. Audio In (S-Video/Video)

26. KensingtonTM Lock

27. Audio Out

28. Video

29. VGA 2

Exceptional Connectivity / Multiple Terminals

Projection Distance 1.2 - 12m (4:3 Aspect Ratio)

Projection

Distance (m)

Max. Horizontal

Image Size (m)

Min. Horizontal

Image Size (m)

Max. Vertical

Image Size (m)

Min. Vertical

Image Size (m)

Min Diagonal

Image Size (m)

Max Diagonal

Image Size (m)

Min Diagonal

Image Size (inch)

Max Diagonal

Image Size (inch)

Max. Image

Offset (m)

1.20 0.61 0.55 0.46 0.42 0.69 0.76 27.24 30.00 0.07

2.00 1.02 0.92 0.76 0.69 1.15 1.27 45.40 50.01 0.11

2.50 1.27 1.15 0.95 0.87 1.44 1.59 56.75 62.51 0.14

3.00 1.52 1.38 1.14 1.04 1.73 1.91 68.10 75.01 0.17

4.00 2.03 1.84 1.53 1.39 2.31 2.54 90.80 100.01 0.23

5.00 2.54 2.30 1.91 1.73 2.88 3.18 113.50 125.02 0.29

6.00 3.05 2.76 2.29 2.08 3.46 3.81 136.19 150.02 0.34

7.00 3.55 3.23 2.67 2.43 4.04 4.45 158.89 175.03 0.40

8.00 4.06 3.69 3.05 2.77 4.61 5.08 181.59 200.03 0.46

9.00 4.57 4.15 3.43 3.12 5.19 5.72 204.29 225.03 0.52

10.00 5.08 4.61 3.82 3.46 5.77 6.35 226.99 250.04 0.57

11.00 5.58 5.07 4.20 3.81 6.34 6.99 249.69 275.04 0.63

12.00 6.09 5.53 4.58 4.16 6.92 7.62 272.39 300.04 0.69
