OPTO-EDU A59.2213 Manuel utilisateur

A59.2213

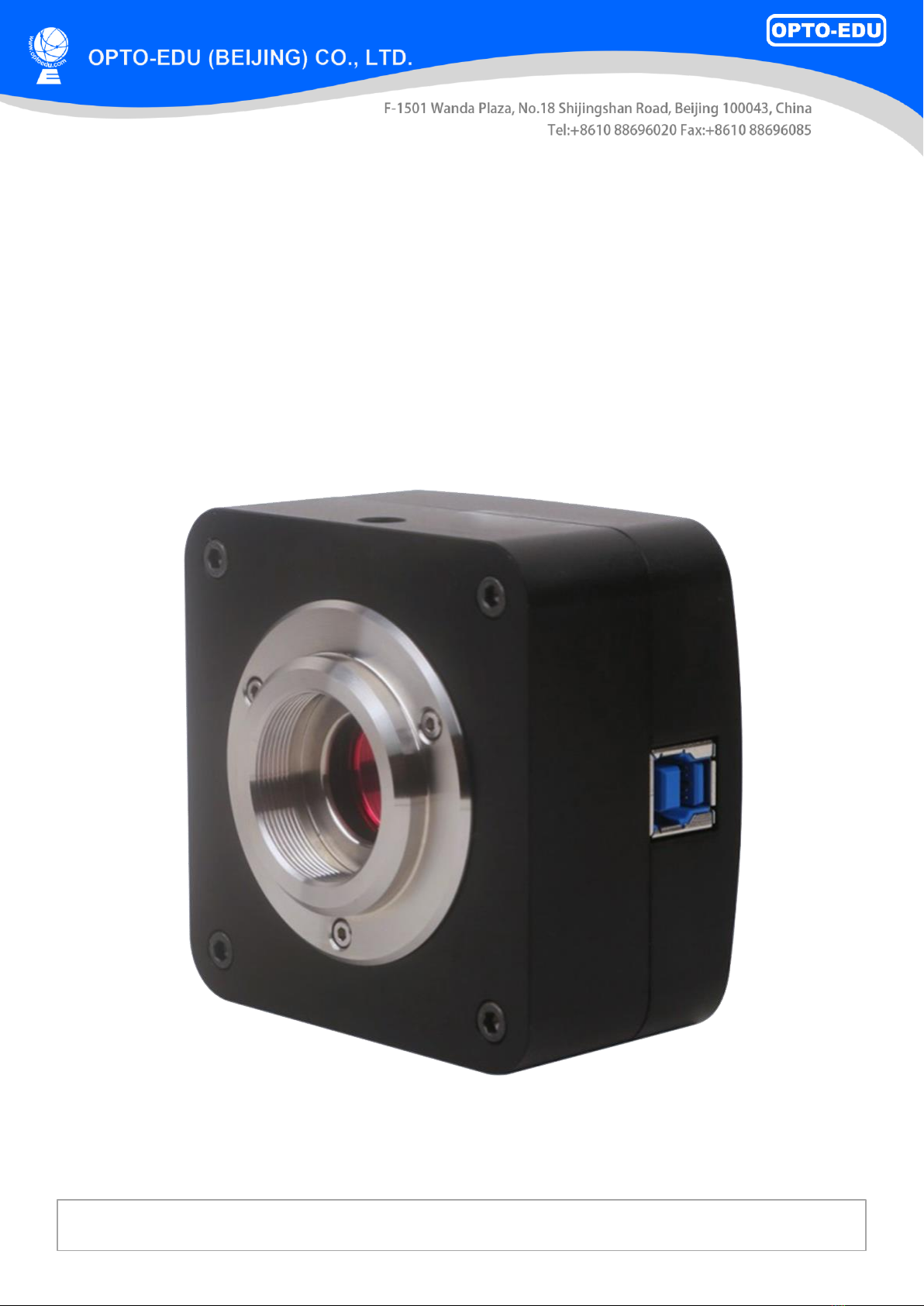

USB3.0 CMOS Digital Camera, High Fps

To ensure the safety and obtain satisfactory performance, please study this instruction manual thoroughly be

fore start to use the instrument.

www.optoedu.com sale@cnoec.com2

Product Packing

Standard Packing List

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

Gift box L:15cm W:15cm H:10cm (0.58~0.60Kg/ box)

E3ISPM series camera

USB3.0 WirelessNetwork Card Adapter

CD (Driver & utilities software, Ø12cm)

Optional Accessories

Adjustable

lens

adapter

-Mount to Dia.23.2mm Eyepiece Tube

(Please choose 1 of them for your microscope)

A55.2202

-A37 (0.37x)

A55.2202

-A50 (0.50x)

A55.2202

-A75 (0.75x)

-Mount to Dia.31.75mm Eyepiece Tube

(Please choose 1 of them for your telescope)

A55.2204

-A37 (0.37x)

A55.2204

-A50 (0.50x)

A55.2204

-A75 (0.75x)

GFixed

lens

adaptor

-Mount to Dia.23.2mm Eyepiece Tube

(Please choose 1 of them for your microscope)

A55.2202

-F37 (0.37x)

A55.2202

-F50 (0.50x)

A55.2202

-F75 (0.75x)

-Mount to Dia.31.75mm Eyepiece Tube

(Please choose 1 of them for your telescope)

A55.2204

-F37 (0.37x)

A55.2204

-F50 (0.50x)

A55.2204

-F75 (0.75x)

Dia.23.2mm to 30.0mm Ring Adaptor for 30mm eyepiece

tube

A55.2203

-30

Dia.23.2mm to 30.5mm Ring Adaptor for 30.5mm eyepiece

tube

A55.2203

-30.5

Dia.23.2mm to 31.75mm Ring Adaptor for 31.75mm eyepiece tube

A55.2203

-31.75

Calibration

Kit

106011/TS

-M1(X=0.01mm/100Div.)；

106012/TS

-M2(X,Y=0.01mm/100Div.);

106013/TS

-M7(X=0.01mm/100Div., 0.10mm/100Div.)

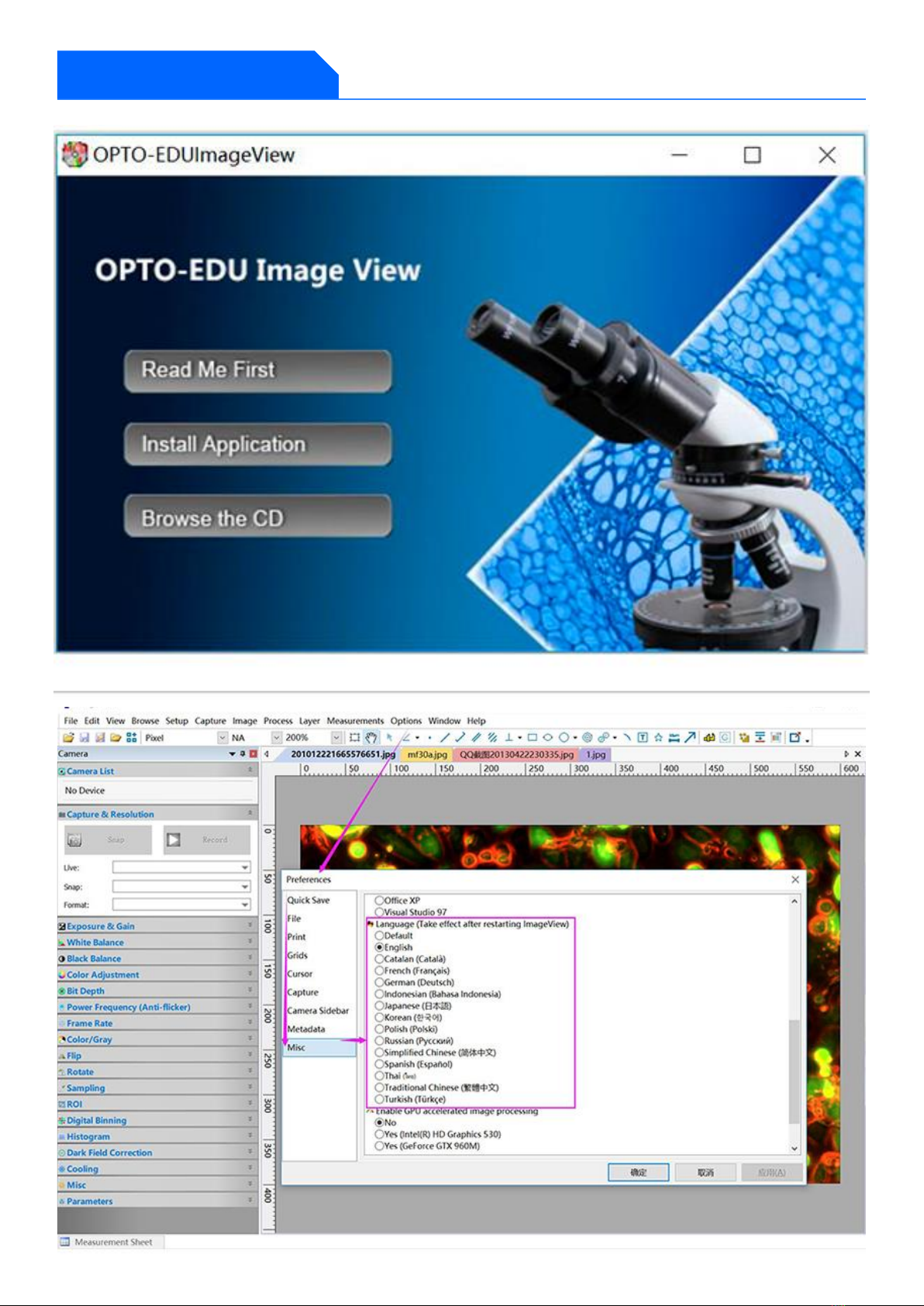

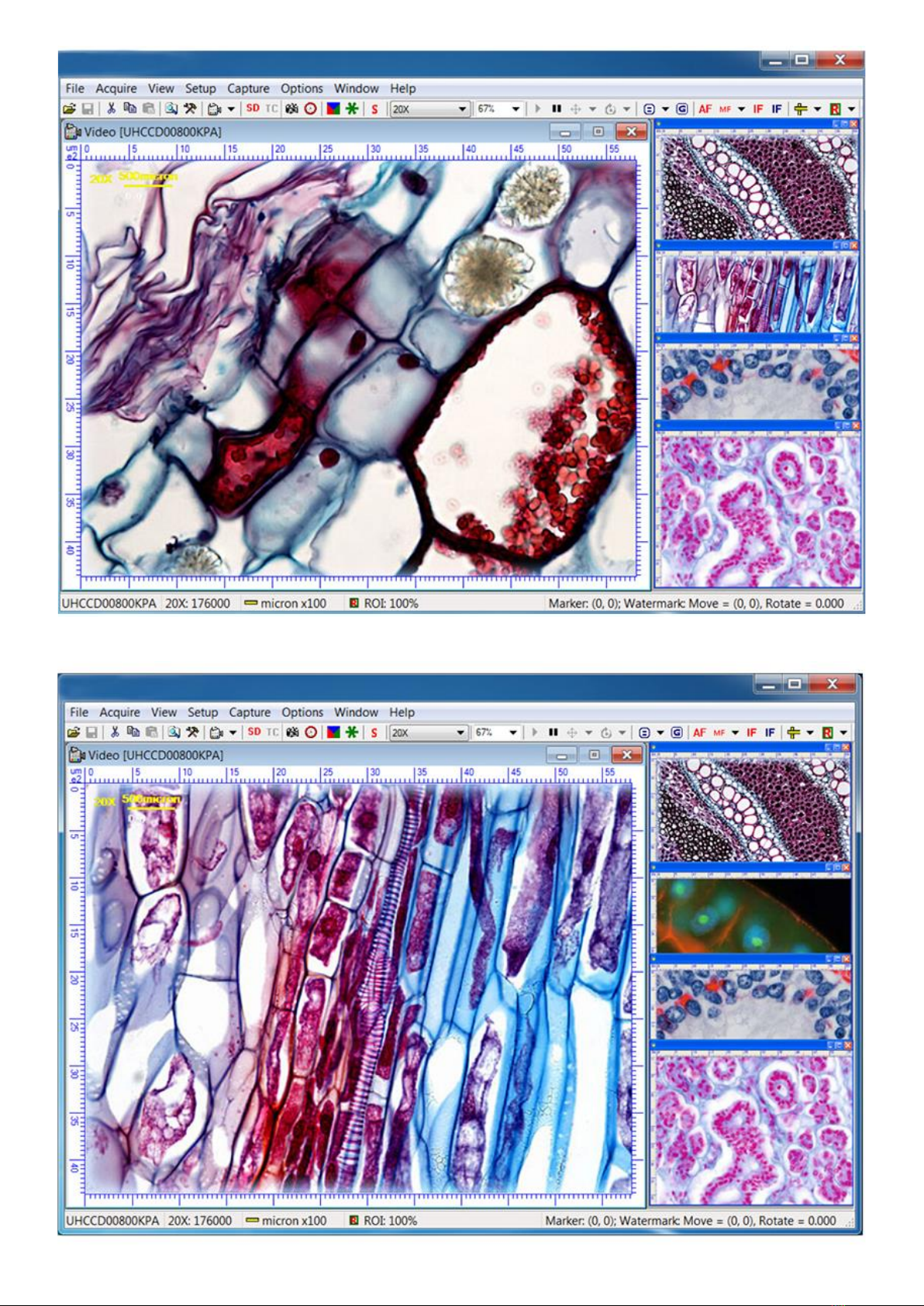

Product Software

www.optoedu.com sale@cnoec.com3

www.optoedu.com sale@cnoec.com4

www.optoedu.com sale@cnoec.com5

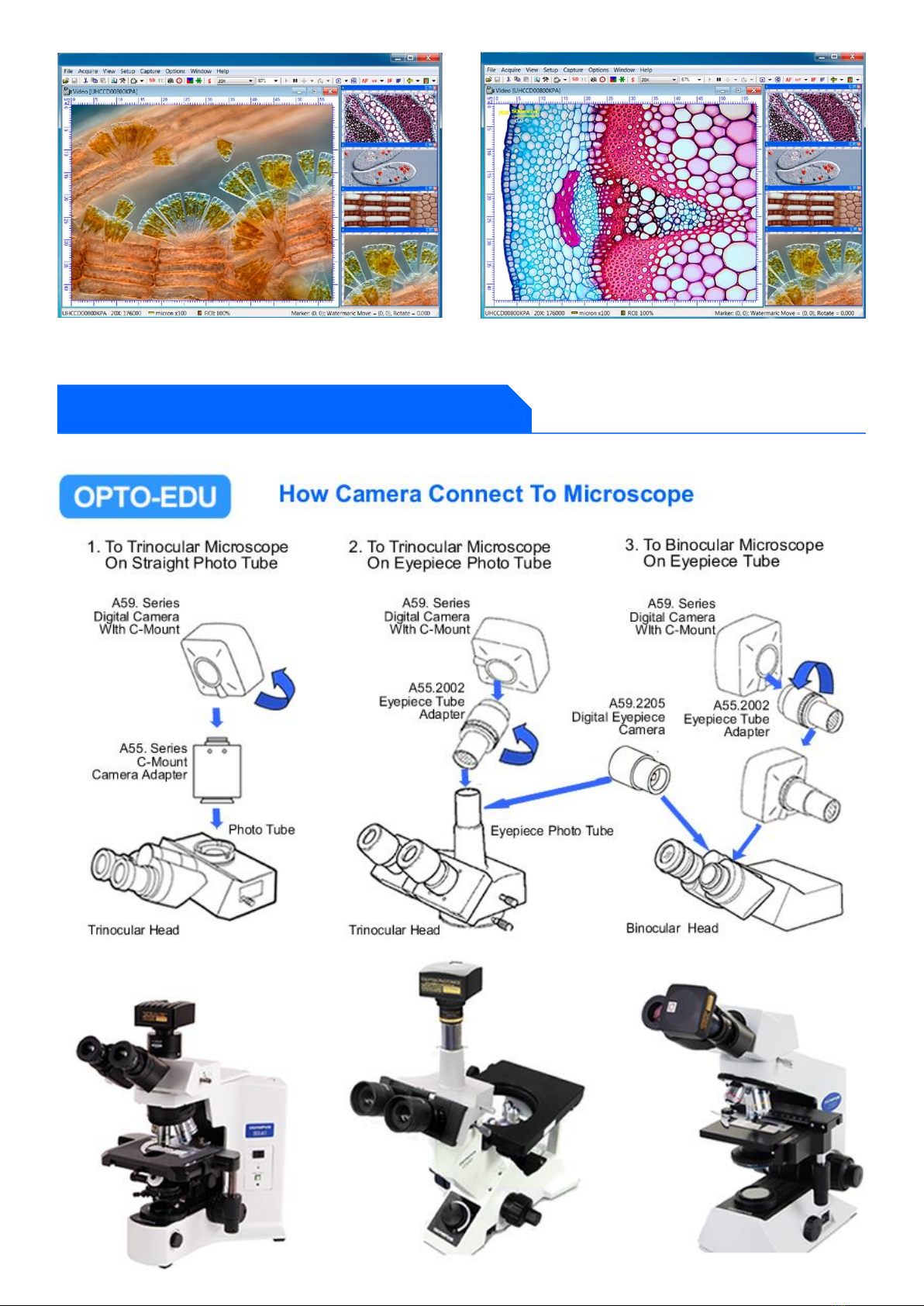

Camera Connect To Microscope

Product Specification

www.optoedu.com sale@cnoec.com6

Product Size

A59.2213

Sensor Size(mm)

Pixel(

G Sensitivity FPS/Resolution Binning Exposure

Dark Signal

21MPA 21M/IMX269©

4/3"(17.40x13.00) 3.3x3.3 399mv with 1/30s

0.1mv with 1/30s

17@5280x3954 1x1

0.1ms~15s

17@3952x3952 1x1

56 @2640x1976

2x2

67@1760x1316 3x3

192@584x438 9x9

20MPA 20M/IMX183(C) 2.4x2.4 462mv with 1/30s 15@5440x3648 1x1

0.1ms~15s

1"(13.06x8.76) 0.21mv with 1/30s

50 @2736x1824

2x2

60@1824x1216 3x3

18MPA 18M/Sony Special(C) 1.2x1.2 130mv with 1/30s 17@4880x3720 1x1

0.1ms~15s

1/2.2"(5.86x4.46) 0.10mv with 1/30s 40@2448x1836 2x2

50@1728x1296 3x3

15.6MPA

15.6M/Sony Special(C) 3.3x3.3 399mv with 1/30s 17@3592x3592 1x1

0.1ms~15s

1.1"(13.0x13.0) 0.10mv with 1/30s 56@1796x1796 2x2

67@1316x1316 3x3

12.3MPA

12M/IMX304(C,GS)

3.45x3.45

1146mv with 1/30s

23.4@4096x3000

1x1

0.244ms~1

1"(14.13x10.35) 0.1mv with 1/30s

46.3@2048x1500

12MPA 12M/IMX226(C)

1.85x1.85

280mv with 1/30s 25@4000x3000 1x1

0.1ms~15s

1/1.7"(7.40x5.55) 0.10mv with 1/30s 50@2048x1080 2x2

9MPA 9M/IMX305(C,GS)

3.45x3.45

1146mv with 1/30s

34@4096x2160

1x1

0.1ms~15s

1"(14.13x7.45) 0.15mv with 1/30s

60@2048x1080

2x2

9MPB

9.0M/IMX533(C)

3.76x3.76

535mv with 1/30s

0.04mv with 1/30s

40@3008x3000

1x1

0.1ms~15s

1" (11.31x11.28)

123@1488x1500

2x2

186@992x998 3x3

8.3MPA 8.3M/IMX274(C)

1.62x1.62

236mv with 1/30s

32@ 3840x2160

1x1

0.244ms~1

1/2.5"(6.22x3.50) 0.15mv with 1/30s

65@ 1920x1080

2x2,

www.optoedu.com sale@cnoec.com7

8.3MPB

8.3M/IMX334(C) 2.0x2.0

505mv with 1/30s

35@ 3840x2160 1x1

0.02ms~15s

1/1.8"(7.68x4.32)

0.15mv with 1/30s

65@ 1920x1080 2x2

8.3MPC

8.3M/IMX485(C) 2.9x2.9

2188mv with 1/30s

45@3840x2160 1x1

0.2ms~15s

1/1.2"(11.14x6.26)

0.15mv with 1/30s

70@1920x1080 2x2

6.3MPA

6.3M/IMX178(C) 2.4x2.4

425mv with 1/30s

30 @3072x2048 1x1

0.1ms~15s

1/1.8"(7.37x4.92)

0.15mv with 1/30s

38 @1536x1024 2x2

6.3MPB

6.3M/IMX178(C) 2.4x2.4

425mv with 1/30s

59 @3072x2048 1x1

0.02ms~15s

1/1.8"(7.37x4.92)

0.15mv with 1/30s

59 @1536x1024 2x2

5MPA

5.0M/IMX264(C, GS)

3.45x3.45

1146mv with 1/30s

35 @2448x2048 1x1

0.1ms~15s

2/3” (8.45x7.07)

0.15mv with 1/30s

50 @1224x1024 1x1

3.1MPA

3.1M/IMX265(C,GS)

3.45x3.45

1146mv with 1/30s

53 @2048x1536 1x1

0.1ms~15s

1/1.8"(7.07x5.30)

0.15mv with 1/30s

85 @1024x768

3.1MPB

3.1M/IMX123(C) 2.5x2.5

600mv with 1/30s

50 @2048x1536 1x1

0.1ms~15s

1/2.8"(5.12x3.84)

0.15mv with 1/30s

50@1920x1080 1x1

2MPA 2.0M/IMX385(C) 3.75x3.75

2350mv with 1/30s

125 @1920x1080

1x1

0.1ms~15s

1/2"(7.20x4.05)

0.15mv with 1/30s

1.5MPA

1.5M/IMX273(C,GS)

3.45x3.45

1145mv with 1/30s

164 @1440x1080

1x1

0.1ms~15s

1/2.9"(4.968x3.726)

0.15mv with 1/30s

320 @720x540 2x2

45MPA

45M/SONY Special©

1.4“ (18.93x13.00)

2.315x2.315

419mv with 1/30s

0.03mv with 1/30s

8.1@8176x5616 1x1(3:2)

0.1ms~15s

30.0@4088x2808

2x2(3:2)

8.1@7408x5556 1x1(4:3)

33.0@4088x2808

2x2(4:3)

10.4@8176x4320

1x1(17:9)

34.7@4096x2160

2x2(17:9)

62.5@2048x1080

3x3(17:9)

86.5@1360x720

4x4(17:9)

32MPA

32M/SONY Special©

1.15“ (12.96x12.96)

2.315x2.315

419mv with 1/30s

8.1@5600x5600 1x1

0.1ms~15s

0.03mv with 1/30s

30.0@2800x2800

2x2

30.0@1400x1400

4x4

8MPA

8.0M/IMX294(C)

4.63x4.63

419mv with 1/30s

30@2808x2808(14

bit) 1x1

0.1ms~15s

1.15 "(13.00x13.00)

0.12mv with 1/30s

139@1392x1392 2x2

139@696x696 4x4

Model

Senser

Size

Pixel

FPS

Exposure Time

20M

20M/IMX183(C)

1 “(13.06x8.76)

2.4 x2.4

15@5440x3648

50@2736x1824

60@1824x1216

0.1ms~15s

12.3M

12.3M/IMX304(C,GS)

1.1”(14.13x10.35)

3.45x3.45

23.4@4096x3000

46.3@2048x1500

0.244ms~15s

12M

12M/IMX226(C)

1/1.7“(7.40x5.55)

1.85x1.85

25@4000x3000

50@2048x1080

0.1ms~15s

9.0M/IMX305(C,GS)

1“ (14.13x7.45)

3.45x3.45

34@4096x2160

60@2048x1080

0.1ms~15s

8.3MA

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62

32@3840x2160

65@1920x1080

0.244ms~15s

8.3MB

8.3M/IMX334(C)

1/1.8”(7.68x4.32)

2.0x2.0

35@3840x2160

60@1920x1080

0.105ms~15s

6.3MA

6.3M/IMX178(C)

1/1.8“(7.37x4.92)

2.4 x2.4

30@3072 x2048

38@1536x 1024

0.1ms~15s

6.3MB

6.3M/IMX178(C)

1/1.8“(7.37x4.92)

2.4 x2.4

59@3072 x2048

59@1536x 1024

0.02ms~15s

5.0M/IMX264(C, GS)

2/3”(8.45x7.07)

3.45x3.45

35@2448x2048

50@1224x1024

0.1ms~15s

3.1MA

3.1M/IMX265(C, GS)

1/1.8“(7.07x5.30)

3.45x3.45

53@2048x1536

85@1024x768

0.1ms~15s

3.1MB

3.1M/IMX123(C)

1/2.8“(5.12x3.84)

2.5x2.5

50@2048x1536

50@1920x1080

0.1ms~15s

2M/IMX385(C)

1/2“(7.2x4.05)

3.75x3.75

125@1920x1080

0.1ms~15s

1.5M

1.5M/IMX273(C, GS)

1/2.9“(4.968x3.726)

3.45x3.45

164@1440x1080

320@720x540

0.1ms~15s

Product Specification

www.optoedu.com sale@cnoec.com8

Product Size
