OWNER’S MANUAL

Please read before usin

this equipment.

SCP-96

AM/FM Stereo Cassette Player

with Auto Reverse

14-1242.fm Page 1 Friday, July 2, 1999 12:04 PM

FEATURES

Your Optimus SCP-96 AM/FM Stereo Cassette Play-

er delivers high-fidelity stereo sound through your

headphones or amplified speaker system. Because

the SCP-96 is portable, you can listen to cassette

tapes or the AM/FM radio indoors or out.

Important: To listen to your SCP-96, you need a pair

of headphones or amplified speakers (not supplied)

with a 1/8-inch mini-plug. Your local RadioShack

store sells a wide variety of headphones and speak-

ers.

Your SCP-96’s features include:

Automatic Reverse — automatically changes the

tape direction at the end of a tape side so you can

continuously play both sides of a cassette tape.

Dolby B Noise Reduction — can play tapes record-

ed with Dolby B noise reduction so background and

tape noise is reduced.

Tone Controls — let you adjust the treble, bass, and

extended bass.

Optimus and RadioShack are registered trademarks used

by Tandy Corporation.

Dolby B noise reduction manufactured under license from Dolby

Laboratories Licensing Corporation.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories Licensing Corporation.

14-1242.fm Page 2 Friday, July 2, 1999 12:04 PM

Tape Selector — lets you select the proper equal-

ization for normal or high-bias/metal cassette tapes,

so you can get the best performance from your

tapes.

Tape Direction Control — lets you change the

tape’s direction at any time without having to eject

the tape and turn it over.

Three Power Sources — let you power your SCP-

96 from internal batteries (not supplied), standard AC

power (with an optional AC adapter), or your

vehicle’s battery (with an optional DC adapter) so

you can listen to music almost anywhere.

Battery Check LEDs — show you the amount of

power remaining in the batteries.

Belt Clip — lets you attach the SCP-96 to your belt

for hands-free carrying when you are on the go.

Note: To power your SCP-96, you need two AA bat-

teries or an optional AC or DC adapter.

Take a few minutes to read this manual so you can

enjoy all the features of your SCP-96.

14-1242.fm Page 3 Friday, July 2, 1999 12:04 PM

CONTENTS

Preparation ........................................................... 5

Connecting to Power ....................................... 5

Using Battery Power ................................ 5

Using AC Power ....................................... 8

Using Vehicle Battery Power .................... 9

Connecting Headphones or Speakers .......... 11

Listening Safely ..................................... 12

Traffic Safety .......................................... 12

Using the Belt Clip ......................................... 13

Operation ............................................................ 14

Playing the Radio .......................................... 14

Playing a Cassette Tape ............................... 15

Using the Tone Controls ................................ 19

Using Fast-Forward and Rewind ................... 20

Changing the Tape Direction ......................... 21

Care and Maintenance ....................................... 22

Restoring Tape Tension and Sound Quality .. 23

Cleaning the Tape-Handling Parts ................ 23

Specifications ..................................................... 25

14-1242.fm Page 4 Friday, July 2, 1999 12:04 PM

PREPARATION

CONNECTING TO POWER

You can power your SCP-96 from:

• internal batteries

• AC power

• your vehicle’s cigarette-lighter socket

Using Battery Power

To power the SCP-96 from internal batteries, you

need two AA batteries. For the best performance and

longest life, we recommend alkaline batteries, such

as RadioShack Cat. No. 23-557.

You can also use rechargeable nickel-cadmium

batteries (Cat. No. 23-125) and recharge them with a

battery charger (Cat. No. 23-133).

Cautions:

• Use only fresh batteries of the required size and

recommended type.

• Do not mix old and new batteries, different types

of batteries (standard, alkaline, or recharge-

able), or rechargeable batteries of different

capacities.

Follow these steps to install batteries.

14-1242.fm Page 5 Friday, July 2, 1999 12:04 PM

1. Open the battery compartment cover by sliding it

in the direction of the arrow marked on the cov-

er, then lifting up its outside edge.

Caution: The battery compartment cover is

hinged. Do not try to remove it.

2. Put the batteries into the compartment as indi-

cated by the polarity symbols (+ and –) marked

outside the compartment.

3. Close the cover.

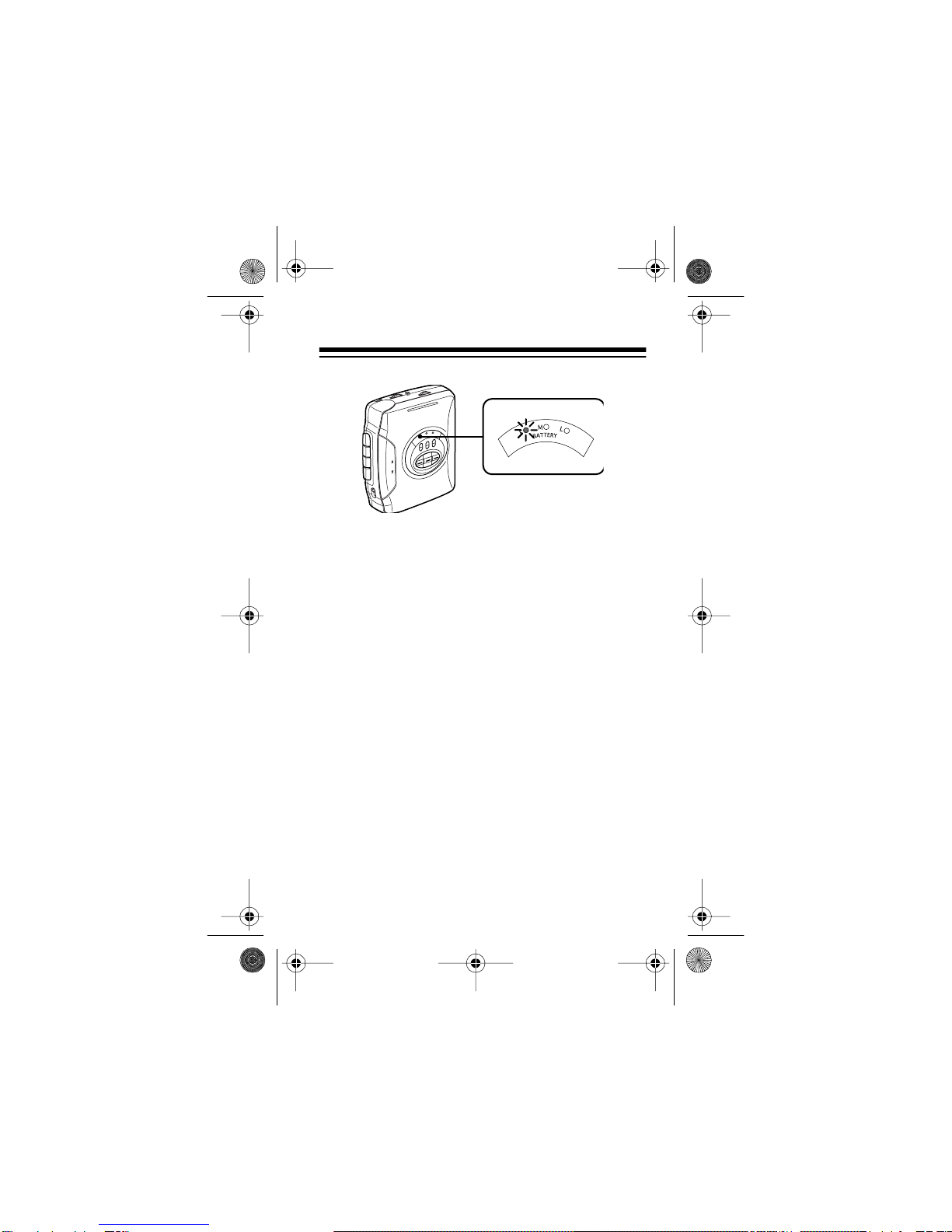

When you turn on the radio or play a tape, one of the

three BATTERY indicators lights to show the amount

of power remaining in the batteries.

Remainin

Power High Low

BATTERY

Indicators Green

F (full) Orange

M (medium) Red

L (low)

14-1242.fm Page 6 Friday, July 2, 1999 12:04 PM

If the red (L) BATTERY indicator lights during opera-

tion, replace both batteries.

Caution: Always dispose of old batteries promptly

and properly.

Important: This product is capable of using re-

chargeable nickel-cadmium batteries. At the end of

the batteries’ useful life, they must be recycled or dis-

posed of properly. Contact your local, county, or

state hazardous waste management authorities for

information on recycling or disposal programs in your

area. Some options that might be available are:

municipal curbside collection, drop-off boxes at re-

tailers such as your local RadioShack store,

recycling collection centers, and mail-back programs.

14-1242.fm Page 7 Friday, July 2, 1999 12:04 PM

Using AC Power

To power the SCP-96 from a standard AC outlet, you

need an AC adapter such as Cat. No. 273-1654.

Cautions:

• You must use an AC adapter that supplies at

least 3 volts DC power and delivers at least 200

milliamps. Its center tip must be set to negative,

and its barrel plug must properly fit the SCP-96’s

DC 3V jack. The recommended adapter meets

these specifications. Using an adapter that does

not meet these specifications could damage the

SCP-96 or the adapter.

• Be sure you connect the adapter to the SCP-96

before you plug it into the AC outlet and that you

unplug the adapter from the AC outlet before

you unplug it from the SCP-96, to prevent dam-

age to the SCP-96 or the adapter.

Follow these steps to connect the SCP-96 to AC

power.

DC 3V Jack

Adapter

14-1242.fm Page 8 Friday, July 2, 1999 12:04 PM

1. Set the adapter’s voltage switch to 3V.

2. Put the adapter’s 3.4 mm outer diameter/1.3 mm

inner diameter barrel plug into the adapter’s

cord, with the tip set to negative (–TIP).

3. Insert the plug into the SCP-96’s DC 3V jack.

4. Plug the adapter into a standard AC outlet.

Note: Connecting the AC adapter automatically dis-

connects internal batteries.

Using Vehicle Battery Power

To power the SCP-96 from your vehicle’s battery,

you need a DC adapter, such as Cat. No. 270-1560

or 273-1810.

Cautions:

• You must use a DC adapter that supplies at

least 3 volts DC power and delivers at least 200

milliamps. Its center tip must be set to negative,

and its barrel plug must properly fit the SCP-96’s

DC 3V jack. The recommended adapter meets

these specifications. Using an adapter that does

not meet these specifications could damage the

SCP-96 or the adapter.

14-1242.fm Page 9 Friday, July 2, 1999 12:04 PM

• Be sure you plug the adapter into the SCP-96

before you plug it into the cigarette-lighter

socket, and that you unplug the adapter from the

cigarette-lighter socket before you unplug it from

the SCP-96, to prevent damage to the SCP-96

or the adapter.

Follow these steps to power the SCP-96 from your

vehicle’s battery.

1. Set the adapter’s voltage switch to 3V.

2. Put the adapter’s 3.4 mm outer diameter/1.3 mm

inner diameter barrel plug into the adapter’s

cord, with the tip set to negative (–TIP).

3. Insert the plug into the SCP-96’s DC 3V jack.

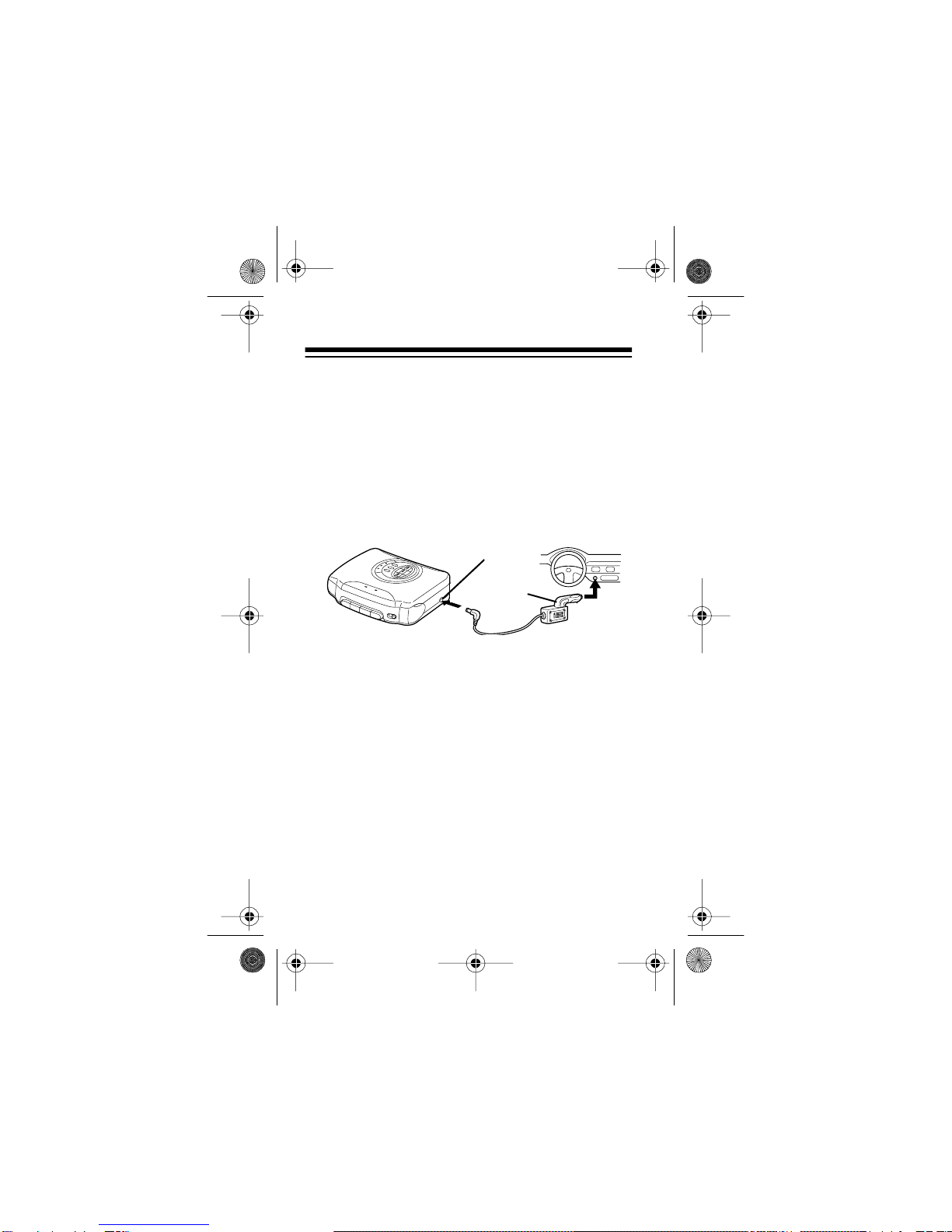

4. Plug the other end of the adapter into the vehi-

cle’s cigarette-lighter socket.

Note: Connecting the DC adapter automatically dis-

connects internal batteries.

DC 3V Jack

Adapter

14-1242.fm Page 10 Friday, July 2, 1999 12:04 PM
