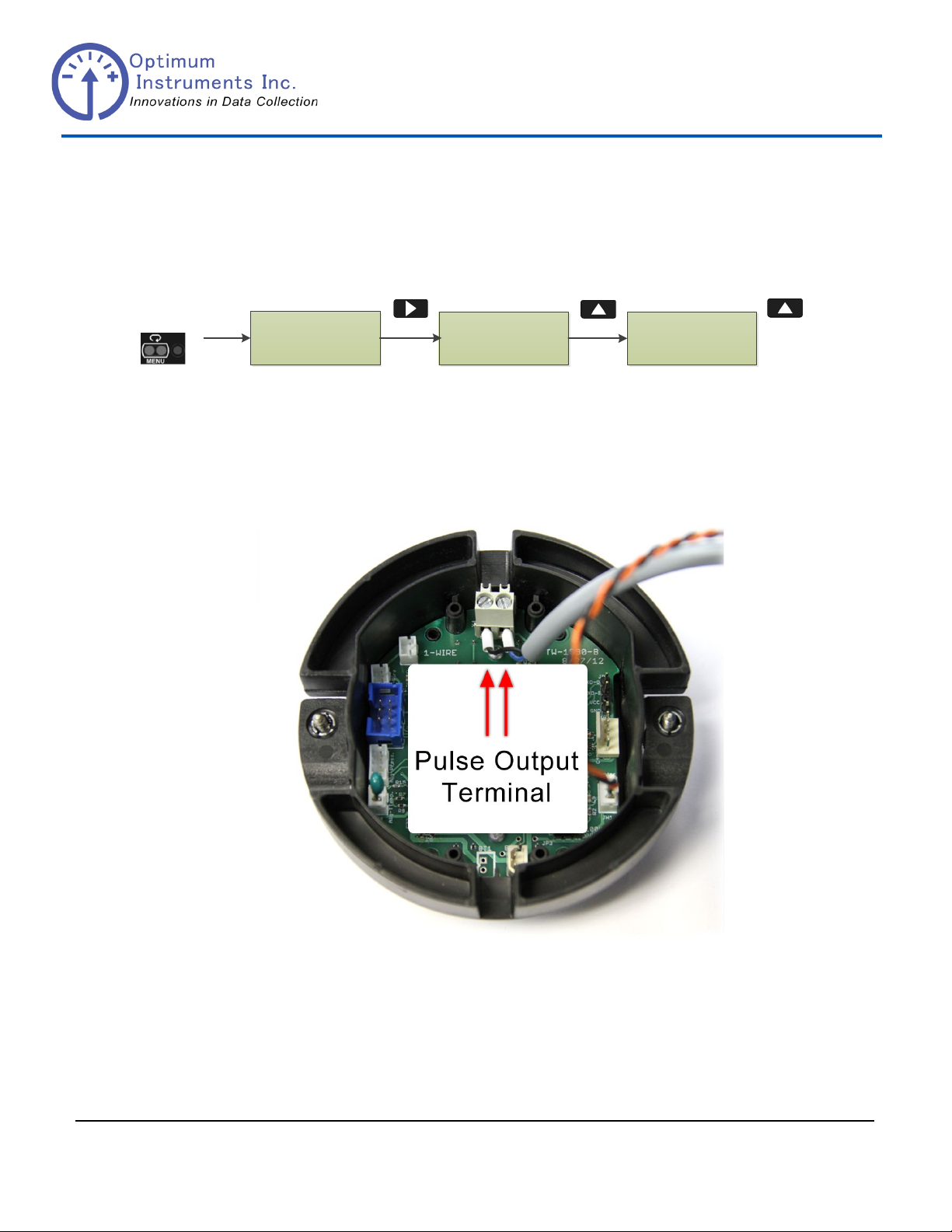

Data Dolphin Installation Manual
DD-METER
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming, and operation. The
following table shows the main menu functions and messages in the order they appear in the menu.
Each of the menu items shown below has a corresponding submenu that is used to adjust the associated
setting. Settings adjusted in each submenu are saved immediately after a change is made and there is
no need to hit any other keys to ‘lock in’ the change. If a submenu has multiple items to choose from,
each item can be browsed one at a time using the Up arrow button. Hitting the Up arrow button when
at the last item will restart the item display at the first item.
Volume Units
Enter the Volume Units menu where selection from Gallons, Liters, ft3 (cubic feet),
m3 (cubic meters) can be made
K Factor
Enter the K Factor Value menu where the K-Factor value (in terms of the selected
Volume Units) can be programmed
Enter the Rate Meter Scaling menu where selection from /sec (seconds), /min
(minutes), /hour (hours) can be made.
Flow Rate Units
Enter the Volume Units menu where selection from Gallons, Liters, ft3 (cubic feet),
m3 (cubic meters) can be made
Enter the MODBUS address where selection from 1-99 can be made
