Optika B-150POL-M Manuel utilisateur
Version: 3
Issued: 08, 07, 2015
Model
B-150POL-M
B-150POL-B
B-150POL-MR
B-150POL-BR
B-150POL-MALC
B-150POL-BALC
B-150 Series
INSTRUCTION MANUAL
Page 2
INDEX
1.0 DESCRIPTION page 4
2.0 INTRODUCTION page 6
3.0 UNPACKING AND ASSEMBLY page 6
4.0 USING THE MICROSCOPE page 7
5.0 RECHARGEABLE BATTERY (B-150POLR MODELS) page 8
6.0 MAINTENANCE page 8
7.0 AUTOMATIC LIGHT CONTROL (B-150POL-ALC MODELS) page 9
8.0 EQUIPMENT DISPOSAL page 10
Page 3
This microscope is a scientic precision instrument designed to last for many years with a minimum of main-
tenance. It is built to high optical and mechanical standards and to withstand daily use.
Optika reminds you that this manual contains important information on safety and maintenance, and that it
must therefore be made accessible to the instrument users.
Optika declines any responsibility deriving from instrument uses that do not comply with this ma-nual.
Safety guidelines
This manual contains important information and warnings regarding safety about installation, use and
maintenance of the microscope. Please read this manual carefully before using the equipment. To
ensure safe use, the user must read and follow all instructions in this manual. OPTIKA products are
designed for safe use in normal operating conditions. The equipment and accessories described in
the manual are manufactured and tested according to industry standards for safety instrumentation
laboratory. Misuse can cause personal injury or damage to the instrument. Keep this manual at hand
close to the instrument, for an easy consultation.
Electrical safety
Before connecting the power cord to wall outlet, ensure that your mains voltage for your region corre-
sponds to the voltage supply of the instrument, and that the illuminator’s switch is in position OFF. The
user must observe the safety regulations in force in his region. The instrument is equipped with CE sa-
fety marking, in any case the user has full responsibility concerning the safe use of that instrument.
Warning/Caution symbols used in this manual
The user should be aware of safety aspects when using the instrument. Warning or hazard symbols
are shown below. These symbols are used in this manual.
The instructions on this symbol to avoid possible severe personal injuries.
Warning of use; the incorrect operation on the instrument can cause damages to the
person or instrument.
Possibility of electric shock.
Attention: high temperature surfaces. Avoid direct contact.
Technical notes or usage tips.
SAFETY GUIDELINES
Page 4
1.0 DESCRIPTION
EYEPIECE
DIOPTRIC ADJUSTMENT
RING
BINOCULAR OBSERVATION
HEAD
OBJECTIVE
SPECIMEN CLAMPS
COARSE FOCUSING
KNOB
FINE FOCUSING
KNOB
BRIGHTNESS ADJUSTMENT
ON/OFF KNOB (ON LEFT SIDE)
LED
ILLUMINATOR
IRIS DIAPHRAGM
CONDENSER
STAGE
NOSEPIECE
POLARIZER FILTER
ANALYZER FILTER
Page 5
COARSE FOCUSING
KNOB
1.0 DESCRIPTION
MONOCULAR
OBSERVATION
HEAD
TENSION
ADJUSTMENT KNOB
POWER SUPPLY
INPUT JACK
REAR:
Page 6
2.0 INTRODUCTION
This microscope is a scientic precision instrument designed to last for many years with a minimum of main-
tenance. It is built to high optical and mechanical standards and to withstand daily use.
Optika reminds you that this manual contains important information on safety and maintenance, and that it
must therefore be made accessible to the instrument users.
Optika declines any responsibility deriving from instrument uses that do not comply with this manual.
3.1 The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the
container and lift the top half of the container. Take some care to avoid that the optical items (objecti-
ves and eyepieces) fall out and get damaged. Using both hands (one around the arm and one around
the base), lift the microscope from the container and put it on a stable desk.
3.2 Place the observation head onto the top of the arm and tighten the lock-screw. Insert the eyepieces
into the eye tubes.
3.3 Connect the provided power supply to the power supply input jack on the rear of the microscope.
3.0 UNPACKING AND ASSEMBLY
Connect the mains plug into the socket at the base
Make sure, before you turn the illumination on, that the voltage selector is set to the mains voltage for
your region.
The power cord should be used only on network sockets equipped with adequate grounding.
Contact a technician to check the state of your electrical system. If there is no need to install additional
accessories, the instrument is now ready for use. Once positioned and installed with the necessary
components, the microscope is ready to be used. Your microscope is a laboratory instrument desi-
gned to last. Handle it always carefully and avoid abrupt vibrations or shocks. Always disconnect the
power cable from the microscope when not in use for long time, while you clean it or when you perform
any maintenance.
AVOID DISASSEMBLING THE INSTRUMENT
Do not disassemble the instrument. This entails the cancellation of the warranty and may cause
malfunction.
Page 7
4.0 USING THE MICROSCOPE
4.1 Adjust the observation head
Loosen the lock-screw, turn the observation head to a comfortable position for observation, and then
lock the lock-screw.
4.2 Place the specimen on the stage
Lock the specimen slide on the mechanical stage using the clamps. Ensure that the specimen is cen-
tred over the stage opening.
4.3 Lamp settings
The microscope is tted with power white LED illuminator. Before turning on the light, read the section
6.3 about electrical safety precautions. Insert the plug of the power supply into the jack on the rear.
Turn the brightness adjustment knob in order to switch the light on and to reach a brightness suitable
for observation.
4.4 Adjust interpupillary distance
Hold the right and left parts of the observation head by both hands and adjust the interpupillary distan-
ce by turning the two parts until one circle of light can be seen.
4.5 Focus and diopter adjustment
Rotate the coarse focusing knob to bring the slide into focus using an objective with a low magni-
cation. Adjust the ne focusing knob to get the image sharp and clear while observing with your right
eye, then turn the dioptric adjustment ring on the left eyepiece until a sharp and clear image can be
observed also with the other eye. Turn the tension-adjust-knob to get a suitable tension for the focus
system. When the image is in focus, turn the nosepiece to choose the objective you need.
4.6 Make a polarization analysis
Insert both the swing-out polarizer lter and the analyzer lter (which is placed under the observation
head). Rotate now the polarizer lter until you have a dark background (“extinction condition”). By ro-
tating the stage it’s possible now to observe the polarization effects of your sample. You can lock the
position of the rotating stage through the screw on the back of the stage.
4.7 Set the numerical aperture
Adjust the aperture of the iris diaphragm to set the numerical aperture of the illuminator, thus control-
ling image contrast and resolution.
INSERT THE POLARIZER
FILTER
Page 8
6.1 Microscopy environment
This microscope is recommended to be used in a clean, dry and shock free environment with a
temperature of 0-40°C and a maximum relative humidity of 85 % (non condensing). Use a dehumidier
if needed.
6.2 To think about when and after using the microscope
• The microscope should always be kept vertically when moving it and be careful so that no moving
parts, such as the eyepieces, fall out.
• Never mishandle or impose unnecessary force on the microscope.
• Never attempt to service the microscope yourself.
• After use, turn off the light immediately, cover the microscope with the included dust-cover, and keep
it in a dry and clean place.
6.3 Electrical safety precautions
• Before plugging in the power supply, make sure that the supplying voltage of your region matches with
the operation voltage of the equipment and that the lamp switch is in off-position.
• Users should observe all safety regulations of the region. The equipment has acquired the CE safety
label. However, users do have full responsibility to use this equipment safely.
6.4 Cleaning the optics
• If the optical parts need to be cleaned try rst to: use compressed air.
• If that is not sufcient: use a soft lint-free piece of cloth with water and a mild detergent.
• And as a nal option: use the piece of cloth moistened with a 3:7 mixture of ethanol and ether.
Note: ethanol and ether are highly ammable liquids. Do not use them near a heat source, near
sparks or near electric equipment. Use these chemicals in a well ventilated room.
• Remember to never wipe the surface of any optical items with your hands. Fingerprints can damage
the optics.
• Do not disassemble objectives or eyepieces in attempt to clean them.
6.5 If you need to send the microscope to Optika for maintenance, please use the original packaging.
6.0 MAINTENANCE
B-150POLR models are equipped with a built-in rechargeable battery.
The battery can be recharged simply by connecting the microscope to the provided external power supply,
using the jack connector on the rear.
During the charging process, you can use the microscope as usual.
In order to speed up the charging of the battery, it’s suggested to turn the
LED off when you connect the external power supply.
For a full charge, it’s suggested to keep the external power supply connected
to the microscope for at least 8 hours.
Always unplug the external power supply from the microscope, when
not in use.
5.0 RECHARGEABLE BATTERY (B-150POLR MODELS)
Page 9
B-150POL-ALC models have a special function called “Automatic Light Control”.
The level of light is adjusted by the microscope in order to maintain the same level as the one the user has
chosen, no matter if the aperture of the diaphgram changes, another objective is inserted, opacity of the
sample changes, etc.
Model B-151ALC
1) Set the focus on the sample as described in the previous chapters, using the objective of your choice.
2) Rotate the brightness adjustment knob in order to get a comfortable level of illumination.
3) Press the ALC button on the side of the microscope.
Now the ALC system is working: if you open or close the aperture diaphragm or change objective, the system
will try to maintain the same level of illumination as the one you stored when you pressed the button.
4) Press the ALC button again to return to a manual control of illumination.
7.0 AUTOMATIC LIGHT CONTROL (B-150POL-ALC MODELS)
BRIGHTNESS
ADJUSTMENT
KNOB
ALC BUTTON
Equipment disposal
Art.13 Dlsg 25 july 2005 N°151. “According to directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating
to the reduction in the use of hazardous substances in electrical and electronic equipment and waste disposal.”

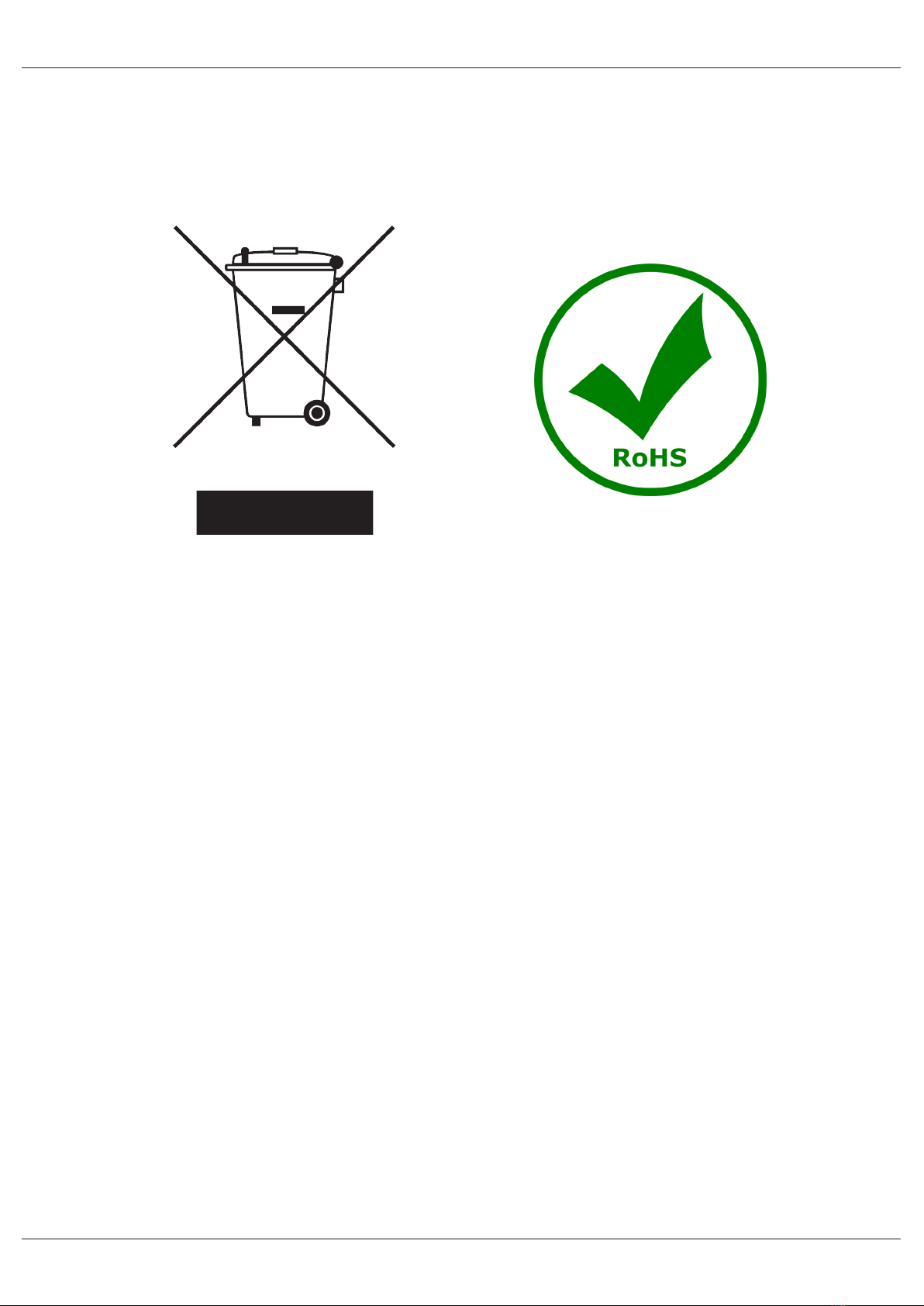

The basket symbol on equipment or on its box indicates that the product at the end of its useful life should be
collected separately from other waste.
The separate collection of this equipment at the end of its lifetime is organized and managed by the producer.
The user will have to contact the manufacturer and follow the rules that he adopted for end-of-life equipment
collection.
The collection of the equipment for recycling, treatment and environmentally compatible disposal, helps to prevent
possible adverse effects on the environment and health and promotes reuse and/or recycling of materials of the
equipment.
Improper disposal of the product involves the application of administrative penalties as provided by the laws in force.
