Optika Italy CL Series Manuel utilisateur

Ver. 1.0 2020

INSTRUCTION MANUAL

CL Series

Model

CL-32

CL-33

Page 2

Summary

1. Warning 3

2. Symbols and conventions 3

3. Safety Information 3

4. Intended use 3

5. Overview 4

5.1 CL-32 4

5.2 CL-33 5

6. Unpacking 6

7. Assembling 6

7.1 CL-32 6

7.2 CL-33 7

7.3 System assembling 8

7.3.1 CL-32 8

7.3.2 CL-33 8

8. Use of the illuminator 9

8.1 Light intensity adjustment 9

8.2 Focusing the light beam 9

8.3 Charging the battery 10

9. Important safety instructions 11

10. Personal safety instructions 11

11. Maintenance 12

12. Troubleshooting 12

Equipment disposal 13

Page 3

1. Warning

This device is a scientic precision instrument designed to last for many years with a minimum of maintenance.

It is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual

contains important information on safety and maintenance, and that it must therefore be made accessible to the

instrument users. We decline any responsibility deriving from incorrect instrument use uses that does not comply

with this manual.

2. Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

3. Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the op-

eration voltage of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety reg-

ulations of the region. The equipment has acquired the CE safety label. However, users have full responsibility

to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure

safe operation of the unit.

4. Intended use

Standard models

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

IVD Models

Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the

subject.

Page 4

MINI USB PORT

(BACK SIDE) SELF SUPPORTING

LIGHT GUIDE

ADHESIVE

MAGNETIC

HOLDER

FOCUSABLE

LENS

ON/OFF - LIGHT

INTENSITY

ADJUSTMENT

BUTTON

5. Overview

5.1 CL-32

Page 5

5.2 CL-33

SELF SUPPORTING

LIGHT GUIDE

FOCUSABLE

LENS

MAGNETIC

HOLDER

CABLE

HOLDER

MINI USB PORT

(BACK SIDE)

ON/OFF - LIGHT

INTENSITY

ADJUSTMENT

BUTTON

Page 6

6. Unpacking

The device is housed in a plastic container. Take some care to avoid that the optical items fall out and get dam-

aged.

Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or

other residuals may deteriorate the nal image quality and corrode the optics surface in a short time.

7. Assembling

Once opened the box, the device parts are the following:

7.1 CL-32

① Magneticlightguide

② MiniUSB-USBcable

③ Adhesivemagneticholder

④ Powersupply

③

①

②

④

Page 7

7.2 CL-33

① Magneticlightguide(2pcs)

② Magneticholder

③ Adhesivemagneticholder(2pcs)

④ MiniUSB-USBcable(2pcs)

⑤ Powersupply(2pcs)

③

⑤

①

②

④

Page 8

FFig. 1ig. 1

FFig. 2ig. 2

FFig. 3ig. 3

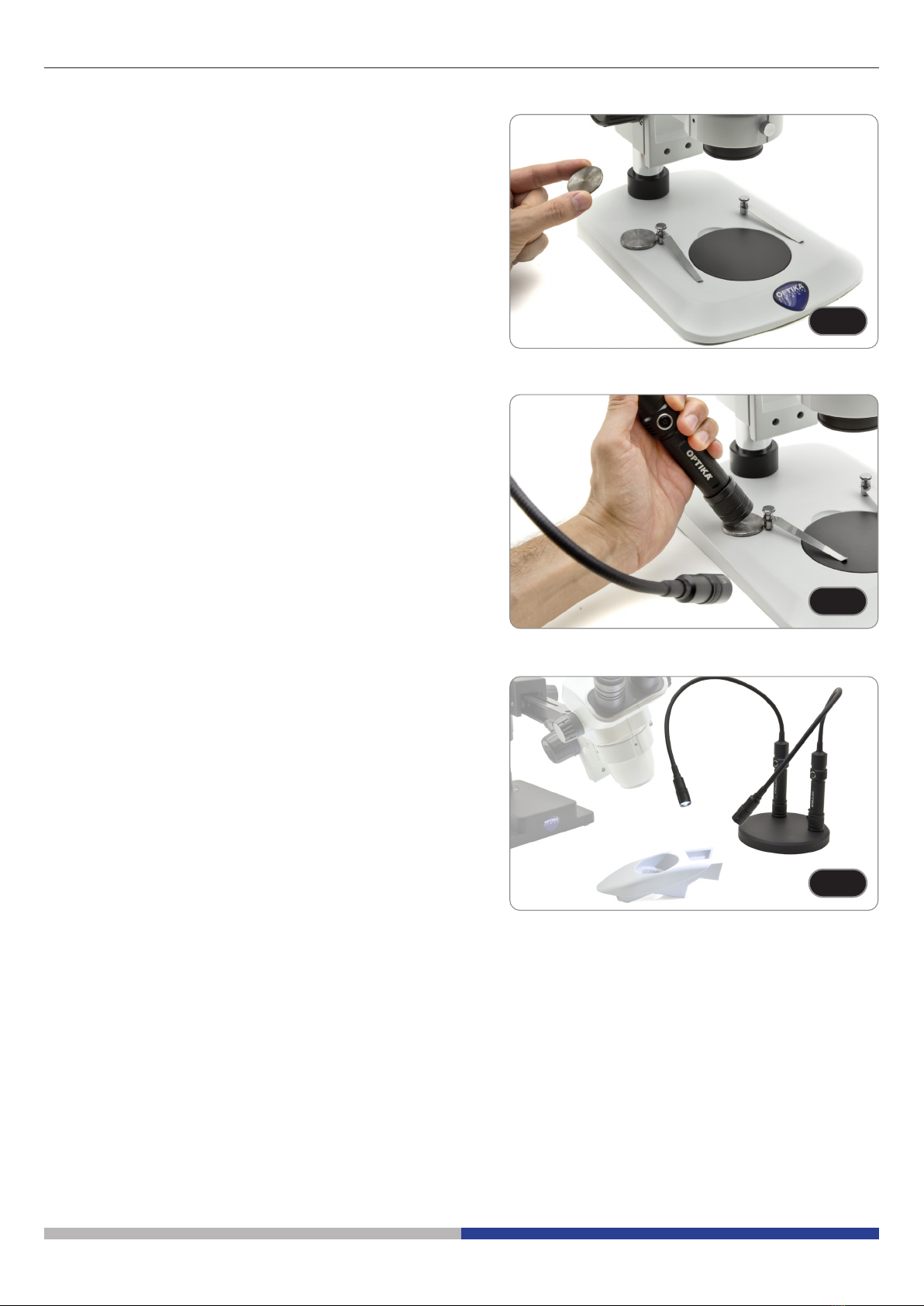

7.3 System assembling

7.3.1 CL-32

• A double-sided adhesive tape disc is placed at the

bottom of the magnetic holder.

1. Remove the protective foil and place the adhesive

magnetic holder at the desired location. (Fig 1)

2. Place the magnetic part of the LED illuminator on the

holder. (Fig. 2)

7.3.2 CL-33

1. Place the magnetic holder (black) at the desired

location.

2. Place the magnetic part of the LED illuminator on the

holder. (Fig. 3)

3. Alternatively: Repeat the mounting procedure for the

CL-32 by positioning the individual magnetic adhesive

holders at the desired points and then mount the LED

illuminators.

Page 9

8. Use of the illuminator

FFig. 4ig. 4

FFig. 5ig. 5

8.1 Light intensity adjustment

1. Operate on the button ① to turn ON/OFF the LED and

to increase/decrease the illumination voltage. (Fig. 4)

2. The button will turn green.

• By pressing the button the light will cyclically

change: LOW INTENSITY --> HIGH INTENSITY -->

OFF.

8.2 Focusing the light beam

• The terminal part of the illuminator is equipped with a

beam focusing system

• By moving up or down the terminal part ②, you can

concentrate or di󰀨use the beam of light.

1. Move the terminal part downwards to have a more

concentrated light beam. (Fig. 6)

2. Move the terminal part upwards to have a more di󰀨use

light beam. (Fig. 7)

①

FFig. 7ig. 7

FFig. 6ig. 6

②

Page 10

8.3 Charging the battery

1. Connect the mini USB terminal of the cable to the LED

illuminator. (Fig. 8)

2. Connect the USB terminal to the power supply and

then plug the power supply into the wall outlet

• A green light lights up while the battery is charging.

• If you use the LED illuminator when the USB cable

is connected, the charging light turns red.

FFig. 8ig. 8
