Opticon LGZ 7225 Manuel utilisateur
User’s Manual
LGZ 7225
Long Range Handheld
CCD Scanner
25-ULGZMU01-01
Keyboard Wedge Interface
USB Interface
RS232 Interface
8 Olympic Drive
Orangeburg, NY 10962
Tel 800.636.0090
Fax 845.365.1251
www.opticonUSA.com
1
Contents
General Information
Unpacking .
Opticon Customer Service and Support
Installation
Default Settings
Interface Selection
Scanning Modes
Beeper Settings
Symbology Options
Prefix/Suffix Strings
Transmission Setting
Parameter Settings List
Programming Bar Codes
2
Getting Started
General Information
The LGZ 7225 CCD Scanner utilizes state-of-the art imaging technology similar to that found in digital
cameras, fax machines and video camcorders. The captures an “image” of the bar code and converts it into
digital signals that the host computer understands.
The scanner automatically recognizes most common bar code symbologies.
The scanner, which utilizes miniature, surface-mounted electronics, has no moving parts and will provide
years of trouble-free operation.
The LGZ 7225 is available in several different interface configurations.
Keyboard Wedge (PS2 or AT/XT)
RS 232
USB
Unpacking
Remove the scanner from its packaging and inspect it for damage. Save the carton and packing material. If
the scanner was damaged in transit, call the dealer or distributor from whom you purchased it. If you
purchased it directly from Opticon, call Opticon Customer Service Dept. at 800-636-0090.
Opticon Customer Service and Support
If you have any questions or need assistance with installing or programming your scanner call Opticon
Customer Service Department at (800) 636-0090.
Before you call, record the model number of the scanner. This information is located on the bottom side of
the scanner. Also please have the scanner available plus some bar codes to scan.
3
LGZ7225 Long Range Handheld CCD Spec
160 g (cable not included)
Cable - K/B Wedge Straight 2.0 m
Cable - universal type Straight 2.3 m
Connector type RJ-45 phone jack connector
Case material ABS plastic
Cushion material Rubber
Electrical
Input Voltage 5 VDC r0.25V
Power - Operating 1275 mW
Power - Standby 600 mW
Current - Operating 255 mA @ 5VDC
Current - Standby 120 mA @ 5VDC
DC Transformers Class 2; 5VDC @ 450 mA
Agency listing UL, FCC Class A
Environmental
Operating Temperature 0qto 45qC (32qF to 113qF)
Storage
-40qC to 60qC
(-40qF to 140qF)
Humidity
5% to 90% relative humidity,
non-condensing
Light Level Up to 60000 Lux
Shock 1.5m drop onto concrete
Contaminants
Seals to resist airborne particulate
contaminants
Ventilation None required
4
Default Setting for each barcode shown as below:
Code Type Read Checksum
Verifacation
Checksum
Transmission
Code ID
UPC-A X X X A
UPC-E X X X E
EAN-13 X X X F
EAN-8 X X X FF
Code-39 X *
Interleaved 2of5 X X i
Industrial 2of5 i
Matrix 2of5 B
Standard 2of5 i
China Post t
Codabar %
Code-128 X X #
Code-93 &
Code-11 O
MSI/Plessey @
UK/Plessey @
Telepen S
Italian Pharmaode. p
5
Programming
Programming
method
Manual (Reading special barcode) DOS
command through RS-232, Windows
configuration program
Program upgrade Enabled by built-in flash memory
Programmable
characteristics
Code type selection, check digit
selection Decoding option Decoding
option Transmitted character delay,
Header selection, trailer selection,
message suffix, good read beep tone
and volume, scanner trigger selection
Keyboard emulation type
(intermessage delay, keyboard type
and keyboard language)
Serial interface type (ACK/NAK,
Xon/Xoff, RTS/CTS, good read LED
control, start/stop bits)
6
Programming the
LGZ7225
To program the LGZ7225 you must scan a series of
programming barcode in the correct order. Fold out the back
cover of this manual. You will see a table of alphanumeric
barcodes, which are used to program the various options
presented.
To program each option, you must:
1. Scan the Program barcode on the parameter setting part.
2. Enter the option mode by scanning the Option Bar Code
(also on the Parameter setting part).
3. To the right of the option barcode, the necessary
alphanumeric inputs are listed. Scan these alphanumeric
entries from the back fold out page. To confirm above
steps, you must scan the Finish barcode on the back fold
out page.
4. Once you have finished programming. Scan the Exit
barcode, listed on the lower right hand corner of each
parameter setting part.
7

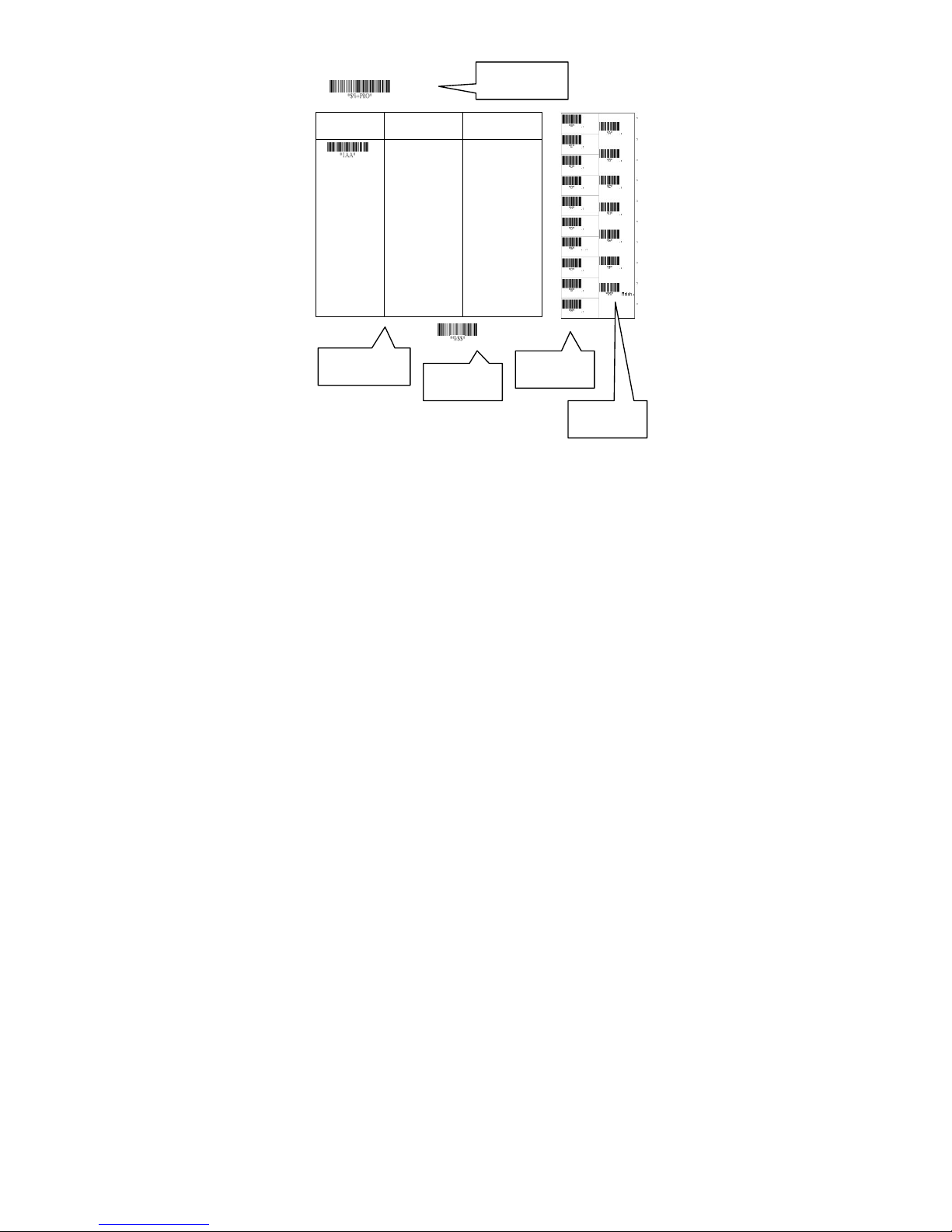

Option Bar Code Option Alphanumeric Entry
Interface
selection
Keyboard Wedge
RS-232
Wand emulation
USB
Keyboard/RS-232
Auto detection
reserved
00ഖ
01
02
03
04
05
Back Fold Out
Finish barcode
Exit Barcode
Option Barcode
Program Barcode
Exit
Program
8
Interface Selection
This decoder built-in scanner comes in one model and
supports interfaces such as keyboard wedge, RS232 serial
wedge, wand emulation, and the latest USB interface. In
most of the cases, simply sutilizing the an appropriate cable with
a device code will work for a specific interface.
Interface selection: You can change factory interface
default for other type interface. By plugging different cables,
setting correct interface, then the scanner will be changed to
another interface. However, you must make sure which cable
you need.
Keyboard/RS232/UBS Auto detection: By setting this
function, it will automatically select the Keyboard wedge or
RS-232 or UBS interface for user.

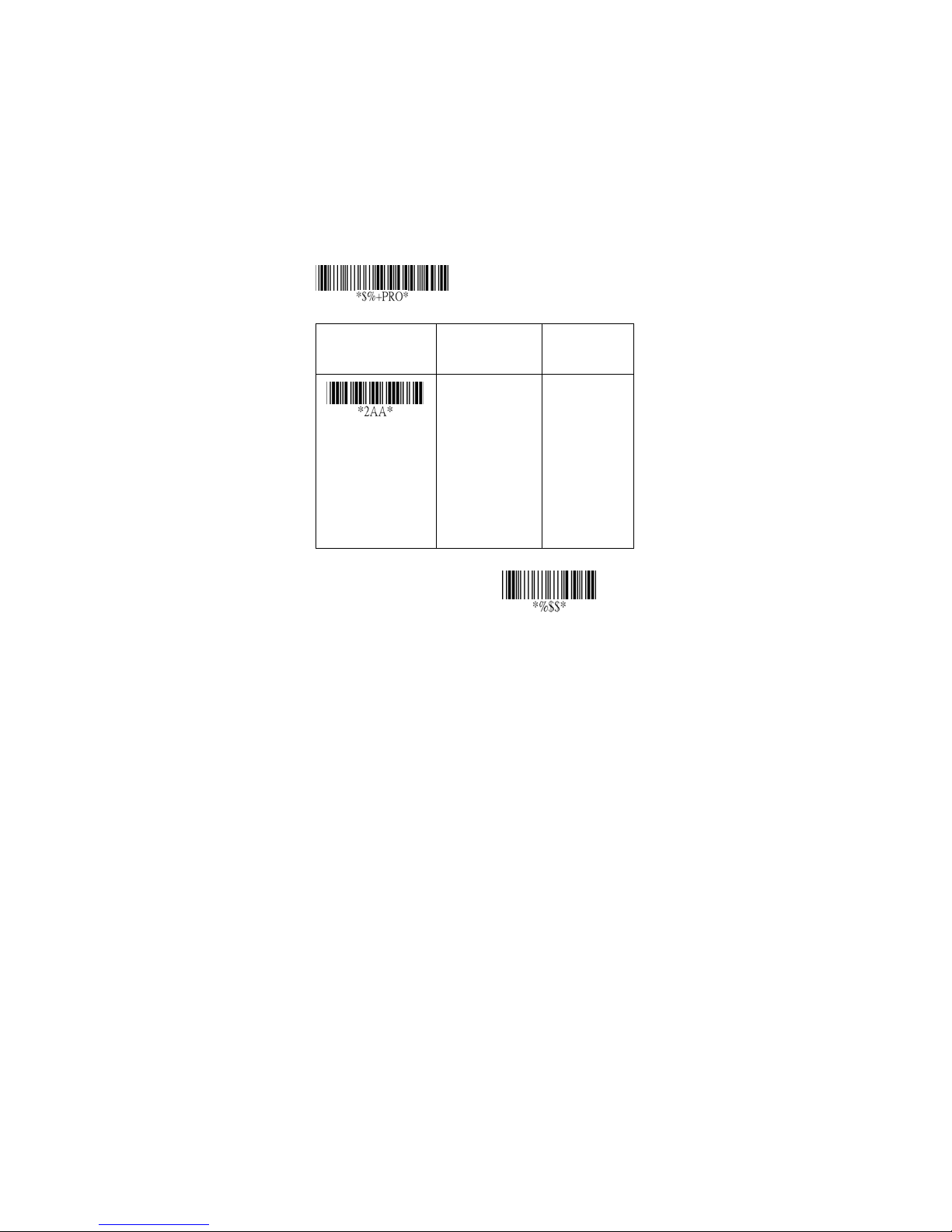

Program
Option Bar Code Option Alphanumeric
Entry
Interface selection
Keyboard Wedge
RS-232
Wand emulation
USB
Keyboard
/RS232/USB
Auto detection
Reserved
00
01
02
03
04ഖ
05
Note:ഖ-Default
Exit
9
Keyboard wedge
As a keyboard interface, the scanner supports most of the
popular PCs and IBM terminals. The installation of the wedge
is a fairly simple process without any changes of software or
hardware.
Keyboard Type: Select keyboard type connector of your
host computer. Scanner must be selected to the appropriate
host interface cable converter.
Program
Option Bar Code Option Alphanumeric
Entry
Keyboard type
IBM AT, PS/2
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
00ഖ
01
02
03
04
05
06
Exit
10
