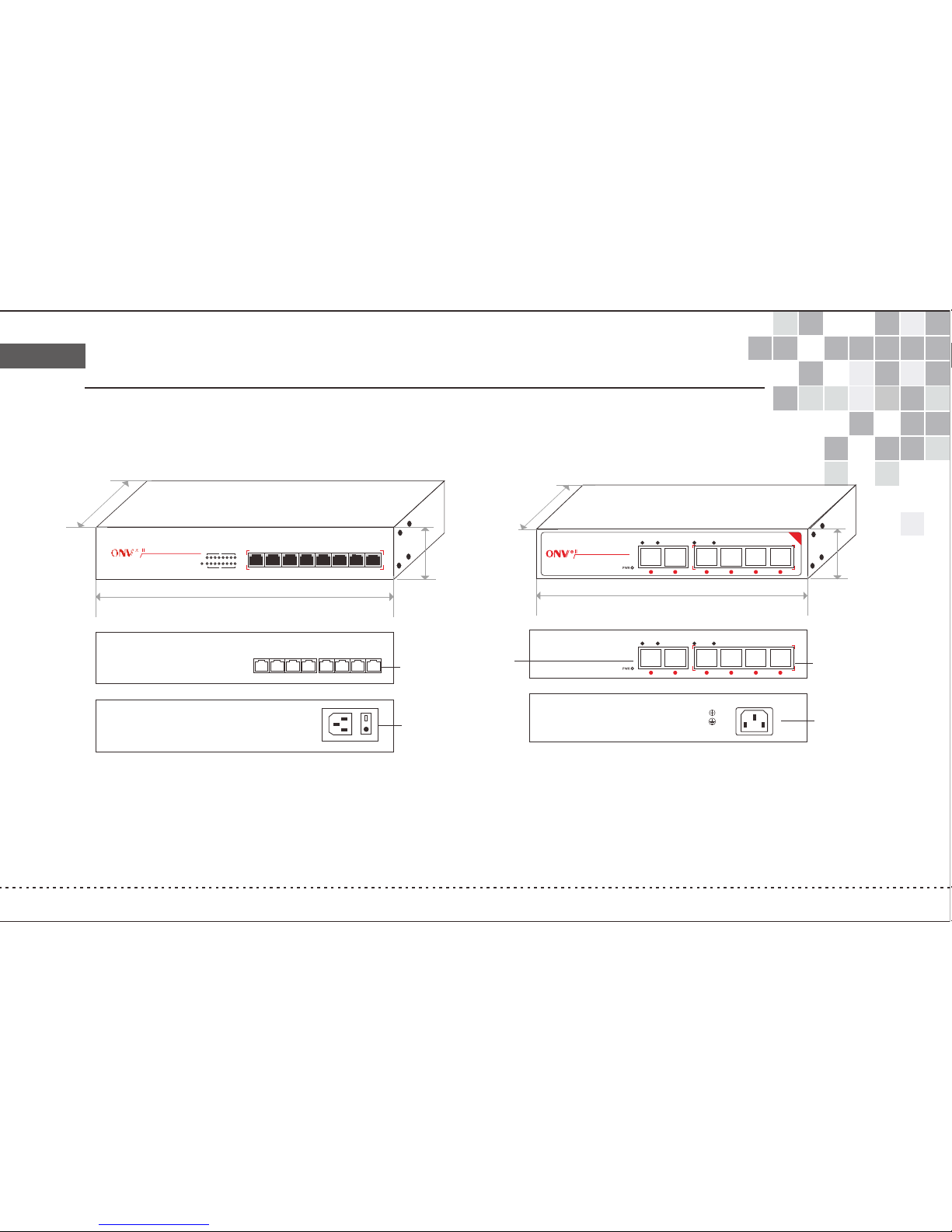

Model Descriptions and Installation
P : 8OE33008P Ports 10/100/1000M Switch, Transmission Distance 100M，1-8 Port support PoE，IEEE 802.3af，15.4W for each
Port, Total Power 120W, Internal PSU
P 33008P 8 Ports 10/100/1000M Switch, Transmission Distance 100M，1-8 Port Support PoE，IEEE 802.3at，30W for OE -at :
each Port, Total Power 220W, Internal PSU
P : 8OE33804P Ports 10/100/1000M Switch, Transmission Distance 100M，1-4 Port support PoE，IEEE 802.3af，15.4W for each
Port, Total Power 60W, Internal PSU
P 3 04P 8 Ports 10/100/1000M Switch, Transmission Distance 100M，1-4 Port Support PoE，IEEE 802.3at，30W for OE3 8 -at :
each Port, Total Power 120W, Internal PSU
Connect to power
Gigabit PoE switch adopts AC 100-240V, 50/60Hz.
1.Please check the power supply specification matches with the required;
2.Connect switch power wire to AC power socket, shown as in the following figure.
After installation, please check:
If there is enough space for heat sink; if the power socket is suitable for switch specification; if the power, switch and rack are
properly grounded and if the connection between switch and other network equipments are normal.
Power Supply Connection Figure Mounting Kits Installation Figure Rack Installation Figure
L Angle Iron
Screw
12345678
100M
1000M
PWR
10/100/1000 M PoE Switch
Power Over Ethernat Gigabit PoE Switch
LINK PoE
P 3 4P Ports 10/100/1000M Switch, Transmission Distance 100M，3-6 Port Support PoE，IEEE 802.3af，15.4W for OE3 06 : 4+2
each Port, Total Power 65W, Internal PSU
