Using the Main Unit with <C-HDSAT> Tuner Board

Instruction Manual for ONKYO TX-NR1000 / Integra DTR-10.5 / Integra Research RDC-7.1

Thank you for purchasing the Tuner Board <C-HDSAT>. When this optional board is inserted into option slot “K” on the main

unit’s rear panel, it can be used as the XM or SIRIUS/FM Stereo/AM tuner terminal. Furthermore, <C-HDSAT> becomes capable

of supporting HD Radio™ functionality and RDS as well.

Usage varies depending on the main unit to which you want to add the optional board. Refer to the user’s manual that comes with

your main unit before starting operations.

Caution:

• Before connecting or disconnecting the board, make sure to power off the main unit, and then unplug the power cord from the

AC outlet. Connecting or disconnecting the board while power is being supplied to the main unit may cause failure.

• Plug the optional board into the individual designated slot. Plugging it into the wrong slot may cause failure.

Verify the following items are included in the package:

Supplied Accessories

Board Allen wrench (1 EA)

Hand screws for

removing board

Hexagon

screwsFM antennaAM antenna

For some main units, instructions may be provided in the user’s manual. In this case, please ﬁnd instructions in the manual

that comes with your main unit.

C-HDSAT.fm 1ページ２００７年３月７日水曜日午後１時５３分

Installing Board

Power off the main unit, and then unplug the

power cord from the AC outlet.

Remove the “K” sub-panel or board from the

main unit to which you want to add on the

optional board.

■

If any other slot is already used:

Remove the hexagon screws, one

top and one bottom of slot “K,”

using the provided Allen wrench

in the same way described below.

Retain the hexagon screws for

subsequent reuse.

Next, introduce the hand screws

attached to the board into the top

and bottom screw holes, and

drive them in as deep as about 3/

16" (5 mm). Hold the screw

heads to pull out the board.

REMOTE

CONTROL

MAIN

12V

TRIGGER

OUT

UPP

200mAMAX.

100mAMAX.

ZONE

OUT

VIDEO

ANTENNA

■

If this is the ﬁrst time a slot is used:

Using the providedAllen wrench,

loosen the hexagon screws, one

top and one bottom of slot “K,” to

remove the sub-panel from the

rear panel. In doing so, loosen the

screws gradually while holding

the sub-panel to prevent it from

falling. Retain the hexagon

screws for subsequent reuse.

Remove the sealing sticker carefully and take

the board out of the bag.

Do not touch any parts, solder

surfaces, or contact points of the

connectors with bare hands to

prevent electrostatic damage on

the circuit. Be sure to hold the

outer edges or panel part of the printed circuit board.

REMOTE

CONTROL

MAIN

12V

TRIGGER

OUT

UPP

200mAMAX.

100mAMAX.

ZONE

232

OUT

BNC

)

OMPONENTVIDEO

C-HDSAT.fm 2ページ２００７年３月７日水曜日午後１時５３分

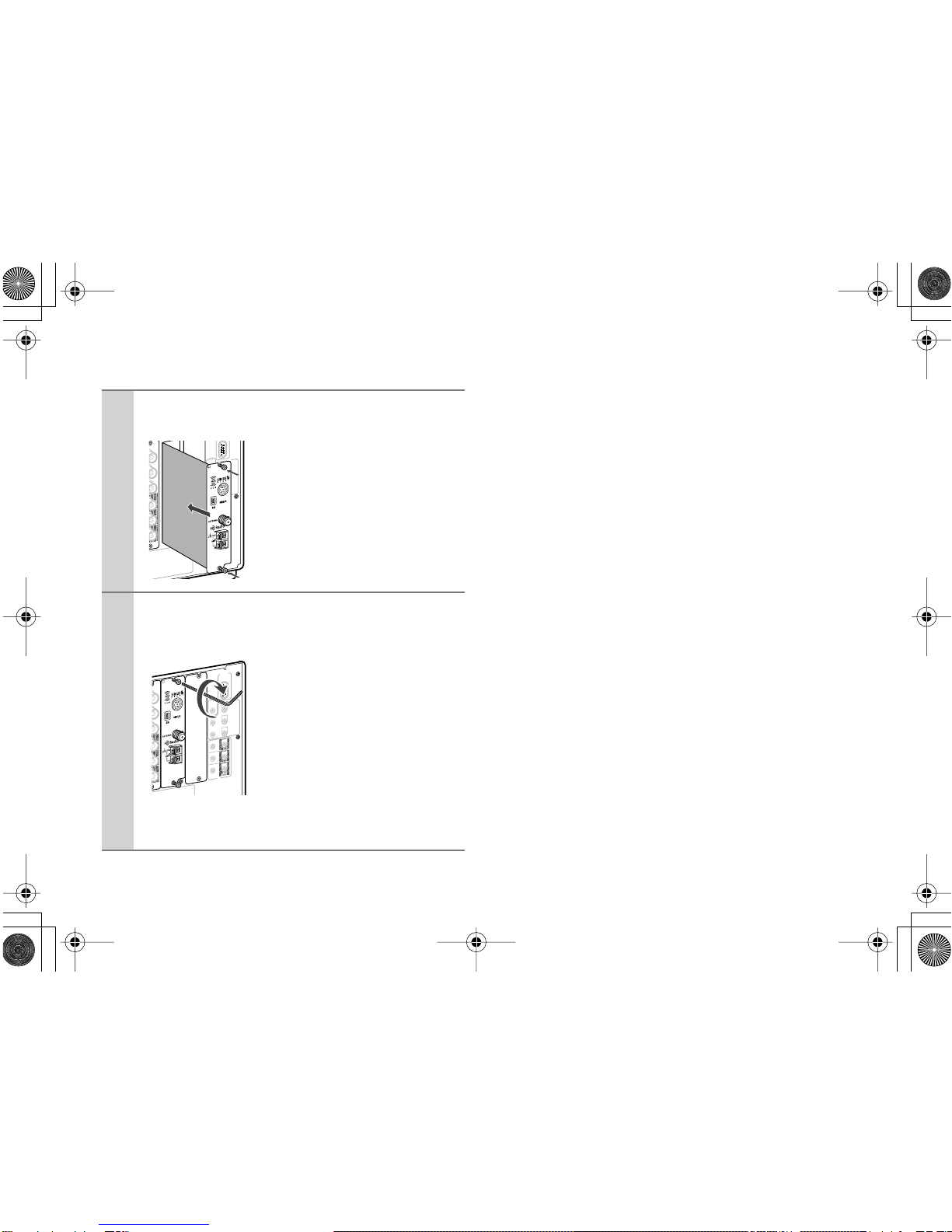

Insert the option board along the upper and

lower guide rails.

When the board hits the connector,

apply a little more pressure so that

the connector can be inserted com-

pletely. Make sure the surface of

the panel becomes ﬂush for perfect

insertion.

Fix the option board ﬁrmly to the main unit

using the hexagon screws on the top and bot-

tom.

Make sure to fasten the two screws

completely. If they are loose, the

electrical contact between the ter-

minals and the ground or the signal

line may be poor and it may cause

failure.

Caution:

Be sure to fasten the screws with

washers, if exist, that were previ-

ously used to secure any board on the

slot.

REMOTE

CONTROL

MAIN

12V

TRIGGER

OUT

UPP

200mAMAX.

100mAMAX.

ZONE

OUT

VIDEO

REMOTE

CONTROL

MAIN

12V

TRIGGER

OUT

UPP

200mAMAX.

100mAMAX.

ZONE

232

OUT

VIDEO

C-HDSAT.fm 3ページ２００７年３月７日水曜日午後１時５３分

Using XM Satellite Radio

Note:

Hardware and required monthly subscription sold separately.

Other fees and taxes, including a one-time activation fee may

apply. Subscription fee is consumer only.

All fees and programming subject to change. Channels with

frequent explicit language are indicated with an XL. Channel

blocking is available for XM radio receivers by calling 1-800-

XMRADIO (US residents) and 1-877-GET-XMSR (Canadian

residents).

For a full listing of the XM commercial-free channels and

advertising-supported channels, visit

lineup.xmradio.com (US residents) or xmradio.ca (Canadian

residents).

Subscriptions subject to Customer Agreement available at

xmradio.com (US residents) and xmradio.ca (Canadian resi-

dents). Only available in the 48 contiguous United States and

All other trademarks are the property of their respective own-

ers.

Listening to XM Satellite Radio

Important XM Radio Information

XM Satellite Radio offers an extraordinary variety of

commercial-free music, plus the best in sports, news,

talk and entertainment. XM is broadcast in superior dig-

ital audio from coast to coast. From rock to reggae,

from classical to hip hop, XM has something for every

music fan. XM’s dedication to playing the richest selec-

tion of music is matched by its passion for live sporting

events, talk radio, up-to-the-minute news, stand-up

comedy, children’s programming, and much more. For

U.S. customers, information about XM Satellite Radio

is available online at

www.xmradio.com. For Canadian customers, informa-

tion about XM Canada is online at

www.xmradio.ca.

C-HDSAT.fm 4ページ２００７年３月７日水曜日午後１時５３分

A warning against reverse engineering:

It is prohibited to, and you agree that you will not, copy,

decompile, disassemble, reverse engineer, hack, manipulate,

or otherwise access and/or make available any technology

incorporated in receivers compatible with the XM Satellite

Radio system. Furthermore, the AMBE

voice compression

software included in this product is protected by intellectual

property rights including patent rights, copyrights, and trade

secrets of Digital Voice Systems, Inc. The software is licensed

solely for use within this product. The user of this or any other

software contained in an XM Radio is explicitly prohibited

from attempting to copy, decompile, reverse engineer, hack,

manipulate or disassemble the object code, or in any other way

convert the object code into human-readable form.

Connecting the XM Mini-Tuner and Home Dock

To receive XM Satellite Radio, you need an XM Mini-Tuner

and Home Dock, which includes a home antenna. These are

sold separately. For connection information, refer to the

instruction manual supplied with the XM Mini-Tuner and

Home Dock.

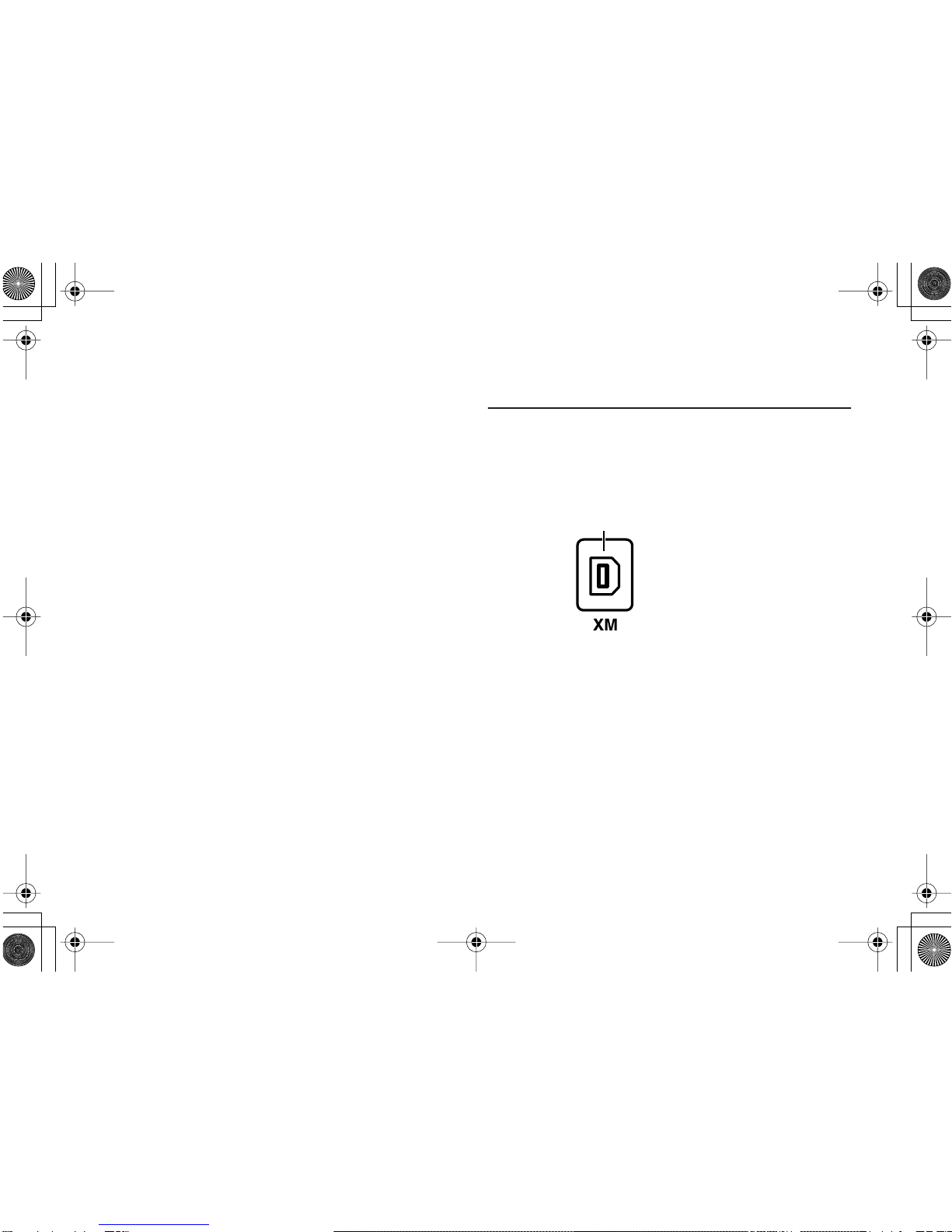

XM Mini-Tuner jack

C-HDSAT.fm 5ページ２００７年３月７日水曜日午後１時５３分

You can use your main unit and the remote controller supplied with your main unit to perform XM Radio operations.

Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the

remote controller, respectively, and their corresponding operations.

* In this Instruction Manual, all the button names are essentially provided in capital letters. On some models, however, the names may be different

and written in small letters except for their initial character. Refer to the above table for proper operations.

XM Radio Operation Main Unit button names Remote Controller button names

FM-AM-XM band select

TUNER/Tuner selector Scroll wheel

Channel Up/Down

CONTROL/TUNING dial

Tuning Up/Down, /

Category Up/Down

Push SELECT/PRESET dial

Search Mode select

TUNING MODE/Tuning Mode ENTER/Enter

Previous Channel

EXIT/Exit RETURN/Return

Display

DISPLAY/Display DISPLAY/Display

Preset

MEMORY/Memory -

Preset Clear

MEMORY + TUNING MODE

Memory + Tuning Mode

Preset Up/Down

SELECT/PRESET dial

Preset Up/Down

CH +/–

Direct Tuning

- DIRECT TUNING and Number buttons

Setup Up/Down

SELECT/PRESET dial, / /

Setup Left/Right

CONTROL/TUNING dial,

Setup Enter

Push SELECT/PRESET dial, Enter ENTER/Enter

C-HDSAT.fm 6ページ２００７年３月７日水曜日午後１時５３分

Setting the Satellite Radio Mode

Selecting XM Satellite Radio

Signing Up for XM Satellite Radio

Before you can use XM Satellite Radio, you must ﬁrst sign up for

an account.You’ll need a major credit card and your

XM Satellite

Radio ID,

which you can get from the main unit, as explained

below, or from the Mini-Tuner System package and itself.

Notes:

• “RADIO ID” cannot be selected in Category Search mode.

You must select Channel Search mode (see page 8).

• The following letters are not used in XM Satellite Radio

IDs: I, O, S, F.

Press the [SETUP] button.

Use the [ ]/[ ] buttons to select “Hardware

Setup,”and then press [ENTER].

Use the [ ]/[ ] buttons to select “SAT Radio,”

and then press [ENTER].

Use the [ ]/[ ] buttons to select “XM.”

None

: Select if you’re not using satellite radio.

: Select to use XM Satellite Radio.

SIRIUS

: Select to use SIRIUS Satellite Radio.

Press the [SETUP] button.

Press the [TUNER] input selector button

repeatedly to select XM.

Use the [ ]/[ ] buttons or CONTROL/TUNING

dial to select “RADIO ID.”

Your XM Satellite Radio ID number is displayed. Write

it below.

To sign up, go to:

http://activate.xmradio.com

Or call: 1-800-967-2346

For XM Canada, go to:

http://xmradio.ca

Or call: 1-877-GET-XMSR

C-HDSAT.fm 7ページ２００７年３月７日水曜日午後１時５３分

There are three ways to select XM radio channels:

•

Channel Search mode:

select any channel.

•

Category Search mode:

select channels by category.

•

Direct tuning:

enter channel number.

■

Channel Search Mode

■

Category Search Mode

■

Direct Tuning

You can select an XM radio channel directly by entering its

number by remote controller.

Selecting the Previous Channel:

To listen to the previously selected XM channel, press the

[RETURN] or [EXIT] button.

Selecting XM Radio Channels

Press the [ENTER] or [TUNING MODE] button

to select “Channel Search”mode.

Use the [ ]/[ ] buttons or CONTROL/TUNING

dial to select a channel.

You can also use the [ ]/[ ] buttons or push

SELECT/PRESET dial to select a category.

Press the [ENTER] or [TUNING MODE] button

to select “Category Search”mode.

Use the [ ]/[ ] buttons to select a category, and

use the [ ]/[ ] buttons to select a channel in

that category.

Or push the SELECT/PRESET dial to select a category,

and rotate the CONTROL/TUNING dial to select a

channel in that category.

Press the [DIRECT TUNING] button.

Within 8 seconds, use the number buttons to

enter the channel number.

The channel is selected.

For example, to select channel #20, press 0, 2, 0, or 2, 0,

[ENT].

C-HDSAT.fm 8ページ２００７年３月７日水曜日午後１時５３分

You can store a combination of up to 40 of your favorite XM

channels and AM/FM radio stations as presets.

■

Selecting Presets

■

Deleting Presets

Presetting XM Radio Channels

Tune into the XM channel that you want to store

as a preset.

Press the [MEMORY] button.

The MEMORY indicator appears and the preset number

ﬂashes.

While the MEMORY indicator is displayed

(about 4 seconds), use the SELECT/PRESET

dial or Preset Up/Down buttons to select a pre-

set number from 1 through 40.

Press the [MEMORY] button again to store the

channel.

The channel is stored and the preset number stops ﬂash-

ing.

Repeat this procedure for all of your favorite XM chan-

nels.

To select a preset, use the SELECT/PRESET

dial or Preset Up/Down buttons, or the remote

controller’s CH [+/–] button.

Select the preset that you want to delete.

See the previous section.

While holding down the [MEMORY] button,

press the [TUNING MODE] button.

The preset is deleted and its number disappears from the

display.

C-HDSAT.fm 9ページ２００７年３月７日水曜日午後１時５３分

Press the [DISPLAY] button repeatedly to cycle

through the available information.

The indication on the Channel Name switches among the fol-

lowing titles:

Channel name

Category name (CAT)

Artist name (NAME)

Song title (TITL)

Listening Mode

Note:

• If the category, artist, or song title is not available,

“- - -” will be displayed instead.

■

Displaying XM Information on Your TV

When you select a different XM channel, or the artist or song

title changes, the following information is displayed on your

TV for 3 seconds.

Tip:

You can display this information at anytime by pressing the

[DISPLAY] button.

■

XM Radio Messages

The following messages may appear while using XM radio.

CHECK ANTENNA

The XM antenna is not properly connected to the Mini-Tuner

Dock. Check the connection. Check the antenna cable for

damage.

UPDATING

XM is updating your Mini-Tuner with the latest encryption

code. Simply wait a few seconds until the update is done. OR,

You may be attempting to tune to a channel that is blocked or

that you cannot receive with your subscription package. To

receive that channel, contact XM Satellite Radio.

NO SIGNAL

The XM Mini-Tuner can not receive the satellite signal. Check

the XM antenna for obstructions to the southern sky. Check the

antenna positioning with the Antenna Aiming feature.

The AV receiver is tuning or decoding audio or text data.

Please wait. If this occurs often, check the XM antenna posi-

tion with the Antenna Aiming feature.

Displaying XM Radio Information

Channel Number

Channel Name Preset Number

CHANNEL : Channel name

CAT: Category name

NAME: Artist name

TITLE: Song title

0 5ch50

C-HDSAT.fm 10 ページ２００７年３月７日水曜日午後１時５３分

Autres manuels pour TX-NR1000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Onkyo Tuner

Onkyo

Onkyo T-433 Manuel utilisateur

Onkyo

Onkyo T-4555 - Radio Tuner Manuel utilisateur

Onkyo

Onkyo T-4087 Manuel utilisateur

Onkyo

Onkyo T-4555 - Radio Tuner Manuel utilisateur

Onkyo

Onkyo T-404 Manuel utilisateur

Onkyo

Onkyo T-405TX Manuel utilisateur

Onkyo

Onkyo T-4020 Manuel utilisateur

Onkyo

Onkyo T-05 Manuel utilisateur

Onkyo

Onkyo T-4070 Manuel utilisateur

Onkyo

Onkyo T-4700 Manuel utilisateur

Onkyo

Onkyo T-4030 Manuel utilisateur

Onkyo

Onkyo T-4000 Manuel utilisateur

Onkyo

Onkyo T-405X Manuel utilisateur

Onkyo

Onkyo T-411RDS Manuel utilisateur

Onkyo

Onkyo T-9090 II Manuel utilisateur

Onkyo

Onkyo T-4355 Manuel utilisateur

Onkyo

Onkyo T-450RDS Manuel utilisateur

Onkyo

Onkyo TX-SV434 Manuel utilisateur

Onkyo

Onkyo T-4037 Manuel utilisateur

Onkyo

Onkyo UP-DT1 Manuel utilisateur

Onkyo

Onkyo T-4030-S Manuel utilisateur

Onkyo

Onkyo T-405X Manuel utilisateur

Onkyo

Onkyo T-405TX Manuel utilisateur

Onkyo

Onkyo TX-SV727 Manuel utilisateur

Manuels Tuner populaires d'autres marques

Tunersys

Tunersys WS16 1 Manuel utilisateur

Arcam

Arcam DT91 Manuel utilisateur

Magnum

Magnum MD 102T Manuel utilisateur

HDHomeRun

HDHomeRun 20121008 Manuel utilisateur

Crestron

Crestron C2N-TXM Manuel utilisateur

Eico

Eico HFT-92 Manuel utilisateur

MFJ

MFJ MFJ-928 Manuel utilisateur

NAD

NAD C 445 Manuel utilisateur

Sony

Sony ST-SA5ES Manuel utilisateur

Sirius Satellite Radio

Sirius Satellite Radio SC-FM1 Manuel utilisateur

Antique Automobile Radio

Antique Automobile Radio 283501B Manuel utilisateur

Monacor

Monacor PA-1200R Manuel utilisateur

Technics

Technics ST-X301L Manuel utilisateur

Manhattan

Manhattan 176156 Manuel utilisateur

Marantz

Marantz ST-15S1 Manuel utilisateur

Korg

Korg HA-40 Manuel utilisateur

Harman Kardon

Harman Kardon TU915 Manuel utilisateur

Teac

Teac T-1D Manuel utilisateur
