The Evolution 180 Indoor camera is designed for installation
on flat surfaces. The camera is supplied with three different
mounting boxes angled at 0°, 25° and 45°. These mounting
boxes can be used to aim the camera at the most important
area of the scene.
Note: You will require 4 appropriate fixing screws
Camera Module Preparation
1. Undo the two side screws, while holding the camera
cover in place.
2. Remove the cover exposing the camera module.
3. Take care not to touch the lens glass.
Surface Installation
1. Remove the mounting box back cover. Slide the back
cover upward away from the bracket body.
2. Fit the M20 Conduit plug, if the port is unused.
3. Using the drilling template, drill mounting holes.
4. Fix the mounting box onto the installation surface
using appropriate screws for the surface type. Route
the network cable through one of the M20 conduit
holes or at the rear of the mounting bracket.
5. Continue to “Completing Installation”.
Pendant Installation
There are M20 threaded holes in
all of the camera mounting boxes,
to allow them to mount directly
onto the bottom of a threaded
conduit, or onto a compatible
camera pendant arm. A 3/4” NPT adapter is supplied for
3/4” conduits.
1. Screw the Mounting Box onto the threaded conduit
(using the 3/4” NPT adapter if required).
2. Pass a network cable through the conduit into the
mounting box, and terminate the cable.
Completing Installation
1. Connect the network cable to the camera.
2. There are anchor points on the back of the camera to
secure the network cable if required.
3. Fit the camera to the mounting box, ensuring the
arrow on the face of the camera is pointing up, and
secure with the four screws provided.
4. Refit the camera cover using the two side screws.
5. Peel off the lens cover.
The Oncam Evolution 180 Indoor camera is designed to
be connected to an IP network. Configure and operate the
camera using a standard internet browser.
Installation and configuration procedures are described
for standard surface and pendant mount applications.

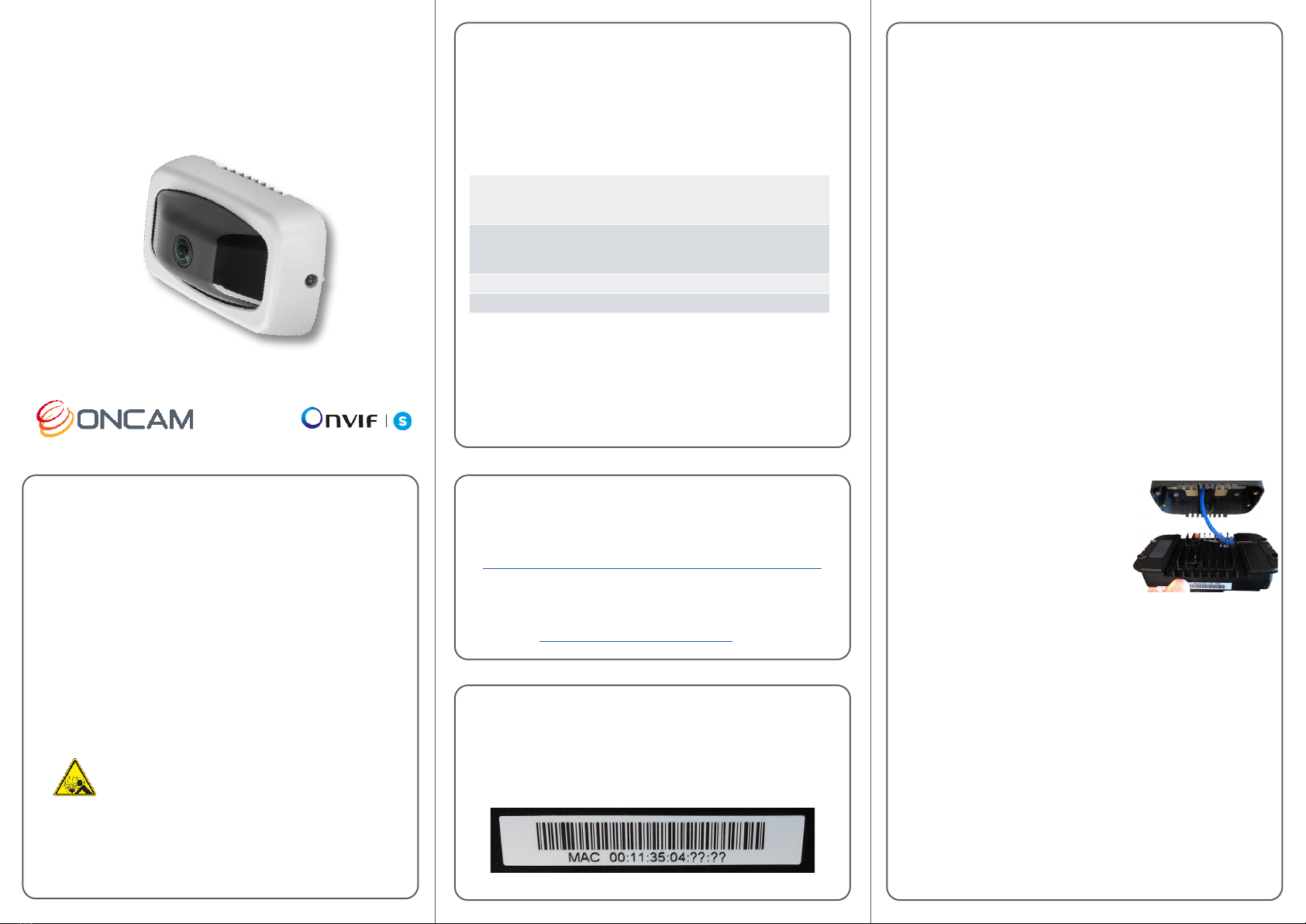

Evolution 180 Indoor Camera
QUICK START GUIDE
Installation & Mounting
Power Input
Power over Ethernet (PoE),
IEEE standard 802.3af or 12 VDC, 1.0 A
(min) LPS, NEC Class 2 power supply
Operating
Temperature
(°C / °F)
0 to + 40°C (-32 to +104°F)
Enclosure Aluminum and Polymer
Weight 0.55 kg (1.21 lbs)
• Read these instructions carefully before
installing or operating this camera.
• This camera should be installed by a qualified
service person and the installation should
conform to local and national regulations.
• This camera is not suitable for installation in
a ceiling void that is used as an air handling
space.
• Certified as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should take
adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
Technical Support
For the Datasheet, A&E Specification, Installation and User
Manual, Software and Firmware visit:
https://www.oncamgrandeye.com/product-downloads/
Tel:UK +44 20 7371 6640
US +1 978 735 4860
Email: [email protected]
MAC Address
Make a note of the camera’s MAC address and installation
location. Find the MAC address printed on the camera
label. This information may be needed during the camera
configuration.
Supplied Parts
• EVO-180 Camera
• 0° Mounting Box
• 25° Mounting Box
• 45° Mounting Box
• 3/4” NPT to M20 adapter
• M20 Conduit Port Plug
EVO-180-WID
• Quick Start Guide
• Drilling Templates
• Screwdriver and Security Bit
• I/O Connector
• Camera Mounting Screws
• M20 Conduit Locking Nut
Welcome
Important
The camera’s web GUI has sophisticated adjustments in the
IMAGE tab, for different mounting angles and scenes.
If the camera itself is tilted, set the wall mount angle corresponding
to the tilt e.g. -25°, -45°, to make vertical lines in the scene parallel.
Scene offset angle allows the panoramic view to be adjusted up or
down to precisely capture the desired scene.
EVO-180-W#D-01 |Indoor |04/2022|Rev 1.1
Powering the Camera
Supply power to the camera with PoE IEEE802.3af through the
integrated RJ45 Ethernet port or using the 12V DC input pins on
the I/O connector. Do not use both power sources at the same
time. Both camera LEDs will be green when the camera is booted
with an ethernet connection.
IP Settings
In order to use the camera you need the IP address.
There are two IP Settings.
• DHCP server or router to automatically assign unique valid
IP addresses to each camera.
• A manually configured network using static IP addresses.
If your network has a DHCP server, go to First Time Camera
Access.Should a DHCP server not be available, the camera
adopts the default static IP address 192.168.0.200.
You will then need to manually assign each camera with a new
unique IP address using the camera configuration tool.
Note: See the camera’s User Manual and Camera Configuration
Tool User Manual for IP Setting.
Using the Camera Configuration
Copyright 2022 by Oncam Global Group AG. Oncam is a trading name of Oncam Global Group AG. All rights reserved. All screen images are simulated. Specifications and
configurations subject to change without notice. Legal Notice: Parts of this product are protected by patents.
First Time Camera Access
Startup
Next Steps
Go to the Oncam website (https://www.oncamgrandeye.com/resour
ces/camera-config-tool/) to download the latest version of the
Camera Configuration tool and corresponding User Manual.
The Camera Configuration tool quickly finds the IP and MAC
addresses of all Oncam Evolution cameras connected to the
network. It also allows you to change network settings, configure
the system and perform software updates on multiple cameras.
Initiate a new scan by clicking the Full Discover button
Start the application by clicking the CameraConfigurationTool icon
found on your desktop or from the program list (under Oncam
Grandeye). The software scans the network and provides
a list of all connected Oncam Evolution cameras.
Note: Some functions in this tool require a username and password.
If accessing the camera for the first time, an administrator
username and password will need to be set.
Web Browser
1. If you know the IP address of the camera, enter this into
the address bar of your web browser (Internet Explorer,
Edge, Firefox or Chrome). The camera should be on the
same network.
2. Create an Admin username and password.
Camera Conguration Tool
1. Select a camera from the camera list
2. Select your browser to open the web interface.
3. Click OK on the authentication pop up. You will then
be prompted to create and set an Admin username and
password to access the camera.
Notes:
Internet Explorer 11 is required to view live camera images in
the browser. All other browsers can be used for Configuration
Purposes only.
Ensure you have the latest VLC Media Player (http://www.
videolan.org/vlc/index.html) for viewing camera images on the
web interface.
Download our FREE ONVU360 Pro mobile application and put the
360-degree experience right at your fingertips.
Scan the QR Code to get it now!
Android iOS
